NMR Microscopy

1

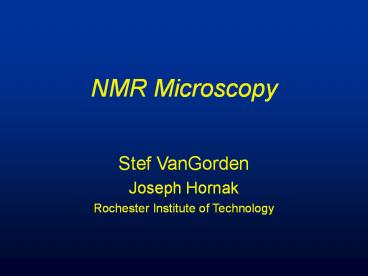

NMR Microscopy

• Stef VanGorden
• Joseph Hornak
• Rochester Institute of Technology

2
Objective

• The main goal of this research was to create a
  NMR microscope capable of producing a 1 mm thick,
  approximately 112 micron in-plane resolution
  tomographic images.
• Bruker 300 DRX Spectrometer

3
Overview of my Presentation

• Background
• Experimental
• Applications
• Conclusions

4
BACKGROUND
5
Energy Level Diagram

• n g B
• g 42.58 MHz/T

(Hornak 1997)
6
Sample with a Uniform Field
N
Hydrogen Molecules
S
(Hornak 1997)
7
Sample with Increasing Gradient
Hydrogen Molecules
n g B g x Gx
(Hornak 1997)
8
EXPERIMENTAL
9
Starting Point

• Reproduction of previous 1-D and 2-D imaging
  results.
• Slice Selective Sequence Evaluation

10
Slice Selective Sequence
Gz
Gy
Gx
Slice Selective Case (tomographic slice)
11
Timing Diagram for the Slice Selective NMR
Microscope
12
Variables
THK 2/(gGztw)
Thick Slice (From 1mm to 10 mm) Width of 90
pulse 80 µs tw (180) 160 µs Amplitude
attenuation 20 dB
Thin Slice (From .5 mm to 1 mm) Width of 90
pulse 157 µs tw (180) 314 µs Amplitude
attenuation 26 dB
13
Applying Gradients
THK 2/(gGztw)
100 50 G/cm Maximum 10 5 G/cm gt 6 mm 60
30 G/cm gt 1 mm
14
Feature Documentation
In-plane Resolution Phantoms Slice Thickness
Phantoms
15
In-plane Resolution
16
In-plane Resolution
284 mm
112 mm
Fishing line in capillary tubes
Glass rods
17
In-plane Resolution
1 pixel 23.7 mm

• 45 mm -- 112 mm
• object --- image

18
Slice Thickness Phantom
Screw phantom in sample tube
Signal from the screw phantom.
THK (f/360) (1/32 in/threads)(25.4 mm/in) THK
.8 mm for an angle of 360
19
Nylon Screw Phantom Images
x
x
y
y
z
y
One or more rotations
x
x
y
y
Less than one rotation
20
Cone Phantom Design
Illustration of Cone Phantom
21
Cone Phantom Images
Images with slice thickness of 1mm and .5 mm
respectively.
.711 mm
22
Analyzing Wedge Images
.55mm
4
4.25mm
Portion of Sample Tube (profile of middle)
23
APPLICATIONS
24
Celery Images
Thick slice
Thinner slice
Thinnest slice
Day 1 Images
Two Weeks Later
25
House Fly Image
26
Conclusion

• Moved practical NMR microscopy at RIT closer to
  reality.
• Current Capabilities slice thickness .5
  mm in-plane resolution 100 microns

27
The Next Step ...

• Slice Selection Locator
• SNR improvements
• Further In-plane Resolution Evaluation

Slice Selection Locator
