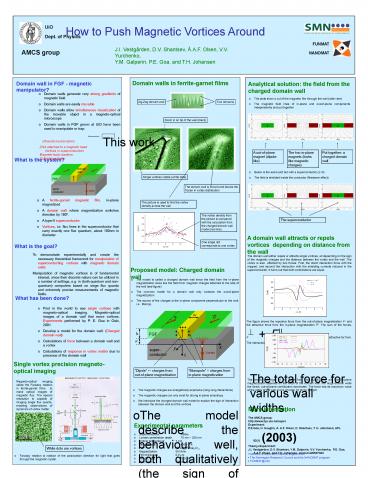

Title: AMCS group

How to Push Magnetic Vortices Around
UiO Dept. of Physics
J.I. Vestgården, D.V. Shantsev, Å.A.F. Olsen,
V.V. Yurchenko, Y.M. Galperin, P.E. Goa, and
T.H. Johansen
AMCS group
Domain wall in FGF - magnetic manipulator?
  • Domain walls generate very strong gradients of
    magnetic field
  • Domain walls are easily movable
  • Domain walls allow simultaneous visualization of
    the movable object in a magneto-optical
  • Domain walls in FGF grown at UiO have been used
    to manipulate or trap
  • Ultracold neutral atoms
  • DNA attached to a magnetic bead
  • Vortices in superconductors
  • Magneto-tactic bacteria
  • Colloidal particles

This work
What is the system?
  • A ferrite-garnet magnetic film, in-plane
  • A domain wall where magnetization switches
    direction by 180º.
  • A type-II superconductor
  • Vortices, i.e. flux lines in the superconductor
    that carry exactly one flux quantum, about 100nm
    in diameter

What is the goal?
To demonstrate experimentally and create the
necessary theoretical framework for manipulation
of superconducting vortices with magnetic domain
walls Manipulation of magnetic vortices is of
fundamental interest, since their discrete nature
can be utilized in a number of settings, e.g. in
(both quantum and non-quantum) computers based on
singe flux quanta and extremely precise
measurements of magnetic fields.
Proposed model Charged domain wall
  • The model is called a charged domain wall since
    the field from the in-plane magnetization looks
    like the field from magnetic charges attached to
    the side of the wall (see figure)
  • The common model for a domain wall only contains
    the out-of-plane magnetization
  • The source of the charges is the in-plane
    component perpendicular to the wall, i.e.

Dipole - charges from out-of-plane
Monopole charges from in-plane magnetization
  • The magnetic charges are energetically expensive
    (long rang interactions)
  • The magnetic charges can only exist for strong
    in-plane anisotropy
  • We introduce the charged domain wall model to
    explain the sign of interaction between the
    domain wall and the vortices
  • The model describe the behaviour well, both
    qualitatively (the sign of interaction) and
    quantitatively (the excess vortex distribution)

More information The AMCS group http//www.fys Experiment P.E.Goa, H. Hauglin,
Å. A.F. Olsen, D. Shantsev, T. H. Johansen, APL
82(1) (2003) TheoryExperiment J.I.
Vestgården, D.V. Shantsev, Y.M. Galperin, V.V.
Yurchenko, P.E. Goa, Å.A.F. Olsen, and T.H.
Johansen, cond-mat/0607043
  • Experimental parameters
  • Superconductor NbSe2
  • London penetration depth 70 nm 200 nm
  • Critical temperature 7.2 K
  • Temperature 4 K 7 K
  • FGF (Bi,Lu)3(FeGa)5O12
  • Magnetization 50 kA/m
  • Film thickness 0.8 mm
  • Film/SC gap 140 nm
  • Wall width 400 nm 3 mm
  • This work is done with financial support from
  • The Norwegian Research Council and the NANOMAT
  • FUNMAT_at_UiO
