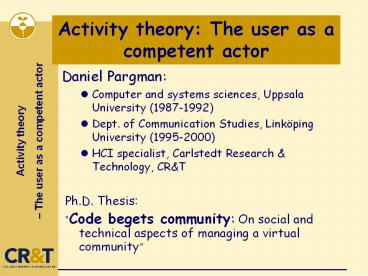

Activity theory: The user as a competent actor

1
Activity theory The user as a competent actor

• Daniel Pargman
• Computer and systems sciences, Uppsala University
  (1987-1992)

• Dept. of Communication Studies, Linköping
  University (1995-2000)

• HCI specialist, Carlstedt Research Technology,
  CRT

Ph.D. Thesis Code begets community On social a
nd technical aspects of managing a virtual
community
2
Daniel and Activity theory

• Ph.D. Course with Yrjö Engeström in Linköping
  1996. Result confusion.

• Five (5) years of thinking and struggle with
  activity theory. Result avoided to use activity
  theory in my Ph.D. thesis.

• Ph.D. Course with Yrjö Engeström in Ronneby 2000.
  Result much less confusion.

3
The basic mediational triangle

• The basic mediational triangle from
  cultural-historical psychology (Russia, 20s and
  30s)

• Tools are both physical/technical tools and
  psychological/mental tools (Vygotsky).

4
Cultural-historical (socio-cultural) psychology

• Social, cultural, historical and institutional
  factors play large role in human cognition and
  communication

• All higher mental functions have a social origin
  (Vygotsky).

• Action (both social and individual), can not be
  separated from the social, cultural, historical
  and institutional context in which it is carried
  out

5
From cultural-historical psychology to activity
theory

• From individuals to collective activities/activity
  systems (Leontiev, 1930s)

• From theories of collective activities (Leontiev)
  to Developmental Work Research, i.e. studies of
  concrete work activities (Engeström)

• From text to graphics (Engeström)
• From verbose to minimalist structure (Engeström)

6
Activity theory in context
7
The general structure of the animal form of
activity
8
Mediation between subject and object
The relation between the subject and the objects
is regulated/mediated by tools
9
Mediation between subject and community
The relation between the subject and the
community is regulated/mediated by rules
10
Mediation between community and object
The relation between the community and the object
is regulated/mediated by a division of labor
11
The structure of human activity (Engeström 1987)
Unit of analysis activity
12
Terms

• Subject the individual/subgroup chosen as the
  point of view in the analysis.

• Tools physical or psychological.
• Community individuals/subgroups who share the
  same general object.

• Division of labor division of tasks between
  members of the community.

• Rules explicit/implicit regulations, norms,
  conventions that constrains action/interaction

• Object the raw material or problem space at
  which the activity is directed and which is
  molded or transformed into outcomes

13
Contradictions, tensions, conflicts, breakdowns
14
Contradictions, tensions, conflicts, breakdowns

• Primary contradictions are dilemmas within
  components of the activity system.

• Secondary contradictions are dilemmas between
  components of the activity system.

• Tertiary contradictions are dilemmas between
  different activity system.


15
Contradictions, tensions, conflicts, breakdowns

• When a strong novel factor is injected into
  one of the components and it thus acquires a new
  quality, pressing secondary contradictions appear
  between that component and some other components
  of the system. For example, when new types of
  patients begin to enter a medical activity
  system, the doctors material and conceptual
  tools for diagnosis and treatment may become
  inadequate
• Engeström, 1993, p.72

16
Contradictions, tensions, conflicts, breakdowns

• Indicators of problems within activity
  systems.

• However, only when problems make themselves known
  that are they possible to treat.

• Only by innovative solutions to surfacing
  systematic problems can an activity develop.


17
Managing a virtual community as an activity system
18
The user as a competent actor

• AT/DWR analyzes structural factors
• Thus, users are always competent and problems
  are never the fault of users.

• Problems instead depend on other factors, like
  systemic contradictions or mismatches between
  objects and artifacts etc.

• Problems that appear contain possibilities for
  their own solution.
