Ongoing Work on PeertoPeer Networks

1

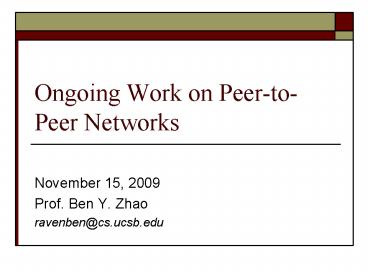

Ongoing Work on Peer-to-Peer Networks

• November 15, 2009
• Prof. Ben Y. Zhao
• ravenben_at_cs.ucsb.edu

2
Large-scale Network Applications

• Context
• trend applications increasing in scale (clients,
  distribution)
• examples wide-area real-time multicast
  (PayPerView), data dissemination (PointCast),
  large distributed FS
• mutual sharing of data, inter-node communication
• Challenges as networks scale
• how does A find a particular piece of data?
• start with simple name (complex queries later)
• how does node A send message to B?IP addresses
  are too static, need app-level location
  independent names
• how do we make communication reliable?

3
Adding Name-based Structure to Networks

• No network structure
• any node can connect to any node flexible
• scalability issue too many routing table entries
• need more flexible naming, IP address too static
• Trade off flexibility for scalability
• name all nodes with application level nodeIDs
• route incrementally to destination
• use nodeID as measure of routing progress

4
Outline

• Motivation
• Protocols
• routing Chord, Tapestry/Pastry, etc
• dynamic algorithms
• Application Interfaces
• Ongoing Work
• Wrap-up

5
Structured Peer-to-Peer Overlays

• Assign random nodeIDs and keys from secure hash
• incrementally route towards destination ID
• each node has small set of outgoing routes, e.g.
  prefix routing

ID ABCE
ABC0
To ABCD
AB5F
A930
6
Whats in a Protocol?

• Definition of name-proximity
• each hop gets you closer to destination ID
• prefix routing, numerical closeness, hamming
  distance
• Size of routing table
• amount of state kept by each node as f (N), N
  network size
• of overlay routing hops
• worst case routing performance (in overlay hops,
  not IP)
• Network locality
• does choice of neighbor consider network distance
• impact on actual performance of P2P routing
• Application Interface

7
Chord

• NodeIDs are numbers on ring
• Closeness defined by numerical proximity
• Finger table
• keep routes for next node 2i away in namespace
• routing table size log2 n
• n total of nodes
• Routing
• iterative hops from source
• at most log2 n hops

Node 0/1024
0
128
896
256
768
640
384
512
8
Chord II

• Pros
• simplicity
• Cons
• limited flexibility in routing
• neighbor choices unrelated to network proximity
  but can be optimized over time
• Application Interface
• distributed hash table (DHash)

9
Tapestry / Pastry

• incremental prefix routing
• 1111?0XXX?00XX ?000X?0000
• routing table
• keep nodes matching at least i digits to
  destination
• table size b logb n
• routing
• recursive routing from source
• at most logb n hops

Node 0/1024
0
128
896
256
768
640
384
512
10
Routing in Detail
Example Octal digits, 212 namespace, 2175 ? 0157
2175
0880
0123
0154
0157
11
Tapestry / Pastry II

• Pros
• large flexibility in neighbor choicechoose nodes
  closest in physical distance
• can tune routing table size and routing hops
  using parameter b
• Cons
• more complex than Chord to implement
• Application Interface
• Tapestry decentralized object location
• Pastry distributed hash table

12
Lots and Lots of Protocols

• Other designs Kademlia, Coral, etc
• For network locality
• SkipNet / Skip graphs
• LAND
• For theory
• Viceroy (dynamic adaptation of butterfly network)
• Symphony
• Ulysseus
• For performance
• One-hop / Two-hop Routing (static hierarchy)
• Brocade (two layered approach for WAN routing)
• XRing / ZRing

13
Questions?
14
Outline

• Motivation
• Protocols
• Application Interfaces
• distributed hash tables
• decentralized object location
• multi-tiered interfaces
• Ongoing Work
• Wrap-up

15
How Do We Use Them?

• Key-based Routing layer
• Large sparse ID space N(160 bits 0 2160
  represented as base b)
• Nodes in overlay network have nodeIDs ? N
• Given k ? N, overlay deterministically maps k to
  its root node (a live node in the network)
• Main routing call
• route (key, msg)
• Route message to node currently responsible for
  key
• Leveraging KBR
• storage pick a node by name to store data
• routing route messages between nodes by nodeID

16
Storage Distributed Hash Tables

• P2P layer a hash table
• key is object ID
• write (key, data)
• store data at k nodes closest in name to key
• k is system parameter (replication factor)
• data read (key)
• read data from any of k nodes close to key

17
DHT II

• Pros
• simplicity, just store and forget
• rely on storage layer to keep data available
  across changes in node membership
• servers generally distance in network and
  fault-independent
• Cons
• P2P layer controls parameterswhere data is
  stored, how many replicasone size rarely fits
  all
• lack of network locality

18
Storage Decentralized Object Location
routeobj(k)
routeobj(k)
k
publish(k)
k

• let application choose where to store data
• P2P layer provides directory service to locate
  objects
• redirect data traffic using log(n) in-network
  redirection pointers
• average of pointers/machine log(n) avg
  files/machine

19
DOLR II

• Pros
• application has control over data placementcan
  optimize location, replication factor for
  performance
• Cons
• directory pointers require state in network
• additional complexity in managing data

20
Outline

• Motivation
• Protocols
• Application Interfaces
• Ongoing Work
• Wrap-up

21
Many Structured P2P Applications

• Data storage
• file systems, FS backup, stegnographic FS
• Web Caches, CDNs, DNS services
• Search on P2P
• service discovery, P2P databases
• Routing
• application-level multicast, pub/sub
• resilient routing tunnels
• Others
• spam-filtering, collaborative network
  measurement, machine fault diagnosis

22
But Few (if any) Are Deployed

• Deployment outside of research networks
• still file-sharing based (Kenosis/BitTorrent,
  E-Donkey)
• Why? Is P2P only good for file-sharing?
• Consider some factors
• killer app with real user demand
• usability (software engineering)
• incentives vs. per user cost
• security
• How do we do about this?

23
Addressing P2P Security

• The problem
• lots of users, spread over wide-area, multiple
  network domains
• no uniform security policy or management
  capability
• result expect compromised nodes in normal
  operation
• Existing work
• secure routing trade off efficiency for improved
  resilience against collusion
• prognosis is bleak
• one against many (colluding attackers)
• An alternative
• balance the scale many against many
• form trusted groups to collaboratively stave off
  attackers
• incrementally build trust groups with anonymous
  verification

24
P2P Security cont.

• Mechanisms
• highly dynamic collaborative reputation system
• todo
• anonymous communication in P2P
• under development Cashmere
• Policies / algorithms
• how to perform anonymous verification
• how to derive / adapt online reputations
• A related topic
• what are the weaknesses of current P2P systems
• what are the main methods of attack?
• how do we perform / protect against these attacks?

25
Finding the Right Incentive/Cost Model

• Deployment
• current focus on infrastructure services
• need useful, light-weight apps for home users
• Design and implement Quartz
• lightweight p2p data sharing system
• store your most critical files (lt100MB) online
• use simple application-specific handlers to
  provide fast data synchronization (a la CVS)
• synchronize your HTML bookmarks across machines
• synchronize your papers, homework files,
  financial records
• end to end encryption

26
Other Directions

• Understanding unstructured P2P systems
• understanding content-based centralization and
  its implications
• edge-based measurements of Freenet
• studies of Maze, an academic P2P system from
  China
• More P2P applications
• Reliable and efficient event propagation(large-sc
  ale distributed gaming)
• P2P Ebay, (secure online commerce)

27
Other Directions cont.

• Applying decentralized algorithms elsewhere
• routing and data management in sensor and ad-hoc
  networks
• reduce routing state and flooding traffic
• energy efficient data aggregation in sensor nets
• spectrum allocation and MAC-layer device
  coordination

28
Outline

• Motivation
• Protocols
• Application Interfaces
• Ongoing Work
• Wrap-up

29
Finally

• Structured Peer-to-Peer Networks are useful (
  fun)
• holds promise for self-maintaining decentralized
  networks at Internet scales
• relevance to numerous areas in CS
• sensor networks, ad-hoc routing, security, theory
• For more information
• see the webpage for my Winter 290http//www.cs.uc
  sb.edu/ravenben/classes/290F
• see papers from IPTPS http//iptps05.cs.cornell.
  edu/http//iptps04.cs.ucsd.eduhttp//iptps03.cs.
  berkeley.edu
