RayTracing, Rendering faster

1

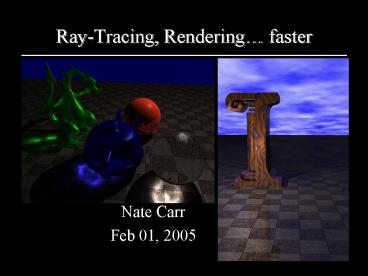

Ray-Tracing, Rendering faster

• Nate Carr
• Feb 01, 2005

2
A Little Morning Math

• Lets render a single second of animation
• 1280 x 1024 rays for the image
• 4 x 4 super-sampling ( anti-aliasing ) per pixel
• 8 time domain samples for motion blur
• 16 samples for depth of field
• 3 ray bounces before termination
• 16 light rays for the 3 area light sources
• 16 rays for glossy reflections
• 30 frames per second

3
A Whole Lot of Rays

• 1280 x 1024 x 4 x 4 x 8 x 16 x 3 x 16 x 3 x 16 x
  30

61,847,529,062,400 rays
Oh, did I mention our scene contains 1 million
triangles?
Q How long do you really want to wait?
4
I Feel The Need For Speed

• Three Major Strategies
• Buy a faster computer ( or maybe 1,000 faster
  computers and hook them together )
• Just make it go faster!
• Use better data structures
• Write faster code
• avoid divides, sqrts, and memory allocation
• Fire fewer rays ( e.g. just be smarter )
• Better sampling strategies
• Cache intermediate results

Solution Use ALL strategies, truly we need all
the help we can get!!!
5
Just making it go Faster

• Visibility Queries make up gt60 of the ray
  tracing process.
• Shading takes up the rest.
• closed environment raysshading samples
• Options
• Bounding Volume Hierarchies
• Regular Grids
• Octrees
• BSP trees

Good for some scenes
Adaptive
Generally though better for all-purpose use
6
Adaptivity is Critical for Some Scenes

• Regular grids are fine (if not preferred) if your
  complexity is evenly distributed in the scene.
• Teapot in a stadium problem.
• Axis Aligned BSP trees are simple and fast
• Useful for collision detection too!

7
Review Rays BSP Trees
BSP Tree

• Review of our ray def.
• Review of BSP trees
• Each internal node needs
• One child pointer/offset
• splitting plane location
• flag which axis x,y,z
• Flag leaf or non-leaf
• Each leaf node needs
• One pointer to list of objects (triangles)
• Number of triangles
• Flag leaf or non-leaf

left
right
O t D
8
A Classic Blunder

• When a ray hits an object, the hit-point must be
  inside the BSP cell.
• or else you might get the wrong answer
• This is also true for Octrees, Regular Grids,
  etc

B
right
t1
t0
s
left
A
9
BSP Algorithm

• Step1 return false if ray intersects the Axis
  Aligned Bounding Box (AABB) of BSP
• See Real-Time Rendering (Moeller, Haines)
• A where ray enters AABB
• A O if ray starts inside of AAB
• B where ray exits AABB
• maxT B - A
• Call traverse(pRoot, A, B, maxT)

A
A
right
right
B
s
s
B
A
A
left
left
A
A
B
B
10
traverse(node ,vec3 A,vec3 B,float t)

• int plane pNode-gtgetSplitPlane()
• float s pNode-gtgetSplit()
• if( Aplane lt s )
• if( Bplane lt s ) //left child
• return traverse( pNode-gtleftChild(),A, B,maxT)
• // ray crosses the plane
• float minT (s-Oplane)/Dplane
• vec3 midB O DmaxT
• return (traverse( pNode-gtleftChild(),A,midB,midT)

• traverse( pNode-gtrightChild(),midB,B,
  maxT) )
• else
• if( Bplane gt s ) //right child
• traverse( pNode-gtrightChild(),A,B,maxT)
• // ray crosses the plane
• float minT (s-Oplane)/Dplane
• vec3 midB O DmaxT
• return (traverse( pNode-gtrightChild(),A,midB,midT
  )

B
right
midB
s
B
left
A
A
A
A
right
B
s
midB
left
B
11
How do we build an Optimal BSP tree?

• Do we want it balanced?
• Maybe, maybe not.
• Optimize Tree based on the most probable rays.
• Its NP-hard
• So lets go greedy!

12
Developing a Cost Model

• Chance of a random ray hitting a bounding box
  (any convex object) is proportional to its
  surface area
• BSP node hit expectance SurfaceArea(AB)
• For a random ray, a BSP AABB with twice the
  surface area is twice as likely to get hit.

AB
13
Chance of Hitting Children

• Pa Area(A)/Area(AB) - Pab
• Pb Area(B)/Area(AB) - Pab

A
B
14
Chance of a Ray-Passing A-gtB or B-gtA

• Split plane relative chance of being hit
• Pab SurfaceArea(C) / SurfaceArea(AB)

A
B
C
15
A Simple Example

• Suppose we are given a unit cube
• Pab 211 / (2( 11 11 11 )) 1/3

30 Chance Ray Crosses Split Plane C
1
A
B
C
1
1
16
A More Idyllic Cost Model

• Cost( nodeAB )
• Pa Cost( nodeA )
• Pb Cost( nodeB )
• Pab ( Cost( nodeA ) Cost( nodeB ) )

Cost of doing just A
Cost of doing just B
Cost of doing AB
A
B
Recursive, cant efficiently evaluate
17
A (Very Simple) Local Cost Model

• Cost( nodeAB, s )
• Pa (Ta Tab) Tp
• Pb (Tb Tab) Tp
• Pab (Ta Tb Tab) Tp

Cost of doing just A
Cost of doing just B
Cost of doing AB
A
B
Ta Objects in A Tb Objects in B Tab
Objects in both A B Tp time to intersect object
18
Building the Tree

• Cost function only interesting at the beginning
  and ending of objects
• Reduces the number of cost function evaluations
• For each dimension X,Y,Z
• Compute each objects min and max
• Place min max locations into sorted list
• Compute Cost for each min/max location
• Choose Split on dimension of lowest cost X,Y,Z

19
BSP Tree Performance

• BSP traversal is FAST!
• In most cases it requires 2 if statements
• Bandwidth (not compute) limited
• Cost is in fetching nodes from memory and NOT in
  calculations
• Reduce BSP node size to 8 bytes
• See PBRT Book
• Authors have reported gt 1 million rays per second
  for scene with millions of triangles.

20
What about Dynamic Scenes

• Trade-off between how much time is spent
  rendering, cost of building the tree, and the
  speed-up gained.
• Still a very open area of research

21
References

• Read PBRT Book
• V.Havran, T.Kopal, J.Bittner, and J.Zara "Fast
  Robust BSP Tree Traversal Algorithm for Ray
  Tracing", in Journal of Graphics Tools, Vol.2,
  No. 4, pp. 15-23, Dec 1998.
• Ingo Wald, Thesis - RTRT
• BSP Plane Cost Function Revisited, by Eric Haines
• http//www.acm.org/tog/resources/RTNews/html/rtnv1
  7n1.htmlart8

22
How Do I Ray-Trace Triangles

• Tomas Moeller
• http//www.cs.lth.se/home/Tomas_Akenine_Moller/ray
  tri/
• Many resources (for ray object intersection)
  linked from
• http//www.cs.lth.se/home/Tomas_Akenine_Moller/ray
  tri/
• http//www.realtimerendering.com/isect

Barycentric Coordinates aA0/A ß A1/A ?
A2/A (a ß ?)1, 0 ? a ?1, 0 ? ß ?1, 0 ? ? ?1
N1
N
ray
P1, C1,..
N0
A2
A0
P0, C0 ,..
A
N (a N0) (ß N1) (? N2) C (a N0) (ß N1)
(? N2) P (a N0) (ß N1) (? N2) ..
A1
N2
P2, C2 ,..
23
Normal Shading Problem

• Help, Im getting bad lighting with CSG???

Ray R
surface
Answer Surface Normal N is going the wrong
way. Sol check normal and flip for purposes of
shading. If RN gt 0 Then N -N
-N
N
24
A Little Morning Math (Revisited)

• We had 61,847,529,062,400 rays.
• With fast BSP traversal we could do 1 million
  ray queries (with simple shading) per second on a
  single CPU.
• How many minutes do we need?

• Lets render a single second of animation
• 1280 x 1024 rays for the image
• 4 x 4 super-sampling ( anti-aliasing ) per pixel
• 8 time domain samples for motion blur
• 16 samples for depth of field
• 3 ray bounces before termination
• 16 light rays for the 3 area light sources
• 16 rays for glossy reflections
• 30 frames per second

25
A Whole Long Time

• (61,847,529,062,400 /1,000,000 ) / 60

1,030,792 minutes
Q How long do you really want to wait?
26
I Feel The Need For Speed (Revisited)

• Three Major Strategies
• Buy a faster computer ( or maybe 1,000 faster
  computers and hook them together )
• Just make it go faster!
• Use better data structures
• Write faster code
• avoid divides, sqrts, and frequent memory
  allocation,
• Fire fewer rays ( e.g. just be smarter )
• Better sampling strategies
• Cache intermediate results

Solution Use ALL strategies, truly we need all
the help we can get!!!
27
A Public Service Message on Anti-Aliasing,Frequenc
y Analysis, and Sampling

• Anti-Aliasing, Frequency Analysis, and Sampling
  are NOT just about picture quality.
• Ray Tracing reduce number of rays needed
• Scanline GPU Rendering reduce shading, memory,
  and bandwidth costs

The Message Better Picture for Less Work
More Speed
28
A Motivating Example
Super-sampling (16 rays)
Single Sample (1-ray)
Q Can we get the same result?
29
Ans Yes. In many cases we can!

• Sources of Aliasing
• Temporal
• Geometric
• Surface Shading
• Handle the shader aliasing problem directly
  during shader evaluation
• Texture Filtering
• Bilinear Filtering
• Mip-mapping
• Anisotropic Filtering
• Procedurally
• Use screen space derivatives

Geometric Shader Aliasing
Shader Aliasing
30
Texture Aliasing

• Image mapped onto polygon
• Occur when screen resolution differs from texture
  resolution
• Magnification aliasing
• Screen resolution finer than texture resolution
• Multiple pixels per texel
• Minification aliasing
• Screen resolution coarser than texture resolution
• Multiple texels per pixel

31
Nearest Neighbor Bilinear Filtering

• Nearest Neighbor
• Box Filter
• Bilinear Filtering
• Triangle Filter

Bilinear Filtering
32
Mip-maps Trilinear Filtering

• Lance Williams, 1983
• Create a resolution pyramid of textures
• Repeatedly subsample texture at half resolution
• Until single pixel
• Need extra storage space
• Accessing
• Use texture resolution closest to screen
  resolution
• Need space derivatives
• Or interpolate between two closest resolutions

33
Summed Area Tables

• Frank Crow, 1984
• Replaces texture map with summed-area texture map
• S(x,y) sum of texels lt x,y
• Need double range (e.g. 16 bit)
• Creation
• Incremental sweep using previous computations
• S(x,y) T(x,y) S(x-1,y) S(x,y-1) -
  S(x-1,y-1)
• Accessing
• S T(x1,x2,y1,y2) S(x2,y2) S(x1,y2)
  S(x2,y1) S(x1,y1)
• Ave T(x1,x2,y1,y2)/((x2 x1)(y2 y1))

x,y
x-1,y-1
x2,y2
x1,y1
34
Anisotropic Filtering

• Def. Anisotropic
• Something that depends on the view direction
• Texel Samples are Not Pulled from a symmetric
  shape.
• Achieves better quality than tri-linear
• Current hardware takes 16 taps
• Can be ( and should be ) combined with mip-maps
  for best results.

Texture Map
Screen Image
35
Analytic Anti-Aliasing

• Ed Catmull, 1978
• Eliminates edge aliases
• Clip polygon to pixel boundary
• Sort fragments by depth
• Clip fragments against each other
• Scale color by visible area
• Sum scaled colors

36
The A-Buffer

• Loren Carpenter, 1984
• Subdivides pixel into 4x4 bitmasks
• Clipping logical operations on bitmasks
• Bitmasks used as index to lookup table
• Used in REYES Architecture, PIXARs Rendermans
  Architecture

37
Multi-Sampling (OpenGL/D3D)

• Idea
• Let shaders handle shading aliases
• Bilinear, Trilinear, Mip-map, Aniso
• Use super-sampling to take care of geometric
  aliases
• Increase z-buffer size and color-buffer size
• Use same shading sample across sub-pixel

Final Pixel
Sub-pixels in framebuffer
Down-filter after All triangles have been rendered
z-sample
Shading Sample
38
The Accumulation Buffer

• Increases OpenGLs resolution
• Render the scene 16 times
• Shear projection matrices
• Samples in different location in pixel
• Average result
• Jittered, but same jitter sampling pattern in
  each pixel
