Bilateral Symmetry

1

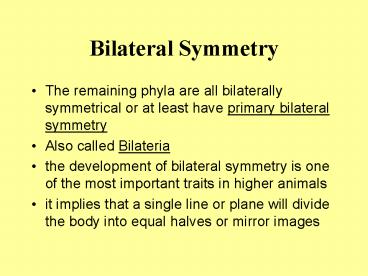

Bilateral Symmetry

• The remaining phyla are all bilaterally
  symmetrical or at least have primary bilateral
  symmetry
• Also called Bilateria
• the development of bilateral symmetry is one of
  the most important traits in higher animals
• it implies that a single line or plane will
  divide the body into equal halves or mirror
  images

2
Bilateral Symmetry

• bilateral symmetry has allowed several other
  important changes in body structure
• Cephalization- concentration of the nerve tissue
  into a head which allow for a single organ to
  direct the functions of the animal
• allow for greater organ development
• allows for greater differentiation of structure
  such as appendages

3
Bilateral Symmetry

• Advantages of bilateral symmetry
• better coordinated movement
• much quicker and more precise response to
  stimulation since it is directed by a central
  nerve center.

4
Acoelomates

• Includes phyla Platyhelminthes and Nemertea
• those organisms that do not have a true coelom or
  body cavity
• are entirely solid except for the gastric cavity
  or coelenteron

5
PHYLUM PLATYHELMINTHES

• THE FLATWORMS

6
CHARACTERISTICS OF PHYLUM

• bilaterally symmetrical
• triploblastic 3 distinct tissue or germ layers
• Ectoderm
• Mesoderm
• Endoderm
• Dorsoventrally flattened
• lack an anus incomplete digestive tract

7
CHARACTERISTICS OF PHYLUMcont.

• coelom- solid mesenchyme (mesoderm) first phylum
  to show a definite cellular mesoderm
• have no true respiratory system or circulatory
  system
• Have cutaneous respiration
• first phylum to show distinct excretory system
  get rid of nitrogenous waste
• are usually hermaphroditic

8
PLATYHELMINTHES

• They consist of 4 classes of flatworms 3 of
  which are entirely parasitic, the other
  free-living
• Turbellaria- free-living
• Monogenea- parasitic, flukes
• Trematoda- parasitic, flukes
• Cestoda- parasitic, tape worms

9
CLASS TURBELLARIA
10
(No Transcript)
11
CLASS TURBELLARIA

• consists of all of the free-living flatworms, but
  some are found on aquatic hosts as ectoparasites
  or commensals
• few live in freshwater (ie. Planaria), marine as
  well as moist terrestrial habitats

12
Morphology

• the outer surface of turbellarians consists of
  ciliated epidermis
• usually best developed on the ventral surface
  and function in locomotion
• epidermis also has a large number of mucous
  glands that secrete mucous that is used by the
  cilia in locomotion - Rhabdites

13
Morphology

• Important Structures
• Eyespots- for light reception phototaxis
• Mouth with pharynx
• Incomplete digestive tract
• No anus

14
Locomotion/Movement

• Below epidermis are a series of muscles
• Dorso-ventral or oblique muscles (parenchymal)
• circular muscles
• longitudinal muscles
• Movement is combination of these muscles
  contracting

15
Feeding

• Turbellarians primarily carnivorous
• capture of prey is done by wrapping themselves
  around it and entangling it with mucous
• they ingest the whole prey or
• suck its juices through a hardened stylet
  (modified pharynx)
• in many species the pharynx is completely
  eversible and can envelope the entire prey
• there is no anus so ingestion and egestion are
  through the mouth

16
Excretion/Osmoregulation

• done by specialized cell called flame cells or
  protonephridia
• first group with specialized excretory
  structures

17
Nervous System and Sensory Structures

• Ladder-like arrangement
• show a beginnings of a well developed central
  nervous system- cepahlization
• a variety of sensory cells and glands most are
  chemo- or tactile receptors
• 2 eye spots or ocelli, which can discriminate
  varying light intensities

18
Reproduction

• the most complex organ system
• most are hermaphroditic
• cross fertilization is the most common mode of
  reproduction
• some self fertilization can and does occur
• usually the eggs and sperm are produced at
  different times in the individual

19
Reproduction cont.

• fertilization is internal
• fertilized eggs are usually deposited in clusters

• winter eggs have a hard outer covering that can
  survive desiccation and freezing
• in freshwater forms eggs hatch into miniature
  adult forms direct development
• in marine forms (not all) a larva is produced
  called a Müller's larva which is free swimming

20
Asexual Reproduction

• fragmentation and regeneration
• many studies have been done on regeneration in
  Planaria

21
Life as a Parasite

• Loss of sensory structures
• Eye spots tactile sensors
• Loss of some organ systems
• Digestive system
• Increased reproductive potential
• Insures survival of species

22
Parasites and Hosts

• Host- organism parasite lives on or in
• Definitive or Primary host- where parasite has
  sexual reproduction
• Secondary or Intermediate hosts- parasite has
  asexual reproduction
• Endoparasite/Ectoparasite- in or on host
• Facultative/Obligatory parasites
• Facultative- on host only part time e.g., leech
• Obligatory- on or in host entire life e.g., fluke

23
Classes Trematoda and Monogenea(Flukes)

• all are parasitic (endoparasitic and
  ectoparasitic)
• most parasitic to vertebrates especially fish
• most have intermediate hosts as invertebrates
• many species are economically and medically
  important

24
Characteristics of Flukes

• Have many of the same characters as turbellarians
• usually have an anterior sucker around mouth and
  a posterior sucker- used to attach to host tissue
• suckers best developed in Monogenea where they
  are called Opisthaptors
• body does not have ciliated epidermis as
  turbellarians

25
Reproduction of Flukes

• Sexual in definitive host
• is generally through copulation with cross
  fertilization sometimes self fertilization
  occurs
• Asexual in intermediate hosts

26
Typical Life Cycle

• Egg
• Miracidium larva
• Sporocysts
• Redia
• Cercaria
• Metacercaria
• Adult
• Usually 2 but as
• many as 4 hosts
• Often intermediate host is a snail

Two intermediate hosts
27
Another Example this one with one intermediate
host
28
CLASS CESTODA(tapeworms)

• All are endoparasites
• the body is covered by a cuticle like the
  trematodes
• they differ from all of the other flatworms in
  that they do not have a digestive tract

29
Characteristics of Tapeworms

• Features similar to other flatworms
• E.g. respiration, and excretion
• Morphological features include
• Scolex
• Rostellum
• Suckers and hooks
• Proglottids (repeated segments)
• Immature sexually immature
• Mature sexual structures present
• Gravid filled with fertilized eggs

30
Typical Life Cycle

• Egg
• Onchoshere larva
• Cysticercus larva in cysts
• Adult
• Usually only 2 hosts
• Intermediate host usually warm blooded

31
Hydatid cysts can form when larva is ingested by
wrong host example here is in liver of human
32
Example here is dog tapeworm hydatid cysts in
brain of human, which are often inoperable and
fatal
33
PHYLUM NEMERTEA

• THE PROBOSCIS OR RIBBON WORMS

34
(No Transcript)
35
NEMERTEA

• Almost all are marine, one freshwater genus and
  one terrestrial genus
• most are free-living, bottom dwellers

36
PHYLUM NEMERTEA

• closely related to flatworms but differ in a
  number of ways
• have a circulatory system
• have tubular complete (first phylum with
  complete gut) gut- mouth and anus
• have an eversible proboscis

37
PHYLUM NEMERTEA

• the most diagnostic feature is the eversible
  proboscis
• used to capture small prey or for browsing on
  dead and decaying organisms are carnivorous
• lies in a fluid filled cavity (rhyncocoel)
• in some species the proboscis is armed with
  barbs or spines and may inject a toxin
• once food is captured the food is passed into the
  mouth and gut

38
REPRODUCTION

• are dioecious and fertilization is external
• reproductive organs are simple masses of
  mesenchymal cells
• eggs and sperm are released to outside through
  them
• Produce a free living larva- Pilidium
• in some species fragmentation is common
  especially when worms are disturbed
• usually only anterior end can regenerate to
  produce a new posterior end

Pilidium larva
39
OTHER FEATURES

• Excretion- Flame cells
• Respiration- osmosis
• Locomotion- gliding
• Feeding- proboscis, ingestion of prey
• Regeneration
