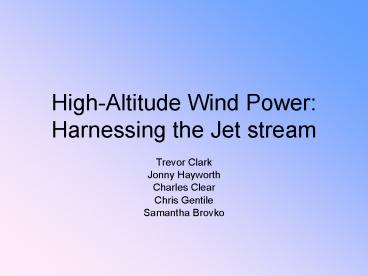

High-Altitude Wind PowerHarnessing the Jet
stream
  • Trevor Clark
  • Jonny Hayworth
  • Charles Clear
  • Chris Gentile
  • Samantha Brovko

2
Flying Electric Generators (FEG)
  • Several types were investigated tethered
    balloons, tethered fixed-winged craft, tether
    raising and lowering kites, and rotorcraft. Most
    of the data herein is based off of simulations
    and several prototypes
  • Kite plants can be located much closer to demand
    sites, and can be constructed in places where
    airspace is already restricted.

3
Importance of the Tether
  • Kites sole connection to the ground, electricity
    storage device, without the tether, no
    electricity would be produced
  • Non-negligible weight
  • Power losses through imperfect conductive
    materials, sigma denotes conductivity and is
    based on the properties of the material used
  • Demonstrates the biggest obstacle to implementing
    wind power on large scales. Altitude affects the
    transmission efficiency of the tethers. Losses
    can be as much as 20.

4
Tethers
  • Kevlar
  • 5 times as strong as steel
  • Light weight
  • Well tested (Bullet-Proof Vests)
  • Aluminium-Spectra composite
  • Spectra is 10 times stronger than steel
  • Conducts
  • Carbon NanoTube
  • Could make kite-based wind power even more
    efficient

5
Ladder Kites
  • Tether with multiple kites attached
  • Land Based drum hooked to generator
  • Also reels in kites when needed
  • 2 Types
  • Single Line
  • Only 10 reeled in
  • Best option
  • Loop
  • Runs continuously

6
Prototype Ladder Kite
  • Net loss of power
  • New model being designed to with net power gain
  • 2kW
  • Next model
  • 4kW
  • predicted to have net gain

7
Control Methods Ladder Kite
  • 3 Main Controls
  • Drag Flaps
  • Winch
  • Slide Mechanism
  • Help to guide kite in optimal figure 8 pattern

8
(No Transcript)
9
Rotating Kite
  • Rotating Aerostat
  • aka floating balloon that spins
  • Spins via Magnus Effect
  • Also produced some lift
  • Same thing that makes tennis balls curve when
    spun
  • Operate at 600-1000ft

10
Operation
  • Operates in 4-60mph wind
  • Too much drag to Sustain high velocities
  • Closest to implementation
  • Mageen spent 4.5 million
  • Scaled prototype has been created

11
TurnTable Kite
  • Least explored type, as great danger for kite
    tethers to tangle
  • What it is A series of kites attached to a round
    rotating platform. The kites catch the jetstream
    wind and spin the platform about the axis of
    vertical symmetry.
  • How it works A generator would connect to the
    turntable and from its rotation electricity would
    be produced.
  • The simplest generator employs Faradays law
    (changing magnetic fields and natures natural
    inclination to maintain constant flux) to induce
    an electric current.
  • The kites would be attached using simple tethers.
    These tethers would not need to conduct the power
    to earth, as the electricity would be generated
    on the ground, and hence can be made of strong,
    light-weight material of any type.

12
Rotorkite
  • What it is Four rotors that generate power and
    keep the craft aloft are attached to a sturdy
    frame. Power is then transferred to the surface
    via a long conducting cable which doubles as an
    anchor to the ground, power transporter
  • How it works The speed of the rotors produces
    enough buoyant lift to keep the craft aloft and
    keeps steady from paired counter-rotation. The
    rotors are connected to gearboxes that drive four
    motor/generator devices, which are in turn
    connected to the tether where the power is
    transported to the surface.

Most promising and efficient design available
13
Sky WindPower Corps already built and running
demonstration crafts
  • Produces cost competitive electricity
  • 240 kW capability
  • 10.7 m diameter rotors
  • Optimal altitude of 15,000 feet, nose-up attitude
    between 10o-40o
  • Weight of 1140 lbs (mass of 520 kg)
  • Tether capabilities of 240kW at 15 Volts, 90
    transmission efficiency
  • Comprised of two insulated aluminum conductors
    embedded in a Vectran fiber composite
  • Specific weight of 115kg/km

14
Challenges
  • Tracking Kites
  • Optical GPS system
  • Force Sensor
  • Improvements need to be made in control AI
  • Large jump to multiple kites
  • Control as kites are reeled in
  • Maintanence Costs
  • Rope slips and cuts itself

15
Wind Speeds
  • Wind speeds of 125-160mph at mid level jet
    streams
  • Wind speeds of 60mph are normal outside of jet
    streams

16
Power Available
  • kW
  • gt10kW/m2 seasonal average power in jet streams
  • 17kW/m2 in US 19kW/m2 in Australia
  • Tot Wind 1015W tot Thermal power cons 1013W
  • Maximum efficiency of tether power transmission
    of 90

17
Capacity Factor
  • Is amount percentage of power actually produced
    over rated power for a period of time
  • US avg 80 capacity factor at 10,000ft not
    including maintenance
  • SkyWind corp is assuming 10 downtime for storms
    and maintenance
  • Patiala, India gest an average of 37 capacity
    factor during the summer and 90 capacity factor
    during the winter
  • High capacity factor for a ground site is 35 a
    normal amount is 30
  • California 1999 19.2 for ground based wind

18
Yearly Variation In Wind Speeds
  • Winter winds are much stronger than summer ones

19
Estimated Price
  • 2/kWh for Rotorkite
  • 5/kWh for Laddermill
  • similar to current grid price for Rotating Kite
  • Used in conjunction with gasoline generator it
    can produce energy at 20cents per kW, compared to
    25 to 99cents/kW for gas only generators
  • 0.2/kWh for Turntable kite claimed on wiki but
    can't confirm.
  • Costs decrease as arrays increase in size

20
Environmental Benefits
  • Renewable
  • Non-polluting
  • No GHG emissions
  • Help reduce dependency on foreign oil
  • Help progress a hydrogen economy

21
(No Transcript)
22
  • Power potential 1,040 billion kWh
  • Carbon Dioxide displaced 960 million metric tons
  • In 2004, U.S. produced about 6000 million metric
    tons

Based on the projected electricity use in 2025,
an estimated 20 of demand could be covered by
FEGs.
23
Advantages and Disadvantages over Present Ground
Turbines (Wind Mills)
  • Advantage
  • Less visual pollution
  • Avoids noise pollution
  • Eliminates impact on wildlife
  • Disadvantage
  • High maintenance cost
  • Dangerous if they were to fall
  • Except Ladder Mills and Turntable Kites where
    generator is land based

24
Cost of electricity
  • AOE annual operating expenses includes land
    lease costs, operations and management, and
    overhaul costs
  • ICC increased cost of compliance
  • FCR Fixed charge rate
  • AEPnet annual energy performance

Estimates from IEEE article (2007) Detroit
0.0196/kWh San Diego - 0.0249/kWh
25
Cost of production
  • A 3.4MW FEG is estimated to cost
  • 2.26 million dollars this includes ground
    systems and production profits.
  • Total initial capital cost for a 100MW array of
    FEGs 71.2 million dollars
  • this includes site preparation, facilities,
    equipment, spare parts, and construction.

from IEEE article Harnessing High-Altitude Wind
Power (2007)
26
Crashes
  • Kites falling and crashing
  • Although the probability of a kite falling a
    crashing is low, the consequences are great
  • Considering that these kites need to be
    relatively close to its supplying source (town or
    city), a crash into a populated area would be
    devastating.
  • Since kites will be in farms rather than just by
    themselves, a falling kite could crash into
    another kite and potentially bring down a few
    more kites in the process
  • Planes hitting kites
  • Chances of a plane hitting a kite are low since
    kites are required to have a significant amount
    of visibility and warning messages
  • Only one reported case of a plane hitting a
    tethered flying object
  • Pilot could have been a Darwin Award Candidate
    (no instrument usage, in restricted airspace
    without authorization etc.)
  • The increased concentration of kites (less than
    0.25 of US airspace) is going to increase
    chances of a mid-air collision

27
Wind Consistency
  • Weather will partition wind output
  • Although the wind in the jet stream is reliable,
    various weather will cause periodic breaks in
    power output due to reeling in kites from storms,
    tornadoes, etc.
  • Summer winds milder than the wind season of the
    Winter months
  • Jet stream moves
  • Since the jet stream is not completely
    stationary, moving the kites will be necessary to
    follow the winds.
  • Builds over several days and moves from West to
    East coasts
  • This will cause retracting and launching of the
    kites every time the jet stream passes through
    the area.

28
Space needs
  • Any area wind farms that are placed will have to
    become restricted airspace
  • Additionally, since the jet stream meanders, this
    restricted airspace will either have to be a
    moving restricted airspace or encompass a large
    enough area to encompass the variation
  • An estimated 1/400 of the US airspace is enough
    to power all the US energy needs
  • 1/400 of US airspace concentrated into the jet
    streams path turns out to be a large barrier
  • Airlines commonly use jet streams for flight
    paths
  • This is going to lead to a dispute between energy
    suppliers and airline companies as to whether or
    not it becomes a designated wind power farm.

29
Environmental effects
  • Negative Effects-adverse consequences not
    anticipated
  • Chaotic system, difficult to predict consequences
  • Speculation that critical balance could be
    disrupted
  • Positive Effects
  • Reduced greenhouse emissions
  • Potentially reduce storm energies
  • No hazardous waste to dispose of
  • i.e. CO2, nuclear waste

30
Should We Use it?
  • HECK YES!!
  • Reduced wastes and environmental effects
  • Economically viable
  • Safe
  • Still research to be done, but very promising
    option for the future
