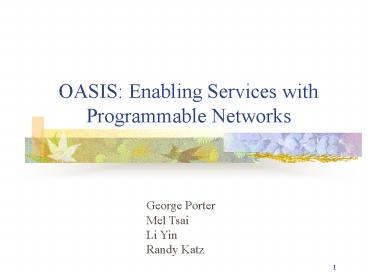

OASIS: Enabling Services with Programmable Networks

1
OASIS Enabling Services with Programmable
Networks
2
Outline

• Overview
• Introduction to PNEs
• Motivation PNEs and Network Appliances
• Research Opportunities
• Understanding Applications for PNEs
• Programming PNEs
• Our Current Testbed
• Experimental Plan
• QA with Audience

3
Overview

• This presentation is a brief summary of our
  whitepaper,
• The OASIS Group at U.C. Berkeley Research
  Summary and Future Directions
• Sahara is focused on services in the network
• The goal of OASIS is to enable new services using
  programmable networks

4
Introduction

• A programmable network element (PNE) is a router
  that can perform flexible, complex, and
  application-level computation on packets in the
  fast path

Basic PNE Functionality
OutputPackets
InputPackets
Infer
Classify
Act
State Info
5
Classify-Infer-Act

• A server and router in one
• Tight integration between packet processing and
  routing
• High bandwidth (routers) and computation
  (servers)

Infer
Classify
Act
6
PNEs The Big Picture

• PNEs are a new technology and present many new
  opportunities
• Were not exactly sure how they will be deployed,
  or what they are useful for!
• Nonetheless, the hardware cost is small and thus
  adding network programmability is basically free

7
Network Appliances

• The increasing push towards in-the-network
  processing

8
Motivation for PNEs

• Network appliances are generally fixed-function
  devices
• PNEs can consolidate functionality to reduce
  management costs and rack space
• PNEs can be reconfigured to support new
  applications

Firewall
IP Storage Gateway
IntrusionDetector
???
Server Load Balancer
9
Motivation for PNEs (cont.)

• PNEs offer the flexibility required to implement
  distributed applications by composition

10
PNE Hardware

• PNEs are enabled by silicon and technology
  advances
• Processor arrays, network processors,
  configurable hardware (e.g., FPGAs), specialized
  memories, custom ASIC accelerators, fast and
  cheap storage
• Fast-path computational power
• A modest PNE comprising an array of sixteen
  generic 1 GHz processors can theoretically
  sustain nearly 32,000 instructions per packet at
  1 Gbit/sec (assuming 256-byte packets on average)
• Network processors and custom hardware can vastly
  improve this
• The bottleneck memory bandwidth and state
  retrieval

11
State retrieval and management

• (insert picture showing a computation element
  wishing to make a decision based on a large
  amount of previously recorded data)
• (insert picture showing shared, frequently
  updated, frequently accessed resource)
• (insert picture showing packet reordering and
  head-of-line blocking)

12
PNE Placement

• Where will PNEs reside in the network? We can
  see applications for virtually anywhere

Access
Edge
Core
Access
Edge
The data rate affects the achievable complexity
of PNE applications
13
Research Opportunities in PNEs

• What makes an application suitable for PNEs?
  What are their characteristics?
• What about overlays?
• What is the ideal programming model for a PNE? A
  network of PNEs?
• How do you efficiently handle local and
  distributed state? (Is this a hardware issue, a
  software issue, or both?)
• How do you quantify a PNEs flexibility and
  reliability?

14
Applications Suitable for PNEs

• Proposed properties of an application can benefit
  from the programmability and flexibility of a PNE
  when
• the filtering or computation accesses nearly
  every bit in every packet
• The data rates overload a server architecture and
  computational tasks overload a router
• the application is not fully general-purpose
• At least some part of the application has a
  classify-infer-act structure
• the application has geographically distributed
  state that must be quickly aggregated
• a non-trivial conversion between protocols is
  required
• past occurrences affect future filtering and
  computations on flows
• the application changes over time

15
Programming PNEs

• A good programming model is critical for writing
  highly reliable and flexible applications
• PNEs require a good programming model for both a
  single-PNE and an ensemble of PNEs
• Our basic single-PNE approach create a router
  virtual machine and program the machine. Apps
  can then be portable and platform-independent
• Basic primitive the generalized packet filter
• Highly flexible and powerful operator
• Uses packet tags to distribute state and
  implement control-flow between virtual machine
  components

16
Virtual Machine Example
common configuration
exported VM interface
PNE hardware
17
Our Current Testbed
18
Experimental Plan

• Expand our testbed!
• Measurement and monitoring a key function of
  PNEs
• In progress prototype of the single-PNE
  programming model on Linux
• Experiment with apps that require distributed
  state
• One possible test application cooperative
  SAN-to-SAN cache

19
Overall Research Impact

• Applications will be more reliable and efficient
  by taking advantage of new network services
• Per-flow and per-packet level processing and
  state management will power new forms of
  measurement, monitoring, and actuation
• New understanding for how to manage state and
  processing in distributed, programmable networks

20
Audience QA (1)

• What are the key applications for programmable
  networks and PNEs?
• What new apps could make use of the technology?

21
Audience QA (2)

• What makes an application ammenable to
  implementation in programmable networks? What
  parts run at the endpoints, and what parts in the
  network?
• Network appliances and proxy applications have
  enjoyed recent success. Build it and they will
  come?
• Is it something about the frequency of
  processing? Stateful processing?
• the filtering or computation accesses nearly
  every bit in every packet
• the application is not fully general-purpose
• the application has geographically distributed
  state that must be quickly aggregated
• a non-trivial conversion between protocols is
  required
• past occurrences affect future filtering and
  computations on flows
• the application changes over time

22
Audience QA (3)

• What are the important security and trust issues
  in programmable networks?
• Remember, we are not advocating open,
  instruction in every packet systems ala active
  networks of a few years ago
• Can a network of PNEs be shared between
  (potentially competing) organizations?

23
Audience QA (4)

• What is the best way to configure and manage an
  ensemble of PNEs?
• What are the most important issues in terms of
  reliability? (E.g., graphically visualizing a
  configuration?)
