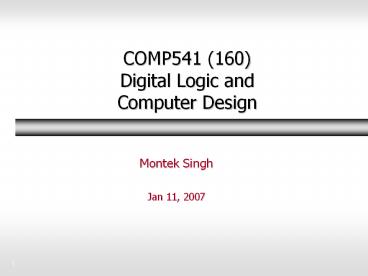

COMP541 (160) Digital Logic and Computer Design

1
COMP541 (160) Digital Logic and Computer Design

• Montek Singh
• Jan 11, 2007

2
Todays Topics

• Course description
• Whats it about
• Mechanics grading, etc.
• Material from Chapter 1 (review)
• What is digital logic?
• Binary signaling
• Number systems
• Codes

3
Whats Course About?

• Digital logic, focusing on the design of
  computers
• Stay above transistor level
• Only one class on transistors and VLSI
• Each person designs a MIPS CPU
• and peripheral logic (VGA, joystick)
• Project like an Atari 2600 game
• High-level language
• Modern design practices

4
How Can We Do This?

• Field Programmable Gate Arrays
• Chips with a lot of circuits
• Tens of thousands to millions of transistors
• Programmable
• We write programs describing design
• Tools translate to gates/wires
• Download pattern to chip

5
We Will Use This Board
6
Schematic Diagram
7
Verilog

• /
• A 32-bit counter with only 4 bits of output.
  The idea is
• to select which of the counter stages you
  want to pass on.
• Anselmo Lastra, November 2002
• /
• module cntr_32c(clk,res,out)
• input clk
• input res
• output 30 out
• reg 310 count
• always _at_ (posedge res or posedge clk)
• if(res)
• count lt 0
• else
• count lt count 1

8
Xilinx Software

• Use design tools from chip maker
• Have full version on lab PCs
• Can install on your PC
• ModelSim simulator or built-in

9
Class Web Pages

• Linked from my home pagehttp//www.cs.unc.edu/mo
  ntek
• All notes posted
• Will try to put them there before class
• Lab documents there also
• See Blackboard for grades

10
Textbook and Syllabus

• Largely follow Prof. Lastras syllabus
• Morris Mano and Charles Kime
• Logic and Logic and Computer Design Fundamentals,
  3rd Edition
• Prentice Hall, 2004
• Will largely follow text
• Slightly different order
• More emphasis on HLL

11
Overview of Textbook

• Chapters 1-6 Digital logic
• Combinational and sequential
• Chapter 7-8 Register Transfer and State Machines
• Chapter 9 Memories
• Chapters 10-12 Computer design
• Chapter 13 I/O
• Chapter 14 Memory Hierarchies

12
Order of Topics

• Will change order from that in book
• To try to get you working on interesting labs
  sooner
• Move sequential design earlier
• Then backfill details on combinational design

13
May Also Need

• COMP120 book
• For MIPS reference
• How many have one?
• I can copy the few necessary pages
• Verilog reference
• Book optional
• Web pages see course home page

14
Grading

• Labs 35
• Easier at first later ones will count more
• Homework 20
• Two tests spaced evenly 12.5 each
• Final 20 (optional for some)

15
Labs

• Paced slowly at first
• Familiarization with tools, simple combinational
  design, design a digital lock or similar
• Peripheral VGA, opt. keyboard interface or
  joystick
• Build up computer components
• Registers, ALU, decoder
• Assemble a simple MIPS
• Add more features, enough for simple computer
• Final demo game or similar

16
Lab Sections

• No lab this Friday
• You need a little more info to begin
• Begin next week
• Lab is in SN 027, down the hall by the back
  entrance

17
Late Policy

• Homework assignments and lab reports due by class
  time
• Labs due on Tuesday after the lab period
• One class late, 10 points off
• Two classes late, 25 points off
• Not accepted later

18
Whats Your Background?

• Course experience
• Work, etc.
• Which COMP120?
• Whats your intent in taking class?
• Questions?

19
Office Hours

• Would like to wait a week to set
• Send email if you want to meet

20
Now Shift to Technology

• Should be review for all of you

21
Digital vs. Analog

• Analog infinite resolution
• Like (old fashioned) radio dial
• Well do very little with analog
• VGA, maybe sound
• Digital a finite set of values
• Like money
• Cant get smaller than cents
• Typically also has maximum value

22
Binary Signaling

• Zero volts
• FALSE or 0
• 3.3 or 5 volts
• TRUE or 1
• Modern chips down to 1V
• Why not multilevel signaling?

23
Discrete Data

• Some data inherently discrete
• Names (sets of letters)
• Some quantized
• Music recorded from microphone
• Note that other examples like music from CD or
  electronic keyboard already quantized
• Mouse movement is quantized
• Well, some mice

24
Numbers and Arithmetic

• Ive put most of these slides at end
• Backup in case youve forgotten
• Review of binary numbers, Hexadecimal,Arithmetic

• Lets cover
• Other codes, parity

25
BCD

• Binary Coded Decimal
• Decimal digits stored in binary
• Four bits/digit
• Like hex, except stops at 9
• Example
• 931 is coded as 1001 0011 0001
• Remember these are just encodings. Meanings are
  assigned by us.

26
Other Codes Exist

• Non positional
• Example Gray Code
• Only one bit changes at a time
• 000,001,011,010,110,111,101,100
• Why is this useful?
• Actually theres a family of Gray codes

Ref http//lib-www.lanl.gov/numerical/bookcpdf/c2
0-2.pdf
27
Shaft Encoder
28
Character Codes

• From numbers to letters
• ASCII
• Stands for American Standard Code for Information
  Interchange
• Only 7 bits defined
• Unicode
• You may make up your own code for the MIPS VGA

29
ASCII table
30
Even Parity

• Sometimes high-order bit of ASCII coded to enable
  detection of errors
• Even parity set bit to make number of 1s even
• Examples
• A (01000001) with even parity is 01000001
• C (01000011) with even parity is 11000011

31
Odd Parity

• Similar except make the number of 1s odd
• Examples
• A (01000001) with odd parity is 11000001
• C (01000011) with odd parity is 01000011

32
Error Detection

• Note that parity detects only simple errors
• One, three, etc. bits
• More complex methods exist
• Some that enable recovery of original info
• Cost is more redundant bits

33
Todays Topics

• Introduction
• Digital logic
• Number systems
• Arithmetic
• Codes
• Parity
• The encoding is key
• Standards are used to agree on encodings
• Special purpose codes for particular uses

34
Homework

• None, but
• I expect you to know number systems well and be
  able to do conversions and arithmetic
• Decimal Binary
• Binary Decimal
• Decimal Hex
• Hex Decimal
• Can do some of the problems 1-2, 1-4, 1-7 if
  you think you need a refresher. Answers on book
  website.

35
Reading

• Skim chapter 1
• Quick read to make sure youre comfortable with
  material
• Read Chapter 2

36
Next Week

• Combinational Logic Basics
• Lab preview
• Ill demo tools in class, probably Thursday
• Lab on Friday the 19th
• Schematic capture
• Maybe simple Verilog
• Run on FPGA

37
Lab Walkthrough

• Lets go see the lab
• Shared with LEGO 1st year seminar

38
Backup Slides

• Should be all review material

39
Binary Numbers

• Strings of binary digits (bits)
• One bit can store a number from 0 to 1
• n bits can store numbers from 0 to 2n

40
Binary Powers of 2

• Positional representation
• Each digit represents a power of 2
• So 101 binary is
• 1 22 0 21 1 20
• or
• 1 4 0 2 1 1 5

41
Converting Binary to Decimal

• Easy, just multiply digit by power of 2
• Just like a decimal number is represented
• Example follows

42
Binary ? Decimal Example
7 6 5 4 3 2 1 0
27 26 25 24 23 22 21 20
128 64 32 16 8 4 2 1
What is 10011100 in decimal?
1 0 0 1 1 1 0 0
128 0 0 16 8 4 0 0
156
43
Decimal to Binary

• A little more work than binary to decimal
• Some examples
• 3 2 1 11 (thats 121 120)
• 5 4 1 101 (thats 122 021 120)

44
Algorithm Decimal to Binary

• Find largest power-of-two smaller than decimal
  number
• Make the appropriate binary digit a 1
• Subtract the power of 2 from decimal
• Do the same thing again

45
Decimal ? Binary Example

• Convert 28 decimal to binary

32 is too large, so use 16
Binary ? 10000
Decimal ? 28 16 12
Next is 8
Binary ? 11000
Decimal ? 12 8 4
Next is 4
Binary ? 11100
Decimal ? 4 4 0
7 6 5 4 3 2 1 0
27 26 25 24 23 22 21 20
128 64 32 16 8 4 2 1
46
Hexadecimal

• Strings of 0s and 1s too hard to write
• Use base-16 or hexadecimal 4 bits

Dec Bin Hex
0 0000 0
1 0001 1
2 0010 2
3 0011 3
4 0100 4
5 0101 5
6 0110 6
7 0111 7
Dec Bin Hex
8 1000 8
9 1001 9
10 1010 ?
11 1011 ?
12 1100 ?
13 1101 ?
14 1110 ?
15 1111 ?
47
Hexadecimal

• Letters to represent 10-15

Dec Bin Hex
0 0000 0
1 0001 1
2 0010 2
3 0011 3
4 0100 4
5 0101 5
6 0110 6
7 0111 7
Dec Bin Hex
8 1000 8
9 1001 9
10 1010 a
11 1011 b
12 1100 c
13 1101 d
14 1110 e
15 1111 f

• Power of 2

• Size of byte

48
Hex to Binary
Bin Hex
0000 0
0001 1
0010 2
0011 3
0100 4
0101 5
0110 6
0111 7
1000 8
1001 9
1010 a
1011 b
1100 c
1101 d
1110 e
1111 f

• Convention write 0x before number
• Hex to Binary just convert digits

0x2ac
0x2ac 001010101100
No magic remember hex digit 4 bits
49
Binary to Hex
Bin Hex
0000 0
0001 1
0010 2
0011 3
0100 4
0101 5
0110 6
0111 7
1000 8
1001 9
1010 a
1011 b
1100 c
1101 d
1110 e
1111 f

• Just convert groups of 4 bits

101001101111011
1011
0101 ?
0111 ?
0011 ?
101001101111011 0x537b
50
Hex to Decimal
Dec Hex
0 0
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
9 9
10 a
11 b
12 c
13 d
14 e
15 f

• Just multiply each hex digit by decimal value,
  and add the results.

0x2ac
2 256
10 16
12 1
684
???? ???? ???? ????
163 162 161 160
4096 256 16 1
51
Decimal to Hex

• Analogous to decimal ? binary.
• Find largest power-of-16 smaller than decimal
  number
• Divide by power-of-16. The integer result is hex
  digit.
• The remainder is new decimal number.
• Do the same thing again

52
Decimal to Hex
Dec Hex
0 0
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
9 9
10 a
11 b
12 c
13 d
14 e
15 f
684
0x2__
684/256 2
684256 172
0x2a_
172/16 10 a
0x2ac
17216 12 c
???? ???? ???? ????
163 162 161 160
4096 256 16 1
53
Octal

• Octal is base 8
• Similar to hexadecimal
• Conversions
• Less convenient for use with 8-bit bytes

54
Arithmetic -- addition

• Binary similar to decimal arithmetic

1 0 1 1 0 0
1 0 1 1 0
1 0 1 1 1
No carries
Carries
0 1 1 0 0
1 0 0 0 1
1 0 1 1 0 1
1 1 1 0 1
11 is 2 (or 102), which results in a carry
55
Arithmetic -- subtraction
0 0 1 1 0
1 1 1 1 0
- 1 0 0 1 1
No borrows
Borrows
1 0 1 1 0
- 1 0 0 1 0
0 1 0 1 1
0 0 1 0 0
0 - 1 results in a borrow
56
Arithmetic -- multiplication
Successive additions of multiplicand or
zero, multiplied by 2 (102). Note that
multiplication by 102 just shifts bits left.
1 0 1 1
X 1 0 1
1 0 1 1
0 0 0 0
1 0 1 1
1 1 0 1 1 1
57
Hexadecimal Arithmetic

• Similar
• If youre doing by hand, easiest to convert each
  set of digits to decimal and back
• Skill is not very useful
