Title: PORE FORMING PROCESS IN ANODICALLY OXIDIZED SILICON WAFERS


1

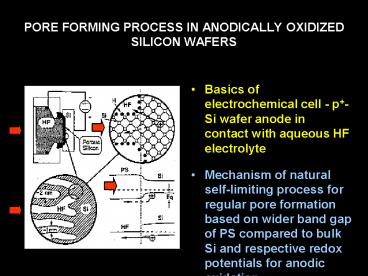

PORE FORMING PROCESS IN ANODICALLY OXIDIZED
SILICON WAFERS
  • Basics of electrochemical cell - p-Si wafer
    anode in contact with aqueous HF electrolyte
  • Mechanism of natural self-limiting process for
    regular pore formation based on wider band gap of
    PS compared to bulk Si and respective redox
    potentials for anodic oxidation

2
KEY ISSUES ORIGIN OF PHOTO- AND
ELECTROLUMINESCENE OF POROUS SILICON
  • Origin of luminescence key point- as bulk Si is
    indirect band gap semiconductor with very weak
    light emission
  • Models for light emission include quantum-spatial
    confinement, siloxenes, and SiOH
  • Luminsecent nc-Si structure requires SiO, SiH
    surface bonds - caps dangling bonds -removes
    killer traps in band gap
  • Size dependence of k, m selection rules, scaling
    laws determine light emission properties
  • Mechanical, photochemical, chemical stability are
    key factors for devices
  • Efficient e-h charge-injection required for
    practical LED

3
MAKING NANOCRYSTALLINE SILICON LUMINESCENT
CAPPING
4
THERMAL OXIDATION FORMATION OF METAL OXIDE AND
NITRIDE THIN FILMS
  • Anodic layers, metal exposed to a glow discharge
  • Ti O2 ? TiO2 thickness 3-4 nm
  • Similar method applicable to other metals, Al, V,
    W, Zr
  • Not restricted to oxides, nitrides too,
    exceptionally hard, high temperature protective
    coating
  • Ti NH3 ? TiN
  • Al NH3 ? AlN

5
CHEMICAL VAPOUR DEPOSITION
  • Pyrolysis, photolysis, chemical reaction,
    discharges, RF, microwave facilitated deposition
    processes
  • Epitaxial films, correct matching to substrate
    lattice
  • CH4 H2 (RadioF, MicroW) ? C, diamond films
  • Et4Si (thermal, air) ? SiO2
  • SiCl4 or SiH4 (thermal T, H2) ? a-HSi or nc-HSi
  • SiH4 PH3 (RF) ? n-Si

6
CHEMICAL VAPOUR DEPOSITION
  • Si2H6 B2H6 (RF) ? p-Si
  • SiH3SiH2SiH2PH2 (RF)? n-Si
  • Me3Ga (laser photolysis, heating) ? Ga
  • Me3Ga AsH3 H2 ? GaAs CH4
  • Si (laser evaporation, supersonic jet) Sin (size
    selected cluster deposition) ? Si

7
Amorphous hydrogenated silicon a-HSi, easy to
form thin film by CVD Hydrogen capping of
dangling surface sp3 bonds Reduces surface
electron killer traps Enhances electrical
conductivity compared to a-Si but less than bulk
Si Poly-domain texture Useful for solar cell
large area devices
8
METAL ORGANIC CHEMICAL VAPOR DEPOSITION, MOCVD
  • Invented by Mansevit in 1968
  • Recognized high volatility of metal organic
    compounds as sources for semiconductor thin film
    preparations
  • Enabling chemistry for electronic and optical
    quantum devices
  • Quantum wells and superlattices
  • Occurs for 5-500 angstrom layers
  • Known as artificial superlattices

9
(No Transcript)
10
(No Transcript)
11
METAL ORGANIC CHEMICAL VAPOR DEPOSITION, MOCVD
  • Quantum confined electrons and holes when
    thickness of quantum well L is comparable to the
    wavelength of an electron or hole at the Fermi
    level of the material, band diagram shows
    confined particle states and quantization effects
    for electrical and optical properties
  • Discrete electronic energy states rather than
    continuous bands, given by solution to the simple
    particle in a box equation, assuming infinite
    barriers for the wells, m is the effective mass
    of electrons and holes
  • En n2p2h2/2mL2
  • Tunable thickness, tailorable composition
    materials, do it yourself quantum mechanics
    materials for the semiconductor industry

12
METAL ORGANIC CHEMICAL VAPOR DEPOSITION, MOCVD
  • Quantum well structure synthesized by depositing
    a controlled thickness superlattice of a narrow
    band gap GaAs layer sandwiched by two wide band
    gap GaxAl1-xAs layers using MOCVD
  • Ga(Al)Me3 AsH3 (H2, T) ? Ga(Al)As CH4
  • Known as artificial superlattices, designer
    periodicity of layers, quantum confined lattices,
    thin layers, epitaxially grown
  • Example GaxAl1-xAsGaAsGaxAl1-xAs

13
MOCVD
  • Example GaxAl1-xAsGaAsGaxAl1-xAs
  • n- and p-doping achievable by having excess As or
    Ga respectively in a GaAs layer
  • Composition and carrier concentration controls
    refractive index and electrical conductivity,
    thus TIR achieved in a semiconducting
    superlattice
  • Enables quantum and photon confinement for
    electronic and optoelectronic and optical
    devices, multiple quantum well laser, quantum
    cascade laser, distributed feedback laser,
    resonant tunneling transistor, high mobility
    ballistic transistor, laser diode

14
(No Transcript)
15
BAND GAP ENGINEERING OF SEMICONDUCTORS
  • The MOCVD, LPE, CVD, CVT, MBE are all deposition
    techniques that provide angstrom precise control
    of film thickness
  • Together with composition control one has a
    beautiful synthetic method for fine tuning the
    electronic band gap and hence most of the
    important properties of a semiconductor quantized
    film
  • The key thing is to achieve epitaxial lattice
    matching of the film with the underlying
    substrate
  • This avoids things like lattice strain at the
    interface, elastic deformation, misfit
    dislocations, defects
  • All of these problems serve to increase carrier
    scattering and quenching of e-h recombination
    luminescence (killer traps), thereby reducing the
    efficacy of the material for advanced device
    applications

16
MOCVD PRECURSORS, SINGLE SOURCE MATERIALS
  • Me3Ga, Me3Al, Et3In
  • NH3, PH3, AsH3
  • H2S, H2Se
  • Me2Te, Me2Hg, Me2Zn, Me4Pb, Et2Cd
  • Example for IR detectors
  • Me2Cd Me2Hg Me2Te (H2, 500oC) ? CdxHg1-xTe
  • All pretty toxic materials

17
MOCVD PRECURSORS, SINGLE SOURCE MATERIALS
  • Specially designed MOCVD reactors, hot and cold
    wall designs, controlled flow of precursors using
    mass flow meters directing them to heated
    substrate single crystal, induction heater,
    silicon carbide coated graphite susceptor for
    mounting substrate
  • Chemistry of this type creates a problem for
    semiconductor manufacturers in terms of safe
    disposal of toxic waste
  • Most reactions occur in range 400-1300oC,
    complications of diffusion at interfaces,
    disruption of atomically flat epitaxial
    surfaces/interfaces occurs during deposition
  • Photolytic processes (photoepitaxy) help to bring
    the deposition temperatures to more reasonable
    temperatures

18
(No Transcript)
19
(No Transcript)
20
REQUIREMENTS OF MOCVD PRECURSORS
  • RT stable
  • No polymerization, decomposition
  • Easy handling
  • Simple storage
  • Not too reactive
  • Vaporization without decomposition

21
REQUIREMENTS OF MOCVD PRECURSORS
  • Vaporization without decomposition
  • Modest lt 100oC temperatures
  • Low rate of homogeneous pyrolysis, gas phase, wrt
    heterogeneous decomposition
  • HOMO HETERO rates 1 1000
  • Heterogeneous reaction on substrate
  • Greater than on other hot surfaces in reactor

22
REQUIREMENTS OF MOCVD PRECURSORS
  • Not on supports, vessel
  • Ready chemisorption of precursor on substrate
  • Detailed surface and gas phase studies of
    structure of adsorbed species, reactive
    intermediates, kineticss, vital for quantifying
    film nucleation and growth processes
  • Electronic and optical films synthesized in this
    way
  • Semiconductors, metals, silicides, nitrides,
    oxides, mixed oxides (e.g., high Tc
    superconductors)

23
CRITICAL PARAMETERS IN MATERIALS PREPARATION FOR
SYNTHESIS OF THIN FILMS
  • Composition control - precise command over
    stoichiometry and adventitious carbonaceous
    deposits
  • Variety of materials to be deposited
  • Good film uniformity
  • Large areas to be covered, gt 100 cm2
  • Precise reproducibility

24
CRITICAL PARAMETERS IN MATERIALS PREPARATION FOR
SYNTHESIS OF THIN FILMS
  • Growth rate, thickness control
  • 2-2000 nm layer thicknesses
  • Precise control of film thickness
  • Accurate control of deposition, film growth rate

25
CRITICAL PARAMETERS IN MATERIALS PREPARATION FOR
SYNTHESIS OF THIN FILMS
  • Crystal quality, epitaxy
  • High degree of film perfection
  • Defects degrade device performance
  • Reduces useable wafer yields

26
CRITICAL PARAMETERS IN MATERIALS PREPARATION FOR
SYNTHESIS OF THIN FILMS
  • Purity of precursors
  • Usually less than 10-9 impurity levels
  • Stringent demands on starting material purity
  • Challenge for chemistry, purifying and analyzing
    at the ppb level
  • Demands exceptionally clean growth system
    otherwise defeats the object of controlled doping
    of films for device applications

27
CRITICAL PARAMETERS IN MATERIALS PREPARATION FOR
SYNTHESIS OF THIN FILMS
  • Interface widths
  • Abrupt changes of composition, dopant
    concentration required, vital for quantum
    confined structures
  • 30-40 sequential layers often needed
  • Alternating composition and graded composition
    films
  • 0.5-50 nm thicknesses required with atomic level
    precision
  • All of the above has been more-or-less perfected
    in the electronics and optics industries

28
TECHNIQUES USED TO GROW SEMICONDUCTOR FILMS AND
MULTILAYERED FILMS
  • MOCVD
  • Liquid phase epitaxy
  • Chemical vapor transport
  • Molecular beam epitaxy
  • Laser ablation
  • Used for band gap engineering of semiconductor
    materials that function at 1.5 microns in near IR
    - integrating with glass fiber optics and
    waveguides

29
BAND GAP ENGINEERING
  • Designer semiconductors
  • Zinc blende lattice
  • Lattice constant
  • Composition
  • Doping
  • Thickness
  • Multilayers
  • Epitaxial lattice matching
  • Control of band gap and refractive index
  • Operating wavelengths for optical
    telecommunication systems labeled in purple

30
6InP/3GaAs/6InP EPITAXIALLY MATCHED SUPERLATTICE
31
TAILORED BAND GAPS - DESIGNER MOCVD GRADED
COMPOSITION POTENTIAL WELLS
AlxGa1-xAs graded composition-gap superlattice
CB AlAs wide gap
e
CB GaAs narrow gap
Tunable h?
VB GaAs narrow gap
h
VB AlAs wide gap
Designer quantum well architecture - band gap
engineering - graded potential can be used to
enhance electron mobility in HEMTs or build a
quantum cascade laser
32
Federico Capasso co-inventor of the quantum
cascade laser imagined small things when he used
size and dimensionality of materials to tailor
their properties for electronic and optical
devices
33
QUANTUM CASCADE LASER A NICE EXAMPLE OF BAND GAP
ENGINEERING BY MOCVD The white bands in the TEM
are QWs made of GaInAs, which are sandwiched
between barrier layers of AlInAs ranging in
thickness from atomic to 12 atomic layers . All
the wells are part of a quantum cascade laser.
When a voltage is applied to the device,
electrons move down the potential barrier from
narrow to wide band QWs and emit a photon between
the two thickest QWs. Then the electron moves on
to the next stage to the right where the process
repeats.
34
(No Transcript)
35
PHYSICAL METHODS FOR MAKING THIN FILMS
  • CATHODE SPUTTERING
  • Bell jar equipment, 10-1 to 10-2 torr of Ar, Kr,
    Xe
  • Glow discharge created, positively charged rare
    gas ions, accelerated in a high voltage to
    cathode target, high energy ions collide with
    cathode
  • Sputter material from cathode, deposits on
    substrate opposite cathode to form thin film
  • Multi-target sputtering also possible, creates
    composite or multi-layer films

36
PHYSICAL METHODS FOR MAKING THIN FILMS
  • THERMAL VACUUM EVAPORATION
  • High vac bell jar gt 10-6 torr, heating e-beam,
    resistive, laser
  • Gaseous material deposits on substrate, film
    nucleates and grows
  • Containers must be chemically inert, W, Ta, Nb,
    Pt, BN, Al2O3, ZrO2, Graphite
  • Substrates include insulators, metals, glass,
    alkali halides, silicon, sources include metals,
    alloys, semiconductors, insulators, inorganic
    salts

37
CONTROL OVER THIN FILM GROWTH AT THE ATOMIC
SCALE MOLECULAR BEAM EPITAXY
38
MOLECULAR BEAM EPITAXY
Structure of thin film
Vapor phase species control
Ar ion gun for cleaning substrate surface or
depth profiling
Surface analysis
Elemental sources in shuttered Knudsen cells
39
MOLECULAR BEAM EPITAXY - MBE
  • Million dollar thin film machine, ideal for
    preparing high quality artificial semiconductor
    quantum superlattices, ferroelectrics,
    superconductors
  • Ultrahigh vacuum system gt10-12 torr, what's in
    the chamber?
  • Elemental or compound sources in shutter
    controlled Knudsen effusion cells, Ar ion gun
    for cleaning substrate, surface or depth
    profiling sample using Auger analyzer, high
    energy electron diffraction for surface structure
    analysis, mass spectrometer for control and
    detection of vapor species, e-gun for heating the
    substrate

40
PHOTOEPITAXYMaking atomically perfect thin
films under milder and more controlled
conditionsEt2Te Hg H2 (h?, 200oC) ? HgTe
2C2H6
Write a Comment
User Comments (0)
About PowerShow.com
