Session: Smart energy communications

1

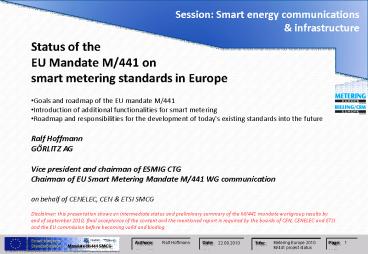

Session Smart energy communications
infrastructure

• Status of the EU Mandate M/441 on
• smart metering standards in Europe
• Goals and roadmap of the EU mandate M/441
• Introduction of additional functionalities for
  smart metering
• Roadmap and responsibilities for the development
  of today's existing standards into the future
• Ralf Hoffmann GÖRLITZ AG
• Vice president and chairman of ESMIG CTG
• Chairman of EU Smart Metering Mandate M/441 WG
  communication
• on behalf of CENELEC, CEN ETSI SMCG
• Disclaimer this presentation shows an
  intermediate status and preliminary summary of
  the M/441 mandate workgroup results by end of
  september 2010, final acceptance of the content
  and the mentioned report is required by the
  boards of CEN, CENELEC and ETSI and the EU
  commission before becoming valid and binding

2
What is the interoperability statement that
chicken come with?
3
... the way they walk? ... the speed they
make? ... the way they have synchronisational
meetings? ... their funny language? ... the cock?

4
Mandate goal
Mandate M/441 goal
Enable interoperable solutions
for smart metering.
5
Where standards are required
Turn-Key solution (one contractor)
Open solution (multiple vendors)
central
MDM
DC
network
gateway
display
meter
Sub-meter

• Investment protection granted by refreshment of
  solution
• You need good standards
• Not mandatorily good standards
• Interoperability must be stated

• Investment protection granted by single
  contractor
• You need good contracts
• Not mandatorily good standards
• Interoperability is beeing paid

6
Basic rules for M/441 smart metering standards

• The M/441 standards apply for functionalities and
  interfaces of smart metering
• They specify common guidelines and procedures,
  where individual technical standards apply with
• They do not recommend any specific architecture
  or technology
• They are open to regulatory market models and
  individual business cases
• They are able to integrate variations of
  standards in the upper layer of a configuration
  area
• The SMCG technical report shall mainly describe
  these guidelines, not implementations

Interface standard
functional standard
7
Mandate M/441 organisation and responsibilities
Smart Metering Standard-making
Issued mandate M/441 towards the 3 ESOs
CLC TC205
CEN TC294
CLC TC13
ETSI M2M
SM-CG acts as advisory group to the ESOs Helps
coordinate standardisation activities
Accepted mandate and responsible for standards
WG meetings
SMCG WG I communication Chair Ralf Hoffmann
Founded Smart Metering Coordination Group to
assist the mandated work
SMCG WG II functionalities Chair David Johnson
CEN ETSI CEER/ERGEGCENELEC EURELECTRIC ESMI
G MARCOGAZ FACOGAZ EUROGAS AQUA WELMEC CEN/CLC
SEC FORUM EVVE (OPEN meter project) AIE
SMCG Chair Daniel Hec
Advises and helps co-ordinate working groups
Individual members support work of the Technical
Committees
8
Responsibilities
Interfaces of electricity meters
Interfaces of display and Home Automation
Interfaces of non-electricity meters
CEN TC294
CLC TC205
CLC TC13
Smart Meter (M2M) Gateway
M2M communications area in local networks
ETSI TC M2M
Metering area
Central communication system
WAN communications area in public networks
M/441 standardisation area
Technical use cases (EDM, smart grids, DSM, ...)
Commercial use cases (Billing, tarification,
prepayment, ...)
Other areas impacted
9
Enable Competitive solutions for projects
Regulation MID
meters
Information devices
Meter communication
Information services
Architecture individual to market regulation and
technology progress Common usage of a standard
that leads to fulfilment of common M/441 goals
(M2M) gateway
DC (profiled)
Common COSEM object model for smart meter data
indexing
Central communication system
10
Divide solutions in functional areas
Functional area Requirements Standards guidelines
meters Shall not be limited in technology improvement MID
meters Must fulfil national requirements MID
meters Protect consumers MID
Smart metering topologies Shall not be limited in technology improvement Multiple individual standards available and in development New technology can come up with new or existing standards
Smart metering topologies Can be different in Germany, France, Italy, Netherland, Spain, UK ... Multiple individual standards available and in development New technology can come up with new or existing standards
Smart metering topologies Compete against each other Multiple individual standards available and in development New technology can come up with new or existing standards
Central systems Need to support multiple architectures and standards COSEM as central data model for all architectures
Central systems Need to support minimum functionality for individual topologies (services) COSEM as central data model for all architectures
Central systems Interoperability to be required by customers and operators and supported by vendors COSEM as central data model for all architectures
11
Architecture implementation
Non-electricity meters
Electricity meters
Displays and Home Automation
M1
E1
ELT meter comms
G/W/H meter comms
MID ELT meter
G/W/H meter
meter display
meter display
(M2M) gateway opt. internal
(M2M) gateway opt. internal
Consumer display
Home automation
M2
E2
H
(M2M) gateway
DC (profiled)
C
G
G
Meter DB
Security informationIP adress mgmt
AMI head end
Central communication system
12
INTERFACE Architecture FULL VIEW
Electricity meters
Non-electricity meters
Displays and Home Automation
M1
E1
ELT meter comms
G/W/H meter comms
MID ELT meter
G/W/H meter
meter display
meter display
(M2M) gateway opt. internal
(M2M) gateway opt. internal
Consumer display
Home automation
M2
E2
H
(M2M) gateway
DC (profiled)
C
G
G
Meter DB
Security informationIP adress mgmt
AMI head end
Central communication system
13
M/441 INTERFACE MAP List
Interface Purpose Metrology impact Technology types (examples) Lower layer protocols local data model Global data model
Link between MID meter part and meter comms interface yes integrated, wired, optical Used by mandate but defined outside Used by mandate but defined outside COSEM
Link between meter comms interface and M2M gateway no integrated, wired bus, optical, RF TC13 DLMS/Cosem SML COSEM
Link between MID meter part and meter comms interface yes integrated, wired, optical Used by mandate but defined outside Used by mandate but defined outside COSEM
Link between meter comms interface and M2M gateway no integrated, wired bus, optical, RF TC294 DIV/WIF COSEM
Link from M2M gateway towards a Dataconcentrator no Wireless, PLC TC13 (TC294) several COSEM
Link from M2M gateways and DCs towards central system no IP - DSL, GPRS, UMTS ETSI several COSEM
Data service from M2M gateways towards HBES Home automation no wired bus, optical, RF TC205/TC13 several COSEM
Metering interface for Smart Grids data serving no IP TC13 (TC57?) COSEMIEC60870 COSEM
M2M interface for eMobility measurement communication yes IP TC13 (TC57?) COSEMSML COSEM
E1
E2
M1
M2
C
G
H
S1
S2
14
Thank you for your interest and listening to the
status of European standardisation for Smart
Metering.
Ralf Hoffmann Chairman SMCG WG
communication ralf.hoffmann_at_goerlitz.com
Disclaimer this presentation shows an
intermediate status and preliminary summary of
the M/441 mandate workgroup results by end of
september 2010, final acceptance of the content
and the mentioned report is required by the
boards of CEN, CENELEC and ETSI and the EU
commission before becoming valid and binding
