Title: The Cardiovascular System


1

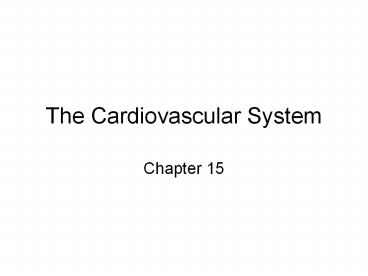

The Cardiovascular System
  • Chapter 15

2
Heart is two pumps in one Right side pulmonary
circulation Left side systemic
circulation Heart? Arteries ? Arterioles ?
Capillaries ? Venules? Veins ? Heart Artery any
vessels that carries blood away from the
heart. Vein any vessels that carries blood
toward the heart
3
(No Transcript)
4
(No Transcript)
5
(No Transcript)
6
Parietal pericardium outer fibrous layer inner
serous layer Pericardial cavity Visceral
pericardium (epicardium) Pericarditis Cardiac
Tamponade
7
Heart Wall
3 Layers Epicardium serous
membrane Myocardium muscle layer Endocardium
continuous throughout circulatory system
8
(No Transcript)
9
Cardiac Muscle involuntary, striated Intercala
ted discs gap junctions functional
syncytium desmosomes spot welds
10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
Anastomoses collateral circulation Ischemia
reduced blood flow Hypoxia reduced oxygen
supply Angina pectoris strangled
chest Myocardial infarction death of an area
of tissue due to interrupted blood flow
19
(No Transcript)
20
(No Transcript)
21
Cardiac cycle
One complete heart beat systole (contraction)
and diastole (relaxation) of both atria and
systole and diastole of both ventricles
22
(No Transcript)
23
Heart Murmurs abnormal sounds caused by the
flow of blood. Mitral stenosis Mitral valve
prolapse
24
(No Transcript)
25
Conduction system of the heart
Sinoatrial (SA) node pacemaker
? Atrioventricular (AV) node ? Atrioventricular
(AV) Bundle - Bundle of His? Purkinje fibers
conduction myofibers Ectopic pacemaker
26
(No Transcript)
27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
Regulation of Heart Rate
  • Sympathetic N.S. increases heart rate and force
    of contraction secrete epinephrine accelerator
    nerves
  • Parasympathetic N.S. decrease heart rate and
    force of contraction through the vagus nerve.
    Sends continuous impulses. Secretes acetylcholine

34
(No Transcript)
35
Other factors that influence heart rate
  • Temperature
  • Ions K and Ca
  • Hormones
  • Hypoxia, acidosis and alkalosis slow heart
  • Age
  • gender
  • Physical fitness

36
Anatomy of blood vessels
  • Arteries carry blood away from the heart
  • Hole is called the lumen
  • Three layers or tunics
  • Tunica interna (intima)
  • Tunica media
  • Tunica externa (adventitia)

37
Tunica interna
  • Simple squamous epithelium called endothelium
  • Secretes biochemicals that inhibit platelet
    aggregation
  • Also substances that dilate or constrict vessels

38
Tunica media
  • Bulk of vessel wall
  • Smooth muscle fibers
  • Innervated by the sympathetic N.S.
    vasoconstriction decreased impulses
    vasodilation
  • Thick layer of elastic connective tissue

39
Tunica externa
  • Thin layer
  • Connective tissue
  • Attaches artery to surrounding tissue
  • Contains tiny vessels vasa vasorum that form
    capillaries and provide blood to external cells
    of the vessel

40
Arteries
  • Large arteries are elastic (conducting) arteries
    pressure reservoirs
  • Medium arteries are muscular (distributing)
    arteries more smooth muscle

41
(No Transcript)
42
(No Transcript)
43
Arterioles
  • Have all three layers, but thin as they divide
  • Branches called metarterioles join capillaries
  • Arteriovenous shunts

44
(No Transcript)
45
Capillaries
  • Only a single layer of endothelium and a basement
    membrane
  • Connect arterioles and venules
  • Microcirculation
  • Functional part of system for exchange of gases,
    wastes and nutrients
  • True capillaries begin at a precapillary sphincter

46
(No Transcript)
47
(No Transcript)
48
Types of capillaries
  • Continuous - intercellular clefts, but otherwise
    uninterrupted

49
(No Transcript)
50
(No Transcript)
51
Types of capillaries
  • Continuous - intercellular clefts, but otherwise
    uninterrupted
  • Fenestrated capillaries have windows or pores
    act in filtration
  • Sinusoids or discontinuous capillaries have
    spaces between cells, and basement membrane is
    incomplete or absent
  • Tight junctions form a barrier

52
Venules
  • Small vessels that join capillaries and veins
  • Add layers

53
Veins
  • Have same three tunics as arteries, but have a
    thinner tunica media
  • Contain valves
  • Act as blood reservoirs

54
(No Transcript)
55
(No Transcript)
56
(No Transcript)
57
(No Transcript)
58
(No Transcript)
59
Hemodynamics Physiology of Circulation
Velocity of blood flow is inversely related to
the cross-sectional area of the blood vessels
(total area). Slow flow through capillaries
allows for exchange. The circulation time right
atrium to foot and back is about one minute in
a resting person.
60
Blood pressure
  • Pressure on walls of a vessel
  • Arterial pressure rises and falls as the left
    ventricle contracts
  • Highest during systole Systolic pressure
  • Lowest during diastole Diastolic pressure
  • Mean arterial pressure is about 93 mm Hg

61
(No Transcript)
62
Factors that influence arterial blood pressure
Cardiac Output SV (ml/beat) X HR (beats/min)
CO(ml/min.) 70 ml X 75 5250
ml or 5.25 liters Within limits, the greater the
stretching of the muscle fibers, the greater the
force of contraction Starlings Law
63
(No Transcript)
64
Hormonal Regulation of B. P.
  • Epinephrine and norepinephrine
  • Renin-angiotensin system
  • ADH antidiuretic hormone - vasopressin
  • ANP atrial natriuretic peptide
  • Others

65
(No Transcript)
66
Hepatic Portal Circulation
  • Drains spleen, stomach, pancreas, gallbladder and
    small and large intestines
  • 2nd capillary bed in liver
  • Glucose is removed, and stored as glycogen
  • Blood is detoxified
  • Leaves through hepatic vein ? inferior vena cava

67
(No Transcript)
68
Fetal Circulation
  • Obtains oxygen and nutrients from maternal
    circulation
  • Two arteries off internal iliac arteries run
    through umbilical cord
  • Umbilical vein returns oxygenated blood
  • Several shunts in fetal circulation

69
  • Ductus venosus bypasses fetal liver and dumps
    blood from umbilical vein into inferior vena
    cava.
  • Foramen ovale hole in atrial septum, blood
    passes from right atrium to left atrium,
    bypassing the developing lungs
  • Ductus arteriosus connects pulmonary artery
    with aorta
  • If does not close patent ductus arteriosus
    get mixing of venous and arterial blood.

70
(No Transcript)
71
Circle of Willis
