Title: ENGINES AUTO 1-2


1

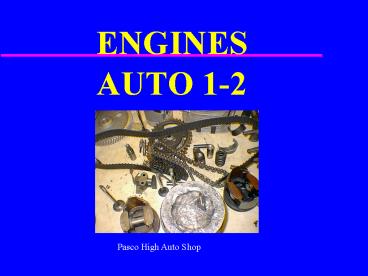

ENGINES AUTO 1-2
Pasco High Auto Shop
2
1. Engine Block
3
1. Engine Block
  • Metal foundation
  • Supports crankshaft and usually camshaft made of
    cast iron or aluminum, aluminum parts that wear
    will have metal inserts that are pressed or cast
    into the block.
  • Cylinder - round hole formed in block bored and
    honed to a fine finish, acts as a guide for
    piston and a container for the fuel charge

4
2. Cylinder Sleeves
  • Round pipe like liners

5
2. Cylinder Sleeves
  • Removable type or cast into block, wet and dry
    sleeves,
  • DRY pressed in block supported and surrounded,
    its full length - most common gas engine.
  • WET pressed in block supported only at top and
    bottom - cooling water comes in direct contact -
    heavier construction has sealing rings

6
Securing sleeves
  • When cast into block they usually have grooves in
    the outside of sleeves to secure it when pressed
    in it can have flange on top or will be held in
    only by friction of a pressed fit - head will
    keep it from coming up.

7
3. Piston
  • Sliding plunger in cylinder creates vacuum on
    intake stroke, compresses mixture on compression
    stroke transmits and contains the pressure of the
    firing stroke, cleans the cylinder of burned
    gases on the exhaust stroke.

8
Piston materials
  • aluminum - cast - most common,
  • forged- found in hi-performance engines

9
Expansion of Piston
  • If the piston is to loose it can cause piston
    slap, piston too loose in cylinder tips from side
    to side

10
Old styles of Piston
  • split skirt, skirt closes as piston warms up.
  • T slot, same as split skirt but has a T top to
    prevent heat of piston head transferring to skirt
  • steel strut, steel cast into aluminum piston
    steel expands less then aluminum and helps reduce
    expansion

11
New style
  • cam ground, minimum clearance on thrust sides egg
    shaped
  • thrust surface, side of piston that is at right
    angles to crank shaft and piston pin surface side
    that prevents tipping and supports the piston.

12
skirts
  • full skirt skirt goes all the way around piston
    not cut away.
  • slipper skirt, piston skirt cut away below piston
    pin for counter weights piston lighter reduces
    inertia load on bearings makes engine more
    responsive

13
piston temperature
  • head of piston up to and above 600' F bottom of
    skirt about 300'F, head of piston is .030 to .040
    in smaller then skirt to allow for expansion top
    can be of different shapes

14
Piston Shapes
  • flat, dome, wedge, irregular - to help in
    exhausting burned gases
  • Piston pin boss, section of piston that supports
    piston pin inboard pin boss - most engines, out
    board pin boss - performance and competition
  • valve reliefs- small indentations machined into
    the top of the piston.

15
4. Piston rings
3 piece Oil ring
16
4. Piston rings
  • ride in grooves in piston head to seal the
    cylinder
  • types of rings, compression - prevent pressure
    leakage into the crankcase
  • different grooves, bevels, and chamfers causes
    internal stress causing scraper action on
    downward stroke taking any oil down that was
    missed by the oil ring

17
Piston rings
  • firing pressure forces top ring down for full
    face contact
  • inner groove usually goes up
  • outer groove usually goes down
  • material, rings made of cast iron, some are
    chrome plated, some are molybdenum coated or a
    grooved filled with moly, some rings are
    stainless steel

18
Oil control rings -
  • scrape oil off cylinder wall and send pack to
    crank case all new sets are three piece expander
    and two steel rings some old oil rings are just
    one ring break easy.
  • compression and oil control rings can have an
    expander ring to help force out the ring

19
Piston ring gap joints, most common - butt
  • lap and bevel have been used
  • some engines have a pin in piston ring groove to
    prevent ring from moving
  • piston ring gap usually .003-.004 for each inch
    of cylinder diameter

20
Ring Width
  • Distance from the top to the bottom of the ring

21
heat dam
  • groove in head of piston that prevents or lowers
    the amount of heat transferred to the top ring
  • top ring groove insert, metal insert cast into
    aluminum piston with piston groove cut out of
    insert to help prolong the life of the piston

22
5. Piston Pins
  • steel pin used to connect piston to connecting
    rod
  • case hardened, soft center .004 outside hardened
    highly polished

23
securing piston pins
  • 1. full floating pin, snap ring each end pin can
    turn in piston bosses and connecting rod may have
    bronze bushing

24
securing piston pins
  • 2. press fit (rod pressed into the connecting
    rod) pin turns in aluminum piston boss.

25
securing piston pins
  • 3. pin locked to rod by bolt not very common.

26
6. Connecting Rods
  • connect piston to the crankshaft upper end
    oscillates lower or large end rotates lower end
    must be split for installation of bearing and
    installation on crankshaft journal. before
    removing number rod and rod cap on same side with
    a number.

27
6. Connecting Rods
  • Steel Rod Aluminum Rod

28
7. Insert Bearings
  • removable bearing split in two pieces for easy
    installation and removal

29
7. Insert Bearings
  • steel back with soft lining, coating can be of
    babbitt, copper-lead-tin or aluminum coating
  • locating tabs help keeps insert bearing from
    turning

30
Insert Bearings
  • crush height the .001 to .002 protruding above
    rod cap and rod that when bolted together forms
    the tight fit that prevents the bearing from
    turning.
  • An undersize bearing is used on a crankshaft that
    has been machined to a smaller size.

31
BEARING PERFORMANCE
  • load strength- must withstand pounding from
    compression and firing stroke
  • anti scuffing - if oil pressure is lost lining
    must be soft enough to prevent crankshaft journal
    from being scratched or scuffed
  • corrosion - must resist corrosion from vapors and
    acids in crankcase
  • conformation - must conform to shape of
    crankshaft journal

32
BEARING PERFORMANCE
  • embedability - must allow small particles to
    embed itself into bearing material so journal
    won't be scratched
  • temperature - must work equally well both hot
    and cold must transfer heat well
  • oil hole or groove for lubrication

33
BEARINGS
  • rod bearings, bearings in the connecting rod
  • main bearings, bearings that go where the main
    bearing cap hold the crankshaft in place.

34
THRUST BEARINGS
  • thrust bearing, has sides on to help prevent end
    play of crankshaft, sometimes use a separate
    piece for the side.

35
8. Crankshaft
  • Crankshaft, change reciprocating motion to
    rotary motion
  • made of Forged steel (should ring when you hit
    it with a hammer) or cast iron
  • counter balances, forged in crank to offset
    weight of crankshaft throw

36
Crankshaft
  • crankshaft throw, the part of crankshaft that the
    connecting rod fastens to also refer to as rod
    journal
  • crank main journal, by use of main bearing caps
    crankshaft is bolted to block
  • crankshaft is drilled so oil can be fed to main
    bearings and rod bearings, crankshafts are ground
    and highly polished

37
9. Harmonic Balancer or Vibration Damper
  • Helps absorb torsional vibration of crankshaft
    and smooth out firing pressure of each cylinder,
    2 pieces with rubber plug or lining

38
10. Flywheel
  • 1. smooth out engine speed
  • 2. mounting surface for clutch
  • 3. starter motor engage ring gear to start
    engine
  • 4. carry engine through power strokes

39
11. Camshaft
  • opens the valves in engine cam lobes open the
    valves one per valve shape of lobe determines how
    long valve stays open and how far it opens also
    gear to drive the distributor and oil pump an
    eccentric may be ground or bolted onto cam to
    drive the fuel pump

40
12. Timing chain, belt and gears
  • drive chain or belt that connects the crankshaft
    gear(driving force) to the cam shaft gear (the
    driven force) camshaft turns at 1/2 crank shaft
    speed.
  • light duty chain, heavy duty - double roller,
    driven by all gears, crank gear - steel, cam gear
    - steel, aluminum, pressed fiber, plastic, must
    be aligned

41
tensioner for belt or chain
Off of a 96 Olds chain drive
Off a 75 Toyota 2TC chain drive
42
12. Timing chain
43
12. Timing gears
44
13. Valves
  • device used to open and close the valve port,
    engines have 2 3 or 4 valves per cylinder
  • some valves have a special hard facing on the
    face stellite faced valves

45
Valves
  • valve faces are ground at different angles 29-30
    and 44-45 most common. interface angle valve
    face 44 seat 45, exhaust valve may climb out of
    seat
  • cooling, heat dissipates through valve seat and
    valve guide some valves (heavy duty truck) are
    sodium filled to help transfer heat.

46
CAUTION
  • SODIUM, IF DROPPED INTO WATER WILL BURST INTO
    FLAMES WILL CAUSE SERIOUS BURNS IF IT GETS ON TO
    YOUR SKIN.

47
14. Valve seat
  • Part of head or block that valve face comes in
    contact with to seal cylinder. Can be part of
    head or an insert that is pressed in. most now
    are hardened seats valve seat angle 30 and 45

48
15. Valve springs
  • closes valve when lifter comes off cam lobes
    some valves use 2 springs per valve, Must measure
    valve spring installed height, coil bind - spring
    can only go together so far.

49
16. Valve spring retainer
  • holds spring in place with a valve lock or keeper

50
Valve keepers
  • holds valve in place maybe called a stem lock

51
Valve Stem seals
  • Valve seals prevent oil from being drawn into the
    engine. Deflector seals usually called Umbrella
    seals and a Positive seal are the most common
    types. GM uses a O-ring on there engines.

52
17. Valve guide
  • hole through which valve passes to keep it in
    proper alignment can be cast into head or pressed
    in must have .002 - .003 clearance

53
18. Valve lifter
  • mechanical - solid
  • lifters are solid or hollow made of cast iron
    bottom that contacts camshafts is hardened
    adjustment is taken care of in rocker arms on
    most engines some lifters are adjustable.

54
Hydraulic Valve lifter
  • Hydraulic, self adjusting has zero valve lash
    clearance(No space between parts), use engine oil
    under pressure to operate are quieter then solid
    lifters operation, may use flat check valve or
    ball.

55
Hydraulic Valve lifter
  • Roller Lifter - has a small roller that rolls on
    the camshaft.

56
19. Lifter guide
  • bore in block that contain lifter has oil passage
    in it to supply oil to lifter

57
20. Rocker Arm
  • Transmit cam lobe action to the valve stem, two
    type adjustable and non adjustable can be mounted
    on shaft or a individual stud, overhead
    cam-rocker arm operates on camshaft (eliminates
    the middle man), roller rockers

58
20. Rocker Arm
59
20. Roller Rocker Arm
60
21. Push rod
  • Transmits valve train motion from valve lifter to
    rocker arm

61
22. valve port
  • passages which allow the air fuel mixture in and
    the burned fuel out

62
23. Crank case or oil pan
  • reservoir for oil usually made of stamped steel
    attached to the bottom of block the oil pump is
    usually with in this reservoir

63
The End Scott Salisbury
Write a Comment
User Comments (0)
About PowerShow.com
