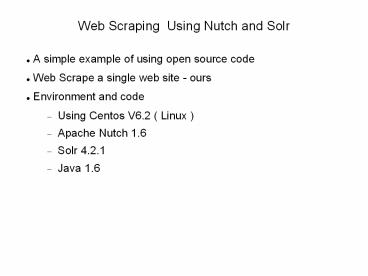

Title: Web Scraping Using Nutch and Solr 1/3


1
Web Scraping Using Nutch and Solr
  • A simple example of using open source code
  • Web Scrape a single web site - ours
  • Environment and code
  • Using Centos V6.2 ( Linux )?
  • Apache Nutch 1.6
  • Solr 4.2.1
  • Java 1.6

2
Nutch and Solr Architecture
  • Nutch processes urls and feeds content to Solr
  • Solr indexes content

3
Where to get source code
  • Nutch
  • http//nutch.apache.org
  • Solr
  • http//lucene.apache.org/solr
  • Java
  • http//java.com

4
Installing Source - Nutch
  • Nutch is delivered as
  • apache-nutch-1.6-bin.tar ( 64M )?
  • apache-nutch-1.6-src.tar ( 20M )?
  • Copy each tar file to your desired location
  • Install each tar file as
  • tar xvf lttar filegt
  • Second tar file optional

5
Installing Source - Solr
  • Solr is delivered as
  • solr-4.2.1.zip ( 116M )?
  • Copy file to your desired location
  • Install each tar file as
  • unzip ltzip filegt

6
Configuring Nutch Part 1
  • Assuming we will crawl a single web site
  • Ensure that JAVA_HOME is set
  • cd apache-nutch-1.6
  • Edit agent name in conf/nutch-site.xml
  • ltpropertygt
  • ltnamegthttp.agent.namelt/namegt
  • ltvaluegtNutch Spiderlt/valuegt
  • lt/propertygt
  • mkdir -p urls cd urls touch seed.txt

7
Configuring Nutch Part 2
  • Add following url ( ours ) to seed.txt
  • http//www.semtech-solutions.co.nz
  • Change url filtering in conf/regex-urlfilter.txt,
    change the line
  • accept anything else
  • .
  • To be
  • http//(a-z0-9\.)semtech-solutions.co.nz/
  • This means that we will filter the urls found to
    only be from the local site

8
Configuring Solr Part 1
  • cd solr-4.2.1/example/solr/collection1/conf
  • Add some extra fields to schema.xml after
    _version_ field i.e.

9
Start Solr Server Part 1
  • Within solr-4.2.1/example
  • Run the following command
  • java -jar start.jar
  • Now try to access admin web page for solr
  • http//localhost8983/solr/admin
  • You should now see the admin web site
  • ( see next page )?

10
Start Solr Server Part 2
  • Solr Admin web page

11
Run Nutch / Solr
  • We are ready to crawl our first web site
  • Go to apache-nutch-1.6 directory
  • Run the following commands
  • touch nutch_start.bash
  • chmod 755 nutch_start.bash
  • vi nutch_start.bash
  • Add the text to the file
  • !/bin/bash
  • bin/nutch crawl urls -solr http//localhost8983/s
    olr/ \
  • -dir crawl -depth 3 -topN 3

12
Run Nutch / Solr
  • Now run the nutch bash file
  • ./nutch_start.bash
  • Select the Logging option on the admin console
  • Monitor for errors in Logging console
  • The crawl should finish with no errors and the
    line
  • Crawl finished crawl
  • In the crawl window

13
Check Crawled Data
  • Now we check the data that we have crawled
  • In Admin Console window
  • Set Core Selector to collection1
  • Select the Query option
  • Click execute query button
  • You should now see some of the data that you
    have crawled

14
Crawled Data
  • Crawled data in solr query

15
Crawled Data
  • Thats your first simple crawl completed
  • Further reading at
  • http//nutch.apache.org
  • http//lucene.apache.org/solr
  • Now you can
  • Add more urls to your seed.txt
  • Increase the depth of your link search via
    options
  • -depth
  • -topN
  • Modify your url filtering

16
Contact Us
  • Feel free to contact us at
  • www.semtech-solutions.co.nz
  • info_at_semtech-solutions.co.nz
  • We offer IT project consultancy
  • We are happy to hear about your problems
  • You can just pay for those hours that you need
  • To solve your problems
