Muscular System: Histology and Physiology

1
Muscular SystemHistology and Physiology

• Chapter 9

2
Functions of the Muscular System

• Body movement (skeletal muscles attached to
  bones)
• Maintenance of posture
• Respiration (skeletal muscles of thorax are
  responsible for the movement necessary for
  respiration)
• Production of body heat (when skeletal muscles
  contact, heat is given off as a
  by-product)
• Communication (speaking, writing)
• Constriction of organs and vessels (contraction
  of smooth muscle)
• Heart beat (contraction of cardiac muscle)

3
General Functional Characteristics of Muscle

• Contractility ability of a muscle to shorten
  with force
• Excitability capacity of muscle to respond to a
  stimulus (by nerve or hormone)
• Extensibility muscle can be stretched to its
  normal resting length and beyond to a limited
  degree
• Elasticity ability of muscle to recoil to
  original resting length after stretched

4
Types of Muscle Tissue

• Skeletal
• Responsible for locomotion, facial expressions,
  posture, respiratory movements, other types of
  body movement
• Voluntary
• Smooth
• Walls of hollow organs, blood vessels, eye,
  glands, skin
• Some functions propel urine, mix food in
  digestive tract, dilating/constricting pupils,
  regulating blood flow
• In some locations, autorhythmic
• Controlled involuntarily by endocrine and
  autonomic nervous systems
• Cardiac
• Heart major source of movement of blood
• Autorhythmic
• Controlled involuntarily by endocrine and
  autonomic nervous systems

5
(No Transcript)
6
Skeletal Muscle Structure

• Composed of muscle cells (fibers), connective
  tissue, blood vessels, nerves
• Fibers are long, cylindrical, multinucleated
• Tend to be smaller diameter in small muscles and
  larger in large muscles. 1 mm- 4 cm in length
• Develop from myoblasts (they are converted to
  muscle fibers as contractile proteins accumulate
  within their cytoplasm) numbers remain constant
  ( of muscle fibers remain constant after
  birth----so, enlargement of muscles is an
  increase in size rather than )
• Striated appearance due to light and dark banding

7

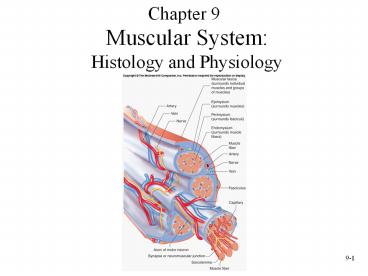

Connective Tissue Coverings of Muscle

• Layers
• External lamina. Delicate, reticular fibers.
  Surrounds sarcolemma (P.M.)
• Endomysium. Loose C.T. with reticular fibers.
• Perimysium. Denser C.T. surrounding a group of
  muscle fibers. Each group called a fasciculus
• Epimysium. C.T. that surrounds a whole muscle
  (many fascicles)
• Fascia connective tissue sheet
• Forms layer under the skin
• Holds muscles together and separates them into
  functional groups.
• Allows free movements of muscles.
• Carries nerves (motor neurons, sensory neurons),
  blood vessels, and lymphatics.
• Continuous with connective tissue of tendons and
  periosteum.

8
Nerves and Blood Vessel Supply

• Motor neurons stimulate muscle fibers to
  contract. Nerve cells with cell bodies in brain
  or spinal cord axons extend to skeletal muscle
  fibers through nerves
• Axons branch so that each muscle fiber is
  innervated
• Capillary beds surround muscle fibers

9
Muscle Fibers

• Nuclei just inside sarcolemma
• Cell packed with myofibrils within cytoplasm
  (sarcoplasm cytoplasm without myofibrils)
• Threadlike (extends from one end of muscle fiber
  to the other)
• Composed of protein threads called myofilaments
  thin (actin 8nm) and thick (myosin 12nm)
• Sarcomeres actin myosin myofilaments form
  highly ordered units called sarcomeres. They are
  joined end to end to form the myofibrils.

10
Parts of a Muscle
11
Actin and Myosin Myofilaments
12
Actin (Thin) Myofilaments

• Two strands of fibrous (F) actin form a double
  helix extending the length of the myofilament
  attached at either end at sarcomere.
• Composed of G actin monomers each of which has an
  active site
• Actin site can bind myosin during muscle
  contraction.
• Tropomyosin an elongated protein winds along the
  groove of the F actin double helix.

• Troponin is composed of three subunits one that
  binds to actin, a second that binds to
  tropomyosin, and a third that binds to calcium
  ions. Spaced between the ends of the tropomyosin
  molecules in the groove between the F actin
  strands.
• The tropomyosin/troponin complex regulates the
  interaction between active sites on G actin and
  myosin.

13
Myosin (Thick) Myofilament

• Many elongated myosin molecules shaped like golf
  clubs.
• Molecule consists of two heavy myosin molecules
  wound together to form a rod portion lying
  parallel to the myosin myofilament and two heads
  that extend laterally.

• Myosin heads
• Can bind to active sites on the actin molecules
  to form cross-bridges.
• Attached to the rod portion by a hinge region
  that can bend and straighten during contraction.
• Have ATPase activity activity that breaks down
  adenosine triphosphate (ATP), releasing energy.
  Part of the energy is used to bend the hinge
  region of the myosin molecule during contraction

14
Sarcomeres Z Disk to Z Disk

• Z disk filamentous network of protein. Serves as
  attachment for actin myofilaments
• Striated appearance
• I bands from Z disks to ends of thick filaments
• A bands length of thick filaments
• H zone region in A band where actin and myosin
  do not overlap
• M line middle of H zone delicate filaments
  holding myosin in place

• In muscle fibers, A and I bands of parallel
  myofibrils are aligned.
• Titin filaments elastic chains of amino acids
  make muscles extensible and elastic

15
Sliding Filament Model

• Actin myofilaments sliding over myosin to shorten
  sarcomeres
• Actin and myosin do not change length
• Shortening sarcomeres responsible for skeletal
  muscle contraction
• During relaxation, sarcomeres lengthen because of
  some external force, like forces produced by
  other muscles (contraction of antagonistic
  muscles) or by gravity.
• - agonist muscle that accomplishes a
  certain movement, such as flexion.
• - antagonist muscle acting in
  opposition to agonist.

16
Sarcomere Shortening
17
Physiology of Skeletal Muscle Fibers

• Nervous system controls muscle contractions
  through action potentials
• Resting membrane potentials
• Membrane voltage difference across membranes
  (polarized)
• Inside cell more negative due to accumulation of
  large protein molecules. More K on inside than
  outside. K leaks out (through leak channels) but
  not completely because negative molecules hold
  some back.
• Outside cell more positive and more Na on
  outside than inside.
• Na /K pump maintains this situation.
• Must exist for action potential to occur

18
Ion Channels

• Types
• Ligand-gated. Ligands are molecules that bind to
  receptors. Receptor protein or glycoprotein with
  a receptor site
• Example neurotransmitters
• Gate is closed until neurotransmitter attaches to
  receptor molecule. When Ach (acetylcholine)
  attaches to receptor on muscle cell, Na gate
  opens. Na moves into cell due to concentration
  gradient
• Voltage-gated
• Open and close in response to small voltage
  changes across plasma membrane
• Each is specific for one type of ion

19
Action Potentials

• Phases
• Depolarization Inside of plasma membrane becomes
  less negative. If change reaches threshold,
  depolarization occurs
• Repolarization return of resting membrane
  potential. Note that during repolarization, the
  membrane potential drops lower than its original
  resting potential, then rebounds. This is because
  Na plus K together are higher, but then Na/K pump
  restores the resting potential
• All-or-none principle like camera flash system
• Propagate Spread from one location to another.
  Action potential does not move along the
  membrane new action potential at each successive
  location.
• Frequency number of action potential produced
  per unit of time

20
Gated Ion Channels and the Action Potential
21
Action Potential Propagation
22
Neuromuscular Junction

• Synapse axon terminal resting in an invagination
  of the sarcolemma
• Neuromuscular junction (NMJ)
• Presynaptic terminal axon terminal with synaptic
  vesicles
• Synaptic cleft space
• Postsynaptic membrane or motor end-plate

23
Function of Neuromuscular Junction

• Synaptic vesicles
• Neurotransmitter substance released from a
  presynaptic membrane that diffuses across the
  synaptic cleft and stimulates (or inhibits) the
  production of an action potential in the
  postsynaptic membrane.
• Acetylcholine
• Acetylcholinesterase A degrading enzyme in
  synaptic cleft. Prevents accumulation of ACh

24
(No Transcript)
25
Excitation-Contraction Coupling

• Mechanism by which an action potential causes
  muscle fiber contraction
• Involves
• Sarcolemma
• Transverse (T) tubules invaginations of
  sarcolemma
• Terminal cisternae
• Sarcoplasmic reticulum smooth ER
• Triad T tubule, two adjacent terminal cisternae
• Ca2
• Troponin

26
Action Potentials and Muscle Contraction
27
Cross-Bridge Movement
28
Relaxation

• Ca2 moves back into sarcoplasmic reticulum by
  active transport. Requires energy
• Ca2 moves away from troponin-tropomyosin complex

• Complex re-establishes its position and blocks
  binding sites.

29
Muscle Twitch

• Muscle contraction in response to a stimulus that
  causes action potential in one or more muscle
  fibers
• Muscle contraction measures as force, also called
  tension. Requires up to a second to occur.
• Phases
• Lag or latent (neuromuscular junction step 1
  of cross-bridge movement)
• Contraction (step 2 - 6 of cross-bridge
  movement)
• Relaxation (powerpoint slide 28)

30
(No Transcript)
31
Stimulus Strength and Muscle Contraction

• All-or-none law for muscle fibers
• Contraction of equal force in response to each
  action potential
• Sub-threshold stimulus no action potential no
  contraction
• Threshold stimulus action potential contraction
• Stronger than threshold action potential
  contraction equal to that with threshold stimulus
• Motor units a single motor neuron and all muscle
  fibers innervated by it

32
Contraction of the Whole Muscle

• Whole muscles exhibit characteristics that are
  more complex than those of individual muscle
  fibers or motor units. Instead of responding in
  an all-or-none fashion, whole muscles respond to
  stimuli in a graded fashion, which means that the
  strength of the contractions can range from weak
  to strong.
• Remember There are many muscle fibers in one
  fasciculi and many fasciculi in one
  whole muscle.
• Strength of contraction in whole muscle is
  graded ranges from weak to strong depending on
  stimulus strength
• Multiple motor unit summation the force in which
  a whole muscle contracts depends on the number of
  motor units stimulated to contract. (force of
  contraction increases as more more motor units
  are stimulated). A muscle has many motor units
• Submaximal stimuli
• Maximal stimulus
• Supramaximal stimuli

33
Contraction of the Whole Muscle
34
Stimulus Frequency and Muscle Contraction

• Relaxation of a muscle fiber is not required
  before a second action potential can stimulate a
  second contraction.
• As the frequency of action potentials increase,
  the frequency of contraction increases
• Incomplete tetanus muscle fibers partially relax
  between contraction
• Complete tetanus no relaxation between
  contractions
• Multiple-wave summation muscle tension increases
  as contraction frequencies increase

35
Types of Muscle Contractions

• Isometric no change in length of muscle but
  tension increases during contraction
• Postural muscles of body ex muscles hold spine
  erect while person is sitting or
  standing
• Isotonic change in length but tension constant
  ex waving using computer keyboard
• Concentric tension is so great it overcomes
  opposing resistance and muscle shortens
  ex raising of a
  weight during a bicep curl.
• Eccentric tension maintained but muscle
  lengthens ex person slowly lowers a heavy
  weight
• Muscle tone constant tension by muscles for long
  periods of time

36
Fatigue

• Decreased capacity to work and reduced efficiency
  of performance
• Types
• Psychological depends on emotional state of
  individual ex burst of activity in tired athlete
  in response to encouragement from spectators
  shows how psychological fatigue can be overcome
• Muscular results from ATP depletion ex fatigue
  in lower limbs of marathon runners or in upper
  lower limbs of swimmers
• Synaptic occurs in NMJ due to lack of
  acetylcholine ex rare-----only under extreme
  exertion

37
Physiological Contracture and Rigor Mortis

• Physiological contracture state of extreme
  fatigue (extreme exercise) where due to lack of
  ATP neither contraction nor relaxation can occur
• Rigor mortis development of rigid muscles
  several hours after death. Ca2 leaks into
  sarcoplasm and attaches to myosin heads and
  crossbridges form but no ATP available to bind to
  myosin---------so the cross-bridges are unable to
  release. Rigor ends as tissues start to
  deteriorate.

38
Energy Sources

• ATP provides immediate energy for muscle
  contractions. Produced from three sources
• Creatine phosphate
• During resting conditions stores energy to
  synthesize ATP
• ADP Creatine phosphate------------------?
  Creatine 1ATP
•
  (Creatine Kinase)
• Anaerobic respiration
• Occurs in absence of oxygen and results in
  breakdown of glucose to yield ATP and lactic acid
• Aerobic respiration
• Requires oxygen and breaks down glucose to
  produce ATP, carbon dioxide and water
• More efficient than anaerobic

39
Slow and Fast Fibers

• Slow-twitch oxidative
• Contract more slowly, smaller in diameter, better
  blood supply, more mitochondria (also called
  oxidative because carry out aerobic respiration),
  more fatigue-resistant than fast-twitch, large
  amount of myoglobin (dark pigment which binds
  oxygen acts as a muscle reservoir for oxygen
  when blood does not supply adequate amount).
• Postural muscles, more in lower than upper limbs.
  Dark meat of chicken.
• Functions Maintenance of posture performance
  in endurance activities.
• Fast-twitch
• Respond rapidly to nervous stimulation, contain
  myosin that can break down ATP more rapidly than
  that in Type I, less blood supply, fewer and
  smaller mitochondria than slow-twitch (adapted to
  perform anaerobic respiration)
• Lower limbs in sprinter, upper limbs of most
  people. White meat in chicken.
• Comes in oxidative and glycolytic forms
• Functions Rapid, intense movements of short
  duration
• Distribution of fast-twitch and slow-twitch
• Most muscles have both but varies for each muscle
• Exercise weight lifting enlarges fast-twitch
  aerobic training enlarges slow-twitch
• Effects of exercise change in size of muscle
  fibers
• Hypertrophy increase in muscle size
• Increase in myofibrils
• Increase in nuclei due to fusion of satellite
  cells
• Increase in strength
• Atrophy decrease in muscle size
• Reverse except in severe situations where cells
  die

40
(No Transcript)
41
Smooth Muscle

• Not striated, fibers smaller than those in
  skeletal muscle
• Spindle-shaped single, central nucleus
• More actin than myosin
• Caveolae indentations in sarcolemma may act
  like T tubules
• Dense bodies instead of Z disks as in skeletal
  muscle have noncontractile intermediate
  filaments
• Ca2 required to initiate contractions binds to
  calmodulin (protein). Calmodulin molecules with
  Ca bound to them activate an enzyme called
  myosin kinase, which transfers a phosphate group
  from ATP to heads of myosin molecules.
  Cross-bridging occurs
• Relaxation caused by enzyme myosin phosphatase

42
(No Transcript)
43
Electrical Properties of Smooth Muscle

• Slow waves of depolarization and repolarization
  transferred from cell to cell
• Depolarization caused by spontaneous diffusion of
  Na and Ca2 into cell
• Does not follow all-or-none law
• Contraction regulated by nervous system and by
  hormones (ex epinephrine)

44
Regulation of Smooth Muscle

• Innervated by autonomic nervous system (composed
  of nerve fibers that send impulses from CNS to
  smooth muscle, cardiac muscle, glands)
• Neurotransmitters are acetylcholine and
  norepinephrine (increases cardiac output, blood
  glucose levels)
• Hormones important as epinephrine and oxytocin
• Receptors present on plasma membrane which
  neurotransmitters or hormones bind determines
  response

45
Cardiac Muscle

• Found only in heart
• Striated
• Each cell usually has one nucleus
• Has intercalated disks and gap junctions
• Autorhythmic cells
• Action potentials of longer duration
• The depolarization of cardiac muscle results from
  influx of Na and Ca2 across the plasma membrane

46
Effects of Aging on Skeletal Muscle

• Reduced muscle mass
• Increased time for muscle to contract in response
  to nervous stimuli
• Reduced stamina
• Increased recovery time
• Loss of muscle fibers
