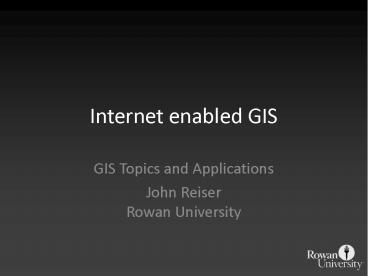

Internet enabled GIS

• GIS Topics and Applications
• John ReiserRowan University

2
GIS as a Support System

• GIS has become a critical component in
• Land Real Estate Management
• Transportation Traffic Engineering
• Environmental Studies
• Urban Planning
• Civil Engineering
• Facilities Building Management
• Fleet Control Routing
• Mobile Location-Based Services

3
Yesterday's GIS

• GIS used to be tied to the back office.
• Trade or purchase GIS data.
• Data stored on the same computer as the software.
• GIS was anchored to one place and only a select
  few had access.
• Computing is now distributed across a network
  that is accessible nearly everywhere.

4
Before, data was stored on disk, on site.Now,
the data is available across the 'Net.
5
Internet GIS

• Internet-enabled GIS allows professionals and the
  public a level of access to information that was
  previously impossible.
• Professionals can report on and update maps and
  data in the field.
• The public can now access plans with ease even
  contribute to the planning process via the web.

6
Internet GIS

• Making GIS accessible
• Accessing data using the web
• Web Map Services (ArcIMS, WMS WFS)
• GIS servers Location-based Services
• Keyhole Markup Language (KML)
• Distributing data using the web
• Basic and advanced distribution
• Basics of generating and distributing KML
• Overview of instituting a WMS

7
Data Accessibility

• We can easily share data now
• FTP
• ZIP files posted to the web
• Helps GIS users, but outsiders are left in the
  dark
• Inviting, easy to use map interfaces are the new
  way to share

8
Making GIS Accessible
9
NYCityMap gis.nyc.gov/doitt/nycitymap/
10
Basics of Internet-enabled GIS

• Simple, open formats, usually XML based
• Data can be emailed or hosted on a webserver
• Uses a public or private GIS server for
  additional features
• KML is overlaid on top of images provided by
  Google
• Data is either geospatially aware map images, or
  actual GIS data in a web friendly format.

11
Images versus Data

• Map services usually deliver images of maps that
  include information allowing software to properly
  position the image on the Earth.
• Some map services deliver map images, along with
  attribute information about the features in the
  map image.
• Other map services deliver just GIS data, leaving
  it up to the client application to render the
  data on the screen.

12
Spectrum of Services
Images Only Data Only
Web Map Service
Web Feature Service
Tile Services
ArcIMS
ArcGIS
KML
13
ArcGIS Server ArcIMS

• ESRI's server-side software
• Allows ArcGIS desktop mobile users access to a
  central GIS database
• Generates map images and exports feature info
• Many counties and large cities use this software
• Serves ArcGIS and web browser users
• Can also provide WMS and WFS services
• Incredibly feature rich, but expensive

14
Web Map Service

• WMS is a protocol for requesting rendered map
  tiles from a GIS server
• Data returned is a map image
• Allows access to the attribute information via
  XML
• REST-ful protocol necessary info within the URL
• Open standard, free to implement

15
Web Feature Service

• WFS allows for retrieval of GIS features and
  properties from a remote server
• Data is GIS features data, not maps
• WFS also allows updating GIS data on a remote
  server
• Returns XML data

16
KML

• Once a "closed" language, Google pushed for its
  adoption as an open standard
• KML is a subset of XML and related to GML
• KML stores vector data along with symbology
• KML can act as a wrapper for WMS services

17
Finding GIS Resources

• The Federal Government and each State maintains a
  Spatial Data Clearinghouse.
• Ours (in my opinion) is one of the best
• NJ Geographic Information Networkhttp//njgin.sta
  te.nj.us/
• Federal Geo Onestophttp//geodata.gov

18
Geospatial One-Stopgeodata.gov
19
NJ Geographic Information Networknjgin.state.nj.u
s
20
NJGIN's Explorer

• Use Explorer to search metadata records
• Search by theme, keyword and area
• Downloads as well as live web services are
  indexed
• Provides links to connect to servers

21
Information Warehousenjgin.state.nj.us
22
County IMS Sites

• Several NJ counties have public ArcIMS websites
  that offer several county datasets
• None so far offer WMS services, so ArcGIS
  dependent

23
Cape May County's IMScapemaycountyims.net
24
ArcGIS and IMS Sites

• IMS sites can be configured to allow access using
  ArcGIS
• Most of the NJ County IMS sites are configured
  allowing access

Previously connected servers
25
ArcIMS FeaturesImages and Features
Features
26
Accessed via a web browser
27
and ArcGIS.
28
Image Service allows for basic selections using
the interactive selection tools.
29
Feature Service allows for selection using the
Select by Location tool.
200' from this property
30
Selected features can then be exported to a
shapefile or local geodatabase.
31
First Part of Lab

• Workshop

32
Using KML to Enhance Your Data
33
What exactly is KML?

• Keyhole Markup Language allows for an open
  exchange of GIS data, as well as
• symbology for every data element
• 3D models (COLLADA) that have been georeferenced
• camera viewpoints and tours
• network links and web services
• XML based, human readable, text format
• OGC standard open and license free

34
Why KML?

• There are free shapefile viewers for Windows
  why don't we just use them?
• Shapefiles are just GIS data.
• KML allows you to define colors and icons for
  your GIS data, as well as set view points and
  include notes and links to other pages and data.
• KML gives your users access to your data,
  prepared the way you want.

35
KML Basics mygeoposition.com
36
KML Structure

• Unlike shapefiles, KML is not just data.
• Container format for vector data, raster data,
  network links and dynamic data.
• Data is organized into folders that can be
  rearranged and nested.

KML File
Group Layer
GIS Layer
Polygons
Image Overlay
37
KML and Network Links

• KML is a relatively new format and was designed
  with the Internet in mind.
• KML supports network links, allowing remote KML
  data to be accessed on the fly.
• KML also supports WMS layers, acting as a wrapper
  for the image service.
• Lightweight files can be distributed to your
  users
• Network links guarantee that users will always
  have the latest data.

38
KML Viewers

• The default data format for Google Earth is KML.
• Google Maps has some basic KML viewing capability
  paste a URL into the map search.
• ESRI's free ArcExplorer can also view KML.
• Those without GIS can easily download any of
  these free applications to view your map data.

39
Google Earth

• In the workshop, you will export your data into
  KML format and view it in Google Earth.
• Google Earth provides the richest user experience
  of all the KML viewers.
• Google Earth also provides the largest library of
  GIS data.
• It doesn't mean that it's the only option many
  of the other viewers have a purpose, too!

40
KML in Google Earth
41
Google Maps

• Google Maps supports points, lines, polygons,
  overlays and network links in KML files.
• You can host KML, provide the link to Google
  Maps, and share your data in the same way.
• Limited by browser's capabilities most
  computers can only handle 100 features before a
  performance hit.
• Simplest way to share data to users without any
  need to install additional software.

42
KML in Google Maps
43
KML without ArcGIS

• If you have some GIS data
• shapefiles
• tabular (CSV with coordinates)
• or just KML you'd like hosted
• there are several websites that will convert and
  host your data as an interactive map and KML.
• One of these sites is GeoCommons.
• Another site useful for quick KML point
  generation is MyGeoPosition.

44
GeoCommons geocommons.com
45
GeoCommons Finder!
46
GeoCommons Maker!
47
Going Further

• KML is a great resource for distributing GIS
  data, but it has its limitations
• GIS specialists and developers that specialize in
  KML can help you push those limits.
• When your organization is ready to move up to a
  GIS server, you should know that there are
  several options available to you.
• Commercial and Open Source options.

48
Second Part of Lab

• Workshop
