Basic Clinician Training Module 2

1

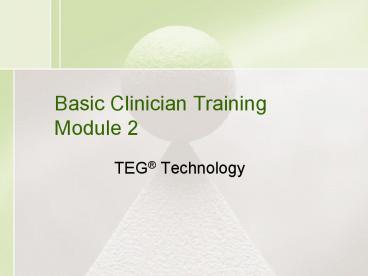

Basic Clinician TrainingModule 2

• TEG Technology

2
(No Transcript)
3
Hemostasis monitoringRoutine coagulation tests
PT, aPTT

• Based on cascade model of coagulation
• Measure coagulation factors interaction in
  solution (plasma)
• Determine if adequate levels of coagulation
  factors are present for clot formation
• Do not reflect the roles of cells or
  contributions of local vascular and tissue
  conditions
• Plasma-based assays miss the impact of platelets
  and platelet activation on thrombin generation.
• Plasma-based assays use static endpoints (e.g.
  fibrin formation) - miss impact of altered
  thrombin generation on platelet function and clot
  structure.

4
Hemostasis monitoringTEG analysis system

• Whole blood test
• Measures all phases of hemostasis
• initiation through lysis
• Shows the net effect of
• hemostatic components on blood
• clotting process

5
The TEG analyzerDescription

• TEG point of care (POC) whole blood coagulation
  monitoring device
• Time to initial results 4-8 minutes
• Time to completion (clot lysis) 45-60 minutes
• Uses activated blood to maximize thrombin
  generation and platelet activation in an in vitro
  environment
• Measures the hemostatic potential of the blood at
  a given point in time under optimal conditions of
  thrombin generation
• Demonstrates the contributions and interactions
  of hemostatic components during the clotting
  process.

6
TEG technologyHow it works
7
TEG sample preparation

• Blood samples can be modified by adding agents
  to the sample
• Activator maximizes thrombin generation and
  speeds up clotting time
• Kaolin activates intrinsic pathway, used for
  normal TEG analysis
• Tissue factor specifically activates extrinsic
  pathway
• Heparinase removes heparin from sample, allows
  view of the underlying hemostatic status of a
  patient on heparin.
• Platelet activators allows testing antiplatelet
  agent responsiveness and efficacy. (Module 7)

8
TEG sample types

• Kaolin used for normal TEG analysis
• Kaolin with heparinase used for normal TEG
  analysis when patient on heparin
• Compared with Kaolin-only sample (run
  simultaneously) to determine reversal of heparin

9
Utility of the TEG

• Demonstrates all phases of hemostasis
• Initial fibrin formation
• Fibrin-platelet plug construction
• Clot lysis
• Identifies a balance or imbalance in the
  hemostatic system between the clot forming and
  clot breakdown pathways
• Identifies likely cause(s) of bleeding
• Identifies likely cause(s) of thrombosis

10
What TEG analysis captures
11
TEG parameters

• Identification
• Definition

12
Thrombin formationThe R parameter - identified
Initial fibrin formation
Intrinsic,extrinsic,commonpathways
Pin is stationary
Pin is engaged
? Pin starts to rotate with cup
Cup rotates, pin remains stationary
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
FibrinogenThe a (angle) parameter - identified
Fibrin increases
Pin is engaged
Amplitude of pin rotation increases as fibrin is
generated and cross links are formed
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
Platelet functionThe MA parameter - identified
Maximum amplitude (MA) of pin rotation
Amplitude of pin rotation
21
Platelet functionThe MA parameter - defined
Maximum amplitude (MA) of pin rotation
Amplitude of pin rotation

• Amplitude of pin rotation depends on clot
  strength
• Clot strength 80 platelets 20 fibrinogen
• Platelet function influences thrombin generation
  and fibrin formation ? relationship between R, a,
  and MA

22
(No Transcript)
23
(No Transcript)
24
Coagulation indexThe CI parameter - defined

• Linear combination of kinetic parameters of clot
  development and clot strength (R, K, angle, MA)
• Provides a global index of hemostatic status
• CI lt -3.0 hypocoagulable
• CI gt 3.0 hypercoagulable

25
FibrinolysisThe LY30 parameter - identified
Decrease in amplitude of pin rotation 30 minutes
after MA reached
MA
30 min
26
FibrinolysisThe LY30 parameter - defined
Decrease in amplitude of pin rotation 30 minutes
after MA reached
MA
30 min

• Reduction in amplitude of pin rotation depends on
  extent of fibrinolysis

27
(No Transcript)
28
(No Transcript)
29
TEG parameter summaryDefinitions
30
TEG parameter summary
31
What does TEG report?
Clot strength Platelet function
Clot stability Clot breakdown
Clotting time
Clot kinetics
32
Normal TEG tracing
30 min
33
Hemorrhagic TEG tracing
30 min
34
Prothrombotic TEG tracing
35
Fibrinolytic TEG tracing
30 min
36
Components of the TEG tracingExample R
Actual value
Normal range
ParameterUnitsValueNormal range
37
TEG decision treeQualitative
38
TEG decision treeQuantitative
US Patent 6,787,363
Hemorrhagic
Fibrinolytic
Thrombotic
39
TEG tracingExample hemorrhagic




40
TEG tracingExample prothrombotic




41
TEG tracingExample fibrinolytic


42
Summary

• TEG technology measures the complex balance
  between hemorrhagic and thrombotic systems.
• The decision tree is a tool to identify
  coagulopathies and guide therapy in a
  standardized way.

43
Review exercises

• TEG parameters
• Hemostasis monitoring

Begin exercises
Skip exercises
44
Exercise 1 TEG parameters

• The R value represents which of the following
• phases of hemostasis?
• Platelet adhesion
• Activation of coagulation pathways and initial
  fibrin formation
• Buildup of platelet-fibrin interactions
• Completion of platelet-fibrin buildup
• Clot lysis

Answer
Next
45
Exercise 2 TEG parameters

• Select the TEG parameters that demonstrate
• kinetic properties of clot formation. (select all
  that
• apply)
• R
• Angle (a)
• MA
• LY30
• CI

Answer
Next
46
Exercise 3 TEG parameters

• The rate of clot strength buildup is demonstrated
• by which of the following TEG parameters?
• R
• Angle (a)
• MA
• LY30
• CI

Answer
Next
47
Exercise 4 TEG parameters

• Which of the following TEG parameters will best
• demonstrate the need for coagulation factors
• (i.e. FFP)?
• R
• Angle (a)
• MA
• LY30
• CI

Answer
Next
48
Exercise 5 TEG parameters

• Clot strength is dependent on which of the
• hemostatic components?
• 100 platelets
• 80 platelets, 20 fibrinogen
• 50 platelets, 50 fibrinogen
• 20 platelets, 80 fibrinogen
• 100 fibrinogen

Answer
Next
49
Exercise 6 TEG parameters

• Which of the following TEG parameters
• demonstrate a structural property of the clot?
• (select all that apply)
• R
• Angle (a)
• MA
• LY30
• CI

Answer
Next
50
Exercise 7 TEG parameters

• Because the TEG is a whole blood hemostasis
• monitor, a low MA demonstrating low platelet
• function may also influence which of the
• following TEG parameters?
• R
• Angle (a)
• LY30
• CI
• None of the above

Answer
Next
51
Exercise 8 TEG parameters

• Clot stability is determined by which of the
  following
• TEG parameters?
• R
• Angle (a)
• MA
• LY30
• CI

Answer
Next
52
Exercise 9 TEG parameters

• Which of the following conditions will provide
  the
• information necessary to determine if heparin is
  the
• cause of bleeding in a patient?
• R value Kaolin with heparinase
• R value Kaolin vs. Kaolin with heparinase
• MA value Kaolin with heparinase
• MA value Kaolin vs. kaolin with heparinase

Answer
Next
53
Exercise 10 TEG parameters

• Which of the following parameters provides an
  indication
• of the global coagulation status of a patient?
• R
• Angle (a)
• MA
• LY30
• CI

Answer
Next
54
Exercise 11 Hemostasis monitoring

• Which of the following statements are true
  regarding the
• PT and aPTT tests? (select all that apply)
• Measure coagulation factor interaction in
  solution
• Measure platelet contribution to thrombin
  generation
• Measure influence of thrombin generation on
  platelet function
• Use fibrin formation as an end point

Answer
Next
55
Exercise 12 Hemostasis monitoring

• The TEG analyzer can monitor all phases of
  hemostasis
• except which of the following? (select all that
  apply)
• Initial fibrin formation
• Fibrin-platelet plug construction
• Platelet adhesion
• Clot lysis

Answer
Next
56
Exercise1 TEG parameters

• The R value represents which of the following
• phases of hemostasis?
• Platelet adhesion
• Activation of coagulation pathways and initial
  fibrin formation
• Buildup of platelet-fibrin interactions
• Completion of platelet-fibrin buildup
• Clot lysis

R
Next
57
Exercise 2 TEG parameters

• Select the TEG parameters that demonstrate
• kinetic properties of clot formation. (select all
  that
• apply)
• R
• Angle (a)
• MA
• LY30
• CI

Next
58
Exercise 3 TEG parameters

• The rate of clot strength buildup is demonstrated
• by which of the following TEG parameters?
• R
• Angle (a)
• MA
• LY30
• CI

Next
59
Exercise 4 TEG parameters

• Which of the following TEG parameters will best
• demonstrate the need for coagulation factors
• (i.e. FFP)?
• R
• Angle (a)
• MA
• LY30
• CI

Next
60
Exercise 5 TEG parameters

• Clot strength is dependent on which of the
• hemostatic components?
• 100 platelets
• 80 platelets, 20 fibrinogen
• 50 platelets, 50 fibrinogen
• 20 platelets, 80 fibrinogen
• 100 fibrinogen

Next
61
Exercise 6 TEG parameters

• Which of the following TEG parameters
• demonstrate a structural property of the clot?
• (select all that apply)
• R
• Angle (a)
• MA (demonstrates maximum clot strength)
• LY30 (demonstrates clot breakdown or the
  structural
• stability of the clot)
• e. CI

Next
62
Exercise 7 TEG parameters

• Because the TEG is a whole blood hemostasis
• monitor, a low MA demonstrating low platelet
• function may also influence which of the
• following TEG parameters?
• R thrombin generation occurs mainly on the
  surface of platelets, thus a defect in platelet
  function may slow the rate of thrombin and fibrin
  formation.
• Angle (a) a defect in platelet function may
  slow the rate of formation of platelet-fibrin
  interactions, thus slowing the rate of clot
  buildup.
• LY30
• CI
• None of the above

Next
63
Exercise 8 TEG parameters

• Clot stability is determined by which of the
  following
• TEG parameters?
• R
• Angle (a)
• MA
• LY30
• CI

Next
64
Exercise 9 TEG parameters

• Which of the following conditions will provide
  the
• information necessary to determine if heparin is
  the
• cause of bleeding in a patient?
• R value Kaolin with heparinase
• R value Kaolin vs. Kaolin with heparinase
• MA value Kaolin with heparinase
• MA value Kaolin vs. kaolin with heparinase

Next
65
Exercise 10 TEG parameters

• Which of the following parameters provides an
  indication
• of the global coagulation status of a patient?
• R
• Angle (a)
• MA
• LY30
• CI (Coagulation index a linear combination of
  the R, K, angle, and MA)

Next
66
Exercise 11 Hemostasis monitoring

• Which of the following statements are true
  regarding the
• PT and aPTT tests? (select all that apply)
• Measure coagulation factor interaction in
  solution
• Measure platelet contribution to thrombin
  generation
• Measure influence of thrombin generation on
  platelet function
• Use fibrin formation as an end point

Next
67
Exercise 12 Hemostasis monitoring

• The TEG analyzer can monitor all phases of
  hemostasis
• except which of the following? (select all that
  apply)
• Initial fibrin formation
• Fibrin-platelet plug construction
• Platelet adhesion (vascular mediated event that
  occurs in vivo, but not in vitro)
• Clot lysis

Next
68
End of Module 2
