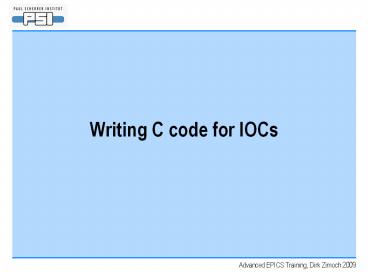

Title: Writing C code for IOCs


1
Writing C code for IOCs
2
Contents
  • vxWorks intro
  • Major differences between vxWorks and Unix/Linux
  • Using the vxWorks shell
  • Programming techniques
  • Calling C code from EPICS
  • Subroutine records sub and genSub
  • Soft device support
  • State notation language
  • Compiling C code for IOCs
  • Using driver.makefile and require

3
Major differences between vxWorks and Unix/Linux
  • vxWorks has no programs but many threads (called
    "tasks").
  • The whole IOC is one "program".
  • Parts of the IOC (modules, libraries, threads)
    are not independent.
  • If any part of the "program" crashes, the whole
    IOC does.
  • vxWorks has no users.
  • Everything runs as "root". (To be exact in
    kernel space)
  • Everybody can do everything.
  • vxWorks is optimized for speed not for safety.
  • You can overwrite memory, stack, interrupt
    tables,
  • If you want something save you must make it save.

4
Consequences of the "one program" concept
  • All functions exist in the same "space".
  • Name clashes may appear between different modules
    (libraries).
  • Use unique names (with prefix) for global
    functions!
  • Wrong config, test, read_bi
  • Right drvXyConfig, fooTest, devAbc_read_bi
  • Or make functions static.
  • vxWorks has no main function.
  • Every function (including the shell) can call any
    other function.
  • You dont start programs from the shell, you call
    functions.
  • When name clash happens, you might call the wrong
    function.

5
Consequences of multi threading
  • Any problem in one thread affects the whole IOC.
  • System resources are global to the whole IOC.
  • Memory
  • File handles
  • Semaphores
  • Ending a thread does not clean up system
    resources.
  • The programmer (that's you!) must close files,
    free memory, etc.
  • Global data needs protection against concurrent
    access.
  • Global variables
  • VME access

6
Boon and bane of unlimited memory access
  • Pro Functions and threads can easily
  • exchange large amounts of data by reference
    (pointers).
  • access any hardware register (e.g. VME bus).
  • Con Functions and threads can easily
  • overrun allocated memory or stack size (esp. with
    arrays)
  • overwrite system tables. (e.g. interrupt handler
    table at NULL)
  • overwrite program code.
  • modify global variables of other modules (e.g.
    drivers).
  • Global variables are EVIL!

7
Contents
  • vxWorks intro
  • Major differences between vxWorks and Unix/Linux
  • Using the vxWorks shell
  • Programming techniques
  • Calling C code from EPICS
  • Subroutine records sub and genSub
  • Soft device support
  • State notation language
  • Compiling C code for IOCs
  • Using driver.makefile and require

8
Accessing the vxWorks shell at SLS
  • Type rmc iocname, e.g. rmc MTEST-VME-T1.
  • The SLS specific command rmc stands for "remote
    minicom".
  • It does ssh to a central server.
  • It starts minicom on the server.
  • The server is connected to the DEBUG port of the
    IOC.
  • You must be on the same network as the IOC.
  • You may need your AFS password or the slsop
    password.
  • If the IOC is connected to local Linux PC, use
    minicom.
  • Serial line settings 9600 baud, 8N1, no hardware
    handshake
  • Windows hyperterm.exe (buggy) or Terminal.exe

9
vxWorks help
  • Online help http//vxworks.web.psi.ch
  • Important for beginnersVxWorks Programmer's
    Guide, Chapter 2
  • All about tasks, semaphores, watchdog timers,
    interrupts
  • Always helpfulvxWorks Reference Manual
  • All vxWorks system functions
  • Run-time help Type help on the vxWorks shell.
  • Separate talk on vxWorks debugging?

10
XTEST-VME-ID1 gt help help
Print this list ioHelp
Print I/O utilities help info dbgHelp
Print debugger help info nfsHelp
Print nfs help info netHelp
Print network help
info spyHelp Print task
histogrammer help info timexHelp
Print execution timer help info h n
Print (or set) shell history i
task Summary of tasks'
TCBs ti task Complete info
on TCB for task sp adr,args...
Spawn a task, pri100, opt0x19,
stk20000 taskSpawn name,pri,opt,stk,adr,args...
Spawn a task td task
Delete a task ts task
Suspend a task tr task
Resume a task d adr,nunits,width
Display memory m adr,width
Modify memory mRegs reg,task
Modify a task's registers interactively pc
task Return task's program
counter Type ltCRgt to continue, QltCRgt to stop
11
Calling functions from the vxWorks shell
  • Never call your main function main!
  • Use a specific name, the name you would give a
    program on Linux.
  • The shell can pass up to 10 integer or string
    arguments.
  • float or double shell arguments don't work on PPC
    architectures.
  • No check is done by the shell.
  • Check all arguments for sanity (numeric ranges,
    NULL strings, ).
  • The shell can call functions in a separate task
  • sp function, arg1,
  • repeatedly repeat n, function, arg1,
  • periodically period seconds, function, arg1,

12
Examples
  • Setting or creating global variables
  • drvXyDebug 1
  • str "This is a string"
  • Calling functions
  • printf (String s, number d\n, str,
    drvXyDebug)
  • Note Outermost parentheses are optional
  • Things that do not work
  • C constructs (non-functions) like if, switch,
    for, while,
  • Floating point printf g\n, 3.1415
  • More than 10 parameters

13
Contents
  • vxWorks intro
  • Major differences between vxWorks and Unix/Linux
  • Using the vxWorks shell
  • Programming techniques
  • Calling C code from EPICS
  • Subroutine records sub and genSub
  • Soft device support
  • State notation language
  • Compiling C code for IOCs
  • Using driver.makefile and require

14
Why global variables are evil (1)
  • Global variables with the same name in different
    modules are the same piece of memory.
  • Problem Two different modules may mutually
    overwrite their values.
  • Solution 1 Make variable local to one source
    file with static.
  • Solution 2 Prefix global variable name with
    module name.

Wrong
Right
/ internal variable / int card_count /
external variable / int debug0
/ internal variable / static int
card_count / external variable / int
drvXyDebug0
15
Why global variables are evil (2)
  • All instances (of threads, drivers, SNL programs
    ) share the same global variable.
  • Problem Two instances mutually overwrite their
    values.
  • Solution Wrap variables in a struct, allocate
    one struct per instance.

Wrong
Right
/ values for one card / static char
addr static int ivec
/ linked list / struct drvPriv struct
drvPriv next char addr int ivec
drvPriv static drvPriv firstNULL
16
Debug and error messages are vital
  • Fail early and loud!
  • Make messages descriptive.
  • What happened where under which circumstances?
  • Bad "error read"
  • Good "drvXyReadInteger card 4 signal 2 read
    timeout after 5000 msec"
  • Write error and debug messages to stderr.
  • Make debug messages switchable. (perhaps multiple
    levels)
  • global switch int drvXyDebug0
  • message if (drvXyDebuggt2) fprintf(stderr, )

17
Be paranoid!
  • Error checking is the key to a stable system.
  • Stability is limited by the weakest point!
  • Check arguments to API functions (esp. shell
    functions)
  • Never trust a user! Not even yourself.
  • Always check pointer arguments for validity.
  • Writing to NULL overwrites the interrupt handler
    table!
  • Check results of system functions (malloc, fopen,
    )
  • System functions may fail and return NULL or
    ERROR.
  • Using these values unchecked may crash the system
    much later.
  • Check for "impossible" values (e.g. in case
    constructs)

18
Contents
  • vxWorks intro
  • Major differences between vxWorks and Unix/Linux
  • Using the vxWorks shell
  • Programming techniques
  • Calling C code from EPICS
  • Subroutine records sub and genSub
  • Soft device support
  • State notation language
  • Compiling C code for IOCs
  • Using driver.makefile and require

19
Subroutine record sub
  • 12 input links INPA INPL, 12 input fields A L
  • Record copies from links to fields before calling
    user function.
  • Either use input link or write directly to input
    field.
  • Input fields are all of type double.
  • User function can use A L and writes result to
    VAL.
  • SNAM field contains name of user function.
  • INAM field contains name of optional init
    function.
  • Functions get pointer to record and have access
    to all fields.
  • Field names are lower case a l, val

20
Subroutine record user function
  • Inputs are in fields a l, output goes to val
    (all double)
  • Example accumulate AB to VAL
  • include ltsubRecord.hgt
  • int subAccu (struct subRecord record)
    record-gtval record-gtval record-gta
    record-gtb return 0
  • Specify name of function in SNAM field of record.
  • record (sub, "(NAME)") field (SNAM,
    "subAccu") field (INPA, "(INPUT)") field
    (INPB, "(SCALE)")

21
Subroutine record initialization
  • Optional init function
  • int subAccuInit (subRecord record)
    record-gtval 1.0 return 0
  • Specify init function name in INAM field.
  • record (sub, "(NAME)") field (SNAM,
    "subAccu") field (INAM, "subAccuInit") ...
  • Init function runs only once at boot time.

22
Advanced Asynchronous subroutine record
  • If function takes long time to complete...
  • Run calculation in separate work thread with low
    priority.
  • Setup thread in init function.
  • Store data for inter-thread communication in dpvt
    field.
  • Trigger work thread from record function.
  • Return 1 from record function to signal
    calculation not yet complete.
  • Re-process record when calculation completes.
  • Use callbackRequestProcessCallback.
  • pact field is 0 in first run and 1 in second run.
  • Return 0 from record function to signal
    calculation complete.
  • Return other value (e.g. ERROR or errno) to
    signal failure.

23
Asynchronous subroutine stub
  • include ltsubRecord.hgtinclude
    ltcallback.hgtinclude lttaskLib.hgtinclude
    ltsemLib.hgtinclude lterrno.hgt
  • / private data for record (stored in dpvt
    field) /typedef struct int status /
    error status / double val / result /
    SEM_ID trigger / trigger for work thread /
    CALLBACK cb / callback for re-processing
    / asyncSubPriv
  • void myAsyncSubThread(struct subRecord record)
    int myAsyncSub(struct subRecord record)int
    myAsyncSubInit(struct subRecord record)

24
Asynchronous subroutine work thread
  • void myAsyncSubThread(struct subRecord record)
  • asyncSubPriv priv record-gtdpvt / get
    private data /
  • while (1) / loop forever /
    semTake(priv-gttrigger, WAIT_FOREVER) / wait /
  • / do calculations / / leave result in
    priv-gtval / / leave error status in
    priv-gtstatus /
  • / re-process record /
    callbackRequestProcessCallback( priv-gtcb,
    record-gtprio, record)

25
Asynchronous subroutine user function
  • int myAsyncSub(struct subRecord record)
    asyncSubPriv priv record-gtdpvt / get private
    data /
  • if (priv NULL) return ERROR / INAM
    missing /
  • if (record-gtpact 0) / first run /
    semGive(priv-gttrigger) / trigger work thread
    / return 1 / signal not yet done /
  • /second run / if (priv-gtstatus) / error
    in work thread / return priv-gtstatus
  • record-gtval priv-gtval / update record /
    return 0 / signal done /

add error messages here
26
Asynchronous subroutine init function
  • int myAsyncSubInit(struct subRecord record)
    int tid SEM_ID trigger
  • asyncSubPriv priv malloc(sizeof(asyncSubPriv
    )) if (priv NULL) return errno
  • priv-gttrigger semBCreate(SEM_Q_FIFO,
    SEM_EMPTY) if (priv-gttrigger NULL) return
    errno
  • tid taskSpawn("asyncSub", 200, VX_FP_TASK,
    10000, (FUNCPTR) myAsyncSubThread, (int)
    record, 0, 0, 0, 0, 0, 0, 0, 0, 0) if
    (tid ERROR) return errno
  • record-gtdpvt priv return 0

add error messages here
27
General subroutine record genSub (compared to sub)
  • All inputs and outputs are arrays of user defined
    type.
  • Input links INPA INPU and fields A U
  • Output fields VALA VALU and links OUTA OUTU
  • Input/output data types FTA FTU, FTVA FTVU
  • One of CHAR, SHORT, LONG, ULONG, FLOAT, DOUBLE,
  • Input/output element count NOA NOU, NOVA NOVU
  • Always set FT and NO fields of all used inputs
    and outputs!
  • SNAM and INAM fields similar to sub record.
  • Asynchronous user function is not supported.
  • The genSub record must be loaded require
    "SynApps"

28
General subroutine record user function
  • Input and output fields a u, vala valu are
    void.
  • Fields are pointers to arrays, even if element
    count is 1.
  • Cast void to correct pointer type.
  • This easily crashes the IOC if ft and no fields
    are wrong!
  • Always check field type and size!
  • Do not process if type or size is wrong. Exit
    with error message.
  • Danger of crashing IOC is much higher than with
    sub record!
  • Checking every time the record processes is
    expensive.
  • Check only once in init function (when IOC
    boots)!
  • Do not process record after check failed!

29
General subroutine record init function
  • Check all data types and element counts.
  • Field types are one of menuFtypeSHORT,
    menuFtypeDOUBLE,
  • Print descriptive error message if check fails!
  • Initialize any other private data (buffers, etc)
  • Assign structure to dpvt field only if all checks
    succeed.
  • If no private data is needed, set dpvt to a dummy
    value.
  • Check dpvt field at start of user function.
  • Do not process if dpvt is not set.

30
Contents
  • vxWorks intro
  • Major differences between vxWorks and Unix/Linux
  • Using the vxWorks shell
  • Programming techniques
  • Calling C code from EPICS
  • Subroutine records sub and genSub
  • Soft device support
  • State notation language
  • Compiling C code for IOCs
  • Using driver.makefile and require

31
Soft device support
  • Available for "standard" I/O records
  • ai, bi, mbbi, waveform,
  • Makes a new DTYP choice available
  • Just like "Soft Channel" and "Raw Soft Channel"
  • Only one input (INP) and one output (VAL)
  • Examples
  • Timestamp for stringin (INP contains format
    string)
  • File read for waveform (INP contains file name)
  • FFT for waveform (INP points to other waveform)
  • Integration for waveform (INP points to other
    waveform)

32
Writing device support
  • Write record init and read function
  • Define a global device support function table
  • struct long number DEVSUPFUN
    report DEVSUPFUN init DEVSUPFUN
    init_record DEVSUPFUN get_ioint_info
    DEVSUPFUN read devIntegrateWaveform
  • Write dbd file to make function table known
  • device(waveform, CONSTANT, devIntegrateWaveform,
    "integrate")

the two essential functions
device support table name
Link type, CONSTANT means "constant or link to
record"
record type
DTYP string
33
Example soft device support Integrate waveform
  • include ltrecGbl.hgtinclude ltdevSup.hgtinclude
    ltalarm.hgtinclude ltdbAccess.hgtinclude
    ltwaveformRecord.hgt
  • long devIntegrateWaveformInit(waveformRecord
    record) switch (record-gtinp.type) case
    (PV_LINK) case (DB_LINK) case
    (CA_LINK) break
  • default recGblRecordError(S_db_badFi
    eld, record, "devIntegrateWaveform
    (init_record) Illegal INP field") return
    S_db_badField return 0

34
Example soft device support Integrate waveform
  • long devIntegrateWaveformRead(waveformRecord
    record) long status, n, i
  • n record-gtnelm status
    dbGetLink(record-gtinp, record-gtftvl,
    record-gtbptr, 0, n) if (status)
    recGblSetSevr(record, READ_ALARM,
    INVALID_ALARM) return status
  • record-gtnord n switch (record-gtftvl)
    case DBF_DOUBLE double sum 0.0
    for (i0 iltn i) sum
    ((double)(record-gtbptr))i
    ((double)(record-gtbptr))i sum
    break
  • / case ... / return 0

35
Example soft device support Integrate waveform
struct long number DEVSUPFUN
report DEVSUPFUN init DEVSUPFUN
init_record DEVSUPFUN get_ioint_info
DEVSUPFUN read devIntegrateWaveform 5,
NULL, NULL, devIntegrateWaveformInit,
NULL, devIntegrateWaveformRead
36
Contents
  • vxWorks intro
  • Major differences between vxWorks and Unix/Linux
  • Using the vxWorks shell
  • Programming techniques
  • Calling C code from EPICS
  • Subroutine records sub and genSub
  • Soft device support
  • State notation language
  • Compiling C code for IOCs
  • Using driver.makefile and require

37
State Notation Language
  • State machine implementation for EPICS
  • Do something when event happens
  • "Events" are CA monitors (record changes) or
    timeout
  • "Do something" can be any C-code
  • C-like syntax
  • Understands many C functions and statements
  • Escapes to "real" C-code for special occasions
  • Easy to use CA interface
  • pvPut, pvGet, monitor
  • Any number of input and output records

38
Using SNL
  • program coolingswitch
  • int coolingassign cooling to "DEVCOOLING"
  • double tempassign temp to "DEVTEMP"monitor
    temp
  • ss coolingswitch
  • state cold when (tempgt25.3)
    cooling 1 pvPut(cooling) state
    hot
  • state hot when (templt22.0)
    cooling 0 pvPut(cooling) state
    cold

start
state "cold"
tempgt25.3 / cooling on
templt22 / cooling off
state "hot"
39
Including C-code into SNL
  • Escape single line with ...
  • especially include
  • Escape block with ...
  • Avoid accessing "global" SNL variables from
    within escaped C code.
  • Implementation depends on "r" flag
  • program calculator
  • include ltmath.hgt
  • void myCalc( double i1, double i2,
    double o1, double o2) o1
    sin(i1 i2) o2 cos(i1 i2)

40
"Abusing" SNLfor calculations
  • double in1double in2double out1double
    out2
  • assign in1 to "DEVINPUT1"assign in2 to
    "DEVINPUT2"assign out1 to "DEVOUTPUT1"as
    sign out2 to "DEVOUTPUT2"
  • monitor in1monitor in2
  • evflag newInputsync in1 to newInputsync in2
    to newInput
  • ss calculator
  • state idle when (efTestAndClear(newInput)
    ) myCalc(in1, in2, out1, out2)
    pvPut(out1) pvPut(out2) state idle

start
idle
newInput / myCalc()
41
Contents
  • vxWorks intro
  • Major differences between vxWorks and Unix/Linux
  • Using the vxWorks shell
  • Programming techniques
  • Calling C code from EPICS
  • Subroutine records sub and genSub
  • Soft device support
  • State notation language
  • Compiling C code for IOCs
  • Using driver.makefile and require

42
The problem of compiling EPICS code
  • We have many different EPICS versions in use.
  • 3.13.2, 3.13.9, 3.13.10, 3.14.8, (3.14.10)
  • We have different operating systems
  • 2 versions of vxWorks, 3 versions of Linux,
    Windows
  • We have 2 different VME boards types in use.
  • MVME2300, MVME5100
  • Other systems
  • Embedded Linux on Virtex 4, Cosylab microIOC,
  • We want to run "the same" code on all systems.

43
Differences between EPICS 3.13 and 3.14
  • EPICS 3.14 is designed to be independent of
    vxWorks
  • Use OSI functions instead of vxWorks functions.
  • Use EPICS registry instead of vxWorks symbol
    table.
  • More complex build mechanism to build
    "host"-IOCs.
  • Incompatibilities between 3.13 and 3.14
  • New OSI functions are not available for 3.13.
  • Registry calls must be added all over the place.
  • for device support, sub/genSub functions, snl
    state machines
  • Makefile uses different variable names and
    mechanisms.
  • (And make is a very complicated programming
    language.)

44
The solution driver.makefile
  • It is a sophisticated Makefile that builds the
    same code
  • for all EPICS versions (3.13 and 3.14)
  • for all operating system versions (except Windows
    at the moment)
  • It builds a module that can be loaded with
    require
  • In many cases, it finds out what to do
    automatically
  • No need to write a complex Makefile
  • In special cases, it can be configured
  • Originally designed for drivers, device support
    and new record types, it can be used for
    sub/genSub and SNL code, too.

45
The two flavours of modules
  • Global module
  • Commonly used code (device driver, record type,
    )
  • Installed into global driver pool with make
    install
  • Can be used by everyone
  • Gets version number from CVS tag
  • CVS location G/DRV/
  • Can be loaded with require
  • Local module
  • Locally used code (SNL, sub/genSub functions, )
  • Installed to IOC boot directory with swit
  • No interference with other modules
  • Does not need version numbers
  • CVS location A, X, F, P
  • Can be loaded with require

46
Example global module hytec drivers
  • CVS location G/DRV/hytec
  • Needs CVS tags with versions like hytec_1_4_2
  • Untagged test versions are also supported.
  • Install to driver pool with make install
  • Can be loaded with require "hytec"
  • or require "hytec","1"
  • or require "hytec","1.4"
  • or require "hytec","1.4.2"
  • or require "hytec","test"

47
Example local module genSub function
  • CVS location X/ID/GAP
  • genSub function file X/ID/GAP/src/e_to_gap.c
  • Tell project GNUmakefile to build the code in
    src/
  • ioc build swit Vbuild clean
    make -C src _at_
  • Install to IOC with swit together with other
    project files.
  • Can be loaded with require "GAP"

48
Using driver.makefile
  • In your source directory, create a one line
    Makefile
  • include /ioc/tools/driver.makefile
  • Running make "automagically" builds a loadable
    module.
  • Detects all .c, .cc, .C, .cpp, .st, .stt, and
    .dbd files in directory.
  • Generates module name from directory name.
  • Builds for all EPICS versions.
  • Builds only for vxWorks by default (but can build
    for Linux, too).
  • Finds dependencies on other modules (drivers).
  • Levels out many differences between 3.13 and 3.14
  • If this is too much magic, you can configure it!

49
Configuring driver.makefile
  • Source code list, dbd file list
  • Default is all files in current directory
  • OverwriteSOURCES file1.ccSOURCES
    subdir/file2.cDBDS xxx.dbd
  • Why overwriting?
  • Files are not all in the same directory as the
    Makefile.
  • Not all files should be used.

50
Configuring driver.makefile
  • Project (module) name
  • Default name is directory name
  • If directory name is src or snl, default is name
    of parent directory
  • Overwrite PROJECT othername
  • Why overwriting?
  • I don't like directory name.
  • Directory name contains illegal characters like
    or space.
  • only alphanumeric plus underscore allowed

51
Configuring driver.makefile
  • EPICS versions to build
  • Default is (3.13.2), 3.13.9, 3.13.10, 3.14.8,
    (3.14.10)
  • May change over time and depends on machine
  • Exclude versionsEXCLUDE_VERSIONS
    3.14EXCLUDE_VERSIONS 3.13.2
  • Why excluding versions?
  • Code does not compile for all EPICS versions.
  • Code is not necessary for all EPICS versions.

52
Configuring driver.makefile
  • Operating system class
  • Default is vxWorks only (all versions)
  • Reason backward compatibility with old vxWorks
    depended drivers.
  • Overwrite BUILDCLASSES Linux (only for
    Linux)BUILDCLASSES Linux (for vxWorks and
    Linux)
  • Why overwriting?
  • Module should be used on other OS than vxWorks.
  • genSub or SNL code for Linux IOCs

53
Configuring driver.makefile
  • Header file installation
  • Default is not to install any headers
  • Exception generated header files for new record
    types
  • Overwrite HEADERS file.h
  • Why overwriting?
  • Module is a lower level driver on that other
    drivers may depend
  • For example asyn or ipac
  • Only important for global modules
  • Local modules are not installed for use by others

54
Make targets
  • make, make build
  • Builds a loadable module for each EPICS/OS
    combination
  • make 3.14, make 3.13.2
  • Builds only for certain EPICS versions
  • make install, make install.3.13
  • Installs global module to driver pool
  • make uninstall
  • Cleanly (!) removes global module from driver
    pool
  • make help
  • Prints some help

55
Loading modules require
  • require is an SLS extension.
  • It is used in the IOC startup script to load
    modules.
  • It checks if a module is already loaded.
  • Already loaded with compatible version is OK.
  • Already loaded with incompatible version stops
    booting.
  • It recursively solves dependencies on other
    modules.
  • It loads the library and dbd file and initializes
    the module.
  • Initialize means make functions etc, available
    to the shell
  • Uses ld and dbLoadDatabase to load the files

56
Using require
  • require "xxx"
  • Loads latest version of library
  • xxxLib, xxxLib.munch, libxxx.so, or xxx.dll
  • Loads dbd file xxx.dbd
  • 3.14 Calls init function xxx_registerRecordDevice
    Driver
  • require "xxx","2.1"
  • Loads version 2.1 of library and dbd file (only
    for global modules)
  • xxxLib-2.1, xxxLib-2.1.munch, libxxx-2.1.so, or
    xxx-2.1.dll
  • require "xxx","test"
  • Loads test (untagged) version of library and dbd
    file

57
Driver pool location
  • Location of global module libraries
  • INSTBASE/iocBoot/ltEPICS_VERSIONgt/ltARCHgt
  • /work/iocBoot/R3.13.10/T2-ppc604
  • /psi-xfel/prod/iocBoot/R3.14.8/SL5-x86
  • Location of dbd files
  • INSTBASE/iocBoot/ltEPICS_VERSIONgt/dbd
  • Location of headers
  • INSTBASE/iocBoot/ltEPICS_VERSIONgt/include

58
Example of link system in driver pool
  • motorLib -gt motorLib-6.2.5motorLib-4 -gt
    motorLib-4.963.0motorLib-4.74 -gt
    motorLib-4.74.1motorLib-4.74.1motorLib-4.96 -gt
    motorLib-4.96.1motorLib-4.96.1motorLib-4.962 -gt
    motorLib-4.962.0motorLib-4.962.0motorLib-4.963
    -gt motorLib-4.963.0motorLib-4.963.0motorLib-6
    -gt motorLib-6.2.5motorLib-6.2 -gt
    motorLib-6.2.5motorLib-6.2.5motorLib-test
Write a Comment
User Comments (0)
About PowerShow.com
