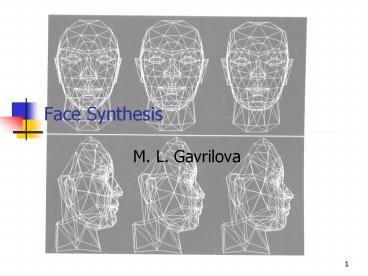

Face Synthesis

1
Face Synthesis

• M. L. Gavrilova

2
Outline

• Face Synthesis
• From Modeling to Synthesis
• Facial Expression Synthesis
• Conclusions

3
Face Synthesis

• How to synthesize photorealistic images of human
  faces has been a fascinating yet difficult
  problem in computer graphics.
• Here, the term face synthesis refers to
  synthesis of still images as well as synthesis of
  facial animations.
• For example, the technique of synthesizing facial
  expression images can be directly used for
  generating facial animations, and most of the
  facial animation systems involve the synthesis of
  still images.

4
Face Synthesis

• Face synthesis has many interesting applications.

• In the film industry, people would like to create
  virtual human characters that are
  indistinguishable from the real ones.
• In games, people have been trying to create human
  characters that are interactive and realistic.
• There are commercially available products that
  allow people to create realistic looking avatars
  that can be used in chatting rooms, e-mails,
  greeting cards, and teleconferencing.
• Many human-machine dialog systems use
  realistic-looking human faces as visual
  representation of the computer agent that
  interacts with the human user.

5
Face Modeling from an Image Sequence

• Face modeling
• image matching,
• structure from motion,
• and model fitting.
• First, two or three relatively frontal views are
  selected, and some
• image matching algorithms are used to compute
  point
• correspondences. Point correspondences are
  computed either by using dense matching
  techniques such as optimal flow or feature-based
  corner matching.
• Second, one needs to compute the head motion and
  the 3D
• structures of the tracked points.
• Finally, a face model is fitted to the
  reconstructed 3D points. People have used
  different types of face model representations
  including parametric surfaces, linear face scans,
  and linear deformation vectors.

6
Face Modeling from an Image Sequence

• Liu et al. developed a face modeling system that
  allows an untrained user
• with a personal computer and an ordinary video
  camera to create an
• instantly animate his or her face model.
• After the matching is done, they used both the
  corner points from the
• image matching and the five feature points
  clicked by the user to estimate
• the camera motion.

7
Face Modeling from an Image Sequence

• Shan et al. proposed an algorithm, called
  model-based bundle
• adjustment, that combines the motion estimation
  and model fitting
• into a single formulation. Their main idea was to
  directly use the
• model space as a search space.

8
Face Modeling from an Image Sequence
On the top are the front views, and on the bottom
are the side views. On each row, the one in the
middle is the ground truth, on the left is the
result from the traditional bundle adjustment,
and on the right is the result from the
model-based bundle adjustment. The result of
the model-based bundle adjustment is much closer
to the ground truth mesh.
9
Face Modeling from 2 Orthogonal Views

• A number of researchers have proposed that we
  create face models from two orthogonal views one
  frontal view and one side view.
• The frontal view provides the information
  relative to the horizontal and vertical axis, and
  the side view provides depth information.
• The user needs to manually mark a number of
  feature points on
• both images. The feature points are typically the
  points around the face features, including
  eyebrows, eyes, nose and mouth. The more feature
  points, the better the model, but one needs to
  balance between the amount of manual work
  required from the user and the quality of the
  model.

10
Face Modeling from a Single Image

• Liu developed a fully automatic system to
  construct 3D face models from a single frontal
  image.
• They first used a face detection algorithm to
  find a face and then a feature alignment
  algorithm to find face features. By assuming an
  orthogonal projection, they fit a 3D face model
  by using the linear space of face geometries.
  Given that there are existing face detection and
  feature alignment systems, implementing this
  system is simple.
• The main drawback of this system is that the
  depth of the reconstructed model is in general
  not accurate. For small head rotations, however,
  the model is recognizable.

11
Example of model generation
Figure (top) shows an example where the left is
the input image and the right is the feature
alignment result. Figure (middle) shows the
different views of the reconstructed 3D model.
Figure (bottom) shows the results of making
expressions for the reconstructed face model.
12
Outline

• Face Synthesis
• Face Modeling
• Facial Expression Synthesis
• Conclusions

13
Facial Expression Synthesis

• Physically Based Facial Expression Synthesis
• One of the early physically based approaches is
  the work by Badler and Platt, who used a mass and
  spring model to simulate the skin. They
  introduced a set of muscles. Each muscle is
  attached to a number of vertices of the skin
  mesh. When the muscle contracts, it generates
  forces on the skin vertices, thereby deforming
  the skin mesh. A user generates facial
  expressions by controlling the muscle actions.
• Waters introduced two types of muscles linear
  and sphincter. The lips and eye regions are
  better modeled by the sphincter muscles. To gain
  better control, they defined an influence zone
  for each muscle so the influence of a muscle
  diminishes as the vertices are farther away from
  the muscle attachment point.
• Morph_Based Facial Expression Synthesis
• Given a set of 2D or 3D expressions, one could
  blend these expressions to generate new
  expressions. This technique is called morphing or
  interpolation. This technique was first reported
  in Parkes pioneer work. Beier and Neely
  developed a feature-based image morphing
  technique to blend 2D images of facial
  expressions. Bregler et al. applied the morphing
  technique to mouth regions to generate lip-synch
  animations.

14
Facial Expression Synthesis

• Expression Mapping
• Expression mapping (also called
  performance-driven animation) has been a popular
  technique for generating realistic facial
  expressions. This technique applies to both 2D
  and 3D cases. Given an image of a persons
  neutral face and another image of the same
  persons face with an expression, the positions
  of the face features (e.g. eyes, eyebrows,
  mouths) on both images are located either
  manually or through some automated method.
• Noh and Neumann developed a technique to
  automatically find a correspondence between two
  face meshes based on a small number of
  user-specified correspondences. They also
  developed a new motion mapping technique. Instead
  of directly mapping the vertex difference, this
  technique adjusts both the direction and
  magnitude of the motion vector based on the local
  geometries of the source and target model.
• Liu et al. proposed a technique to map one
  persons facial expression details to a different
  person. Facial expression details are subtle
  changes in illumination and appearance due to
  skin deformations. The expression details are
  important visual cues, but they are difficult to
  model.

15
Facial Expression Synthesis
Expression ratio image. Left neutral face.
Middle expression face. Right expression Ratio
image. The ratios of the RGB components are
converted to colors for display purpose.
Mapping a smile to Mona Lisas face. Left
neutral face. Middle result from geometric
warping. Right result from ERI.
16
Geometry-Driven Expression Synthesis
Mapping expressions to statues. A. Left original
statue. Right result from ERI. B. Left another
statue. Right result from ERI (Z. Zhang, MSR).
17
Geometry-Driven Expression Synthesis

• To increase the space of all possible
  expressions, the face is
• subdivided into a number of subregions. For each
  subregion, the
• geometry associated with the subregion is used to
  compute the
• subregion texture image. The final expression is
  then obtained by
• blending these subregion images together. The
  figure is an
• overview of the system.

Geometry-driven expression synthesis system.
18
Geometry-Driven Expression Synthesis

• The function MotionPropagationFeaturePointSet is
  defined as
• follows

19
Geometry-Driven Expression Synthesis
a. Feature points. b. Face region subdivision
20
Geometry-Driven Expression Synthesis
Example images of the male subject.
21
Geometry-Driven Expression Synthesis

• In addition to expression mapping,
• Zhang et al. applied their
• techniques to expression editing.
• They developed an interactive
• expression editing system that
• allows a user to drag a face
• feature point, and the system
• interactively displays the resulting
• image with expression details.
• The figure shows some of the
• expressions generated by the
• expression editing system.

Expressions generated by the expression editing
system.
22
3D synthesis
Generic face mesh
Placement of Control Points
Sibson Coordinates Computation
Deformation With Control points
Target pictures
23
System Description

• Placement of Control Points
• Very important for the final synthesis result
• Only the vertices inside are deformable
• How many points?
• Where to put those points?
• Important features must be controlled in a
  specific way (such as the corners of the eyes,
  the nose, the mouth etc..)
• Include as many facial vertices as possible
• Acceptable to be pointed out manually
• Computational expenses

24
System Description
18 control points the fewest number to indicate
those importance features, such as eyes,
eyebrows, nose, mouth etc..
25
System Description
28 morphing zones Advantages increase
computational efficiency local morphing
effects preventing incorrect deformation
effects from other areas
26
System Description
What we know? The original 3D control points
position in the generic face mesh What we
get? The displacement of these control points
27
System Description
Sibson Coordinates Computation DFFD
displacement relation
In order to strengthen or alleviate the
displacement effects from different Sibson
neighbors, different weights wi to Sibson
coordinates. Final Weighted DFFD relation is
28
System Description
2D Sibson Coordinates Computation
3D Sibson Coordinates Computation
29
System Description
Deformation With Control points
30
Synthesis Results
Implement in Matlab Input images, generic face
mesh, texture all from FaceGen platform Generic
face mesh 7177 vertices, 6179 facets Input Image
size 400x477 pixels, 96dpi Experiments on Intel
Pentium 4 CPU 2.0 GHz with 256MB of RAM 180s
31
Synthesis Results
32
Conclusions for Face Synthesis

• One problem is how to generate face models with
  fine geometric details. Many 3D face modeling
  techniques use some type of model space to
  constrain the search, thereby improving the
  robustness. The resulting face models in general
  do not have the geometric details, such as
  creases and wrinkles. Geometric details are
  important visual cues for human perception. With
  geometric details, the models look more
  realistic and for personalized face models, they
  look more recognizable to human users. Geometric
  details can potentially improve computer face
  recognition performance as well.
• Another problem is how to handle non-Lambertian
  reflections. The reflection of human face skin is
  approximately specular when the angle between the
  view direction and lighting direction is close to
  900. Therefore, given any face image, it is
  likely that there are some points on the face
  whose reflection is not Lambertian. It is
  desirable to identify the non-Lambertian
  reflections and use different techniques for them
  during relighting.
• How to handle facial expressions in face modeling
  and face relighting is another interesting
  problem. Can we reconstruct 3D face models from
  expression images? One would need a way to
  identify and undo the skin deformations caused by
  the expression. To apply face relighting
  techniques on expression face images, we would
  need to know the 3d geometry of the expression
  face to generate correct illumination for the
  areas with strong deformations.

33
Future Work

• Conclusion A method for 3D facial model
  synthesis is proposed. With two orthogonal views
  of an individual face image as the input, 18
  feature points are defined on the two images.
  Then, a Voronoi based interpolation technique,
  DFFDs, is utilized to deform a generic face mesh
  to fit the input face images. With the
  synthesized facial models, the same animation
  technique can be used to generate individual
  facial animation.
• Future work
• 1. Increase control points number, automate
  feature points extraction
• image segmentation, edge detection
  techniques etc..
• 2. Analyze real facial expression video data,
  construct a common
• facial expression database to drive the
  animation

34
References

• S. Z. Li and A. K. Jain. Handbook of Face
  recognition, 2005
• Y.-L. Tian, T. Kanade, and J. Cohn. Evaluation of
  gabor-wavelet-based facial action unit
  recognition in image sequences of increasing
  complexity. In Proc. Of IEEE Int. Conf. on
  automatic face and gesture recognition, 2002
• Z. Wen and T. Huang. Capturing subtle facial
  motions in 3D face tracking. In Proc. Of Int.
  Conf. On Computer Vision, 2003
• J. Xiao, T. Kanade, and J. Cohn. Robust full
  motion recovery of head dynamic templates and
  registration techniques. In Proc. Of Int. Conf.
  On automatic face and gesture recognition, 2002
• Z. Liu. A fully automatic system to model faces
  from a single image. Microsoft research
  technical report, 2003
• Z. Liu, Y. Shan, and Z. Zhang. Expressive
  expression mapping with ratio images. In Siggraph
  2001
• Q. Zhang, Z. Liu, B. Guo, and H. Shum.
  Geometry-driven photorealistic facial expression
  synthesis. In SCA 2003.
