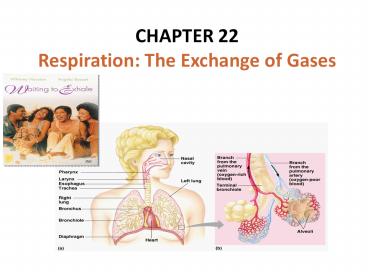

CHAPTER 22 Respiration: The Exchange of Gases

1
CHAPTER 22Respiration The Exchange of Gases
2
MECHANISMS OF GAS EXCHANGE

• Gas exchange is the interchange of O2 and CO2
  between an organism and its environment
• It is also called respiration

3
Overview Gas exchange involves breathing, the
transport of gases, and the servicing of tissue
cells

• Gas exchange is essential because energy
  metabolism requires O2 and produces CO2

O2
4
Animals exchange O2 and CO2 through moist body
surfaces

• O2 enters an animal and CO2 leaves by diffusion
  through a respiratory surface
• Respiratory surfaces are made up of living cells

5
Lungs
capillaries (circulatory system)

• trachea
• bronchi
• bronchioles
• alveoli

alveoli
6
The human respiratory system

• In humans and other mammals, air enters through
  the nasal cavity
• It passes through the pharynx and larynx into the
  trachea
• The trachea forks to form two bronchi
• Each bronchus branches into numerous bronchioles

7
The human respiratory system

• The bronchioles end in clusters of tiny sacs
  called alveoli
• Alveoli form the respiratory surface of the lungs
• Oxygen diffuses through the thin walls of the
  alveoli into the blood

8
Connection Smoking is one of the deadliest
assaults on our respiratory system

• Mucus and cilia in the respiratory passages
  protect the lungs
• Pollutants, including tobacco smoke, can destroy
  these protections
• Smoking kills about 430,000 Americans each year

9
Connection Smoking is one of the deadliest
assaults on our respiratory system

• Smoking causes lung cancer and contributes to
  heart disease
• Smoking also causes emphysema
• Cigarette smoke makes alveoli brittle, causing
  them to rupture
• This reduces thelungs capacity for gas exchange

10
Breathing ventilates the lungs

• Breathing is the alternation of inhalation
  (active) and exhalation (passive)

11
Negative pressure breathing

• Diaphragm moves down expands chest cavity pulls
  air into lungs

inhale
exhale
12
Automatic Brain Control

• You dont have to think to breathe!
• medulla pons
• measure blood pH
• ?CO2 ?pH (acid)
• coordinate breathing, heart rate bodys need
  for energy
• Medulla oblongata
• will stimulate
• diaphragm to contract.

13
TRANSPORT OF GASES IN THE BODY

• Blood transports the respiratory gases, with
  hemoglobin carrying the oxygen
• The heart pumps oxygen-poor blood to the lungs
• In the lungs it picks up O2 and drops off
  CO2(external respiration)
• In the tissues, cells pick up CO2 and drop off
  O2-(Internal respiration)
• Gases diffuse down pressure gradients in the
  lungs and the tissues

14
Gas exchange Diffusion of gases

• Gases move by diffusion from high to low
  concentration
• capillaries are thin-walled tubes of circulatory
  system
• alveoli are thin-walled sacs of respiratory system

capillaries in lungs
capillaries in muscle
blood
lungs
blood
body
15
Gas exchange in the body
16
Hemoglobin is a protein in red blood cells

• It carries most of the oxygen in the blood

Hemegroup
Iron atom
O2 loadedin lungs
O2
O2 unloadedin tissues
O2
Polypeptide chain
17
Hemoglobin helps transport CO2 and buffer the
blood

• Hemoglobin helps buffer the pH of blood and
  carries some CO2
• Most CO2 in the blood combines with water to form
  carbonic acid
• The carbonic acid breaks down to form H ions and
  bicarbonate ions
• These help buffer the blood

18
Transport of CO2

• Most CO2 is transported to the lungs in the form
  of bicarbonate ions

19
Connection The human fetus exchanges gases with
the mothers bloodstream

• A human fetus depends on the placenta for gas
  exchange
• A network of capillaries exchanges O2 and CO2
  with maternal blood that carries gases to and
  from the mothers lungs
• At birth, increasing CO2 in the fetal blood
  stimulates the fetuss breathing control centers
  to initiate breathing

Placenta, containingmaternal blood vesselsand
fetal capillaries
Umbilical cord,containing fetalblood vessels
Amnioticfluid
Uterus
20
Breathing and Homeostasis

• Homeostasis
• keeping the internal environment of the body
  balanced
• need to balance O2 in and CO2 out
• need to balance energy (ATP) production
• Exercise
• breathe faster
• need more ATP
• bring in more O2 remove more CO2
• Disease
• poor lung or heart function breathe faster
• need to work harder to bring in O2 remove CO2

21
Disorders of the Respiratory system

• Asthma a severe allergic reaction in which
  contraction of the bronchioles makes breathing
  difficult
• Bronchitis an inflammation of the lining of the
  bronchial tubes. The passageways to the alveoli
  become swollen and clogged with mucus
• Emphysema lungs lose their elasticity,
  deterioration of the lung structure
• Pneumonia alveoli become filled with fluid.
  Caused by bacterial or viral infection
• Lung Cancer a disease in which tumors form in
  the lungs as a result of irregular and
  uncontrolled cell growth
