Title: EASYAIR®8000 standard factory package


1

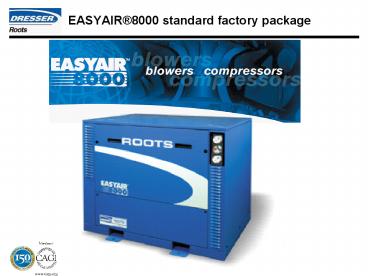

EASYAIR8000 standard factory package
2
EASYAIR8000 Package
  • Flows up to 1650 ICFM (2803 m3/hr) and pressures
    up to 15 PSIG (1.034 bar G)
  • Vacuum up to 15 Hg Vac (-500 mBar G)
  • Features ROOTSTM URAI-DSL blowers and RAMTM
    RAM-J blowers
  • 3HP-125HP

3
EASYAIR 8000 standard factory package
4 Gear 6 Gear RAM-J
3 Gear 6 Gear URAI-DSL
4
URAI-DSL CUT-A-WAY
GEAR END OIL COVER
DRIVE END OIL COVER
CYLINDRICAL BEARING
DRIVE END OIL SLINGERS
Spur Gears 8620 Steel Carburized 58-62 Rc
5
4 Gear 6 Gear RAM BLOWER
Splash Lubricated
Integral Ductile Iron Shaft
Cylindrical Bearings
Spur Gears 8620 Steel Carburized 58-62 Rc
6
ROOTS 6 Gear Vs 6 gear Brand K
ROOTS
Brand K
Heaver Bearing
3.2 lbs
2.3 lbs
More capacity due to Larger rollers
Dynamic Capacity
120 mm
120 mm
65 mm
59 mm
ROOTS 50 Greater Bearing Life
Wider Bearing
23 mm
29 mm
NUP-213 Cdyn122 Kilo Newton
NJ311 Cdyn138 Kilo Newton

3.33 Bearing Life 138 1.50
122 50 greater life than
competitor
7
Bearing Life Roots 6 Gear Vs Brand A K 6
Gear
Brand A
L10 _at_ 3,000 RPM 15,000 Hours
Brand K
L10 _at_ 3,000 RPM 160,000 Hours
Roots
L10 _at_ 3,000 RPM 239,368 Hours
8
EASYAIR8000 package
Flush Key Compression Latches
Side by Side Installation
Three removable access panels front, top and back
Powder Coated Suitable for Indoor or Outdoor
Installation up to 22dBa Free Field Noise
Reduction
Forklift Access
9
EASYAIR8000 package
Inlet/Filter Silencer W/Paper Element
Double Wall Design 16 gauge Carbon Steel
Motor Intake Air
Exhaust Air
Intake Air
Discharge Base/ Silencer multi chamber non-packed
Vibration Pads
10
EASYAIR8000 package
Optional Outside Air Conn
Exhaust Air
Intake Air
Discharge Piping
Motor Intake Air
11
EASYAIR8000 package
Oil Top Off
Oil Drain Manifold
Mesh Guard
Package provided with start-up oil
12
EASYAIR8000 package
Standard Panel Mounted Gauges
  • Discharge Pressure Gauge
  • Filter Restriction Gauge
  • Discharge Temperature Gauge

13
EASYAIR8000 package
Discharge Unloading Valve (optional)
Relief Valve Spring Type
Discharge Check Valve
Discharge Flex Connector
14
EASYAIRAir8000 package
Roots Patent Automatic V-Belt Tensioner
Exhaust Vent Fans
15
EASYAIR8000 package Standard Equipment
  • ROOTS splash lubricated URAI-DSL or RAM-J series
    blower
  • Oil drain manifold with two (2) oil level site
    gauges
  • ROOTS patented V-belt drive automatic belt
    tensioner
  • Inlet filter/silencer with paper element
  • Standard Efficiency EPACT, Inverter Rated, TEFC
    motors
  • Powder coated weather proof noise enclosure, up
    to 22 dba free field noise reduction with ROOTS
    designed vent system
  • 20 lbs sq foot snow load feature
  • 70 MPH wind design feature
  • Vibration pads
  • Discharge base silencer multi chamber non-packed
  • Discharge check valve US Valve
  • Filter restriction gauge, panel mounted Ashcroft
  • Discharge pressure gauge, panel mounted Ashcroft
  • Discharge temperature gauge, panel mounted Weiss
  • Discharge flexible connector
  • Spring type pressure relief valve Kunkle
  • All equipment is mounted when shipped
  • Start-up oil shipped with package

16
EASYAIR8000 Package Options
17
EasyAir8000 Advantages
  • Splash lubricated blowers increases equipment
    life and extends reliability.
  • Engineered ventilation system which increases
    equipment life.
  • Minimized foot print and the packages can be
    installed side by side.
  • Three light weight access panels designed for
    ease of maintenance.
  • Every package receives a mechanical run test
    prior to shipment to verify free field noise
    levels.

18
EasyAir8000 Advantages
  • Panel mounted gauges and oil site glasses to
    monitor package operation.
  • All components are mounted inside the enclosure
    reducing noise and providing one location to
    monitor equipment.
  • Standardized support material and quick
    turnaround on quotes and submittals.
  • Package engineering review to ensure all
    components are correct for the application.

19
EasyAir8000 Advantages
  • ROOTS packages are selected with relief valve
    setting included in the motor horsepower.
  • Most competitors program do not include the
    required horsepower at relief valve setting or
    discharge silencer pressure losses.
  • All motors are reviewed to ensure they are sized
    properly for high elevation or high inlet
    temperature conditions.
  • ROOTS 400 600RAM-J packages are supplied with
    power band v-belts to increase belt life due to
    belts being equally loaded

20
EasyAir8000 Advantages
  • ROOTS patent pending automatic belt tensioner
    with a pivot shaft which allows the motor to
    rotate towards and away from the blower making
    belt changes simple.
  • ROOTS has the largest product support network in
    the industry for service and warranty.
  • Dont have to purchase a new package if the
    outside air connection is required after
    installation.
  • ROOTS packages are selected based on the
    customers criteria not by what we have on the
    shelf that fits.

21
ROOTS Global Presence
  • Factory Service Centers
  • Houston, Texas
  • Connersville, Indiana
  • Mexico
  • United Kingdom
  • Singapore
  • Dubai

22
ROOTS Global Product Support
  • Roots has the largest product support network in
    the industry
  • 55 Distributors with 95 locations
  • Worldwide service capability

23
Service and Warranty Centers North America
24
Service and Warranty Centers South/Central
America
25
EASYAIR8000 package Dimensional Drawing
26
EASYAIR8000 package Outline Drawing
Auto Cad Drawings Available
27
EASYAIR8000 package
Thank You
