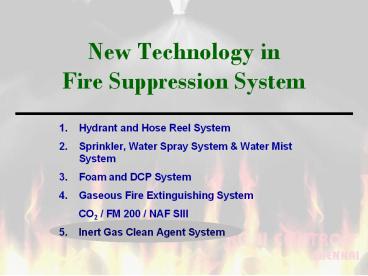

New Technology in Fire Suppression System
  • Hydrant and Hose Reel System
  • Sprinkler, Water Spray System Water Mist System
  • Foam and DCP System
  • Gaseous Fire Extinguishing System
  • CO2 / FM 200 / NAF SIII
  • 5. Inert Gas Clean Agent System

2
Inert Gas Clean AgentNitrogen IG-100 /
Argon IG-01 / Ar-N2 IG-55 / Ar-N2-CO2
IG-541New Technology in Fire Suppression System
  • Concept of using Inert gas like Argon and mixture
    of Argon and Nitrogen in the fire protection is
    very old.
  • However
  • Concept of using Halon alternative with high
    pressure is the new technology.

3
Inert Gas Clean Agent Nitrogen IG-100 /
Argon IG-01 / Ar-N2 IG-55 / Ar-N2-CO2 IG-541
Introduction
  • The search for effective fire extinguishing
    system in the place of Halon provide the choice
    between chemical halocarbon agents HFC, HCFC and
    PFC and Inerting gases.
  • The inerting gases offer advantages over halon in
    terms of environmental impact and genuinely clean
    agent extinction without breakdown.

4
Inert Gas Clean Agent Nitrogen IG-100 /
Argon IG-01 / Ar-N2 IG-55 / Ar-N2-CO2 IG-541
Introduction (cont.)
  • Inert Gas Clean Agent (As per NFPA 2001 standard)

5
Inert Gas Clean Agent Nitrogen IG-100 /
Argon IG-01 / Ar-N2 IG-55 / Ar-N2-CO2 IG-541
Awareness
  • Global Supplier
  • Inert Gas System is being used already globally.
  • Inergen, Argonite, Argotec, Argon Fire are the
    trade name of Inert Gas Clean Agent suppliers.
  • NFPA, ISI or any other standard do not specify
    these trade name.
  • Inert Gas Clean Agent will be represented only by
    IG-100, IG-01,
  • IG-55, IG-541.

6
Inert Gas Clean AgentNitrogen IG-100 / Argon
IG-01 / Ar-N2 IG-55 / Ar-N2-CO2 IG-541
Physical Properties (SI Units)
7
Inert Gas Clean AgentNitrogen IG-100 / Argon
IG-01 / Ar-N2 IG-55 / Ar-N2-CO2 IG-541 Physical
Properties (SI Units)(cont.)
8
Inert Gas Clean AgentNitrogen IG-100 / Argon
IG-01 / Ar-N2 IG-55 / Ar-N2-CO2 IG-541
Physiological Effects
9
Inert Gas Clean AgentNitrogen IG-100 / Argon
IG-01 / Ar-N2 IG-55 / Ar-N2-CO2 IG-541 Wider
Applications
  • Inert Gas Clean Agent System Protection for
    Commercial Facilities
  • Computer Room
  • Data Processing Equipment Room
  • Multi store building, Underground cellar storage
    facilities
  • Diesel power generator in under ground cellar
  • Diesel Engine driven Fire Pump Room
  • Telecommunication center
  • Commercial Restaurant Kitchen with cooking
    equipment

10
Inert Gas Clean AgentNitrogen IG-100 / Argon
IG-01 / Ar-N2 IG-55 / Ar-N2-CO2 IG-541 Wider
Applications (cont.)
Inert Gas Clean Agent System Protection for
Commercial Facilities
  • Switch Gear Room
  • Control Room
  • Rotary Equipment
  • Gas Turbines
  • Generators
  • Flammable Liquid Storage
  • Painting Booth
  • Painting Kitchen
  • Printing Machineries
  • Enclosed Machines
  • Engine Room
  • Engine Test Benches
  • Process Liquid Pumping Area / Station
  • Indoor Transformer
  • Cable Gallery
  • Conveyor Protection

11
Inert Gas Clean AgentNitrogen IG-100 / Argon
IG-01 / Ar-N2 IG-55 / Ar-N2-CO2 IG-541 INERT
GAS Vs HALO CARBON
12
Inert Gas Clean AgentNitrogen IG-100 / Argon
IG-01 / Ar-N2 IG-55 / Ar-N2-CO2 IG-541 INERT
GAS Vs HALO CARBON (cont.)
13
Inert Gas Clean AgentNitrogen IG-100 / Argon
IG-01 / Ar-N2 IG-55 / Ar-N2-CO2 IG-541 INERT
GAS Vs HALO CARBON (cont.)
14
Inert Gas Clean AgentNitrogen IG-100 / Argon
IG-01 / Ar-N2 IG-55 / Ar-N2-CO2 IG-541 INERT
GAS Vs HALO CARBON (cont.)
15
Inert Gas Clean AgentNitrogen IG-100 / Argon
IG-01 / Ar-N2 IG-55 / Ar-N2-CO2 IG-541 INERT
GAS Vs HALO CARBON (cont.)
16
Inert Gas Clean AgentNitrogen IG-100 / Argon
IG-01 / Ar-N2 IG-55 / Ar-N2-CO2 IG-541 INERT
GAS Vs HALO CARBON (cont.)
17
Inert Gas Clean Agent System
  • Nitrogen IG 100

18
Inert Gas Clean AgentNitrogen IG 100
Inertly Yours
  • Approved and Accepted Inert Gas System
  • As Halon Alternative

19
Inert Gas Clean Agent Nitrogen IG 100
Inertly Yours
  • Very similar to other Inert Gas System like
  • Argonite One of the trade names of IG-55
  • Or
  • Inergen One of the trade names of IG-541

20
Inert Gas Clean Agent Nitrogen IG 100
Inertly Yours
  • Features
  • Low refilling cost
  • 99.9 Nitrogen
  • Single Noble Gas
  • Needing no mixing
  • Heavier than air (1.38 time density of air)
    Protect low level fires
  • No agent breakdown
  • No fogging of room atmosphere upon discharge
  • Minimum short-term room cooling. Condensation on
    equipment is avoided
  • Discharge time 1 minute as per NFPA
  • Unlike chemical agents, Nitrogen does not break
    down in the flame to form Hydrogen fluoride or
    other toxic/corrosive gas. Nitrogen does not
    contribute to corrosive damage to equipment

21
Inert Gas Clean Agent Nitrogen IG 100
Inertly Yours
  • Human Safety
  • No Observable Adverse Effect Level (NOAEL)
    below 42
  • Lowest Observable Adverse Effect Level (LOAEL)
    gt43 to lt52
  • Design Concentration

22
Inert Gas Clean Agent Nitrogen IG 100
Inertly Yours
  • Extinguishing Principle
  • Extinguish fire by reducing oxygen by replacing
    air in the room.
  • Oxygen level is reduce to the level where it will
    not support Combustible material for combustion
    to be maintained.
  • In air oxygen is 21. When Oxygen is reduced
    bellow 16 fire suppression takes place. When
    Oxygen is reduced beyond 12 fire is extinguished.

23
Inert Gas Clean Agent Nitrogen IG 100
Inertly Yours Technical
  • System Consists

24
Inert Gas Clean Agent Nitrogen IG 100
Inertly Yours Technical
  • System Consists

25
Inert Gas Clean Agent Nitrogen IG 100
Inertly Yours Standards and Approvals
  • IS 15493 2004 Gaseous Fire Extinguishing
    Systems General
  • Requirements
  • IS 15525 2004 Gaseous Fire Extinguishing
    Systems IG 100
  • Extinguishing Systems
  • Gas NFPA 2001 Clean agent fire extinguishing
    system
  • BS DD 233 Code of practice gaseous fire
    extinguishing system
  • And in conjunction with, as appropriate -
  • IS 2189 Fire Detection and Alarm System
  • NFPA 72 - Fire Detection and Alarm System
  • BS 5839 Part I - Fire Detection and Alarm
    System for Buildings

26
Inert Gas Clean Agent Nitrogen IG 100
Inertly Yours Standards and Approvals
(cont.)
  • Cylinder with ISI mark and CCE approval
  • Cylinder valves - Vds, LPCB approval
  • Third party inspection like BVQI / LLOYDS

27
Inert Gas Clean Agent Nitrogen IG 100
Inertly Yours Availability
  • Agni Control is pioneer in gas-based systems
    having experience in Design, manufacture, supply
    and commissioning No. of gas based systems for
    various applications.
  • Source -
  • Ceodeux-Firetec, Luxembourg (EU)

28
Inert Gas Clean Agent Nitrogen IG 100
Inertly Yours Conclusion
  • Nitrogen IG-100 system are to a well proven
    design for a wide range of risks.
  • Nitrogen IG-100 system provide fire protection
    that in most respects is superior to that
    provided with HALON 1301 and thus purchasers can
    specify in confidence, knowing that they have an
    effective fire protection, with an agent that is
    safe, clean and will not be caught up in any
    future environmental legislation.

29
