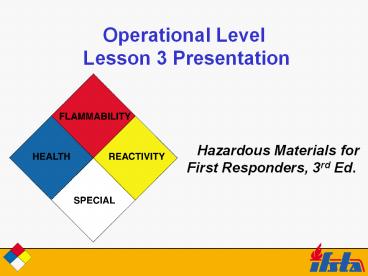

Operational Level Lesson 3 Presentation

1
Operational Level Lesson 3 Presentation

• Hazardous Materials for First Responders, 3rd
  Ed.

2
Incident Priorities

• Life safety
• Incident stabilization
• Protection of property and the environment

3
Assessments to MakeBefore Taking Action

• Risk to rescuers
• Ability of rescuers to protect themselves
• Probability of rescue
• Difficulty of rescue
• Capabilities and resources of on-scene forces
• Possibilities of explosions or sudden material
  releases
• Available escape routes and safe havens
• Constraints of time and distance

4
Advantages of an Incident Management or Incident
Command System

• Common terminology
• Modular organization
• Integrated communication
• Unified command structure
• Consolidated action plans
• Manageable span of control

5
Elements of the Incident Management System (IMS)

• Command The function of directing, ordering,
  and controlling resources by virtue of explicit
  legal, agency, or delegated authority
• Operations The responsibility for the direct
  management of all incident tactical activities,
  the tactical priorities, and the safety and
  welfare of the personnel working in the
  Operations Section

(1 of 3)
6
Elements of the IMS

• Planning The responsibility for gathering,
  assimilating, analyzing, and processing
  information needed for effective decision-making
• Examples Resources Unit, Situation Unit,
  Documentation Unit, Demobilization Unit
• Finance/Administration The financial services
  established at some, but not all, incidents
• Examples Time Unit, Procurement Unit,
  Compensation Unit, Claims Unit, Cost Unit

(2 of 3)
7
Elements of the IMS

• Logistics
• The support mechanism for the organization
  provides services and support systems to all the
  organizational components involved in the
  incident
• Support Branch Medical, communications, and
  food services
• Service Branch Supplies, facilities, and ground
  support

(3 of 3)
8
Command Staff Positions

• Incident commander (IC) The officer at the top
  of an incident chain of command and in overall
  charge of the incident
• Safety Officer The officer responsible for
  monitoring and identifying hazardous and unsafe
  situations and developing measures for ensuring
  personnel safety
• Operations Section Chief The officer
  responsible for managing all operations that
  directly affect the primary mission of
  eliminating a problem incident

9
Incident Commander Functions

• Establishes the site safety plan
• Implements a site security and control plan to
  limit the number of personnel operating in the
  control zones
• Designates a safety officer
• Identifies the materials or conditions involved
  in the incident

(1 of 2)
10
Incident Commander Functions

• Implements appropriate emergency operations
• Ensures that appropriate PPE is worn by all
  emergency responders in restricted zones
• Establishes a decontamination plan and operation
• Implements postincident emergency response
  procedures

(2 of 2)
11
Safety Officer Functions

• Obtains a briefing from the IC
• Reviews Incident Action Plans (IAPs) for safety
  issues
• Participates in the preparation and monitoring of
  incident safety considerations
• Maintains communications with the IC, and advises
  the IC of deviations form the incident safety
  considerations and of any dangerous situations

(1 of 2)
12
Safety Officer Functions

• Alters, suspends, or terminates any activity that
  is judged to be unsafe
• Conducts safety briefings for entry team
  personnel before entry

(2 of 2)
13
Items to be Includedin a Safety Briefing

• Hazardous materials incident
• Status of the incident
• Hazards identified
• Description of the site
• Tasks to be performed
• Expected duration of tasks
• PPE requirements
• Monitoring requirements
• Notification of identified risks

(1 of 3)
14
Items to be Includedin a Safety Briefing

• Incidents involving potential criminal or
  terrorist activities
• Being alert for secondary devices
• Not touching or moving any suspicious-looking
  articles
• Not touching or entering any damp, wet, or oily
  areas
• Wearing full protective clothing, including SCBA
• Limiting the number of personnel entering the
  crime scene

(2 of 3)
15
Items to be Includedin a Safety Briefing

• Incidents involving potential criminal or
  terrorist activities
• Documenting all actions
• Not picking up or taking any souvenirs
• Photographing or videotaping anything suspicious
• Not destroying any possible evidence
• Seeking professional crime-scene assistance

(3 of 3)
16
Setting up a Command Post for a Haz Mat Incident

• The command post
• Must provide accessibility for the IC
• Will ideally allow the IC to observe the scene
• Needs to be readily identifiable
• Note The command post can be a predetermined
  location, a conveniently located building, or a
  radio-equipped vehicle located in a safe area

17
Establishing and Transferring Command at a Haz
Mat Incident

• The first person on the scene or the ranking
  individual of the first company on the scene
  assumes command.
• The IC of a hazardous materials incident must
  have IMS training and be at the hazardous
  materials Operational Level.
• Command is maintained by the arriving IC until a
  higher ranking or more extensively trained
  responder arrives on the scene and assumes
  command.

(1 of 2)
18
Establishing and Transferring Command at a Haz
Mat Incident

• Command can only be transferred to someone who is
  on scene.
• Command can be transferred over the radio if it
  cannot tank place face to face.
• The person relinquishing command must provide the
  person assuming command as clear a picture of the
  situation as possible.
• There is only ONE IC.

(2 of 2)
19
Unified Command System

• All agencies that have a jurisdictional
  responsibility at a multijurisdictional incident
  contribute to the process by
• Determining overall incident objectives
• Selecting strategies
• Accomplishing joint planning for tactical
  activities
• Ensuring integrated tactical operations
• Using all assigned resources effectively

20
IMS Haz Mat Positions

• Hazardous Materials Group/Sector Supervisor
• Entry Leader
• Decontamination Leader
• Site Access Control Leader
• Assistant Safety Officer (Hazardous Materials)
• Technical Specialist (Hazardous Materials
  Reference/Science Technical Specialist)
• Safe Refuge Area Manager

(1 of 2)
21
IMS Haz Mat Positions
(2 of 2)
22
Roles and Guidelines ofPredetermined Procedures

• Provide a standard set of actions that are the
  core of every hazardous material incident plan
• Must comply with any procedures set forth in the
  local emergency response plan (LERP)
• Must incorporate specific regulatory
  requirements, such as those required by OSHA
• Must be written down and required to be used

23
Requesting AdditionalResources at a Haz Mat
Incident

• First responders must be able to communicate the
  need for assistance through their departments
  communications equipment.
• Consult departmental SOPs.

24
Using Communications Equipment Correctly

• Radio procedures
• Use simple English (clear text)
• Transmit only essential information when sending
  information and orders
• Use appropriate channels to communicate with both
  the IC and the telecommunicator
• Use appropriate number of channels for the size
  and complexity of the incident
• Requesting additional help Know what types of
  additional help are available, according to the
  LERP

(1 of 3)
25
Using CommunicationsEquipment Correctly

• Emergency radio traffic
• Make the urgency clear to the telecommunicator
• Wait while the telecommunicator gives an
  attention tone, advises all other units to stand
  by, and advises the caller to proceed with the
  emergency message
• When the emergency communication is complete,
  resume normal or routine radio traffic after the
  telecommunicator notifies all units to do so

(2 of 3)
26
Using CommunicationsEquipment Correctly

• Evacuation signals
• Broadcast a radio message ordering evacuation
• Sound audible warning devices (sirens and air
  horns) on the apparatus at the incident scene for
  an extended period of time
• Broadcast the message several times

(3 of 3)
27
Haz Mat Level I Incident

• Is within the capabilities of the fire or
  emergency services organization or other first
  responders having jurisdiction
• Is the least serious incident and the easiest to
  handle
• May pose a serious threat to life or property,
  but not often
• May require limited evacuation needs
• Example Small amount of gasoline or diesel fuel
  spilled from an automobile

28
Haz Mat Level II Incident

• Is beyond the capabilities of the first
  responders on the scene and may be beyond the
  capabilities of the first response
  agency/organization having jurisdiction
• Requires the services of a formal haz mat
  response team
• Examples Spill or leak requiring large-scale
  evacuation, any major accident, spillage, or
  overflow of flammable liquids

29
Haz Mat Level III Incident

• Requires resources from state/provincial
  agencies, federal agencies, and/or private
  industry
• Requires unified command
• Is the most serious of all incidents
• May require a large-scale evacuation
• Example Incidents that require an evacuation
  extending across jurisdictional boundaries

30
Safety Procedures to beused on Incident Scenes

• Accountability systems/tracking resources
• Buddy system
• Is a system of organizing personnel into work
  groups in such a manner that each member has a
  buddy or partner, so that nobody is working alone
• Provides rapid help in the event of an emergency
• Backup personnel
• Stand by with equipment ready to provide
  assistance or rescue if needed

31
The Problem-SolvingProcess for Haz Mat Incidents

• Analyzing the incident/Understanding the problem
• Planning the response/Setting strategic goals
  Action Plans
• Implementing the plan Tactics and tasks
• Evaluating progress/Looking back

32
Analyzing a Haz Mat Incident

• Survey the scene (size-up) to detect the presence
  of hazardous materials, noting surrounding
  conditions to take into effect.
• Wind direction
• Topography
• Presence of victims
• Available personnel
• Conduct hazard and risk assessment.
• Identify those clues that indicate the presence
  of hazardous materials.

(1 of 2)
33
Analyzing a Haz Mat Incident

• Interpret and verify those clues with emergency
  response agencies, shippers, and/or other
  resources in order to determine which hazardous
  material is involved
• Use resources such as the ERG to estimate the
  size of the endangered area and the potential
  harm posed by the material
• Use information gained from initial size-up to
  determine the strategy and tactics to be applied

(2 of 2)
34
Common Elementsof Haz Mat Incidents

• Material or materials presenting hazards to
  people, the environment, or property
• Container or containers that have failed or have
  the potential to fail
• Exposure or potential exposure to people, the
  environment, and/or property

35
Questions to ask WhenChoosing an Appropriate
Response

• How long will the harmful exposure exist?
• What has stressed or is stressing the container?
• How will the stressed container and its material
  behave?
• What are the harmful effects of the container
  materials?

36
Elements of the General Hazardous Material
Behavior Model

• Stress
• Breach
• Release
• Dispersion/engulfment
• Exposure/contact
• Harm

37
Types of Stress

• Thermal Excessive heat or cold causing
  intolerable expansion, contraction, weakening, or
  consumption of the container and its parts
• Chemical Uncontrolled reactions/interactions of
  contents in the container and the container
  itself
• Mechanical Physical application of energy
  resulting in container/attachment damage

38
Ways in Which aContainer can Breach

• Disintegration Container suffers a general loss
  of integrity, such as a glass bottle shattering
  or a grenade exploding
• Runaway cracking Crack developing in a
  container as a result of some type of damage,
  which continues to grow rapidly
• Attachments (closures) open or break
  Attachments (such as discharge valves) fail,
  open, or break off when subjected to stress

(1 of 2)
39
Ways in Which aContainer can Breach

• Puncture Occurs as a result of mechanical
  stress coming into contact with a container
• Split or tear Failure of a welded seam on a
  tank or drum or a ripped seam on a bag of
  fertilizer
• Metal reduction Caused by the corrosive action
  of an acid on steel

(2 of 2)
40
Ways in Which Containerscan Release Contents

• Detonation Instantaneous and explosive release
  of stored chemical energy of a hazardous material
• Violent rupture Immediate release of chemical
  or mechanical energy caused by runaway cracks

(1 of 2)
41
Ways in Which Containerscan Release Contents

• Rapid relief Fast release of a pressurized
  hazardous material through properly operating
  safety devices, damaged valves or attachments, or
  holes in the container
• Spill/leak Slow release of a hazardous material
  under atmospheric or head pressure through holes,
  rips, tears, or usual openings/attachments

(2 of 2)
42
Hemispheric Dispersion Pattern

• Semicircular or dome-shaped pattern of the
  airborne hazardous material that is still
  partially in contact with the ground or water

43
Cloud Dispersion Pattern

• Ball-shaped pattern of the airborne hazardous
  material where the material has collectively
  risen above the ground or water

44
Plume Dispersion Pattern

• Irregularly shaped pattern of the airborne
  hazardous material where wind and/or topography
  influence the downrange course from the point of
  release

45
Cone Dispersion Pattern

• Triangular-shaped pattern of the hazardous
  material with a point source at the breach and a
  wide base downrange

46
Stream Dispersion Pattern

• Surface-following pattern of liquid hazardous
  material affected by gravity and topographical
  contours

47
Pool Dispersion Pattern

• Three-dimensional, slow-flowing liquid dispersion

48
Irregular Dispersion Pattern

• Irregular or indiscriminate deposit of the
  hazardous material

49
Determining the Size of an Endangered Area

• Resources
• Pre-incident surveys
• Computer software
• ERG

50
Types of Exposure

• People
• Environment
• Property

51
Timeframes Associated with Exposure and Contact

• Immediate Milliseconds, seconds
• Short-term Minutes, hours
• Medium-term Days, weeks, months
• Long-term Years, generations

52
Standard Strategic Goalsof Haz Mat Incidents

• Isolation
• Notification
• Identification
• Protection
• Spill control
• Leak control
• Fire control
• Recovery/termination

53
The Defensive Mode of Operation

• Provides confinement of the hazard to a given
  area by performing diking, damming, or diverting
  actions
• Is selected when one of the following
  circumstances exists
• The facility or LERP calls for it based on a
  pre-incident evaluation of the hazards present at
  the site
• Responders have the training and equipment
  necessary to confine the incident to the area of
  origin

54
The Offensive Mode of Operation

• Is beyond the scope of responsibilities for first
  responders
• Includes actions to control the incident such as
  plugging a leak

55
The NoninterventionMode of Operation

• Allows the incident to run its course on its own
• Is selected when one or more of the following
  circumstances exist
• The facility or LERP calls for it based on a
  pre-incident evaluation of the hazards present at
  the site
• The situation is clearly beyond the capabilities
  of responders
• Explosions are imminent
• Serious container damage threatens a massive
  release

56
Elements of anIncident Action Plan (IAP)

• Strategies/incident objectives
• Current situation summary
• Resource assignment and needs
• Accomplishments
• Hazard statement
• Risk assessment

• Safety plan and message
• Protective measures
• Current and projected weather conditions
• Status of injuries
• Communications plan
• Medical plan

57
Questions to be Asked Before Committing to an IAP

• Are all emergency responders working as members
  of a team?
• Have all emergency responders been adequately
  briefed on the IAP and the hazards of the
  situation?
• Can reconnaissance be made visually?
• Can approach be made from upwind/uphill/upstream?
• Can contact with the material be avoided?
• Can the vapor cloud, mist, dust, or smoke spread?
• Is the risk worth the benefit?

58
How to Determineif an IAP is Effective

• The IC should receive favorable progress reports
  from tactical and/or task supervisors.
• The incident should begin to stabilize.

59
Operational Level Lesson 3 Presentation

• Hazardous Materials for First Responders, 3rd
  Ed.
