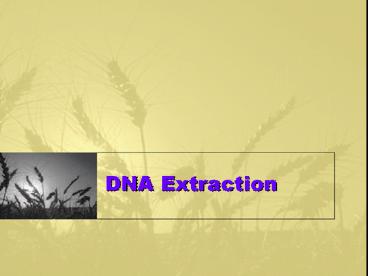

DNA Extraction

1
DNA Extraction

•


2
What is DNA?

• DNA (deoxyribonucleic acid) is one of four major
  families of organic molecules in the cell.
• DNAs primary structure consists of a
  sugar/phosphate backbone to which nitrogenous
  bases are attached. The bases are either Purine
  or Pyrimidine rings.
• It serves as the master copy for most
  information in a cell.

3
Sugar/Phosphate Backbone
4
Purine Structures

5
Pyrimidine Structures

6
Discovery of DNA

• In the late nineteenth century, a German
  biochemist discovered the long-chain polymers of
  nucleotides were made up of sugar, phosphate, and
  nitrogen bases.
• Determined that the sugar in nucleic acids can be
  of two formsribose (RNA) or deoxyribose (DNA).
• In 1943, American Oswald Avery proves that DNA
  carries genetic information.

7
Discovery of DNA, cont.

• In the early1950s, Cambridge University graduate
  student Francis Crick and research fellow James
  Watson became interested in the work of Linus
  Pauling.
• Watson and Crick were interested in Paulings
  1948 discovery that many proteins take the shape
  of an alpha helixin other words, they spiraled
  like a spring coil.

8
Discovery of DNA, cont.

• At Kings College in London, DNA pioneers Maurice
  Wilkins and Rosalind Franklin were using x-ray
  diffraction images to look at DNA.
• Also in 1950, biochemist Erwin Chargaff found
  that the arrangement of nitrogen bases in DNA
  varied widely, but the amount of certain bases
  always occurred in a one-to-one ratio.

9
Discovery of DNA, cont.

• Chargaffs and Paulings discoveries would prove
  to be an important foundation later for the
  description of DNA.
• In 1953, without the consent of Franklin, Wilkins
  showed Franklins results to Watson and Crick.
• Based on that information, Watson and Crick
  suggested the DNA molecule was made of two chains
  of nucleotides.

10
Discovery of DNA, cont.

• Watson and Crick showed that each strand of the
  DNA molecule was in a helix configuration, but
  one was going up and the other going down.
• They also showed that each strand was a template
  for the other.

11
Discovery of DNA, cont.

• Franklin passed away in 1958.
• Watson, Crick, and Wilkins were awarded the Nobel
  Prize in 1962.
• The Nobel Prize is only awarded to living
  persons.
• DNAs discovery has been called the most
  important biological work of the last 100 years.

12
DNA Extraction

• DNA can be extracted from any living thing.
• Procedures for DNA extraction vary from simple
  experiments that can be performed at home, to
  extensive experiments that require the use of a
  laboratory.
• The procedure used is outlined below.

13
DNA Extraction using Wheat Germ

• The basic procedure is to lyse the wheat germ
  cells rupturing the cell walls, membranes and
  nuclear membrane if there is one.
• Carefully read the instructions prior to
  beginning the DNA extraction.

14
Materials

• The following materials/supplies are needed to
  achieve DNA extraction
• Raw Wheat Germ
• Warm water bath (50- 60C)
• Meat tenderizer
• Salt (NaCl)
• Sodium bicarbonate solution
• Liquid detergent such as Woolite

15
Materials, cont.

• 250mL beaker
• Cheese cloth or coffee filter
• Thermometer
• Pipet
• Scale
• 95 Ethanol or 100 Isopropanol alcohol
• Centrifuge
• Gloves

16
DNA Extraction Procedure

• Prior to beginning the extraction, prepare the
  warm water bath (50- 60C).

17
DNA Extraction Procedure, cont.

• PUT ON GLOVES! Failure to wear gloves will allow
  your DNA to contaminate the DNA of the Wheat
  Germ!
• Place 45mL of tap water in a beaker and place it
  in the warm water bath.
• Use the scale to measure 2g wheat germ.
• Sprinkle the wheat germ into the pre- warmed
  water.

18
DNA Extraction Procedure, cont.

• Record the exact temperature of the water.
• The optimal temperature for DNA extraction is
  55- 60C.
• DO NOT ALLOW THE TEMPERATURE TO RISE ABOVE 60C.
• Add 2-5mL of detergent and stir gently trying to
  create as few bubbles as possible.

19
DNA Extraction Procedure, cont.

• Continue to stir the mixture for an additional 5
  minutes remembering to keep the temperature below
  60C.
• After 5 minutes, gently stir in 2g of meat
  tenderizer.
• Add 5mL of sodium bicarbonate solution and
  continue to stir and heat for an additional 5-15
  minutes.

20
DNA Extraction Procedure, cont.

• Immediately cool in ice bath to room temperature.
• Filter through cheesecloth or coffee filter.

21
DNA Extraction Procedure, cont.

• After filtration, place approximately 5mL of the
  filtrate to a test tube.
• Next, pipette 5mL ice-cold alcohol down the side
  of the test-tube making sure the alcohol doesnt
  mix with the filtrate.
• 2 distinct layers should be visible.
• Spool the DNA from the filtrate.

22
DNA Extraction, Additional Procedures

• 3 additional extraction procedures were
  conducted.
• Each was carried out using the procedure
  explained above with the following exceptions
• 1. No heat was used.
• 2. Heating time was reduced to 5 minutes.
• 3. Heating time was increased to 25 minutes.

23
Results of DNA Extraction using Wheat Germ

• Results were inconclusive when DNA extraction was
  attempted without the benefit of heat.
• Heating the wheat germ as specified in the
  original procedure (15 minutes) proved to be the
  most successful.
• Extremely fragmented DNA occurred when solution
  was heated for 25 minutes.

24
Results of DNA Extraction using Wheat Germ

• DNA was easily extracted, but isolating the DNA
  from the filtrate proved to be the biggest
  obstacle.
• Sterile cotton swabs and sterile loops were used
  with little success.

25
DNA Extraction with Green Peas

• The following materials are needed
• Fresh or frozen Green peas
• Blender
• Liquid detergent, such as Woolite
• Coffee filter
• Meat tenderizer
• 70-95 rubbing alcohol or ethyl alcohol
• 250mL beaker
• Test tubes

26
DNA Extraction Procedures

• Place the following items in a blender
• ½ cup of green peas.
• 1/8 tsp of salt.
• 1 cup of cold water.
• Blend on high for 15 seconds.
• Strain through coffee filter into 250mL beaker
  and add 2 tablespoons of liquid detergent.

27
DNA Extraction Procedures, cont.

• Allow mixture to sit for 5-10 minutes.
• Pour mixture into test tubes, add a small pinch
  of meat tenderizer and stir gently.
• Gently pour an amount of alcohol equal to the
  amount of filtrate into the test tubes.
• DNA will appear in the alcohol layer.

28
Results of DNA Extraction using Green Peas

• All attempts to extract DNA using green peas were
  unsuccessful.
• DNA extraction was never observed.
• Procedure altered in the following way
• Peas were crushed instead of blended.
• Peas were blended less than 15 seconds.
• Peas were blended for 30 seconds.
• The mixture was heated for 15 minutes and cooled
  to room temperature.

29
DNA Detectives Lab

• The DNA Detectives Lab uses restriction enzymes
  to isolate specific fragments of DNA.
• The exact number and size of fragments produced
  by a specific restriction enzyme vary from person
  to person.
• Restriction enzymes are used to cut DNA
  molecules internally (endo) or on the ends (exo).

30
DNA Detectives Lab, cont.

• Hind III recognizes the sequence AAGCTT and cuts
  the DNA at different points of the strands
  resulting in a staggered cut (endo).
• Pvu II cuts through both strands of DNA resulting
  in a clean cut, leaving blunt ends (exo).

31
DNA Detectives Lab, cont.

• Examples of Restriction Enzymes
• BamH I
• EcoR I
• Hae III
• Hind III -
• Pvu II - (used in the DNA Detectives Lab)

32
DNA Detectives Lab, cont.

• Materials needed
• 0.8 Agarose
• 5X TBE running buffer
• Quickview DNA stain concentrate
• Microfuge tubes
• Staining trays
• Loading dye
• Lambda DNA/Hind III marker

33
DNA Detectives Lab Materials, cont.

• 4 suspect DNA samples
• 2 Pvu II restriction enzyme
• 2 Pvu II reaction buffer 10X
• Electrophoresis chamber
• Power supply
• Micropipettes
• Permanent marker
• Distilled water

34
DNA Detectives Lab Materials, cont.

• Microwave oven
• 37C water bath
• 65C water bath
• Duct tape
• Gloves
• Ice bath for sample tubes
• Petroleum ether for rinsing micropipette
• Test tube rack
• 9-Volt Batteries

35
DNA Detectives Lab Procedures

• Remove DNA sample kit from freezer and allow
  samples to thaw.
• Label 5 microfuge tubes as follows
• Crime scene
• Suspect 1
• Suspect 2
• Suspect 3
• Suspect 4

36
DNA Detectives Lab Procedures, cont.

• Using a 10µl micropipette, pipette 10µl of the
  Crime scene DNA into the microfuge tube labeled
  Crime scene.
• Rinse the micropipette with petroleum ether and
  add 2µl Pvu II reaction buffer 10X.
• Rinse the micropipette with petroleum ether and
  add 2µl Pvu II restriction enzyme.
• Repeat these steps for Suspects 1- 4 using the
  same procedure outlined above

37
DNA Detectives Lab Procedures, cont.

• Incubate all tubes at 37C for 1 hour.
• Cast Agarose Gel during this time if not prepared
  ahead of time.

38
DNA Detectives Lab Casting Agarose Gel

• Place bottle of 0.8 Agarose Gel in microwave
  oven and microwave on high at 30 second
  increments until gel is melted. (usually one 30
  second cycle)
• HANDLE WITH CAUTIONGEL IS EXTREMELY HOT!
• Use duct tape as end dams for the gel casting
  tray making sure tape securely adheres to the
  tray.

39
DNA Detectives Lab Casting Agarose Gel

• Insert the gel comb at the end of the gel tray.
• Place the gel tray on the countertop and add
  melted Agarose Gel until its just below the
  bottom portion of the solid comb.
• Allow the gel to cool and solidify which takes
  approximately 30 minutes.

40
DNA Detectives Lab Procedures, cont.

• Prepare the Dilute Stain while the gel is
  cooling.
• Add 5ml of DNA stain concentrate to 95ml warm
  (50-55C) distilled water.
• Set solution aside, but maintain temperature.

41
DNA Detectives Lab Procedures, cont.

• After all tubes have incubated for 1 hour, and
  the Agarose Gel has cooled, add 2µl of loading
  dye to each tube.
• Incubate all tubes for 5 minutes at 65C.
• This incubation period along with the loading dye
  stops enzyme activity from occurring.
• If enzyme activity is not stopped, the enzymes
  will continue to degrade the DNA causing smaller
  fragments.

42
DNA Detectives Lab Procedures, cont.

• While the tubes are incubating at 65C, wear
  gloves and remove the duct tape from the ends of
  the Agarose Gel tray.
• If gloves arent worn, your DNA could
  contaminate the Agarose Gel leading to
  false/inaccurate results.
• Place the gel tray into the chamber and slowly
  add 350ml of 1X TBE running buffer.

43
DNA Detectives Lab Procedures, cont.

• Add buffer to one end of the chamber until that
  chamber is filled.
• Repeat this procedure with the other chamber.
• Once both chambers are filled, slowly continue
  adding buffer until the Agarose Gel is completely
  covered.

44
DNA Detectives Lab Procedures, cont.

• Use a 50µl pipette and add the following to the
  Agarose Gel
• Lane 1 10µl Lambda DNA/Hind III
• Lane 2 15µl Crime Scene DNA
• Lane 3 15µl Suspect 1 DNA
• Lane 4 15µl Suspect 2 DNA
• Lane 5 15µl Suspect 3 DNA
• Lane 6 15µl Suspect 4 DNA

45
DNA Detectives Lab Procedures, cont.

• When loading the DNA to the Agarose Gel, make
  sure the DNA isnt injected into the gel.
• Once all wells are loaded, gently slide the cover
  into the chamber.
• Connect the 9-volt batteries to the cover no
  more than 75-125 volts.

46
DNA Detectives Lab Procedures, cont.

• Monitor the movement of the DNA samples. Pay
  attention to Lane 1.
• Lane 1 contains Hind III marker which serves as
  an indicator.
• Hind III has a lighter molecular weight than the
  DNA samples. Therefore, it will run through the
  gel faster and reach the end of the gel before
  the DNA samples.

47
DNA Detectives Lab Procedures, cont.

• Disconnect the power supply, and remove the
  cover.
• Gently pour the running buffer out of the
  chamber.
• Wear gloves and remove the gel tray from the
  chamber.
• Carefully slide the gel into a staining tray and
  add stain solution until it covers the gel.

48
DNA Detectives Lab Procedures, cont.

• Cover the tray and allow the gel to stain for
  approximately 30-40 minutes.
• Once the gel has finished staining, carefully
  pour the stain out of the tray ensuring that the
  gel remains flat, and doesnt slide into the
  corner of the tray.
• Add distilled water to the tray using care not to
  pour water directly onto the gel.

49
DNA Detectives Lab Procedures, cont.

• For best results, allow the gel to Destain
  overnight.
• You may also expedite the destaining process by
  gently rocking the tray.
• This process will take approximately 30 minutes
  and several water changes.

50
DNA Detectives Lab Results

• After performing all steps necessary to isolate
  the DNA,
• perform gel electrophoresis, and complete the
  destaining process, the banding patterns were
  reviewed.
• The banding patterns indicate

51
DNA Detectives Lab Results, cont.

• Suspect 3 committed the crime!!!

52
PCR

•


53
PCR, cont

• PCR (Polymerase Chain Reaction) is essentially a
  system for cell-free DNA replication.
• PCR is repetitious
• It involves subjecting DNA to repeated cycles of
  high temperature and low-temperatures for 30
  cycles.
• Subjecting DNA to high temperature causes
  denaturation.

54
PCR, cont

• Exposure to low temperature produces a copy of
  the DNA.
• The DNA template doubles with each cycle
  amplifying the DNA quantities.
• After 30 cycles, one DNA molecule becomes a
  billion copies.

55
PCR, cont

• In shortthe double-stranded DNA is separated at
  high temperature and becomes a single strandthat
  strand is then copied by DNA polymerase.
• The low temperature allows the DNA primers to
  bind only to its complementary sequences, e.g. A
  across from T, and G across from C.
• Since each cycle produces a copy, the amount of
  DNA doubles with each cycle.
