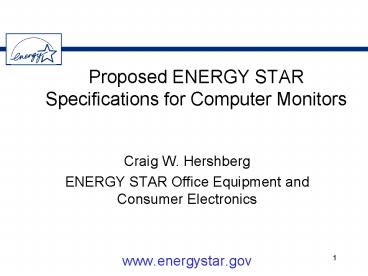

Proposed ENERGY STAR Specifications for Computer Monitors

1
Proposed ENERGY STAR Specifications for Computer
Monitors

• Craig W. Hershberg
• ENERGY STAR Office Equipment and Consumer
  Electronics
• www.energystar.gov

2
Agenda

• Computer monitor specification
• Objectives
• History
• Specification highlights
• Industry feedback
• Next steps
• Questions from EU - EPA agreement
• Your comments / questions
• Our questions for you

3
Agenda (contd)

• Do you need specifics ?
• Sleep, Off , On, Non-energy aspects
• Test method
• The time is right - LCDs

4
Agenda (contd)

• Logistics and other issues
• How to collaborate when revising the
  specifications
• Subsequent meetings
• Summary of meeting, including action items and
  schedule for follow-up
• Preliminary plans for other Office Equipment
  Products
• procedure for collaboration

5
Objectives

• Provide understanding and disclosure of draft
  monitor specification
• Provide detailed answers to questions
• Receive constructive feedback from you
• Develop consensus on direction identified today
• Agree on next steps

6
The history

• What monitor specs. exist in Europe now ?
• GEEA
• TCO
• Reviewed independent monitor research from
  DisplaySearch, IDC, Europeans, and others
• Met with monitor manufacturers at COMDEX, CES,
  DisplaySearch, and one-on-one (HANS-PAUL)
• Analyzed self-reported data from manufacturers in
  STAR database
• Independently measured monitor power use
• Compared data with LBNL, ADL studies
• Made recommendations to EPA. EPA weighed them
  with others and created draft specification.

7
Revising the ENERGY STAR Computer Monitor
SpecificationHighlights
8
Terminology

• ON active, full power
• SLEEP After x minutes of inactivity, monitor
  goes to lower power usage mode. low power
• OFF Standby
• Remember ON, SLEEP, AND OFF

9
Current ENERGY STAR Specification

• Sets minimum wattage levels in low-power or
  sleep mode.
• First Sleep Mode ? 15 watts
• Second or Deep Sleep Mode ? 8 watts

10
Why Revise the Current Specification?

• Virtually all monitors meet current ENERGY STAR
  specification.
• Large percentage of monitors are not sleep
  enabled (i.e., we are not getting the energy
  savings we could be).
• Recent NRDC research shows energy use in on
  mode is 80 90 of total kWh/yr.
• For on and off modes, wide range of
  performance between similar-sized models.
• Broad interest in limiting standby power use.

11
Goals for Revised Specification

• Incorporate all 3 operating modes
• On (active)
• Sleep (inactive)
• Off (standby)
• Performance-based specification.
• One specification for all monitors, not one for
  CRTs, one for LCDs, etc.
• Equal or better performance compared to
  non-ENERGY STAR labeled models.

12
The Core Requirements

• Maximum allowable power consumption levels for
  each mode On, Sleep, Off
• Consensus test method for measuring active power
  usage.
• Minimum consumer acceptance criteria (brightness,
  warranty, etc.)
• Product and package labeling.

13
Why Active Power?

• Feasible without negatively affecting product
  performance in fact, some manufacturers are
  already meeting the proposed specifications
• Limited additional energy savings potential in
  sleep and off modes 90 of savings with
  proposed spec is from active
• Not dependent on enabling rates
• Allows a variety of technologies (e.g., CRT and
  LCD) to qualify

14
LCDs

• Highlight a new technology in the marketplace
• Additional benefits
• Space
• Heat
• Power consumption
• Useful life
• Installation
• Disposal

15
On Mode Active Power Use

• Sets maximum allowable active power (W)
• Power as a function of mega pixels
• W 30 20X
• Example monitor has resolution of
• 1280 x 1024 1,310,720 or 1.31 mega pixels
• W 30 20 (1.31) 56 W

16
On Mode (cont.)

• Technology neutral, agnostic to monitor type (LCD
  or CRT), size (15, 17, etc.).
• If monitor yields more information, allow a
  little more power consumption.

17
Sleep Mode

• Just one sleep mode level.
• Maximum allowable power 4 W
• If multiple sleep modes, all must meet 4W
  requirement.

18
Sleep Mode Advisory Language

• For consideration in updated ENERGY STAR computer
  specification
• Maximum default time 15 minutes
• Maximum recovery time 5 seconds
• Goal increase likelihood that users actually
  use and are not annoyed by energy management
  features.

19
Off Mode

• Synonymous with standby.
• Power consumed when device is plugged in, but
  switched off ? 2 W.
• Working to harmonize with US Executive Order for
  Standby Power Consumption (1 watt executive
  order)

20
Non-energy Reqts.

• Must be bright enough, easy-to-read, reliable.
• Brightness minimum luminance of 100 nits
  (candelas/m2).
• Contrast minimum contrast ratio of 2001.
• Defective Pixels ? 5 sub-pixel faults per
  million sub-pixels.
• Warranty at least 2 years.
• User Interface UI Standard recommended

21
Labeling Requirements

• ENERGY STAR logo must be displayed on
• top/front of product,
• product package,
• product literature.

22
(No Transcript)
23
(No Transcript)
24
What did the monitor industry think about our
draft specification?
25
Key Industry Feedback Regarding Draft
Specification

• Industry expressed few concerns on having the new
  specification include requirements for all three
  operating modes on, sleep, and off.
• With few exceptions, industry agreed to a pixel
  per watt approach for on mode
• EPA and industry agreed to define a common test
  method for measuring on mode power consumption.
  Manufacturers to test and submit data once test
  method is finalized

26
Key Industry Feedback Regarding Draft
Specification (contd)

• Should ENERGY STAR set one specification (one
  line) that covers all CRT and LCD monitors, or
  should the specification differentiate between
  CRTs and LCDs (2 lines) ?
• Specification too stringent for CRTs,
  particularly for the desktop publishing
  environment (e.g., large screen sizes)
• Wake-up time for monitor. Industry wants more
  guidance on how to measure/define wake-up time

27
Key Industry Feedback Regarding Draft
Specification (contd)

• Industry supports a single sleep mode
  specification, as opposed to the current sleep
  and deep sleep design
• 4-watt sleep mode specification is agreeable
• off mode of 2 watts may be difficult for LCDs

28
Key Industry Feedback Regarding Draft
Specification (contd)

• Several manufacturers questioned non-energy
  requirements
• Specific concerns include
• Brightness level will be harder to meet for
  larger CRT monitors.
• EPA should reference ISO standards for contrast
  ratio CRTs and LCDs are measured differently.
• Pixel faults only applies to LCD monitors.
• Warranties could be a serious challenge with
  retailers, and may not work in international
  markets.

29
Next Steps...
30
Key Next Steps for EPA and Industry

• Establish test procedure
• Industry to submit input to EPA on non-energy
  parameters
• Manufacturers to test monitors according to new
  test procedure and submit data to EPA.
• EPA to analyze new data and revise
  specifications, as necessary.

31
Changes to specification based on Industry
Response

• May need to allow more CRTs to qualify
• large screen CRTs issue
• Scale down non-energy attributes
• Monitor wake-up time ?
• Test procedure

32
Questions ? Comments ?
33
Questions for You...

• Were their questions or comments on the first
  draft?
• Test procedure, non-energy attributes, etc....
• Like to submit next draft to you first provided
  we receive comments in timely fashion (3 weeks)
• Can you provide data from European manufacturers?

34
Sleep, Off, On Mode and non-energy attributes
The Specifics
35
Sleep Mode

• Current ENERGY STAR Specification
• First Sleep ? 15 W Second Sleep ? 8W
• Proposed Specification
• Just one level ? 4 W simplifies spec
• Under the new spec, sleep mode power is about 10
  of active mode power
• Roughly two-thirds of existing models can meet
  the proposed sleep requirement.

36
Sleep Mode Questions

• Verify consensus
• Only 1 tier (no deep sleep)?
• Maximum power level 4 W?
• Advisory levels set at right levels?
• -Default time till sleep lt 15 minutes
• -Recovery time lt 5 seconds

37
Off Mode

• Current specification no standby power limit.
• Current measured levels some as high as 8-9 W,
  several at 4-5 W.
• Proposed specification ? 2 W.
• Lots of models currently meet the 2W limit.

38
Off Mode Questions

• Verify Consensus
• Is 2W the right level?
• Beneficial to have same level set in Executive
  Order (not simply 1W)?
• Suggestions on how to harmonize with European
  Union. (TCO)

39
On (Active) Mode Discussion
40
What Does The Term Energy Efficient Monitor
Mean?

• Efficiency Useful Output or Service Provided /
  Total Energy Input
• Useful output or service could be diagonal inches
  of screen size, square inches of screen size, or
  total pixels displayed
• Monitor not displaying information (providing
  useful output) in sleep or standby modes, so
  minimize power use at those times to achieve high
  overall efficiency
• Can account for all energy use in all three modes
  separately or with a duty cycle
• ENERGY STAR seeks to recognize top 25 efficiency

41
Estimated Annual Energy Use for CRTs and LCDs
42
The Advantages of Pixels/Watt

• Pixels/watt approach has a number of key
  advantages
• More technology neutral avoids difference
  between viewable screen size and total
• Screen area (square inches) unknown to consumers
• Credits CRTs for their present resolution
  advantage, yet allows for very high resolution
  options like IBMs new 9.1 million pixel LCD
• Emphasizes display quality over physical size
• Avoids difficulty of trying to estimate a
  representative duty cycle for all monitors
• Simple, like lumens/watt (lighting) or CFM/watt
  (fans). Can also be characterized as
  watts/megapixel

43
Effect of Resolution and Monitor Type on Active
Power Consumption
44
Effect of Resolution and Monitor Type on Active
Power Consumption for Monitors 17 and Less
45
Effect of Resolution and Monitor Type on Active
Power Consumption for Monitors Greater than 17
46
(No Transcript)
47
(No Transcript)
48
Applying Active Power Spec to Standard Resolutions
49
Need for Consistent Measurement

• STAR database contains self-reported data from
  manufacturers
• Not all monitors measured under identical
  conditions in active or on mode
• Depending on user settings and image displayed,
  CRT power variations can be /- 30. LCD
  variations can be /- 50.
• ENERGY STAR has helped develop common test
  methods to the ventilation and lighting
  industries may be able to bring standardization
  to monitor measurements as well.

50
Effects of User Settings on Power for a 21 CRT
Monitor
51
Effects of User Settings on Power for a 17 LCD
Monitor
52
Non-Energy Aspects of the Specification
53
Why Include Non-Energy Attributes?

• Goal is to ensure a level playing field
  maintain or enhance quality while saving energy
• What aspects of product quality or performance
  could be compromised if a manufacturer looked for
  a quick fix to meet the new ENERGY STAR spec?
• ENERGY STAR and the utilities that support it
  want to ensure that customers will have a
  satisfying experience with labeled products.
• Reliability -- Saving energy is the product of
  power savings and time (kwh wh). An energy
  efficient product that fails early wont save
  much energy.

54
(No Transcript)
55
Key Non-Energy Spec Provisions

• Brightness Minimum of 100 nits at default
  brightness and contrast settings
• LCDs typically 150 to 250 nits
• CRTs typically 80 to 120 nits
• Contrast ratio Minimum of 2001 (can adjust
  settings to achieve this level)
• LCDs typically 2001 to 4001
• CRTs typically gt4001
• Without these specs, very dim or low contrast
  screens could more easily meet ENERGY STAR but
  may not satisfy users

56
Other Key Attributes

• Refresh rate Minimum of 85 Hz for CRTs and 60
  Hz for LCDs attempt to preserve ergonomic
  quality
• Pixel faults No more than 5 sub-pixel faults
  per million sub-pixels (Class II, ISO 13406-2)
  seek to minimize quality differences between CRT
  LCD
• Warranty At least 2 years - 3 years common from
  many major manufacturers, but spec recognizes
  retailer preference for selling extended
  warranties

57
Other Possible Non-Energy Attributes

• Viewing angle How far from the horizontal and
  vertical axes of the screen can it still be
  clearly seen?
• Wake from sleep time How long before
  information is legible on screen after wakeup?
  Is there a consensus way to measure that?
• Pixel density pixels per inch (PPI)
• Resolution/Addressability Ratio (RAR) VESA
  Section 6.6 ability of a screen to resolve
  individual lines or pixels
• Others?

58
Test Method Discussion
59
Elements of a Standard Test Procedure

• Identical on-screen image (alternating black and
  white lines 1 pixel in height?) filling full
  viewable area of screen
• Default brightness and contrast settings (balance
  between simplicity and risk of manipulation)
• Highest VESA supported resolution with a refresh
  rate of at least 85 Hz for CRTs, native
  resolution and 60 Hz refresh rate for LCDs is
  other timing language needed?

60
Other Test Procedure Elements

• Reference VESA specifications for power
  measurement true RMS power at 3 combinations of
  voltage and frequency, averaged across at least 5
  test samples
• 100 VAC, 50 Hz 117 VAC, 60 Hz 230 VAC, 50 Hz
• Leave off or disconnect any included peripheral
  features TV tuner, microphone, speakers, USB
  hubs, etc.
• Others?

61
(No Transcript)
62
ENERGY STAR Office Equipment specification
revisionsWhat does the future hold?
63
Future Specification Revisions

• Other Office Equipment
• Laptops (initiate research March 2002)
• Scanners, printers, copiers, MFDs, fax machines
• (Scanner USB issue initiate research Sept. 2002)
• computer (initiate research mid-2003)
• Vision
• EU-EPA collaboration
• sleep, active power and standby power
• energy efficient power supplies
• USB driven products
• universal imaging specification
