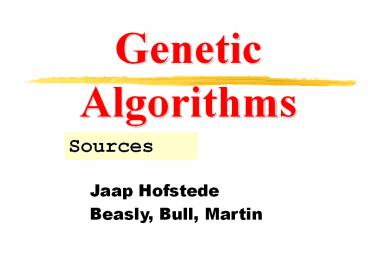

Genetic Algorithms

Sources

- Jaap Hofstede
- Beasly, Bull, Martin

Introduction to Evolutionary Computation

- Evolutionary Computation is the field of study

devoted to the design, development, and analysis

is problem solvers based on natural selection

(simulated evolution). - Evolution has proven to be a powerful search

process. - Evolutionary Computation has been successfully

applied to a wide range of problems including - Aircraft Design,
- Routing in Communications Networks,
- Tracking Windshear,
- Game Playing (Checkers Fogel)

Introduction to Evolutionary Computation(Applicat

ions cont.)

- Robotics,
- Air Traffic Control,
- Design,
- Scheduling,
- Machine Learning,
- Pattern Recognition,
- Job Shop Scheduling,
- VLSI Circuit Layout,
- Strike Force Allocation,

Introduction to Evolutionary Computation(Applicat

ions cont.)

- Theme Park Tours (Disney Land/World)

http//www.TouringPlans.com - Market Forecasting,
- Egg Price Forecasting,
- Design of Filters and Barriers,
- Data-Mining,
- User-Mining,
- Resource Allocation,
- Path Planning,
- Etc.

Example of Evolutionary Algorithm

- An Example Evolutionary Computation
- Procedure EC
- t 0
- Initialize Pop(t)
- Evaluate Pop(t)
- While (Not Done)
- Parents(t) Select_Parents(Pop(t))
- Offspring(t) Procreate(Parents(t))
- Evaluate(Offspring(t))
- Pop(t1) Replace(Pop(t),Offspring(t))
- t t 1

Candidate Solutions CS

- In an Evolutionary Computation, a population of

candidate solutions (CSs) is randomly generated. - Each of the CSs is evaluated and assigned a

fitness based on a user specified evaluation

function. - The evaluation function is used to determine the

goodness of a CS. - A number of individuals are then selected to be

parents based on their fitness. - The Select_Parents method must be one that

balances the urge for selecting the best

performing CSs with the need for population

diversity.

Parents and Generations

- The selected parents are then allowed to create a

set of offspring which are evaluated and assigned

a fitness using the same evaluation function

defined by the user. - Finally, a decision must be made as to which

individuals of the current population and the

offspring population should be allowed to

survive. - Typically, in EC , this is done to guarantee that

the population size remains constant. - The study of ECs with dynamic population sizes

would make an interesting project for this course

Selecting and Stopping

- Once a decision is made the survivors comprise

the next generation (Pop(t1)). - This process of selecting parents based on their

fitness, allowing them to create offspring, and

replacing weaker members of the population is

repeated for a user specified number of cycles. - Stopping conditions for evolutionary search could

be - The discovery of an optimal or near optimal

solution - Convergence on a single solution or set of

similar solutions, - When the EC detects the problem has no feasible

solution, - After a user-specified threshold has been

reached, or - After a maximum number of cycles.

A Brief History of Evolutionary Computation

- The idea of using simulated evolution to solve

engineering and design problems have been around

since the 1950s (Fogel, 2000). - Bremermann, 1962
- Box, 1957
- Friedberg, 1958
- However, it wasnt until the early 1960s that we

began to see three influential forms of EC emerge

(Back et al, 1997) - Evolutionary Programming (Lawrence Fogel, 1962),
- Genetic Algorithms (Holland, 1962)
- Evolution Strategies (Rechenberg, 1965

Schwefel, 1968),

A Brief History of Evolutionary

Computation(cont.)

- The designers of each of the EC techniques saw

that their particular problems could be solved

via simulated evolution. - Fogel was concerned with solving prediction

problems. - Rechenberg Schwefel were concerned with solving

parameter optimization problems. - Holland was concerned with developing robust

adaptive systems.

A Brief History of Evolutionary

Computation(cont.)

- Each of these researchers successfully developed

appropriate ECs for their particular problems

independently. - In the US, Genetic Algorithms have become the

most popular EC technique due to a book by David

E. Goldberg (1989) entitled, Genetic Algorithms

in Search, Optimization Machine Learning. - This book explained the concept of Genetic Search

in such a way the a wide variety of engineers and

scientist could understand and apply.

A Brief History of Evolutionary

Computation(cont.)

- However, a number of other books helped fuel the

growing interest in EC - Lawrence Davis, Handbook of Genetic

Algorithms, (1991), - Zbigniew Michalewicz book (1992), Genetic

Algorithms Data Structures Evolution

Programs. - John R. Kozas Genetic Programming (1992), and
- D. B. Fogels 1995 book entitled, Evolutionary

Computation Toward a New Philosophy of Machine

Intelligence. - These books not only fueled interest in EC but

they also were instrumental in bringing together

the EP, ES, and GA concepts together in a way

that fostered unity and an explosion of new and

exciting forms of EC.

A Brief History of Evolutionary ComputationThe

Evolution of Evolutionary Computation

- First Generation EC
- EP (Fogel)
- GA (Holland)
- ES (Rechenberg, Schwefel)
- Second Generation EC
- Genetic Evolution of Data Structures

(Michalewicz) - Genetic Evolution of Programs (Koza)
- Hybrid Genetic Search (Davis)
- Tabu Search (Glover)

A Brief History of Evolutionary ComputationThe

Evolution of Evolutionary Computation (cont.)

- Third Generation EC
- Artificial Immune Systems (Forrest)
- Cultural Algorithms (Reynolds)
- DNA Computing (Adleman)
- Ant Colony Optimization (Dorigo)
- Particle Swarm Optimization (Kennedy Eberhart)
- Memetic Algorithms
- Estimation of Distribution Algorithms
- Fourth Generation ????

Introduction to Evolutionary ComputationA

Simple Example

- Lets walk through a simple example!
- Lets say you were asked to solve the following

problem - Maximize
- f6(x,y) 0.5 (sin(sqrt(x2y2))2 0.5)/(1.0

0.001(x2y2))2 - Where x and y are take from -100.0,100.0
- You must find a solution that is greater than

0.99754, and you can only evaluate a total of

4000 candidate solutions (CSs) - This seems like a difficult problem.
- It would be nice if we could see what it looks

like! - This may help us determine a good algorithm for

solving it.

Introduction to Evolutionary ComputationA

Simple Example

- A 3D view of f6(x,y)

Introduction to Evolutionary ComputationA

Simple Example

- If we just look at only one dimension f6(x,1.0)

Introduction to Evolutionary ComputationA

Simple Example

- Lets develop a simple EC for solving this

problem - An individual (chromosome or CS)
- ltxi,yigt
- fiti f6(xi,yi)

Introduction to Evolutionary ComputationA

Simple Example

- Procedure simpleEC
- t 0
- Initialize Pop(t) / of P individuals /
- Evaluate Pop(t)
- while (t lt 4000-P)
- Select_Parent(ltxmom,ymomgt) / Randomly /
- Select_Parent(ltxdad,ydadgt) / Randomly /
- Create_Offspring(ltxkid,ykidgt)
- xkid rnd(xmom, xdad) Nx(0,?)
- ykid rnd(ymom, ydad) Ny(0,?)
- fitkid Evaluate(ltxkid,ykidgt)
- Pop(t1) Replace(worst,kid)Pop(t)-worst?

kid - t t 1

Introduction to Evolutionary ComputationA

Simple Example

- To simulate this simple EC we can use the applet

at - http//www.eng.auburn.edu/gvdozier/GA.html

Introduction to Evolutionary ComputationA

Simple Example

- To get a better understanding of some of the

properties of ECs lets do the in class lab

found at http//www.eng.auburn.edu/gvdozier/GA_L

ab.html

Hill climbing

Introduction 1

- Inspired by natural evolution
- Population of individuals
- Individual is feasible solution to problem
- Each individual is characterized by a Fitness

function - Higher fitness is better solution
- Based on their fitness, parents are selected to

reproduce offspring for a new generation - Fitter individuals have more chance to reproduce
- New generation has same size as old generation

old generation dies - Offspring has combination of properties of two

parents - If well designed, population will converge to

optimal solution

Algorithm

- BEGIN
- Generate initial population
- Compute fitness of each individual
- REPEAT / New generation /
- FOR population_size / 2 DO
- Select two parents from old generation
- / biased to the fitter ones /
- Recombine parents for two offspring
- Compute fitness of offspring
- Insert offspring in new generation
- END FOR
- UNTIL population has converged
- END

Example of convergence

Introduction 2

- Reproduction mechanism has no knowledge of the

problem to be solved - Link between genetic algorithm and problem
- Coding
- Fitness function

Basic principles 1

- Coding or Representation
- String with all parameters
- Fitness function
- Parent selection
- Reproduction
- Crossover
- Mutation
- Convergence
- When to stop

Basic principles 2

- An individual is characterized by a set of

parameters Genes - The genes are joined into a string Chromosome
- The chromosome forms the genotype
- The genotype contains all information to

construct an organism the phenotype - Reproduction is a dumb process on the

chromosome of the genotype - Fitness is measured in the real world (struggle

for life) of the phenotype

Coding

- Parameters of the solution (genes) are

concatenated to form a string (chromosome) - All kind of alphabets can be used for a

chromosome (numbers, characters), but generally a

binary alphabet is used - Order of genes on chromosome can be important
- Generally many different codings for the

parameters of a solution are possible - Good coding is probably the most important factor

for the performance of a GA - In many cases many possible chromosomes do not

code for feasible solutions

Example of coding for TSP

- Travelling Salesman Problem
- Binary
- Cities are binary coded chromosome is string of

bits - Most chromosomes code for illegal tour
- Several chromosomes code for the same tour
- Path
- Cities are numbered chromosome is string of

integers - Most chromosomes code for illegal tour
- Several chromosomes code for the same tour
- Ordinal
- Cities are numbered, but code is complex
- All possible chromosomes are legal and only one

chromosome for each tour - Several others

Reproduction

- Crossover
- Two parents produce two offspring
- There is a chance that the chromosomes of the two

parents are copied unmodified as offspring - There is a chance that the chromosomes of the two

parents are randomly recombined (crossover) to

form offspring - Generally the chance of crossover is between 0.6

and 1.0 - Mutation
- There is a chance that a gene of a child is

changed randomly - Generally the chance of mutation is low (e.g.

0.001)

Crossover

- One-point crossover
- Two-point crossover
- Uniform crossover

One-point crossover 1

- Randomly one position in the chromosomes is

chosen - Child 1 is head of chromosome of parent 1 with

tail of chromosome of parent 2 - Child 2 is head of 2 with tail of 1

Randomly chosen position

Parents 1010001110 0011010010 Offspring

0101010010 0011001110

One-point crossover 2

Two-point crossover

- Randomly two positions in the chromosomes are

chosen - Avoids that genes at the head and genes at the

tail of a chromosome are always split when

recombined

Randomly chosen positions

Parents 1010001110 0011010010 Offspring

0101010010 0011001110

Uniform crossover

- A random mask is generated
- The mask determines which bits are copied from

one parent and which from the other parent - Bit density in mask determines how much material

is taken from the other parent (takeover

parameter)

Mask 0110011000 (Randomly

generated) Parents 1010001110 0011010010 Offsp

ring 0011001010 1010010110

Problems with crossover

- Depending on coding, simple crossovers can have

high chance to produce illegal offspring - E.g. in TSP with simple binary or path coding,

most offspring will be illegal because not all

cities will be in the offspring and some cities

will be there more than once - Uniform crossover can often be modified to avoid

this problem - E.g. in TSP with simple path coding
- Where mask is 1, copy cities from one parent
- Where mask is 0, choose the remaining cities in

the order of the other parent

Fitness Function

- Purpose
- Parent selection
- Measure for convergence
- For Steady state Selection of individuals to die
- Should reflect the value of the chromosome in

some real way - Next to coding the most critical part of a GA

Parent selection

- Chance to be selected as parent proportional to

fitness - Roulette wheel
- To avoid problems with fitness function
- Tournament
- Not a very important parameter

Roulette wheel

- Sum the fitness of all chromosomes, call it T
- Generate a random number N between 1 and T
- Return chromosome whose fitness added to the

running total is equal to or larger than N - Chance to be selected is exactly proportional to

fitness - Chromosome 1 2 3 4 5 6
- Fitness 8 2 17 7 4 11
- Running total 8 10 27 34 38 49
- N (1 ? N ? 49) 23
- Selected 3

Tournament

- Binary tournament
- Two individuals are randomly chosen the fitter

of the two is selected as a parent - Probabilistic binary tournament
- Two individuals are randomly chosen with a

chance p, 0.5ltplt1, the fitter of the two is

selected as a parent - Larger tournaments
- n individuals are randomly chosen the fittest

one is selected as a parent - By changing n and/or p, the GA can be adjusted

dynamically

Problems with fitness range

- Premature convergence
- ?Fitness too large
- Relatively superfit individuals dominate

population - Population converges to a local maximum
- Too much exploitation too few exploration
- Slow finishing
- ?Fitness too small
- No selection pressure
- After many generations, average fitness has

converged, but no global maximum is found not

sufficient difference between best and average

fitness - Too few exploitation too much exploration

Solutions for these problems

- Use tournament selection
- Implicit fitness remapping
- Adjust fitness function for roulette wheel
- Explicit fitness remapping
- Fitness scaling
- Fitness windowing
- Fitness ranking

Fitness scaling

- Fitness values are scaled by subtraction and

division so that worst value is close to 0 and

the best value is close to a certain value,

typically 2 - Chance for the most fit individual is 2 times the

average - Chance for the least fit individual is close to 0
- Problems when the original maximum is very

extreme (super-fit) or when the original minimum

is very extreme (super-unfit) - Can be solved by defining a minimum and/or a

maximum value for the fitness

Example of Fitness Scaling

Fitness windowing

- Same as window scaling, except the amount

subtracted is the minimum observed in the n

previous generations, with n e.g. 10 - Same problems as with scaling

Fitness ranking

- Individuals are numbered in order of increasing

fitness - The rank in this order is the adjusted fitness
- Starting number and increment can be chosen in

several ways and influence the results - No problems with super-fit or super-unfit
- Often superior to scaling and windowing

Other parameters of GA 1

- Initialization
- Population size
- Random
- Dedicated greedy algorithm
- Reproduction
- Generational as described before (insects)
- Generational with elitism fixed number of most

fit individuals are copied unmodified into new

generation - Steady state two parents are selected to

reproduce and two parents are selected to die

two offspring are immediately inserted in the

pool (mammals)

Other parameters of GA 2

- Stop criterion
- Number of new chromosomes
- Number of new and unique chromosomes
- Number of generations
- Measure
- Best of population
- Average of population
- Duplicates
- Accept all duplicates
- Avoid too many duplicates, because that

degenerates the population (inteelt) - No duplicates at all

Example run

- Maxima and Averages of steady state and

generational replacement

Introduction to Evolutionary ComputationReading

List

- Bäck, T., Hammel, U., and Schwefel, H.-P. (1997).

Evolutionary Computation Comments on the

History and Current State, IEEE Transactions on

Evolutionary Computation, VOL. 1, NO. 1, April

1997. - Spears, W. M., De Jong, K. A., Bäck, T., Fogel,

D. B., and de Garis, H. (1993). An Overview of

Evolutionary Computation, The Proceedings of the

European Conference on Machine Learning, v667,

pp. 442-459. (http//www.cs.uwyo.edu/wspears/pape

rs/ecml93.pdf) - De Jong, Kenneth A., and William M. Spears

(1993). On the State of Evolutionary

Computation, The Proceedings of the Int'l

Conference on Genetic Algorithms, pp. 618-623.

(http//www.cs.uwyo.edu/wspears/papers/icga93.pdf

)

About PowerShow.com

PowerShow.com is a leading presentation/slideshow sharing website. Whether your application is business, how-to, education, medicine, school, church, sales, marketing, online training or just for fun, PowerShow.com is a great resource. And, best of all, most of its cool features are free and easy to use.

You can use PowerShow.com to find and download example online PowerPoint ppt presentations on just about any topic you can imagine so you can learn how to improve your own slides and presentations for free. Or use it to find and download high-quality how-to PowerPoint ppt presentations with illustrated or animated slides that will teach you how to do something new, also for free. Or use it to upload your own PowerPoint slides so you can share them with your teachers, class, students, bosses, employees, customers, potential investors or the world. Or use it to create really cool photo slideshows - with 2D and 3D transitions, animation, and your choice of music - that you can share with your Facebook friends or Google+ circles. That's all free as well!

For a small fee you can get the industry's best online privacy or publicly promote your presentations and slide shows with top rankings. But aside from that it's free. We'll even convert your presentations and slide shows into the universal Flash format with all their original multimedia glory, including animation, 2D and 3D transition effects, embedded music or other audio, or even video embedded in slides. All for free. Most of the presentations and slideshows on PowerShow.com are free to view, many are even free to download. (You can choose whether to allow people to download your original PowerPoint presentations and photo slideshows for a fee or free or not at all.) Check out PowerShow.com today - for FREE. There is truly something for everyone!

You can use PowerShow.com to find and download example online PowerPoint ppt presentations on just about any topic you can imagine so you can learn how to improve your own slides and presentations for free. Or use it to find and download high-quality how-to PowerPoint ppt presentations with illustrated or animated slides that will teach you how to do something new, also for free. Or use it to upload your own PowerPoint slides so you can share them with your teachers, class, students, bosses, employees, customers, potential investors or the world. Or use it to create really cool photo slideshows - with 2D and 3D transitions, animation, and your choice of music - that you can share with your Facebook friends or Google+ circles. That's all free as well!

For a small fee you can get the industry's best online privacy or publicly promote your presentations and slide shows with top rankings. But aside from that it's free. We'll even convert your presentations and slide shows into the universal Flash format with all their original multimedia glory, including animation, 2D and 3D transition effects, embedded music or other audio, or even video embedded in slides. All for free. Most of the presentations and slideshows on PowerShow.com are free to view, many are even free to download. (You can choose whether to allow people to download your original PowerPoint presentations and photo slideshows for a fee or free or not at all.) Check out PowerShow.com today - for FREE. There is truly something for everyone!

presentations for free. Or use it to find and download high-quality how-to PowerPoint ppt presentations with illustrated or animated slides that will teach you how to do something new, also for free. Or use it to upload your own PowerPoint slides so you can share them with your teachers, class, students, bosses, employees, customers, potential investors or the world. Or use it to create really cool photo slideshows - with 2D and 3D transitions, animation, and your choice of music - that you can share with your Facebook friends or Google+ circles. That's all free as well!

For a small fee you can get the industry's best online privacy or publicly promote your presentations and slide shows with top rankings. But aside from that it's free. We'll even convert your presentations and slide shows into the universal Flash format with all their original multimedia glory, including animation, 2D and 3D transition effects, embedded music or other audio, or even video embedded in slides. All for free. Most of the presentations and slideshows on PowerShow.com are free to view, many are even free to download. (You can choose whether to allow people to download your original PowerPoint presentations and photo slideshows for a fee or free or not at all.) Check out PowerShow.com today - for FREE. There is truly something for everyone!

For a small fee you can get the industry's best online privacy or publicly promote your presentations and slide shows with top rankings. But aside from that it's free. We'll even convert your presentations and slide shows into the universal Flash format with all their original multimedia glory, including animation, 2D and 3D transition effects, embedded music or other audio, or even video embedded in slides. All for free. Most of the presentations and slideshows on PowerShow.com are free to view, many are even free to download. (You can choose whether to allow people to download your original PowerPoint presentations and photo slideshows for a fee or free or not at all.) Check out PowerShow.com today - for FREE. There is truly something for everyone!

Recommended

«

/ »

Page of

«

/ »

Promoted Presentations

Related Presentations

Page of

Home About Us Terms and Conditions Privacy Policy Presentation Removal Request Contact Us Send Us Feedback

Copyright 2018 CrystalGraphics, Inc. — All rights Reserved. PowerShow.com is a trademark of CrystalGraphics, Inc.

Copyright 2018 CrystalGraphics, Inc. — All rights Reserved. PowerShow.com is a trademark of CrystalGraphics, Inc.

The PowerPoint PPT presentation: "Genetic Algorithms" is the property of its rightful owner.

Do you have PowerPoint slides to share? If so, share your PPT presentation slides online with PowerShow.com. It's FREE!
