Optimizing EndUser Data Delivery Using Storage Virtualization

1

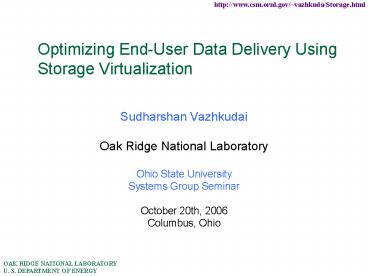

Optimizing End-User Data Delivery Using Storage
Virtualization

• Sudharshan Vazhkudai
• Oak Ridge National Laboratory
• Ohio State University
• Systems Group Seminar
• October 20th, 2006
• Columbus, Ohio

2
Outline

• Problem space Client-side caching
• Storage Virtualization
• FreeLoader Desktop Storage Cache
• A Virtual cache Prefix caching
• End on a funny note!!

3
Problem Domain

• Data Deluge
• Experimental facilities SNS, LHC (PBs/yr)
• Observatories sky surveys, world-wide telescopes
• Simulations from NLCF end-stations
• Internet archives NIH GenBank (serves 100
  gigabases of sequence data)
• Typical user access traits on large scientific
  data
• Download remote datasets using favorite tools
• FTP, GridFTP, hsi, wget
• Shared interest among groups of researchers
• A Bioinformatics group collectively analyze and
  visualize a sequence database for a few days
  Locality of interest!
• Often times, discard original datasets after
  interest dissipates

4
So, whats the problem with this story?

• Wide-area data movement is full of pitfalls
• Sever bottlenecks, BW/latency fluctuations
• GridFTP-like tuned tools not widely available
• Popular Internet repositories still served
  through modest transfer tools!
• User applications are often latency intolerant
• e.g., real-time viz rendering of a TerraServer
  map from Microsoft on ORNLs tiled display!
• Why cant we address this with the current
  storage landscape?
• Shared storage Limited quotas
• Dedicated storage SAN storage is a non-trivial
  expense! (4TB disk array 40K)
• Local storage Usually not enough for such large
  datasets
• Archive in mass storage for future accesses High
  latency
• Upshot
• Retrieval rates significantly lower than local
  I/O or LAN throughput

5
Is there a silver lining at all? (Desktop Traits)

• Desktop Capabilities better than ever before
• Space usage to Available storage ratio is
  significantly low in academic and industry
  settings
• Increasing numbers of workstations online most of
  the time
• At ORNL-CSMD, 600 machines are estimated to be
  online at any given time
• At NCSU, gt 90 availability of 500 machines
• Well-connected, secure LAN settings
• A high-speed LAN connection can stream data
  faster than local disk I/O

6
Storage Virtualization?

• Can we use novel storage abstractions to provide
• More storage than locally available
• Better performance than local or remote I/O
• A seamless architecture for accessing and storing
  transient data

7
Desktop Storage Scavenging as a means to
virtualize I/O access

• FreeLoader
• Imagine Condor for storage
• Harness the collective storage potential of
  desktop workstations Harnessing idle CPU cycles
• Increased throughput due to striping
• Split large datasets into pieces, Morsels, and
  stripe them across desktops
• Scientific data trends
• Usually write-once-read-many
• Remote copy held elsewhere
• Primarily sequential accesses
• Data trends LAN-Desktop Traits user access
  patterns make collaborative caches using storage
  scavenging a viable alternative!

8
Old wine in a new bottle?

• Key strategies derived from best practices
  across a broad range of storage paradigms
• Desktop Storage Scavenging from P2P systems
• Striping, parallel I/O from parallel file systems
• Caching from cooperative Web caching
• And, applied to scientific data management for
• Access locality, aggregating I/O, network
  bandwidth and data sharing
• Posing new challenges and opportunities
  heterogeneity, striping, volatility, donor
  impact, cache management and availability

9
FreeLoader Environment
10
FreeLoader Architecture

• Lightweight UDP
• Scavenger device metadata bitmaps, morsel
  organization
• Morsel service layer
• Monitoring and Impact control

• Global free space management
• Metadata management
• Soft-state registrations
• Data placement
• Cache management
• Profiling

11
Testbed and Experiment setup

• FreeLoader installed in a users HPC setting
• GridFTP access to NFS
• GridFTP access to PVFS
• hsi access to HPSS
• Cold data from tapes
• Hot data from disk caches
• wget access to Internet archive

12
Comparing FreeLoader with other storage systems
13
Optimizing access to the cache Client
Access-pattern Aware Striping

• Uploading client likely to access more frequently
• So, lets try to optimize data placement for him!
• Overlap network I/O with local I/O
• What is the optimal localremote data ratio?
• Model

14
Philosophizing

• What the scavenged storage is not
• Not a file system, not a replacement to high-end
  storage
• Not intended for wide-area resource integration
• What it is
• Low-cost, best-effort storage cache for
  scientific data sources
• Intended to facilitate
• Transient access to large, read-only datasets
• Data sharing within administrative domain
• To be used in conjunction with higher-end storage
  systems

15
Towards a virtual cache

• Scientific data caches typically host complete
  datasets
• Not always feasible in our environment since
• Desktop workstations can fail or space
  contributions can be withdrawn leaving partial
  datasets
• Not enough space in the cache to host the new
  dataset in entirety
• Cache evictions can leave partial copies of
  datasets
• Can we host partial copies of datasets and yet
  serve client accesses to the entire dataset?
• FileSystem-BufferCacheDisk
  FreeLoaderRemoteDataSource

16
The Prefix Caching Problem Impedance Matching on
Steroids!!

• HTTP Prefix Caching
• Multimedia, streaming data delivery
• BitTorrent P2P System leechers can download and
  yet serve
• Benefits
• Bootstrapping the download process
• Store more datasets
• Allows for efficient cache management
• Oh, that scientific data trends again (how
  convenient?)
• Immutable data, Remote source copy, Primarily
  sequential accesses
• Challenges
• Clients should be oblivious to dataset being
  partially available
• Performance hit?
• How much of the prefix of a dataset to cache?
• So, client accesses can progress seamlessly
• Online patching issues
• Client access to remote patching I/O mismatch
• Wide-area download vagaries

17
Virtual Cache Architecture

• Capability-based resource aggregation
• Persistent storage BW-only donors
• Client serving parallel get
• Remote patching using URIs
• Better cache management
• Stripe entirely when space available
• When eviction is needed, only stripe a prefix of
  the dataset
• Victims based on LRU
• Evict chunks from the tail until a prefix
• Entire datasets evicted only after all such tails
  are evicted

18
Prefix Size Prediction

• Goal Eliminate client perceived delay in data
  access
• What is an optimal prefix size to hide the cost
  of suffix patching?
• Prefix size depends on
• Dataset size, S
• In-cache data access rate by the client, Rclient
• Suffix patching rate, Rpatch
• Initial latency in suffix patching, L
• Client access rate indicative of time to patch,
  S/Rclient L (S Sprefix)/Rpatch
• Thus, Sprefix S(1 Rpatch/Rclient) LRpatch

19
Collective Download

• Why?
• Wide-area transfer reasons
• Storage systems and protocols for HEC are tuned
  for bulk transfers (GridFTP, HSI)
• Wide-area transfer pitfalls high latency,
  connection establishment cost
• Clients local-area cache access reasons
• Client accesses to the cache use a smaller stripe
  size (e.g., 1MB chunks in FreeLoader)
• Finer granularity for better client access rates
• Can we derive from collective I/O in parallel I/O

20
Collective Download Implementation

• Patching nodes perform bulk, remote I/O 256MB
  per request
• Reducing multiple authentication costs per
  dataset
• Automated interactive session with Expect for
  single sign on
• FreeLoader patching framework instrumented with
  Expect
• Protocol needs to allow sessions (GridFTP, HSI)
• Need to reconcile the mismatch in client access
  stripe size and the bulk, remote I/O request size
• Shuffling
• Patching nodes, p, redistribute the downloaded
  chunks among themselves according to the clients
  striping policy
• Redistribution will enable a round-robin client
  access
• Each patching node redistributes (p 1)/p of the
  downloaded data
• Shuffling accomplished in memory to motivate
  BW-only donors
• Thus, client serving, collective download and
  shuffling are all overlapped

21
Testbed and Experiment setup

• UberFTP stateful client to GridFTP servers at
  TeraGrid-PSC and TeraGrid-ORNL
• HSI access to HPSS
• Cold data from tapes
• FreeLoader patching framework deployed in this
  setting

22
Collective Download Performance
23
Prefix Size Model Verification
24
Impact of Prefix Caching on Cache Hit rate

• Tera-ORNL will see improvements around 0.2 and
  0.4 curve (308 and 176 for 20 and 40 prefix
  ratio)
• Tera-PSC sees up to 76 improvement in hit rate
  with 80 prefix ratio

25
Let me philosophize again

• Novel storage abstractions as a means to
• Provide performance impedance matching
• Overlap remote I/O, cache I/O and local I/O into
  a seamless data pathway
• Provide rich resource aggregation models
• Provide a low-cost, best-effort architecture for
  transient data
• A combination of best practices from parallel
  I/O, P2P scavenging, cooperative caching, HTTP
  multimedia streaming brought to bear on
  scientific data caching

26
(No Transcript)
27
Let me advertise

• http//www.csm.ornl.gov/vazhkuda/Storage.html
• Email vazhkudaiss_at_ornl.gov
• Collaborator Xiaosong Ma (NCSU)
• Funding DOE ORNL LDRD (Terascale Petascale
  initiatives)
• Interested in joining our team?
• Full time positions and summer internships
  available

28
More slides

• Some performance numbers
• Impact studies

29
Striping Parameters
30
Client-side Filters
31
Computation Impact
32
Network Activity Test
33
Disk-intensive Task
34
Impact Control
