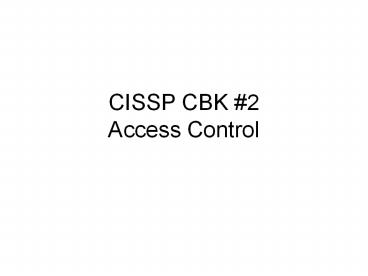

CISSP CBK 2 Access Control

1
CISSP CBK 2 Access Control
2
Access Control

• This Chapter presents the following material
• Identification Methods and technologies
• Authentication Methods
• DAC, MAC and role based (non-DAC) models
• Accountability, monitoring, and auditing
• Unauthorized Disclosure of Information
• Intrusion Detection Systems
• Threats to access control practices and
  technologies

3
Access Controls

• Access controls are security features that
  control how people can interact with systems, and
  resources.
• Goal is to protect from un-authorized access.

4
Access

• Access is the data flow between an subject.
• Subject is a person, process or program
• Object is a resource (file, printer etc)

5
Access Control (157)

• Access control should support the CIA triad!
• Lets quickly go over the CIA triad again

6
Components of Access Control (158)

• Quick overview details on each coming up
• Identification who am I? (userid etc)
• Authentication prove that I am who I say I
• Authorization now what am I allowed to access
• Auditing Big Brother can see what I accessed.

7
CISSP BUZZWORD

• Logical (technical) access controls are used for
  these 4 items.
• Things like smart cards and biometrics, and
  passwords, and audit system, and SELinux these
  are all examples of logical

8
Identification (159 162)

• Identifies a user uniquely (hopefully)
• SSN, UID, SID, Username
• Should Uniquely identify a user for
  accountability (dont share)
• Standard naming scheme should be used
• Identifier should not indicate extra information
  about user (like position)
• DO NOT SHARE (NO group accounts)

9
Authentication (160)

• Proving who you say you are, usually one of these
  3
• Something you know (password)
• Something you have (smart card)
• Something you are (biometrics)
• What is wrong with just using one of these
  methods?

10
Strong Authentication (161)

• Strong Authentication is the combination of 2 or
  more of these (also called multi-factor
  authentication) and is encouraged!
• Strong Authentication provides a higher level of
  assurance

11
Authorization

• What does this mean?
• What are some type of authorization mechanism?
  (ACLs, permissions)
• We will go more indepth on this later
• Authorization is a preventative control (we
  will talk about controls later)

12
Auditing

• What is the purpose of auditing?
• Auditing is a detective control (we will talk
  about this later)

13
Recap

• Identification what is it?
• Authentication how is this different from
  identification
• Authorization what does this mean?
• Auditing whats the point?

14
Identity Management (162)

• Identity management products are used to id,
  authenticate and authorize users in an automated
  means. Its a broad term.
• These products may (or may not) include
• User account management
• Access controls
• Password management
• Single Sign on
• Permissions

15
ID Management and the CISSP (164)

• Know for the exam that ID management solutions
  include
• Directories
• Web Access Management
• Password Management
• Single Sign On
• Account Management
• Profile update

16
Profiles updates

• What is a profile (not a windows profile)
• A profiles is the collection of data about a
• Email
• Home address
• Phone
• Start date
• Certifications
• etc

17
Profile updates (117)

• IdM systems may have centralized tools to manage
  profiles, may have self service portals where
  users can update their own info.
• Profiles are similar to digital Identity

18
Directories (165)

• Information about the users and resources
• LDAP (based on X.500)
• Key concept is namespaces (like branches of a
  tree) and DN (distinguished names) Can anyone
  explain namespaces and DNs?
• DNCN and multiple DCs can include OUs
• Active Directory (an implementation of LDAP)
• Legacy NT (flat directory structure)
• Novell Netware (???)

19
Directories Role in ID management

• Specialized database optimized for reading and
  searching operations
• Important because all resource info, users
  attributes, authorization info, roles, policies
  etc can be stored in this single place.
• Directories allow for centralized management!
  However these can be broken up and delegated.
  (trees in a forest)

20
Meta and Virtual Directories (167)

• Meta-directories allow for a centralized
  directory if users information is in multiple
  different directories (meta-directories
  synchronizes its data against the other
  databases)
• Like meta-dirs, but instead of storing data, just
  provide links or pointers to the data in the
  alternate directory
• Advantages and Disadvantages?

21
Web Access management (168)

• Uses a webserver(s) to deliver resources
• Users authentications against the web server
  using whatever Auth scheme implemented
• If authenticated requests and object
• Web server verifies authorization
• If so web server returns objects
• Mainly used for external users/access
• Very Web 2.0, you probably see a lot of this now
  a days.

22
Password Management (171)

• Allows for users to change their passwords,
• May allow users to retrieve/reset password
  automatically using special information
  (challenge questions) or processes
• Helpdesk assisted resets/retrievals (same as
  above, but helpdesk people might ask questions
  instead of automated)
• May handle password synchronization

23
Single Sign On

• Log in one time, and access resources many places
• Not the same as password synchronization
• SSO software handles the authorization to
  multiple systems
• What is a security problems with this?
• What are advantages?

24
Account Management Software

• Idea is to centrally manage user accounts rather
  than to manually create/update them on multiple
  systems
• Often include workflow processes that allow
  distributed authorization. I.e.. A manager can
  put in a user request or authorize a request,
  tickets might be generated for a Key card system
  for their locations, Permissions might be created
  for their specific needs etc.
• Automates processes
• Can includes records keeping/auditing functions
• Can ensure all accesses/accounts are cleaned up
  with users leave.

25
Federation (I hate this word) (178)

• A Federation is multiple computing and/or network
  providers agreeing upon standards of operation in
  a collective fashion. (self governing entities
  that agree on common grounds to easy access
  between them)
• A federated Identity is an identity and
  entitlements that can be used across business
  boundaries. (MS passport, Google checkout)

26
Identity Management Overview

• Idea is to manage, identify and authorize users
  in an automated fashion
• Know for the exam that ID management solutions
  include
• Directories
• Web Access Management
• Password Management
• Single Sign On
• Account Management
• Profile update

27
Who needs ID management (178)

• Really everyone! (at least anyone that you will
  probably deal with)
• See table on Page 178

28
Break?
29
Biometrics (179)

• Bio life, metrics - measure
• Biometrics verifies (authenticates) an
  individuals identity by analyzing unique personal
  attribute (something they ARE)
• Require enrollment before being used (what is
  enrollment? Any ideas)
• EXPENSIVE
• COMPLEX

30
Biometrics (179)

• Can be based on
• behavior (signature dynamics) might change over
  time
• Physical attribute (fingerprints, iris, retina
  scans)
• We will talk about the different types of
  biometrics later
• Can give incorrect results
• False negative Type 1 error (annoying)
• False positive Type 2 error (very bad)

31
CER (179)

• Crossover Error Rate (CER) is an important
  metric that is stated as a percentage that
  represents the point at which the false rejection
  rate equals the false positive rate.
• Lower number CER is better/more accurate. (3 is
  better than an 4)
• Also called Equal Error Rate
• Use CER to compare vendors products objectively

32
Biometrics (180)

• Systems can be calibrated, for example of you
  adjust the sensitivity to decrease fall
  positives, you probably will INCREASE false
  negatives, this is where the CER come in.
• Draw diagram on board
• Some areas (like military) are more concerned
  with one error than the other (ex. Would rather
  deny a valid user than accept an invalid user)
• Can you think of any situations for each case?

33
Biometric problems?

• Expensive
• Unwieldy
• Intrusive
• Can be slow (should not take more than 5-10
  seconds)
• Complex (enrollment)

34
Biometric Types Overview (182)

• We will talk in more depth of each in the next
  couple slides
• Fingerprint
• Palm Scan
• Hand Geometry
• Retina Scan
• Iris Scan
• Keyboard Dynamics
• Voice Print
• Facial Scan
• Hand Topography

35
Fingerprint (182)

• Measures ridge endings an bifurcations (changes
  in the qualitative or topological structure) and
  other details called minutiae
• Full fingerprint is stored, the scanners just
  compute specific features and values and sends
  those for verification against the real
  fingerprint.

36
Palm Scan

• Creases, ridges, grooves
• Can include fingerprints

37
Hand Geometry

• Overall shape of hand
• Length and width of fingers
• This is significantly different between
  individuals

38
Retina Scan

• Reads blood vessel patterns on the back of the
  eye.
• Patterns are extremely unique

39
Iris Scan

• Measures colors
• Measures rifts
• Measures rings
• Measures furrow (wrinkle, rut or groove)
• Most accurate of all biometric systems
• IRIS remains constant through adulthood
• Place scanner so sun does NOT shine through
  aperture

40
Signature Dynamics

• Most people sign in the same manner (really???)
• Monitor the motions and the pressure while moving
  (as opposed to a static signature)
• Type I (what is type I again?) error high
• Type II (what is type II again?) error low

41
Keyboard dynamics

• Measure the speeds and motions as you type,
  including timed difference between characters
  typed. For a given phrase
• This is more effective than a password believe it
  or not, as it is hard to repeats someone's typing
  style, where as its easy to get someone's
  password.

42
Voice Print

• Enrollment, you say several different phrases.
• For authentication words are jumbled.
• Measures speech patterns, inflection and
  intonation (i.e.. pitch and tone)

43
Facial Scan

• Geometric measurements of
• Bone structure
• Nose ridges
• Eye width
• Chin shape
• Forehead size

44
Hand Topography

• Peaks and valleys of hand along with overall
  shape and curvature
• This is opposed to size and width of the fingers
  (hand geometry)
• Camera on the side at an angle snaps a pictures
• Not unique enough to stand on its own, but can
  be used with hand geometry to add assurance

45
Biometrics wrap up

• We covered a bunch of different biometrics
• Understand some are behavioral based
• Voice print
• Keyboard dynamics
• Can change over time
• Some are physically based
• Fingerprint
• Iris scan

46
Biometrics wrap Up

• Fingerprints are probably the most commonly used
  and cheapest
• Iris scanning provides the most assurance
• Some methods are intrusive
• Understand Type I and Type II errors
• Be able to define CER, is a lower CER value
  better or worse?

47
Passwords (184)

• What is a password? (someone tell me because I
  forgot)
• Works on what you KNOW
• Simplest form of authentication
• Cheapest form of authentication
• Oldest form of authentication
• Most commonly used form of authentication
• WEAKEST form of authentication

48
Problems with Passwords (184)

• People write down passwords (bad)
• People use weak passwords (bad)
• People re-use passwords (bad)
• If you make passwords to hard to remember people
  often write them down
• If you make them too easy they are easily cracked

49
How to make a good password

• Dont use common words
• Dont use names or birthdates
• Use at least 8 characters
• Combine numbers, symbols and case
• Use a phrase and take attributes of a phrase,
  transpose characters

50
Attacks on Password (185)

• Sniffing (Electronic Monitoring)
• Brute force attacks
• Dictionary Attack
• Social Engineering (what is social Engineering?)
• Rainbow tables a table that contains passwords
  in hash format for easy/quick comparison

51
Passwords and the OS (184)

• The OS should enforce password requirements
• Aging when a password expires
• Reuse of old passwords
• Minimum number of characters
• Limit login attempts disable logins after a
  certain number of failed attempts

52
System password protection

• System should NOT store passwords in plaintext.
  Use a hash (what is a hash?)
• Can encrypt hashes
• Passwords salts random values added to the
  encryption/hash process to make it harder to
  brute force (one password may hash/encrypt to
  multiple different results)

53
Cognitive passwords (187)

• Not really passwords, but facts that only a user
  would know. Can be used to verify who you are
  talking to without giving out password, or for
  password reset challenges.
• Not really secure, Im not a big fan.

54
One Time Password

• Password is good only once then no longer valid
• Used in high security environments
• VERY secure
• Not vulnerable to electronic eavesdropping, but
  vulnerable to loss of token, (though must have
  pin)
• Require a token device to generate passwords.
  (RSA SecureID key is an example)

55
One Time Password Token Type

• One of 2 types
• Synchronous uses time to synchronize between
  token and authentication server
• Clocks must be synchronized!
• Can also use counter-sync which a button is
  pushed that increments values on the token and
  the server

56
OTP Token Types (189)

• Asynchronous
• Challenge response
• Auth sends a challenge (a random value called a
  nonce)
• User enters nonce into token, along with PIN
• Token encrypts nonce and returns value
• Users inputs value into workstation
• If server can decrypt then you are good.

57
Other Types of Authentication (190)

• Digital Signature (talk about in more depth in
  chapter 8).
• Take a hash value of a message, encrypt hash with
  your private key
• Anyone with your public key can decrypt and
  verify message is from you.

58
Passphrase (190)

• Simply a phrase, application will probably make a
  virtual password from the passphrase (etc a
  hash)
• Generally more secure than a password
• Longer
• Yet easier to remember

59
Memory Cards (191)

• NOT a smart card
• Holds information, does NOT process
• A memory card holds authentication info, usually
  youll want to pair this with a PIN WHY? You
  tell me.
• A credit card or ATM card is a type of memory
  card, so is a key/swipe card
• Usually insecure, easily copied.

60
Smart Card (193)

• Much more secure than memory cards
• Can actually process information
• Includes a microprocessor and ICs
• Can provide two factor authentication, as you the
  card can store authentication protected by a pin.
  (so you need the card, and you need to know
  something)
• Two type
• Contact
• contactless

61
Smart Card Attacks (193)

• There are attacks against smart cards
• Fault generation manipulate environmental
  controls and measure errors in order to reverse
  engineer logic etc.

62
Smart Card Attacks

• Side Channel Attacks Measure the cards while
  they work
• Differential power analysis measure power
  emissions
• Electromagnetic analysis example frequencies
  emitted

63
Smart Card Attacks

• Micro probing - using needles to vibrations to
  remove the outer protection on the cards
  circuits. Then tap into ROMS if possible or die
  ROMS to read data (use chemicals to stain ROMS
  and determine values) (this is actually done
  someone just reversed engineered the game boy
  BIOS using this method)

64
OK enough authentication already
65
Authorization

• Now that I am who I say I am, what can I do?
• Both OSes and Applications can provide this
  functionality.
• Authorization can be provided based on user,
  groups, roles, rules, physical location, time of
  day (temporal isolation) or transaction type
  (example a teller may be able to withdrawal small
  amounts, but require manager for large
  withdrawals)

66
Authorization principals (pg 197)

• Default NO access (implicit deny)
• Need to Know

67
Authorization Creep (197)

• What is authorization creep? (permissions
  accumulate over time even if you dont need them
  anymore)
• Auditing authorization can help mitigate this.
  SOX requires yearly auditing.

68
Single Sign on (200)

• Why is this section here? Its poorly located,
  but anyway lets follow the flow of the book)

69
SSO

• Idea
• One identification/authentication instance for
  all networks/systems/resources
• Eases management
• Makes things more secure (not written down
  passwords hopefully)
• Can focus budgets and time on securing one method
  rather than many!
• Makes things integrated

70
SSO downsides

• Centralized point of failure
• Can cause bottlenecks
• All vendors have to play nicely (good luck)
• Often very difficult to accomplish (golden ring
  of network authentication)
• One ring to bind them all! (wait...no) If you
  can access once, you can access ALL!

71
SSO technologies

• Kerberos (yeay!)
• SESAME

72
Kerberos (201)

• From MITs Athena project
• Designed to eliminate transmitting passwords over
  the network.
• Scalable, reliable, secure, flexible
• Uses Symmetric Key cryptology

73
Kerberos Components (201)

• Key Distribution Center. (you CAN/SHOULD have
  backups KDCs, though the exam states that this is
  a central point of failure for Kerberos)
• Principals (users, applications, and services)
  each principal gets an account!
• Tickets, generated by TGS on KDC
• Important ticket is the Ticket Granting Ticket
• Realm is the domain of all principals that a
  Kerberos server provides tickets for.

74
Kerberos Process (202)

• Go over process on page 202
• Understand the different between a session key
  and a secret key (pg 203)
• Note Kerberos systems MUST be time synchronized

75
Kerberos Problems

• Single point of failure (though this can be made
  redundant)
• KDC must be scalable
• Secret keys are stored on the workstation, if you
  can get these keys, you can break things
• Same with session keys
• Vulnerable to password guessing
• Traffic is not encrypted if not enabled

76
SESAME

• European technology, developed to extend Kerberos
  and improve on its weaknesses
• Sesame uses both symmetric and asymmetric
  cryptography.
• Uses Privileged Attribute Certificates rather
  than tickets, PACS are digitally signed and
  contain the subjects identity, access
  capabilities for the object, access time period
  and lifetime of the PAC.
• PACS come from the Privileged Attribute Server.

77
SESAME procedure (205)

• See page 206, note that SESAME uses
  public/private keys for initial authentication.
  (send an authenticator message, and a timestamp
  or random number, sign this message)

78
Access Control Models (211)

• A framework that dictates how subjects access
  objects.
• Uses access control technologies and security
  mechanisms to enforce the rules
• Business goals and culture of the organization
  will prescribe which model it uses
• Every OS has a security kernel/reference monitor
  (talk about in another chapter) that enforces the
  access control model.

79
Access Control Models

• DAC
• MAC
• Roles based
• Each will be discussed in upcoming slides

80
DAC

• Discretionary Access Control
• Owner or creator of resource specifies which
  subjects have which access to a resource. Based
  on the Discretion of the data owner
• Common example is an ACL (what is an ACL?)
• Commonly implemented in commercial products
  (Windows, Linux, MacOS)

81
MAC

• Mandatory Access Control
• Data owners cannot grant access!
• OS makes the decision based on a security label
  system
• Users and Data are given a clearance level
  (confidential, secret, top secret etc)
• Rules for access are configured by the security
  officer and enforced by the OS.

82
MAC (212)

• MAC is used where classification and
  confidentiality is of utmost importance
  military.
• Generally you have to buy a specific MAC system,
  DAC systems dont do MAC
• SELinux
• Trusted Solaris

83
MAC sensitivity labels

• Again all objects in a MAC system have a security
  label
• Security labels can be defined the organization.
• They also have categories to support need to
  know _at_ a certain level.
• Categories can be defined by the organization
• If I have top secret clearance can I see all
  projects in the secret level???

84
Role Based Access Control (214)

• Also called non-discretionary.
• Uses a set of controls to determine how subjects
  and objects interact.
• Allows you to be assigned a role, and your roles
  dictates your access to a resources, rather than
  your direct user.
• This scales better than DAC methods
• You dont have to continually change ACLs or
  permissions per user, nor do you have to remember
  what perms to set on a new user, just make them a
  certain role
• You can simulate this with groups in Windows
  and Linux, especially with LDAP/AD.

85
Role based Access control

• When to use
• If you need centralized access
• If you DONT need MAC )
• If you have high turnover

86
Software and Hardware Guards

• Allow the exchange of data between trusted and
  less trusted systems. We will talk about this in
  another chapter, lets not worry about it now.

87
Access Control technologies that support access
control models (217)

• We will talk more in depth of each in the next
  few slides.
• Rule-based Access Control
• Constrained User Interfaces
• Access Control Matrix
• Access Control Lists
• Content-Dependant Access Control
• Context-Dependant Access Control

88
Rule Based Access Control (217)

• Uses specific rules that indicate what can and
  cannot transpire between subject and object.
• if x then y logic
• Before a subject can access and object it must
  meet a set of predefined rules.
• ex. If a user has proper clearance, and its
  between 9AM -5PM then allow access
• However it does NOT have to deal specifically
  with identity/authorization
• Ex. May only accept email attachments 5M or less

89
Rules Based Access Control

• Is considered a compulsory control because the
  rules are strictly enforced and not modifiable by
  users.
• Routers and firewalls use Rule Based access
  control heavily

90
Constrained User Interfaces (218)

• Restrict user access by not allowing them see
  certain data or have certain functionality
• Views only allow access to certain data (canned
  interfaces)
• Restricted shell like a real shell but only
  with certain commands. (like Cisco's non-enable
  mode)
• Menu similar but more gui
• Physically constrained interface show only
  certain keys on a keypad/touch screen. like an
  ATM. (a modern type of menu) Difference is you
  are physically constrained from accessing them.

91
Access Control Matrix (220)

• Table of subjects and objects indicating what
  actions individuals subjects can take on
  individual objects
• See page 220 (top)

92
Capability Table

• Bound to subjects, lists what permissions a
  subject has to each object
• This is a row in the access matrix
• (see 220 bottom)
• NOT an ACL.. In fact the opposite

93
ACL

• Lists what (and how) subjects may access a
  certain object.
• Its a column of an access matrix
• See page 220

94
Content Dependant Access Controls (221)

• Access is determined by the type of data.
• Example, email filters that look for specific
  things like confidential, SSN, images.
• Web Proxy servers may be content based.

95
Context Dependant Access Control (221)

• System reviews a Situation then makes a decision
  on access.
• A firewall is a great example of this, if session
  is established, then allow
• Another example, allow access to certain body
  imagery if previous web sessions are referencing
  medical data.

96
Review of Access Control Technology / Techniques

• Constrained User Interfaces
• view, shell, menu, physical
• Access Control Matrix
• Capability Tables
• ACL
• Content Dependant Access Control
• Context Dependant Access Control
• You should really know ALL of these and be able
  to differential between similar types!

97
Centralized Access Control Administration (223)

• What is it?
• A centralized place for configuring and managing
  access control
• All the ones we will talk about (next) are AAA
  protocols
• Authentication
• Authorization
• Auditing

98
Centralized Access Control Technologies

• We will talk about each of these in the upcoming
  slides
• Radius
• TACACS, TACACS
• Diameter

99
Radius (223)

• Initially developed by Livingston to authenticate
  modem users
• Access Server sends credentials to Radius server.
  Which sends back authorization and connection
  parameters (IP address etc) (see diagram on 224)
• Can use multiple authentication type (PAP, CHAP,
  EAP)
• Uses UDP port 1812 , and auditing 1813
• Sends Attribute Value Pair (Ex. IP192.168.1.1)
• Access server notifies Radius server on
  disconnect (for auditing)

100
What is radius used for

• Network access
• Dial up
• VLAN provisioning
• IP address assignment

101
Radius benefits

• Its been around, a lot of vendor support

102
Radius issues

• Radius can share symmetric key between NAS and
  Radius server, but does not encrypt attribute
  value pairs, only user info. This could provide
  info to people doing reconnaissance
• PAP password go clear text from dial up user to
  NAS

103
TACACS() (225)

• TACACS uses fixed passwords
• TACACS uses TCP or UDP port 49
• TACACS is old (1990) TACACS replaces it
• TACACS can support one time passwords
• Provides the same functionality of Radius
• TACACS uses TCP port 49

104
TACACS benefits

• TCP? Is this a benefit? Discuss
• Encrypts ALL traffic
• TACACS separates each AAA function.
• For example can use AD for authentication (radius
  can actually do this too.. But you have to write
  plug-ins)
• Has more AVP pairs than Radius, more flexible

105
Diameter (229)

• Builds upon Radius
• Similar functionality to Radius and TACACS
• NOT Backwards compatible with Radius (book is
  wrong) but is similar and an upgrade path
• Uses TCP, or STCP (stream TCP)

106
Diameter benefits

• With Diameter the DS can connect to the NAS
  (i.e.. Could say kick user off now). Radius
  servers only respond to client requests.
• Has a lot more AVP pairs (232 rather than 28)

107
Centralized Access Controls overview

• Idea centralize access control
• Radius, TACACS, diameter
• Is Active Directory a type of Centralized Access
  Control?
• Decentralized is simply maintaining access
  control on all nodes separately.

108
Controls and Control Types

• STOP
• Before we move on you need to understand the
  definitions/terms that we are about to cover for
  the exam. (controls and control types) They are
  used ambiguously on the exam, so you need to
  think about them. We will give an overview now,
  but well keep seeing them again and again.

109
Controls and Control TypesNot directly in book

• There are Controls and Control types, need to
  understand these
• Controls
• Administrative
• Physical
• Technical
• Now well talk about control types

110
Control types (241 skip ahead)

• Types (can occur in each control category)
• Deterrent intended to discourage attacks
• Preventative intended to prevent incidents
• Detective intended to detect incidents
• Corrective intended to correct incidents
• Recovery intended to bring controls back up to
  normal operation
• Compensative provides alternative controls to
  other controls

111
Administrative Controls (back to 231)

• Personnel HR practices
• Supervisory Management practices (supervisor,
  corrective actions)
• Training thats pretty obvious
• Testing not technical, and managements
  responsibility to ensure it happens

112
Physical Controls (223)

• Physical Network Segregation (not logical)
  ensure certain networks segments are physically
  restricted
• Perimeter Security CCTV, fences, security
  guards, badges
• Computer Controls physical locks on computer
  equipment, restrict USB access etc.

113
Physical Controls continued

• Work Area Separation keep accountants out of
  RD areas
• Cabling shielding, Fiber
• Control Zone break up office into logical areas
  (lobby public, RD- Top Secret, Offices
  secret)

114
Technical or Logical controls (235)

• Using technology to protect
• System Access Kerberos, PKI, radius
  (specifically access to a system)
• Network Architecture IP subnets, VLANS , DMZ
• Network Access Routers, Switches and Firewalls
  that control access
• Encryption protect confidentiality, integrity
• Auditing logging and notification systems.

115
Ok we went out of order.. Skip to 247

• This is out of WAY out of order, but for the exam
  you should know the table on 247 (Access control
  practices) lets read it together.

116
Unauthorized Disclosure of Information

• Sometimes things are disclosed un-intentionally.
  In the next couple slides we will talk about
• Object reuse
• Emanation security

117
Object reuse (248)

• Media may be re-used without cleaning off old
  data!
• Fix this
• Destroy or wipe (destroy) old data
• Why destroy?
• What is degaussing?

118
Emanation Security (249)

• All devices give off electrical / magnetic
  signals. This can be used against you (weve all
  seen Alias and 24?)
• Hard/expensive to do often but not always.
• A non-obvious example is reading info from a CRT
  bouncing off something (weve seen CSI right?)
• Tempest is a standard to develop countermeasures
  to protect against this.
• Lets talk about emanation countermeasures

119
Emanation Countermeasures

• Faraday cage a metal mesh cage around an
  object, it negates a lot of electrical/magnetic
  fields.
• White Noise a device that emits uniform
  spectrum of random electronics signals. You can
  buy sounds frequency white noise machines. (call
  centers, doctors)
• Control Zones protect sensitive devices in
  special areas with special walls etc.

120
Intrusion detection (250)

• IDS allow you to detect intrusion and
  unauthorized access.
• Different types (we will discuss), but usually
  consist of
• Sensors
• Storage
• Analysis engine
• Management Console
• (see diagram on 260)

121
NIDS

• Network Based
• Monitor network traffic ONLY
• Can be of multiple types (discuss later)
• Watch out for switches (use mirroring), and
  subnets (use multiple sensors)

122
HIDS

• Host based installed on computers
• Monitor logs
• Monitor system activity
• Monitor configuration files
• Could monitor network traffic to and from the
  computer installed on only.
• Multiple types discussed later

123
IDS types (251)

• Signature based like a virus scanner, look for
  known attack signature
• MUST be updated with new signatures
• Will not stop unknown attacks (0-day)
• Relatively high rate of assurance
• Commonly used

124
Statistical Anomaly Based IDS / heuristic

• Based on what is normal behavior (builds a
  profile)
• Detects when thing are not normal
• Very subjective -
• Very high rate of false positives, may lead to
  info being ignored.
• Require high degree of knowledge and maintenance
  to run -
• Can possibly detect zero days

125
Protocol based IDS

• What is a protocol? Anyone?
• Understand the protocols its watching (like
  HTTP, SMTP)
• Looks for deviations from the normal protocol
  traffic
• Good to combined with other IDS types (signature
  based, or statistical based)
• A lot of protocols are open to interpretation
  which can confuse protocol based IDS

126
Rules Based 255

• Uses expert system/knowledge based systems.
• These use a database of knowledge and an
  inference engine) to try to mimic human
  knowledge. Its like of a person was watching
  data in real time and had knowledge of how
  attacks work.

127
IDS review

• Signature Based
• Anomaly Based
• Rule Based
• When studding review the table on page 257

128
IPS

• Like an IDS, but actively take steps to
  neutralize attacks in real time. (doest require
  IDS functionality)
• Might reset TCP connections, might updates
  firewall rules to block traffic.
• Cool right?
• May create problems in troubleshooting network
  behavior/issues.

129
Honey Pots/ Honey Nets (263)

• Computer or network setup to distract attackers
  to this machine/net rather than the real
  machines.
• Can be restricted and monitored so you can see
  whos trying to do what, and stop them.
• Be weary of enticement vs. entrapment. Can anyone
  explain the difference?

130
Threats to Access Control

• We will talk about these later.. But lets review
  these now
• Dictionary attacks what is this?
• Sniffers what is this?
• Brute force attacks how is this different then
  a dictionary attack.
• Spoofing login/trusted path
• Phishing
• Identity theft

131
Wow that was a lot, lets review

• Read quick tips on pg 269
• Lets review the questions from the book.
