Title: Gregory E. Steinkraus, Ph.D., ABMM

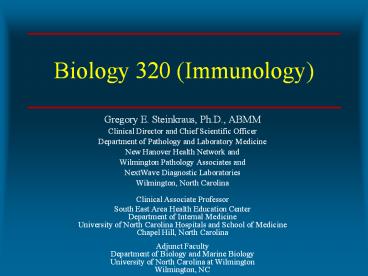

1
Biology 320 (Immunology)
  • Gregory E. Steinkraus, Ph.D., ABMM
  • Clinical Director and Chief Scientific Officer
  • Department of Pathology and Laboratory Medicine
  • New Hanover Health Network and
  • Wilmington Pathology Associates and
  • NextWave Diagnostic Laboratories
  • Wilmington, North Carolina
  • Clinical Associate Professor
  • South East Area Health Education Center
  • Department of Internal Medicine
  • University of North Carolina Hospitals and School
    of Medicine
  • Chapel Hill, North Carolina
  • Adjunct Faculty
  • Department of Biology and Marine Biology
  • University of North Carolina at Wilmington
  • Wilmington, NC

2
INTRODUCTION TO IMMUNOLOGY
3
(No Transcript)
4
(No Transcript)
5
(No Transcript)
6
(No Transcript)
7
IMMUNOLOGY AND THE IMMUNE SYSTEM
  • Immunology
  • Study of the components and function of the
    immune system
  • Immune System
  • Molecules, cells, tissues and organs which
    provide non-specific and specific protection
    against
  • Microorganisms
  • Microbial toxins
  • Tumor cells
  • Crucial to human survival

8
THE IMMUNE RESPONSE AND IMMUNITY
  • Immune response
  • Innate (non-specific)
  • Adaptive (specific)
  • Primary
  • Secondary
  • Immunity
  • State of non-specific and specific protection
  • Acquisition of Immunity
  • Natural
  • Artificial

9
NATURALLY ACQUIRED IMMUNITY
  • Active
  • Antigens enter body naturally with response of
  • Innate and adaptive immune systems
  • Provides long term protection
  • Passive
  • Antibodies pass from mother to
  • Fetus across placenta
  • Infant in breast milk
  • Provides immediate short term protection

10
ARTIFICIALLY ACQUIRED IMMUNITY
  • Active
  • Antigens enter body through vaccination with
    response of
  • Innate and adaptive immune systems
  • Provides long term protection
  • Passive
  • Antibodies from immune individuals injected into
    body
  • Referred to as
  • Immune serum globulins (ISG)
  • Immune globulins (IG)
  • Gamma globulins
  • Provides immediate short term protection

11
PRINCIPAL FUNCTION OF THE IMMUNE SYSTEM
  • To protect humans from pathogenic microorganisms
  • Pathogenic microorganisms (Pathogens)
  • Microorganisms capable of causing infection
    and/or disease
  • Infection
  • Ability of pathogen to enter host, multiply and
    stimulate an immune response
  • Disease
  • Clinical manifestations associated with infection

12
BACTERIA, VIRUSES, FUNGI, PARASITESOH MY!
  • Streptococcus pyogenes (Group A Streptococcus)
  • Klebsiella pneumoniae
  • Mycobacterium tuberculosis
  • Ebola virus
  • Human Immunodeficiency Virus (HIV)
  • Aspergillus fumigatus
  • Candida albicans
  • Cryptococcus neoformans
  • Cryptosporidium parvum
  • Stronglyoides stercoralis
  • Ascaris lumbricoides
  • Plasmodium falciparum

13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
(No Transcript)
29
DEFENSE MECHANISMS OF THE HUMAN HOST
  • Innate Mechanisms (Innate immunity)
  • First line of defense
  • Non-specific
  • Adaptive Mechanisms (Adaptive immunity)
  • Second line of defense
  • Highly specific with memory
  • Cooperation between mechanisms

30
ORIGIN OF CELLS OF THE IMMUNE SYSTEM
  • Derived from common progenitor cell in bone
    marrow
  • Pluripotent hematopoietic stem cell
  • Progenitor Stem Cells
  • Erythroid lineage
  • Erythrocytes and Megakaryocytes
  • Myeloid lineage
  • Monocyte/macrophage, dendritic cells, PMNs, mast
    cells
  • Lymphoid lineage
  • Small and large lymphocytes

31
(No Transcript)
32
CELLS OF INNATE AND ADAPTIVE IMMUNITY
  • Myeloid Lineage
  • Neutrophil
  • Principal phagocytic cell of innate immunity
  • Eosinophil
  • Principal defender against parasites
  • Basophil
  • Functions similar to eosinophils and mast cells
  • Referred to as
  • Polymorphonuclear leukocytes (PMNs)
  • Nuclei are multilobed (2 to 5)
  • Granulocytes
  • Cytoplasmic granules

33
(No Transcript)
34
(No Transcript)
35
(No Transcript)
36
(No Transcript)
37
(No Transcript)
38
(No Transcript)
39
(No Transcript)
40
CELLS OF INNATE AND ADAPTIVE IMMUNITY
  • Myeloid lineage
  • Monocytes
  • Leukocytes with bean shaped or brain-like
    convoluted nuclei
  • Circulate in blood with half life of 8 hours
  • Precursors of tissue macrophages
  • Macrophages
  • Mononuclear phagocytic cells in tissue
  • Derive from blood monocytes
  • Participate in innate and adaptive immunity

41
(No Transcript)
42
(No Transcript)
43
(No Transcript)
44
(No Transcript)
45
(No Transcript)
46
(No Transcript)
47
(No Transcript)
48
(No Transcript)
49
(No Transcript)
50
CELLS OF INNATE AND ADAPTIVE IMMUNITY
  • Myeloid lineage
  • Dendritic cells
  • Cells with dendriform (star shaped) morphology
  • Interdigitating reticular cells (synonym)
  • Capture and present antigens to T lymphocytes
  • Mast cells
  • Located in mucous membrane and connective tissue
    throughout body
  • Major effector cell in allergy
  • Modulation of initial immune response

51
(No Transcript)
52
(No Transcript)
53
(No Transcript)
54
(No Transcript)
55
CELLS OF INNATE AND ADAPTIVE IMMUNITY
  • Lymphoid Lineage
  • Large lymphocytes (large granular lymphocytes)
  • Natural killer (NK) cells (CD16, CD56)
  • Innate immunity to viruses and other
    intracellular pathogens
  • Participate in antibody-dependent cell-mediated
    cytotoxicity (ADCC)
  • Small lymphocytes
  • B cells (CD19)
  • T cells (CD3, CD4 or CD8)
  • Adaptive immunity
  • Lymphocytes refers to small lymphocytes

56
THE CLUSTER OF DIFFERENTIATION (CD)
  • A protocol for identification and investigation
    of cell surface molecules
  • CD number assigned on basis of 1 cell surface
    molecule recognized by 2 specific monoclonal
    antibodies
  • CD nomenclature established in 1982
  • 1st International Workshop and Conference on
    Human Leukocyte Differentiation Antigens (HLDA)

57
THE CLUSTER OF DIFFERENTIATION (CD)
  • CD markers on leukocytes
  • Granulocyte CD45,
    CD15
  • Monocyte CD45,
    CD14
  • T lymphocyte CD45, CD3
  • T helper lymphocyte CD45, CD3,
    CD4
  • T cytotoxic lymphocyte CD45, CD3, CD8
  • B lymphocyte CD45,
    CD19
  • Natural killer cell CD45,
    CD16, CD56, CD3-

58
(No Transcript)
59
(No Transcript)
60
(No Transcript)
61
COMPLETE BLOOD COUNT WITH DIFFERENTIAL (CBC WITH
DIFF)


  • References Ranges
  • Erythrocytes (RBC)
    4.0 to 5.4 M/uL
  • Thrombocytes (Platelets) 145
    to 400 K/uL
  • Leukocytes (WBC)
    4.8 to 10.8 K/uL
  • Neutrophils
    40 to 74
  • Band neutrophils
    0 to 9
  • Eosinophils
    0 to 6
  • Basophils
    0 to 1
  • Lymphocytes
    15 to 47
  • Monocytes
    0 to 12

62
CASE STUDY MARCH OF 2009
  • 47 year old female presents to ER with 24 hour
    history
  • Fever (101.3 F)
  • Rigors (shaking chills)
  • Headache
  • Chest pain
  • Cough
  • Shortness of breath
  • Admitting diagnosis (?)
  • Diagnostic studies
  • Radiology and laboratory

63
CASE STUDY MARCH OF 2009
  • Laboratory studies
  • Blood
  • CBC with differential
  • Basic metabolic panel (BMP)
  • C-reactive protein (CRP)
  • Culture
  • Sputum
  • Culture
  • Radiology studies

64
CASE STUDY MARCH OF 2009
  • Laboratory studies
  • CBC with diff P
    RR
  • WBC 40.7 K/uL
    4.8 to 10.8
  • Neutrophils 44
    40 to 74
  • Bands 46
    0 to 9
  • Monocytes 1
    0 to 12
  • Lymphocytes 8
    15 to 47
  • BMP mild elevation of BUN and creatinine
  • CRP 24 mg/dL
    gt 1.0 mg/dL

65
CASE STUDY MARCH OF 2009
  • Sputum
  • Gram stained smear
  • 50 WBCs per high power field
  • Numerous gram-positive cocci in pairs and short
    chains
  • Culture
  • Heavy Streptococcus pneumoniae
  • Blood cultures
  • Gram stained smear
  • Gram-positive cocci in pairs and short chains
  • Culture
  • Streptococcus pneumoniae

66
CASE STUDY JULY OF 2008
  • 22 year old male presents to ED with 36 hour
    history of
  • Fever (100.4 F)
  • Headache
  • Nausea
  • Vomiting
  • AMS (Irritability)
  • Anorexia
  • Nuchal rigidity
  • Photophobia
  • Admitting and differential diagnosis (?)

67
CASE STUDY JULY OF 2008
  • Diagnostic studies
  • Radiology
  • Laboratory
  • Blood
  • CBC with diff, BMP and CRP
  • Cerebrospinal fluid (CSF)
  • Glucose, protein and cells (number and type)
  • Culture
  • Polymerase chain reaction (PCR)

68
CASE STUDY JULY OF 2008
  • Laboratory studies
  • Cerebrospinal fluid (CSF)
  • Patient
    Reference Range
  • Cell 465 / uL
    0 - 8 / uL
  • Cell type Lymphocytes (97)
  • Protein 117 mg/dL
    15 45 mg/dL
  • Glucose 43 mg/dL
    40 70 mg/dL

69
(No Transcript)
70
(No Transcript)
71
CASE STUDY FEBRUARY OF 2008
  • 50 year old female presents to ER with 15 to18
    hour history
  • Fever (103.1 F)
  • Headache
  • AMS (Irritability and confusion)
  • Nausea
  • Vomiting
  • Nuchal rigidity
  • Sore throat
  • Photophobia
  • Admitting and differential diagnosis (?)

72
CASE STUDY FEBRUARY OF 2008
  • Diagnostic studies
  • Radiology
  • Laboratory
  • Blood
  • CBC with diff, BMP and CRP
  • Cerebrospinal fluid
  • Protein, glucose and cells (number and type)
  • Culture
  • Bacterial antigens (latex agglutination)

73
CASE STUDY FEBRUARY OF 2008
  • Blood
  • CBC with diff
  • Leukocytes 30.2
    4.8-10.8 K/uL
  • Neutrophils 88
    40-74
  • BMP (normal)
  • CRP 12 mg/dL
    gt1 mg/dL
  • Cerebrospinal fluid
  • Gram stain
  • 50 WBCs per high power field
  • Numerous gram-positive cocci in pairs and chains
  • Culture
  • Heavy Streptococcus pneumoniae

74
CASE STUDY FEBRUARY OF 2008
  • Laboratory diagnosis
  • Cerebrospinal
    Fluid (CSF)
  • Patient
    Reference Range
  • Cell 2,100 / uL
    0 8 uL
  • Cell type Neutrophils (98)
  • Protein 325 mg/dL
    15 45 mg/dL
  • Glucose 10 mg/dL
    40 70 mg/dL

75
(No Transcript)
76
LYMPHOCYTES, LYMPHOID TISSUES AND ORGANS
  • Lymphocytes originate in bone marrow
  • Lymphoid tissues and organs
  • Primary
  • Development and maturation of lymphocytes
  • Bone Marrow (B cells) and thymus gland (T cells)
  • Secondary
  • Mature lymphocytes meet pathogens
  • Spleen, adenoids, tonsils, appendix, lymph nodes,
    Peyers patches, mucosa-associated lymphoid
    tissue (MALT)

77
(No Transcript)
78
THE LYMPHATIC SYSTEM
  • Lymph
  • Fluid and cells in lymphatic vessels
  • Lymphatic vessels
  • Collect and return interstitial fluid to blood
  • Transport immune cells throughout body
  • Transport lipid from intestine to blood
  • Lymph nodes
  • Kidney shaped organs at intervals along lymphatic
    vessels
  • Other secondary lymphatic tissues and organs

79
LYMPHOCYTES AND THE LYMPH NODES
  • Naïve lymphocytes circulate between blood, lymph
    and secondary lymph nodes
  • Pathogens from infected tissue sites are picked
    up by lymphatic vessels and arrive at closest
    lymph node
  • T and B cells congregate at specific regions of
    nodes
  • Architecture and size of nodes change in response
    to activation of lymphocytes

80
(No Transcript)
81
(No Transcript)
82
LYMPHOCYTES AND THE SPLEEN
  • Spleen
  • Lymphoid organ in upper left abdomen
  • Functions
  • Remove damaged or old erythrocytes
  • Activation of lymphocytes from blood borne
    pathogens
  • Architecture of Spleen
  • Red pulp
  • Erythrocytes removed
  • White pulp
  • Lymphocytes stimulated

83
(No Transcript)
84
SECONDARY LYMPHOID TISSUES ASSOCIATED WITH MUCOUS
MEMBRANES
  • Primary portals of entry for pathogens
  • Respiratory tract
  • Gastrointestinal tract
  • Secondary lymphoid tissues
  • Bronchial-associated lymphoid tissue (BALT)
  • Gut-associated lymphoid tissues (GALT)
  • Tonsils, adenoids, appendix, Peyers patches
  • Pathogens are directly transferred across mucosa
    by M cells

85
(No Transcript)
86
THE INNATE IMMUNE RESPONSE
  • Mediated (initiated) by phagocytes, NK cells and
    soluble proteins
  • Phagocytes
  • Cells specialized in the process of phagocytosis
  • Macrophages
  • Reside in tissues and recruit neutrophils
  • Neutrophils
  • Enter infected tissues in large numbers
  • Recognize common molecules of bacterial cell
    surface using a few surface receptors
  • Phagocytosis
  • Capture, engulfment and breakdown of bacterial
    pathogen

87
(No Transcript)
88
THE INNATE IMMUNE RESPONSE
  • Inflammatory response enhances phagocytosis
    through acute phase proteins
  • Mannose-binding lectin (MBL)
  • Binds to bacterial surface with particular
    spatial arrangement of mannose or fucose
  • C-reactive protein (CRP)
  • Binds to phosphorylcholine on bacterial surface
  • Complement
  • Set of proteins which bind to bacterial surface
  • Inflammatory response
  • Accumulation of fluid and cells at infection site
    (swelling, redness, heat and pain)

89
(No Transcript)
90
THE ADAPTIVE IMMUNE RESPONSE
  • Creates millions of different B and T cells for
    specific antibody-mediated and cell-mediated
    immunity
  • Antibody-Mediated Immunity (AMI)
  • Involves B lymphocytes, plasma cells and
    antibodies
  • Humoral immunity
  • Name derives from antibodies found in body fluids
    (humors - old medical term)
  • Cell-Mediated Immunity (CMI)
  • Involves T lymphocytes, antigen-presenting cells
    and MHC (major histocompatibility complex)
    molecules
  • Cellular immunity

91
ANTIBODY-MEDIATED (HUMORAL) IMMUNITY
  • Directed against extracellular microorganisms and
    toxins
  • B-lymphocytes (B cells)
  • Differentiate into plasma cells which produce
    antibodies
  • Function as antigen-presenting cells (APCs)
  • Classification of Antibodies (Immunoglobulins)
  • Immunoglobulin M (IgM)
  • Immunoglobulin G (IgG)
  • Immunoglobulin A (IgA)
  • Immunoglobulin D (IgD)
  • Immunoglobulin E (IgE)

92
CELL-MEDIATED IMMUNITY (CMI)
  • Directed against intracellular microorganisms
  • Non-phagocytic cells and phagocytic cells
  • T-lymphocytes (T cells)
  • Differentiate into effector cells following
    antigen presentation by antigen presenting cells
    (APCs)
  • Functional types of T cells
  • Helper (CD4 T cells)
  • TH1 and TH2 cells
  • Cytotoxic (CD8 T cells)
  • Regulatory
  • CD4 and CD8 Tregs

93
(No Transcript)
94
THE NATURE OF ANTIGENS
  • Historically named as antibody generators
  • Molecule which stimulates production of and binds
    specifically to an antibody
  • Contemporary view distinguishes between
  • Antigen
  • Molecule which can bind to specific antibody but
    cannot elicit adaptive immune response
  • Immunogen
  • Molecule which can stimulate adaptive immune
    response
  • Best immunogens are proteins with MW gt 10,000

95
THE NATURE OF ANTIGENS
  • Carbohydrates, nucleic acids and lipids are also
    potential antigens / immunogens
  • Hapten
  • Small (low MW) molecule unable to elicit immune
    response
  • Combines with larger carrier molecule which
    together function as immunogen
  • Antibody may react independently with hapten
    following hapten/carrier adaptive immune response
  • Example
  • Penicillin G (MW of 372)
  • Albumin (MW of 66,000)

96
THE NATURE OF ANTIBODIES
  • Antibodies are glycoproteins
  • Exist as monomers, dimers or pentamers of basic
    structure
  • Basic antibody structure has 4 polypeptide chains
  • 2 identical light chains
  • 2 identical heavy chains
  • Regions of heavy and light chains
  • Variable
  • Constant

97
(No Transcript)
98
THE NATURE OF ANTIBODIES
  • Also referred to as
  • Immune globulins / Immunoglobulins (IG)
  • Immune serum globulins (ISG)
  • Gamma globulins
  • Contemporary immunology
  • Antibody
  • Secreted form of IG made by plasma cells
  • Immunoglobulin
  • Antigen binding molecules of B cells
  • (B cell antigen receptors)

99
CLASSIFICATION OF ANTIBODIES (IMMUNOGLOBULINS)
  • Five (5) classes (isotypes)
  • Immunoglobulin A (IgA)
  • Immunoglobulin G (IgG)
  • Immunoglobulin M (IgM)
  • Immunoglobulin D (IgD)
  • Immunoglobulin E (IgE)
  • Based on structural differences in constant
    regions of heavy chains
  • Classes have specialized effector functions

100
(No Transcript)
101
B LYMPHOCYTES AND HUMORAL IMMUNITY
  • Originate from stem cells in bone marrow
  • Maturation in bone marrow followed by migration
    to secondary lymphoid tissue
  • Antigen exposure in secondary lymphoid tissue
  • Following exposure to antigen, differentiation
    into plasma cells and memory cells
  • Plasma cells produce antibodies of all IG classes

102
ACTIVATION OF ANTIBODY PRODUCING CELLS BY CLONAL
SELECTION
  • B lymphocytes recognize intact pathogenic
    microorganisms and toxins
  • B lymphocytes possess specific surface receptors
    for recognition of specific antigen
  • IgM and IgD
  • Binding of specific antigen results in
    proliferation of a clonal population of cells
  • Antigen determines clonal proliferation

103
(No Transcript)
104
ACTIVATION OF ANTIBODY PROCDUCING CELLS BY CLONAL
SELECTION
  • Proliferation of activated cells is followed by
    differentiation into
  • Plasma cells
  • Life span of
  • 4 to 5 days
  • 1 to 2 months
  • Produce 2,000 antibody molecules / second
  • Memory cells
  • Life span of years to decades
  • Differentiate into plasma cells following
    stimulation by same antigen

105
PRIMARY AND SECONDARY ANTIBODY RESPONSE
  • Primary Response
  • Following exposure to an antigen, there is a slow
    rise in IgM followed by a slow rise in IgG
  • Secondary Response
  • Following exposure to previously encountered
    antigen, there is a rapid rise in IgG and slow or
    no rise in IgM
  • Memory or anamnestic response

106
(No Transcript)
107
T LYMPHOCYTES AND CELL-MEDIATED IMMUNITY
  • Originate from stem cells in bone marrow followed
    by migration to thymus gland
  • Maturation takes place in thymus gland followed
    by migration to secondary lymphoid tissue
  • Respond to antigens on the surface of antigen
    presenting cells (APCs)
  • Antigen presenting cells (APCs)
  • Macrophages
  • Dendritic cells
  • B lymphocytes

108
T LYMPHOCYTES AND CELL-MEDIATED IMMUNITY
  • Antigen presenting cells (APCs)
  • Ingest and process antigens then display
    fragments (short peptides) on their surface in
    association with molecules of major
    histocompatibility complex (MHC)
  • Major histocompatibility (MHC) molecules
  • MHC class I molecules
  • Present antigens to CD8 T cells
  • MHC class II molecules
  • Present antigens to CD4 T cells
  • T cells which encounter antigen differentiate
    into effector T cells

109
(No Transcript)
110
ROLES OF EFFECTOR T CELLS IN IMMUNE RESPONSE
  • CD8 cytotoxic T cells
  • Enter bloodstream and travel to infection site
  • Kill cells infected with viruses and other
    intracellular microorganisms
  • CD4 TH1 helper T cells
  • Enter blood stream and travel to infection site
  • Help activate macrophages
  • CD4 TH2 helper T cells
  • Work within secondary lymphoid tissues
  • Help activate B cells

111
(No Transcript)
112
(No Transcript)
113
DISORDERS OF THE IMMUNE SYSTEM
  • Hypersensitivity Reactions
  • Over-reaction of adaptive immune response to
    harmless antigens
  • Four Types of reactions (I- IV)
  • Autoimmunity
  • Misdirected adaptive immune response
  • Results from a loss of self-tolerance
  • Three Types (II, III, IV) of reactions
  • Immunodeficiencies
  • Components of immune system either absent or
    defective
  • Genetic or acquired etiology

114
IMMUNOLOGY FOR DIAGNOSIS OF DISEASES
  • Analytical methods using either antibody or
    antigen with an indicator system for detecting
    specific
  • Antibodies
  • Detected using antigens or antibody
  • Antigens
  • Detected using antibody
  • Indicator systems
  • Latex particles (colored)
  • Microspheres (colored) conjugated with antibody
  • Enzymes conjugated to antibody
  • Fluorochromes conjugated to antibody
  • Nitrocellulose membranes fixed with antigen or
    antibody

115
METHODS IN DIAGNOSTIC IMMUNOLOGY
  • Latex agglutination (LA)
  • Latex particles (dyed) coated with antigen,
    antibody or?
  • Read visually for clumping of latex particles
  • Staphyloslide (Becton Dickinson)
  • Identification of Staphylococcus aureus
  • Staphylococcus aureus produces
  • Coagulase (bound and free)
  • Protein A
  • Blue latex particles coated and not coated with
  • Fibrinogen
  • IgG

116
(No Transcript)
117
METHODS IN DIAGNOSTIC IMMUNOLOGY
  • Immunochromatographic assay (ICA)
  • Antibody or antigen immobilized (Test line)
  • Antibody immobilized (Control line)
  • Membranes
  • Nitrocellulose, cellulose acetate
  • Read visually for colored test and control lines
  • Examples
  • Group A Streptococcus (GAS) antigen
  • Influenza A and B antigens
  • Respiratory syncytial virus (RSV) antigen
  • Rotavirus antigen
  • HIV-1/2 antibody

118
(No Transcript)
119
(No Transcript)
120
PRINCIPLES OF OraQuick RAPID HIV-1/2 ICA ANTIBODY
TEST
  • Antigens and antibody immobilized onto
    nitrocellulose
  • membrane in T and C zones
  • Test (T) Zone
  • Synthetic peptides from HIV envelope region
  • Control (C) Zone
  • Goat anti-human IgG
  • Developer solution
  • Facilitates flow of specimen onto test strip
  • Rehydrates protein-A gold colorimetric reagent

121
IMMUNOLOGY FOR PREVENTION OF DISEASE
  • Hepatitis B
  • Pre-exposure prophylaxis
  • Vaccination with hepatitis B surface antigen
    (HBsAg)
  • Post-exposure prophylaxis
  • Administration of
  • Hepatitis B Immune Globulin (HBIG) Human
  • Purified IgG antibody from plasma of donors with
    high titer of antibody to the hepatitis B surface
    antigen (anti-HBs)

122
IMMUNOLOGY FOR TREATMENT OF DISEASE
  • Rheumatoid Arthritis
  • Remicade (Infliximab)
  • IgG kappa monoclonal antibody against tumor
    necrosis factor alpha (TNF-alpha)
  • Breast Cancer
  • Herceptin (Trastuzumab)
  • IgG kappa monoclonal antibody against human
    epidermal growth factor receptor 2 (HER2)

123
(No Transcript)
About PowerShow.com
