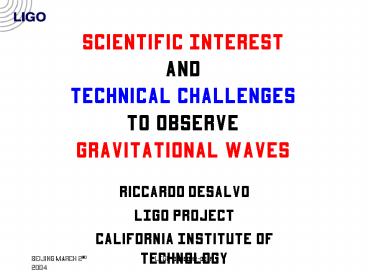

Scientific Interestand Technical Challenges to
observe Gravitational Waves

• Riccardo DeSalvo
• LIGO project
• California Institute of technology

2

• Hi, my name is
• Marco Polo
• I would like to help opening the road to the
  Gravitational Waves

3
Outline

• Astrophysical and cosmological interest of
  observing GW
• Who is doing what
• What China needs to become a player
• What help can China get
• Which relevant issues are at stake

4
Scientific interest

• Neutron Stars are the cinders of the Mendeleyev
  table production
• There are many more NS than visible stars
• NS merge into BH, and BH merge into larger BH
  to finally form the immense BHs at the
  center of galaxies

Chandra X-ray observation of IMBH
5
Scientific interest

• Hulse Taylor observation of accelerating
  orbiting NS pairs have proven the merger of NS
  and the existence of GW
• Chandra is showing us a wealth of BH in globular
  clusters that are slowed down by dynamical
  braking (equipartition of energy) and will merge

6
Scientific interest

• TAMA started the observation of GW with a range
  extending over our Galaxy.

7
Scientific interest

• LIGO is now capable to reach beyond Andromeda and
  will cover a radius of 20 Mpc

Kpc
8
Scientific interest

• Virgo will soon match LIGO and maybe go somewhat
  farther than that (depending on configuration)
• Adv-LIGO will reach a range of 200 Mpc
  for NS-NS inspiral in less than 10
  years,

9
Scientific interest

• An evolution of Virgo may get to Adv-LIGO
  sensitivity in a similar time scale
• LCGT is seeking funding and would have similar
  performances

10
Scientific interestsignal expectations

• TAMA had no real hope of observation.
• Present LIGO may be lucky, estimations of NS
  pairs are very variable. They suggest the
  possibility of a detectable signal anywhere
• - from once a year
• - to every 30 years
• Similarly for Virgo

11
Scientific interest,signal expectations

• Adv-LIGO will reach ten times farther than
  initial LIGO which is its watch will cover one
  thousand times more universe volume than initial
  LIGO
• Even the pessimistic estimation of one NS
  inspiral signal every 30 years for LIGO gives 30
  signals per year for Adv-LIGO

12
Scientific interest

• Lower Frequency underground interferometers much
  netter chance they will
• reach much farther
• be sensitive to much massive objects
• without the need to go in space

See tomorrows presentation
13
Scientific interest

• Observed from an underground L.F. interferometer
  the Universe will start blinking and twinkling
  with GW at us.
• GW astronomy will really have started

14
(No Transcript)
15
Scientific interest, conclusions

• Ten years from now a new generation of GW
  interferometers will observe many inspirals per
  year and start mapping the cinders of our
  creation
• And this does not include possible signals from
  Supernovae, rotating NS (millisecond pulsars),
  inspiralling BHs,cosmic background, and other
  sources that we are not dreaming of.
• Space Time will look quite different.
• Is China going to join the effort?

16
Technical challenges

• LIGO requires the readout of position with
  resolutions of 10-18 m 1/1,000 of the size of
  the proton

17
Technical challenges

• Future Gravitational Wave Interferometers will
  have even tougher challenges to reduce the noise
  levels 10 or 100 timer lower
• We have to push the technological limit in almost
  all directions

18
Technical challenges

• What are the technologies that China has to
  master to the highest level to be competitive?

19
Technical fields

• Laser technology
• High power Laser technology
• Ultra stable lasers
• Optics
• Mirror substrate technology
• Mirror coating technology
• Advanced optics concepts

20
Technical fields

• Control technology
• Hyerarchical mirror controls
• Multiple interlocking nested loops
• Real time Digital data processing (fast DSP, fast
  and high resolution ADC and DAC)

21
Technical fields

• Seismic attenuation
• Passive attenuation techniques
• Active attenuation techniques
• High level metallurgy
• Maraging
• Glassy metals

Virgo 10 year Old Technol.
The future
22
Technical fields

• Thermal noise issues
• Ceramic material technology
• Crystals
• Glassy ceramics (Fused silica)
• Seismic sensing
• Advanced accelerometers for Newtonian Noise
  subtraction (for underground facility use or even
  for somewhat improving the frequency range of
  existing surface facility)
• Advanced (highly directional) accelerometers for
  feed back issues

23
Technical fields

• Vacuum technology
• Low emissivity materials (specialy steels)
• Quiet pumping techniques (sublimation pumps)
• Large vacuum vessel techniques
• General engineering
• Large structures
• Large excavations
• Cryogenics?

24
Technical fields

• Noise treatment techniques
• Extraction of weak signal from large noise
• Mathematical filtering methods
• High speed computing
• Large database and large complexity algorithms
• High speed computers

25
What help may be available

• Detecting GW is terribly difficult
• We all need more facilities for coincidence
  measurements, for guaranteeing observation time,
  for triangulation,
• We need diversified facilities to cover different
  kind of sources
• So far the world effort only provides a fraction
  of what would be needed
• Any new contributor is warmly welcome and
  supported as much as possible (see welcoming from
  Cerdonio, Barish, Giazotto, Menzinger)

26
What help may be available

• The GW community will gladly host and train
  Chinese scientists to most trade lore
• All design and technologies developed
  specifically for GW are already public and will
  be made available
• Some techniques are classified or controlled and
  some may become so. These will not be available,
  but often special permissions can be asked for
  for specific use of specific instruments.

27
What help may be available

• Can China get financial support in the near
  future?
• In my opinion, the answer would probably be NO!
• everybody is busy with scarce resources
• Can China get technical and scientific support?
• In my opinion the answer is YES,
• with some limitations due to national policies,
  but YES.
• The international community will practically
  collaborate with a Chinese GW effort
• (see GWIC statement and other welcomes)

28
What help may be available

• It took 30 years for US and EU to get where we
  are
• Collaboration with the international GW community
  can help China to speed up the process
• With international support a Chinese facility may
  become relevant in less than 10 years (see HEP)
• Chinese scientists can be relevant from
  immediately through international collaboration

29
What help may not be available

• Examples of possible problems
• Maraging is a material necessary for seismic
  attenuation and suspensions but also for Uranium
  enrichment centrifuges
• Glassy metals may be necessary for the lower
  stages of seismic attenuation, but also are of
  great interest for military use
• Some lasers and metrology systems are strictly
  controlled
• High speed computers are controlled items
• Some nations are more restrictive than others

30
What help may be available

• Examples of technical and scientific
  international collaborations on GW
• LIGO and GEO are collaborating across the board
• Virgo and LIGO are collaborating on mirror
  developments and other issues
• LIGO and TAMA are collaborating on seismic
  attenuation issues
• LIGO and SIFM (Shanghai) on sapphire
• Some sort of Data analysis agreements between
  mostly everybody and everybody-else

31
What do other players get by helping China?

• Must divide the question in three time scales
• short,
• medium and
• long term

32
What do other players get by helping China?

• Short term (even if China eventually fails to
  build a relevant facility)
• If China wants to get in the game needs to train
  its best people
• China will send the best people to be trained at
  the existing facilities, etc.
• By doing so these scientists will contribute to
  the advancement of the existing facilities
• There is a shortage of high level scientists

33
What do other players get by helping China?

• Middle term (China builds a relevant
  interferometer)
• Even a single top of the line additional
  interferometer would be precious for online
  efficiency, coincidence, triangulation, signal
  certification, etc.
• Low level coincidence run already in S1, S2 and
  S3 with different partners
• Virgo and LIGO committed to fully share data for
  optimal detection sensitivity and online
  efficiency
• All will gladly exchange significant data with a
  Chinese (or Japanese, or Australian,..)
  interferometer to improve the GW signal reach and
  significance

34
What do other players get by helping China?

• Long term (China builds a relevant facility)
• Nobody will commit now to install an
  interferometer in a Chinese facility, everybody
  is fully using their own resources home
• When GW will be detected and
• If China prepares an Underground Facility
• Everybody will want to participate in installing
  a GW interferometer in that facility

35
What do other players get by helping China?

• Long term (China builds a relevant facility)
• If GW are detected there will be a rush to cover
  the frequency space
• At Low Frequency Newtonian Noise is the limiting
  factor and the solution is only underground or in
  orbit

36
What is needed to be relevant?

• Sufficiently large and long term effort.
• Time to train people
• Time to build facilities
• Sufficient resources to be relevant

37
What is needed to be relevant?

• TAMA was the front runner for several years.
• But TAMA is too small to remain relevant

38
What is needed to be relevant?

• Now, for lacking of financial support, the
  successor LCGT is delayed and TAMA is becoming
  irrelevant (except for developmental issues)
• In the wait for funding Japanese scientists will
  remain active and relevant through international
  collaborations

TAMA LIGO
39
What is needed to be relevant?

• GEO is terribly relevant from the developmental
  point of view
• For lacking of sufficient financial support GEO
  was never really relevant as a GW detector
• GEO found relevance through international
  collaboration with LIGO and later with EGO/Virgo
• Similarly for ACIGA

40
What is needed to be relevant?

• Will need patience and perseverance, but what we
  propose is feasible!!!

41
What is the issue?

• Gravity Waves detection will open a new window on
  the Universe, unveiling the twisting and
  churning of space-time around black
  holes, telling us about the death and birth of
  matter
• The present generation of GW detectors, LIGO,
  Virgo, and even Advanced LIGO, will tell us about
  the small players, Neutron Stars and stellar size
  Black Holes
• The real players will remain invisible until we
  build low frequency GW detectors
• LISA, the future space based GW interferometer is
  designed for this important job

42

What is the issue?

• X-ray emission is detected from matter
  occasionally falling into Larger Black Holes
• Modern globular cluster simulations indicate
  prompt generation 100-1000 sm IMBH from core
  collapse.
• The further accretion of 10 sm BH onto the IMBH
  will be visible only through LF interferometers
• LF under-ground based GW interferometers can do
  this astronomy well ahead of LISA
• Astrophysicists eagerly waiting to hear from us!

43
Conclusions

• China is a great country with great traditions
• We all expect China to make great contribution to
  Science
• A leading edge GW detection facility is a very
  worthwhile contribution
• The road to the Grav. Waves is hard and long but
  it is full of great things and we can do some of
  the way together
• I hope I was of use to you.

44

• And, while on your way, you can answer some of
  my questions!
