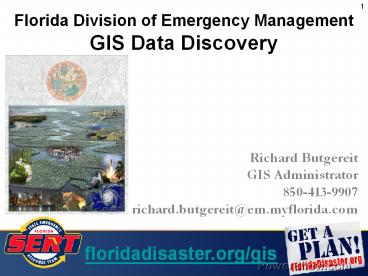

Florida Division of Emergency ManagementGIS Data
Discovery
Richard Butgereit GIS Administrator 850-413-9907 r
ichard.butgereit_at_em.myflorida.com
floridadisaster.org/gis
2
Critical Facilities Inventory

• A Statewide Geodatabase of
• Structures and Facilities

3
What is a Critical Facility?

• Critical Facility - structures from which
  essential services and functions for victim
  survival, continuation of public safety actions,
  and disaster recovery are performed or provided.

4
In Contrast with Critical Infrastructure

• Critical Infrastructure - those systems and
  assets, whether physical or virtual, so vital
  that the incapacity or destruction of such
  systems and assets would have a debilitating
  impact on security, economy, public health or
  safety, or any combination of these elements.

5

• The domain of the SERT GIS is specifically
  related to "critical facilities", while working
  closely with Florida's Regional Domestic Security
  Task Forces and other partners to ensure a safe
  and secure Florida.

6
Examples of Critical Facilitiesunique to
emergency management

• Shelters
• Emergency Operation Centers
• Hazardous Material Facilities
• Points of Distribution
• Disaster Recovery Centers
• Logistic Staging Areas

7
Examples of Critical Facilitiescoordinated with
other agencies

• Public Health Facilities
• Public Drinking Water Facilities
• Wastewater Treatment Facilities
• Schools
• Fire Stations
• Police Stations

8

• 13 feature classes are spread across 4 feature
  datasets, representing emergency management
  branches
• Emergency Services
• Human Services
• Operations Branch
• Infrastructure Branch

9

• Can there be too much data?
• FEMA HAZUS Essential Facilities
• USGS Structures
• NGA Homeland Security Infrastructure Program
  (HSIP)

10
Over 10 Million Individual Records
Improved Metadata
184 feature classes in 2005 release 300 feature
classes in 2007 release
11
HSIP Communication Framework
State DHS or Emergency Management Agency
State GIS
12
Homeland Infrastructure Foundation-Level Database
Working Group
13
(No Transcript)
14
(No Transcript)
15
Web Portal and Desktop
The standardized role-basedapplication to update
statewideHAZUS-MH datasets

Training November 17-21, 2008
16
gisinventory.net
17

• Geodetic Control
• Ortho-imagery
• Elevation
• Transportation
• Hydrography
• Governmental Units
• Cadastral Information

18
(No Transcript)
19
Resolution 1 arc second 30 meter 1/3 arc
second 10 meter 1/9 arc second 3 meter
20
2000 FIUs International Hurricane Center
Broward
Utilization of the airborne LIDAR data resulted
in considerable reduction of predicted flood
areas, as a first cut without further refinements
and upgrading of the SLOSH numerical model.
Broward County Emergency Management officials
were able to remove 175,000 people from being
unnecessarily evacuated in the event of a
hurricane. http//www.ihc.fiu.edu/lcr/research/wi
ndstorm_simulation/airborne_lidar_mapping.htm
21
Project Overview
Begun FY 06-07 Complete FY 07-08
Begun FY 06-07 Complete FY 07-08
FY 08-09
Light Detection and Ranging LiDAR
Data Processing Development for SLOSH
Sea, Lake, Overland Surge from Hurricanes SLOSH
Models
Regional Evacuation Studies
Analyses Vulnerability Behavioral Demographics Tra
nsportation
Begun FY 06-07 Complete FY 08-09
FY 08-09
Storm Surge Zones
FY 08-09
22
Project Footprint
Florida is 54,250 square miles
8,600 14,600 1,300 2,200 1,400
28,100 total square miles
23
(No Transcript)
24
(No Transcript)
25

• Compiled from Regional Evacuation Studies
  undertaken by the Regional Planning Councils --
• Storm Surge Zones
• Evacuation Routes
• Both currently being updated by RPCs
• FloridaDisaster.org/gis/data

26

• Increasingly, we are turning to the web for
  direct use of web mapping services and online
  data sources (WMS and/or KML)
• National Weather Service (watches and warnings,
  radar, storm reports)
• USGS Emergency Operations Hazards Data
  Distribution System
• ESRI Imagery and more

27
(No Transcript)
28
Web Mapping Services
29
Tropical Storm Fay

• Quantitative Precipitation Forecast
• Hourly/Daily/Weekly Rainfall
• Storm Surge Operational and Probabilistic

30
Florida Adopts the USNG

• USNG was officially adopted by the FFCA
• FDEM adopted the USNG in the CEMP
• Florida Fire College, Florida Fire Chiefs
  Association, Fl National Guard have developed
  curriculum and instructor manuals
• FloridaDisaster.org/gis/usng

31
Florida Geographic Data Library

• Hosts 1,000 meter and 100 meter grids for each
  Florida county
• Data is also available via the National Map

32
(No Transcript)
33
(No Transcript)
34
(No Transcript)
35
(No Transcript)
36
(No Transcript)
37
(No Transcript)
38
Questions?
FloridaDisaster.org/gis
