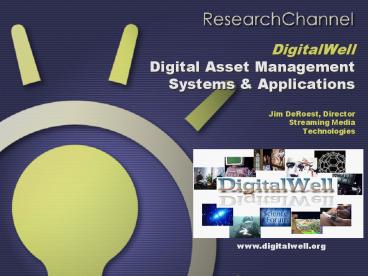

DigitalWell Digital Asset Management Systems

1
DigitalWell Digital Asset Management Systems
Applications Jim DeRoest, Director
Streaming Media Technologies
www.digitalwell.org
2
Who We Are Streaming Media, Video TV
Technologies

• Campus
• Institutional repository/Asset Management
  Digitalwell Project
• Streaming Distance education, eLearning
• Television UWTV, uw2.tv, ResearchChannel
• Cable Satellite broadcast 17.1million homes
• 2500hrs modem to SD to HD on-demand programming
• Live multicast internationally to 30mbps DV
• Radio KEXP
• Analog and Digital broadcast
• Streaming audio to 1.4mbps
• On demand broadcast playlist archive
• Video/Audio Research
• iHDTV desktop to uncompressed HD over the
  Internet

3
Mission

• Exploit Next Generation Network Bandwidth
• High Quality, Low Latency Interactive Systems
• Deliver Realism - Quality Latency Matter
• Health Sciences, Biology, Performance Arts
• System Integration Automation End to End
• Television, Radio, Internet Technologies
• Middleware Standards
• Intellectual Property, Discovery, Metadata
• Research Outreach
• National/International Consortia, K20
• Digital Media Asset Management
• On Demand Access, DLib Interoperation,
  Preservation

4
Broadcast, Streaming, On-Demand
www.researchchannel.org www.uwtv.org www.kexp.org
5
ResearchChannelNationwide 7x24 Hour Television
Channel on Cable and SatelliteInternational
RetransmissionResearch Consortia
6
ResearchChannel Participants

• Research Organizations
• Howard Hughes Medical InstituteInternet2Nationa
  l Academies
• National Academy of EngineeringNational Academy
  of Sciences
• National Institute of Standards and
  TechnologyNational Institutes of Health
• National Institute of Nursing ResearchNational
  Library of Medicine
• National Science Technology Medals
  FoundationNational Science FoundationNational
  Sea Grant College ProgramPacific Northwest
  GigapopStanford Hospital ClinicsWisconsin
  Public Television
• Corporate Research Centers
• Corporation for Education Network Initiatives in
  CaliforniaIBM CorporationJohnson
  JohnsonMicrosoft ResearchSony Electronics
  Inc.Vulcan Inc.
• RC Global Initiative
• Australia
• Brazil
• Chile
• China
• Finland
• Korea
• Netherlands
• Portugal
• Spain

• Research Universities
• Duke UniversityGeorge Mason UniversityJohns
  Hopkins UniversityMassachusetts Institute of
  TechnologyNational University of
  SingaporeOregon State UniversityPenn State
  University
• Rice UniversityRutgers, The State University of
  New Jersey
• Stanford UniversityTufts UniversityUniversidad
  de Puerto RicoUniversitat Politècnica de
  CatalunyaUniversity of Alaska FairbanksUniversit
  y of ChicagoUniversity of HawaiiUniversity of
  HoustonUniversity of Maryland - College
  ParkUniversity of PennsylvaniaUniversity of
  Southern CaliforniaUniversity of
  VirginiaUniversity of WashingtonUniversity of
  Wisconsin-MadisonVirginia TechYale University

7
Broadcast Subscribers

• 9.0 million - Dish Network
• 8.1 million - Individual cable systems

• 17.1 million - Total

8
International On-Demand Multicast
KEXP Listener Filipino listeners have a limited
music resource. Your online audio streams are
able to satisfy hungry listeners such as myself.
Thank god for the internet!
9
Regional distribution outside U.S.
Webtrends October 2002 - 2003. U.S. is 75 of
Total, this shows remaining 25
10
Collaborators

• Research Standards Development
• Educational Outreach
• Content Sharing
• Network Test Beds

11
DigitalWell Digital Asset Management

• Project focus
• Broadcast-Intercast integration.
• Automation End to End
• capture, describe, deliver
• High quality, Realism
• Commodity, Standard def, High def
• Next generation networks
• Asset agnostic
• Doc, pic, audio, video, data blobs
• Middleware
• Metadata, DRM/IPMP, API
• Scalable/Pluggable Architecture
• Evolve with Technology
• Federated DAMS Interoperation
• Storage/Preservation

12
DigitalWell Architecture
Broadcast, Dlib, eLearning
Federation
Authorization-Authentication-Access Control
OAI
WebISO, Shibboleth, PKI
Access APIs
WS API
Request Director
Metadata Services
Stream State Manager
Data Transport/Streams
Servers
Metadata Abstraction
Storage Pool Abstraction
Databases DB2, SQLServer
Drivers
13
DigitalWell End to End Automation Environment
14
Instantiation

• Dub time automation
• Single pass ingest
• Virage/Flipfactory
• 15mbps MPEG2 master
• Format transcoding
• Keyframe, metadata creation
• Queued for review
• Archive publish
• Scheduling
• Protrack/Digitalwell
• Metadata synchronization
• Automated monitoring
• Ingest to delivery

15
Automated Encoding Process
16
Middleware

• Metadata
• Dublin Core, MPEG7, Custom
• OAI, possibly METS
• WS API
• Collection Directory LoC/AMIA MIC
• Access Controls
• Web ISO (Pubcookie),
• Institutional Groups
• Collection and Asset level ACLs
• Shibboleth under development
• Preservation
• OAIS?

17
Broadcast Scheduling Integration

• Broadcast Traffic Web Integration
• Program metadata store (DigitalWell)
• Broadcast schedule (ProTrack, Louth)
• Daily extract ProTrack list metadata
• Synchronize metadata (ProTrack, DigitalWell)
• Tape number and program name
• Dynamic generation of ResearchChannel Web
• Broadcast schedule
• VoD library

18
Delivery Little Video Big Video

• Clustered Load Sharing Server Architecture
• WM9, Real10, Quicktime, Shoutcast, VideoCharger,
  VideoLAN
• Little Video Smartphones, PDAs,
• Path 1, WM, Shoutcast
• Audio/Video streaming, VoD
• Middle Video Desktop
• Modem, DSL, Broadband environments
• Audio 32kbps to 1.4mbps Uncompressed
• Video 56kbps to 5.6mbps SD, 19.2mbps HD
• DVTS DV 30mbps
• Unicast and Multicast
• Big Video
• Studio Quality SDI delivery 250mbps (SD, HDCAM)
• Uncompressed HD 1.5mbps
• VoD Demo APAN 2004
• International VC Demo SC04
• http//www.researchchannel.org/projects

19
Interactive High Definition Video SC04 Network
Routes
20
(No Transcript)
21
Internet SDTV to Desktop

• Servers, Players, Codecs
• VidoeLan, IBM Videocharger
• ffmpeg, Elecard
• MPEG2 _at_ 5.6mbps
• Content stored and streamed from UW DigitalWell
  architecture
• All UWTV, ResearchChannel programming available
  over 2000 hrs.
• UWTV, ResearchChannel SD multicast at 2mbps

22
Internet HDTV to Desktop

• Servers, Players, Codecs
• VidoeLan, IBM Videocharger, MS WM9
• ffmpeg, Elecard
• 1080i MPEG2 _at_ 19.2mbps
• 720p WM9 _at_ 5mbps
• Content stored and streamed from UW DigitalWell
  architecture
• Developing HDTV card integration for component
  out display to HD plasmas, projectors, LCDs

23
Storage Management

• Pluggable Hierarchical Infrastructure
• Hardware NAS/SAN/Robotic Tape
• 30 TB NAS Isilon IQ
• 2 TB SAN staging EMC Symetrix
• STK robotic tape silos 9840, 9940
• Software Mass Store System
• HPSS, TSM
• Disaster recovery - offsite copies
• Content Sharing
• Mirroring/Synchronization
• Peer to Peer
• Federated/Disparate Digital Repositories
• SRB OAI

24
(No Transcript)
25
Open Federated Archives
Media Repositories
DigitalWell
Other DAMS, DLS
SRB/OAI
NSDL
UW
CDL
Targeted Media Portals
26
DigitalWell Institutional R1

• Institutional Repository Services
• Broadcast Migration
• KEXP, UWTV, ResearchChannel
• Two Previous Broadcast DW Implementations
• Production 1QTR 2005

27
DigitalWell R1

• Whats New
• Enhanced Content Upload
• Batch Collection Ingest Assets and XML Metadata
• Validation Assets to Metadata
• Recoverable Upload
• Metadata Profiles
• DWLite File System Metadata, Limited Search
• Extended Dublin Core Search
• PBCore Broadcast Support
• Advanced Custom Fields

28
DigitalWell R1

• Whats New
• WS API
• Interface Development, Teaching Tools
• System Admin Tool
• User Account Management
• Automated Account Creation/Expiration
• User Quotas
• Collection Management
• Selectable per Asset Delivery Option
• Stream only, Download or Both

29
DigitalWell R1

• New Non-broadcast Collections
• Health Sciences MRI imaging
• School of Music 15k hrs Ethnomusicology
• College of Forestry Sat images old growth
• Experimental Education SD video to K12
• iEARN International student video collab
• http//www.iearn.org
• PETTT VideoTraces Collab video tool
• http//epts.washington.edu/pettt/projects/videotra
  ces.html

30
Sharing PBS Programming Over the Internet between
8 stations
31
Microsoft Research

• MURL Goals
• Increase awareness among researchers everywhere
  about the recent advances in the availability of
  streaming video technologies
• Provide access anywhere, at any time, to the
  rich, distinctive seminars of the partner
  institutions
• Investigate the potential of streaming video and
  collaborative technologies to change, and
  improve, the delivery of information and
  education
• Explore the social and communication issues that
  may arise from increasing the audience for
  seminars that are traditionally targeted to
  smaller, face-to-face groups

32
DigitalWell - Whats next

• Content Sharing/Synchronization
• SRB prototype with AARNET
• Advanced Search
• CRIM MADIS MPEG7 Video Object Search
• Encoding
• Closed Caption, Transcripts
• User Initiated Batch Transcoding
• Network and Storage Scaling
• Bandwidth gt 1.5gbps per stream
• Cost
• 1Hr Broadcast HD 9GB
• 1Hr HDCAM/SDI 120GB
• 1Hr Studio HD 670GB
• Video Conferencing
• Low Latency HD and Plasma Resolution
• Tarari HPC hardware
• SDI Firewire
• Capture Card
• Access Grid and Video Presence integration

33
? Questions ?www.researchchannel.orginfo_at_researc
hchannel.orgderoest_at_researchchannel.org
