Application State

1

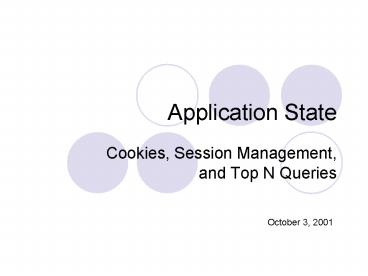

Application State

• Cookies, Session Management, and Top N Queries

October 3, 2001
2
Administration

• Preliminary Design Documents
• We were very impressed!
• If we found glaring errors, you would have
  received an email from us.
• Egret
• If you believe you cannot log into egret, reread
  the directions carefully, and if you still have
  trouble, email TAs with your group number.
• Common problems omitting cucs/ in your user
  name, not using map network drive, and not
  using the correct username/password we gave you
  (it is NOT your CSUGLab netid/password!!)

3
Final Design Documents

• Due October 10
• Information online under class notes about what
  to include
• Try to be complete, but concise (you dont need
  100 pages ?).

4
In the beginning
there was
5
Next came
But what can we do with it?
6
The Internet
We can offer services! Sell, buy and trade
things! Post information! Chat! Surf!
You are wise
Do not forget CS433
7
The Internet

• The onset of the Web has brought about new
  client-server issues
• Reliability servers must be online 24-7
• Distributed networking servers access many
  systems
• Scalability servers must be able to handle
  millions of requests
• Stateless and State Maintained Interaction

8
Stateless and State Maintenance

• Stateless
• No information is retained from one request to
  another
• Pure web servers are stateless
• State
• Some memory is stored between requests
• This memory can be saved on either the client or
  the server

9
Stateless Protocol

• Advantages
• Easy to use dont need anything
• Great for static-information applications
• Requires no extra memory space
• Disadvantages
• No record of previous requests means
• No shopping baskets
• No user logins
• No custom or dynamic content
• Security is more difficult to implement

10
Application State

• Server-side state
• Information is stored in a database, or in the
  application layers local memory
• Client-side state
• Information is stored on the clients computer in
  the form of a cookie
• Hidden state
• Information is hidden within dynamically created
  web pages

11
Application State
So many kinds of state how will I choose?
12
Server-Side State

• Many types of Server side state
• 1. Store information in a database
• Data will be safe in the database
• BUT requires a database access to query or
  update the information
• 2. Use application layers local memory
• Can map the users IP address to some state
• BUT this information is volatile and takes up
  lots of server main memory

5 million IPs 20 MB
13
Server-Side State

• Should use Server-side state maintenance for
  information that needs to persist
• Old customer orders
• Click trails of a users movement through a
  site
• Permanent choices a user makes

14
Client-side State Cookies

• Storing text on the client which will be passed
  to the application with every HTTP request.
• Can be disabled by the client.
• Are wrongfully perceived as "dangerous", and
  therefore will scare away potential site visitors
  if asked to enable cookies1
• Are a collection of (Name, Value) pairs

1http//www.webdevelopersjournal.com/columns/state
ful.html
15
Client State Cookies

• Advantages
• Easy to use in Java Servlets / JSP
• Provide a simple way to persist non-essential
  data on the client even when the browser has
  closed
• Disadvantages
• Limit of 4 kilobytes of information
• Users can (and often will) disable them
• Should use cookies to store interactive state
• The current users login information
• The current shopping basket
• Any non-permanent choices the user has made

16
Creating A Cookie

• Cookie myCookie
• new Cookie(username", jeffd")
• response.addCookie(userCookie)
• You can create a cookie at any time

17
Accessing A Cookie

• Cookie cookies request.getCookies()
• String theUser
• for(int i0 iltcookies.length i)
• Cookie cookie cookiesi
• if(cookie.getName().equals(username))
  theUser cookie.getValue()
• // at this point theUser jeffd
• Cookies need to be accessed BEFORE you set your
  response header
• response.setContentType("text/html")
• PrintWriter out response.getWriter()

18
Cookie Features

• Cookies can have
• A duration (expire right away or persist even
  after the browser has closed)
• Filters for which domains/directory paths the
  cookie is sent to
• See the Java Servlet API and Servlet Tutorials
  for more information

19
Hidden State

• Often users will disable cookies
• You can hide data in two places
• Hidden fields within a form
• Using the path information
• Requires no storage of information because the
  state information is passed inside of each web
  page

20
Hidden State Hidden Fields

• Declare hidden fields within a form
• ltinput typehidden nameuser valuejeffd/gt
• Users will not see this information (unless they
  view the HTML source)
• If used prolifically, its a killer for
  performance since EVERY page must be contained
  within a form.

21
Hidden State Path Information

• Path information is stored in the URL request
• http//server.com/index.htm?userjeffd
• Can separate fields with an character
• index.htm?userjeffdpreferencepepsi
• There are mechanisms to parse this field in Java.
  Check out the javax.servlet.http.HttpUtils
  parserQueryString() method.

22
Multiple state methods

• Typically all methods of state maintenance are
  used
• User logs in and this information is stored in a
  cookie
• User issues a query which is stored in the path
  information
• User places an item in a shopping basket cookie
• User purchases items and credit-card information
  is stored/retrieved from a database
• User leaves a click-stream which is kept in a log
  on the web server (which can later be analyzed)

23
Case Study Top N Queries

• A Top N Query requests the first n records in
  some table.
• Used when there are many search results
• Want to break the search result into managable
  batches, say to display 20 search result records
  at a time (display NEXT, PREVIOUS 20)
• You need to know the starting/ending point in
  your table.

24
Top N Queries
Select all the odd things Jeff wants in batches
of 2 items
Batch 1
Batch 2
Batch 3
Batch 4
25
Placeholder Technique

• Store the first and last result tuples and
  perform the same select query
• Iterate through the results to return the next or
  previous batch of results

26
Placeholder Technique

• For each page you then know
• Showing Records 3-4
• Previous Link /display.jsp?lower3
• Next Link /display.jsp?upper4
• If the user clicks on the Next Link do
• Iterate to upper value 1 (here that is 5)
• Display the next 2 results
• Prepare new lower/upper values (5,6)

27
Placeholder Technique

• You perform the SAME select query each time you
  need a new batch of results
• Advantages
• Easy implementation
• Disadvantages
• You must fetch many unneeded records (i.e. the
  ones you iterate through)

28
Query Constraint Technique

• Instead of issuing the SAME query, push the
  constraint into the query so the result only
  contains records that have not yet been displayed
• You can use sorting to do this effectively
• Select P.Product
• From ProductTable P
• Where (P.Product item AND P.Id gt
  lowest_value)
• OR (P.Product gt item)
• Order By P.Product, P.Id

29
Query Constraint Technique

• SELECT P.Product
• FROM ProductTable P
• WHERE (P.Product item AND P.Id gt
  lowest_value)
• OR (P.Product gt item)
• ORDER BY P.Product, P.Id
• What it means
• The first part of the WHERE clause is for when
  there are many products with the same name, and
  we only want to see the new ones.
• The second part of the WHERE clause is for items
  that are larger alphabetically.

30
Query Constraint Technique
ID
Product
13
Baseball Hat
B1
27
Basketball Tickets
37
Basketball Tickets
B2
14
Laptop Computer
To move from batch B1 to batch B2 you would issue
SELECT P.Product FROM ProductTable P WHERE
(P.Product Basketball Tickets AND P.ID gt
27) OR (P.Product gt Basketball
Tickets) ORDER BY P.Product, P.ID
31
Query Constraint Technique

• What information needs to be stored?
• Previous
• Title of FIRST record in the previous set
• Primary_Key of FIRST record in the previous set
• Next
• Title of FIRST record in the next set
• Primary_Key of FIRST record in next set
• This information can be encoded in the path
  information

32
Query Constraint Technique

• Advantages
• No need to iterate through results so you get a
  large speedup
• Disadvantages
• More difficult to implement

33
Any questions?
