Extracting Structured Data from Web Pages

1

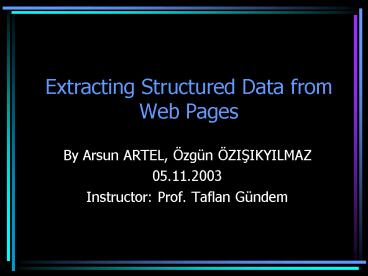

Extracting Structured Data from Web Pages

• By Arsun ARTEL, Özgün ÖZISIKYILMAZ
• 05.11.2003
• Instructor Prof. Taflan Gündem

2
Presentation Outline

• Motivation
• Example Pages

• Model Problem Formulation

• Approach in Detail

• Experimental Results
• Conclusion

3
What is next?

• Motivation
• Example Pages

• Model Problem Formulation

• Approach in Detail

• Experimental Results
• Conclusion

4
Motivation

• There are many web sites that contain a large
  collection of structured pages.

• Extracting structured data from the web pages is
  useful, since it enables us to pose complex
  queries over the data.
• This paper focuses on the problem of
  automatically extracting structured data from a
  collection of pages.

5
What is next?

• Motivation
• Example Pages

• Model Problem Formulation

• Approach in Detail

• Experimental Results
• Conclusion

6
Example Pages

• In the real world there are many examples for
  structured web pages.
• amazon web site, e-bay web site etc.
• Two examples from www.amazon.com
• My System
• An Eternal Golden Braid

7
Example Pages (My System 21st Century Edition)
8
Example Pages (An Eternal Golden Braid)
9
What is next?

• Motivation
• Example Pages

• Model Problem Formulation

• Approach in Detail

• Experimental Results
• Conclusion

10
Underlying Problems

• Complex Schema The schema of the information
  encoded in the web pages could be very complex
  with arbitrary levels nesting. For instance, each
  book page can contain a set of authors, with each
  author having a set of addresses and so on.
• Template vs. Data Syntactically, there is
  nothing that distinguishes the text that is part
  of the template and the text that is part of the
  data.

11
How is a page created with template?
12
Basic Type, Tuples and Sets

• Basic Type b, Basic unit of text
• Tuple Ordered List of types, ltT1,T2,,Tngt
• Set T1

lt C Programming Language, lt Brian, Kernighan gt,
lt Dennis, Ritchie gt, 30.00 gt
13
Schema and Instance

• lt C Programming Language, lt Brian, Kernighan gt,
  lt Dennis, Ritchie gt, 30.00 gt

14
Template Definition

• Own example
• Schema S ltb, b, bgt
• Template TS ltA B E C Dgt
• A Title, B Presented by, C
  Cost, D , E and
• Instance of TS
• Title Extracting Structured Data Presented by
  Arsun and Özgün Cost 1hr

15
Template
16
What is next?

• Motivation
• Example Pages

• Model Problem Formulation

• Approach in Detail

• Experimental Results
• Conclusion

17
General Description of EXALG
18
Multiple Pages
19
Correct Solution for those pages
20
Some Terminology (1)

• The occurrence-vector of a token t, is defined as
  the vector ltf1,f2,fngt where fi is the number of
  occurrences of t in ith page
• An equivalence class is a maximal set of tokens
  having the same occurrence-vector.
• A token is said to have unique role, if all the
  occurrences of the token in the pages, is
  generated by a single template-token.

21
Some Terminology (2)
22
Some Terminology (3)

• For real pages, an equivalence class of large
  size and support is usually valid, where support
  of a token is defined as the number of pages in
  which the token occurs.
• Example for invalid equivalence class
• Data, Mining, Jeff, 2, Jane, 6 has occurrence
  vector lt0, 1, 0, 0gt

23
Some Terminology (4)

• The equivalence classes with large size and
  support are called LFEQs (for Large and Frequent
  EQuivalence class). LFEQs are rarely formed by
  chance.
• Threshold for size and support is set by the user
  (SizeThres, SupThres).

24
Some Terminology(5)

• Valid equivalence class properties Ordering and
  Nesting
• Back to own example
• Template TS ltA B E C Dgt
• A Title, B Presented by, C
  Cost, D , E and
• Ordered A gt B gt C gt D
• Nesting B gt E gt C

25
Important Observations

• In practice, two page-tokens with different
  occurrence-paths have different roles
  html-parser
• Two page-tokens having same occurrence paths, but
  with different neighbours also have different
  roles

26
Explanation of observations
27
Modules and their operations
28
Constructing Template (1)

• The extraction algorithm determines the positions
  between consecutive tokens of an equivalence
  class that are non-empty.
• A position between two consecutive tokens is
  empty if the two tokens always occur
  contiguously, and non-empty, otherwise.

29
Constructing Template (2)

• The tokens connected by empty positions belong to
  the template.
• In the non-empty positions, there are either
  basic types (strings extracted from database), or
  a more complex type
• This unknown type can be determined by inspecting
  input pages

30
Constructing Template(3)
31
What is next?

• Motivation
• Example Pages

• Model Problem Formulation

• Approach in Detail

• Experimental Results
• Conclusion

32
Experimental Results (1)

• Basically this project is compared with the
  RoadRunner, however RoadRunner makes simplifying
  assumptions.
• The first 6 web pages are obtained from
  RoadRunner site.
• The last three web pages have more complex
  structure.

33
Experimental Results(2)
34
What is next?

• Motivation
• Example Pages

• Model Problem Formulation

• Approach in Detail

• Experimental Results
• Conclusion

35
Concluding Remarks

• EXALG first discovers the unknown template that
  generated the pages and uses the discovered
  template to extract the data from the input
  pages.
• Besides getting very good results, EXALG does not
  completely fail to extract any data even when
  some of the assumptions made by EXALG are not met
  by the input collection.
• No human intervention automatically getting
  template and data

36
Future Work

• Automatically locate collections of pages that
  are structured
• Check, whether it is feasible to generate some
  large database from these pages

37
Questions Answers
