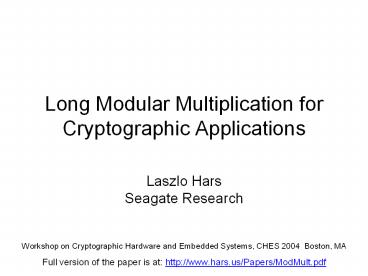

Long Modular Multiplication for Cryptographic Applications

1
Long Modular Multiplication forCryptographic
Applications

• Laszlo Hars
• Seagate Research
• Workshop on Cryptographic Hardware and Embedded
  Systems, CHES 2004 Boston, MA
• Full version of the paper is at
  http//www.hars.us/Papers/ModMult.pdf

2
Outline

• Background (need, algorithms, complexity)
• Target occasional PK crypto (smartcard, OSD)
• Optimizations
• Hardware architecture
• General purpose, support fast modular reduction
• Speed Parallel operation multiply add /
  load
• Memory In-place update
• Algorithmic improvements
• Multiply with short Reciprocal (trial division)
• Precision scaling of reciprocals
• Drop insignificant terms
• Modulus scaling

3
Modular Multiplication

• ab mod m remainder of (ab) m
• Used in RSA, ECC, ElGamal, Diffie-Hellman,
  Primality tests, BBS-PRNG
• Assume a,b,m are n-digit numbers
• m normalized ½ d n  m lt d n
• Digit size (machine word) 16 bits (864)
• n 64 for RSA-1024 (10256)
• Squaring twice faster
• Conserve memory
• Divide after Multiply double length product

4
Modular Multiplication

• Interleaved multiplication and division
• Barrett multiplication
• Multiply with reciprocal (d 2n/m extra n
  digits)
• Quisquater's multiplication
• Scaling the modulus for many MS 1-bits(S extra
  n digits storage)
• Montgomery multiplication
• Number representation a ? ad n mod m
• Right-to-left (simple) interleaved division
• Needs pre- and post processing

5
Sub-Quadratic time algorithms

• Fast multiplications
• Complicated algorithms
• Pays for very long numbers
• Karatsuba O(nlog2 3) faster if n gt 1030
• Toom-Cook 3,4way O(na)
• 3FT (Finite Field Fourier Transform)
  O(nlognloglogn)
• Division multiplication with reciprocal
• Long Reciprocal d 2n/m
• Newton iteration 0.62 multiplication time
• Speed-ups for PKC www.hars.us/Papers/Truncated
  Products.pdf

6
Quadratic time algorithms

• School multiplication n2 digit products
• School division kn2 digit operations
• Quotient digits estimated with short divisions
• Digit-Multiplications other operations
• Simple structure
• No extra storage when interleaved
• Slower
• Quotient digits with trial-and-error
• Goal reduce correction steps

7
Multiply-Accumulate

• DSP multiplication parallel toload / store /
  add / compare
• Order of the digit-product calculation
• Row-order (use input digits sequentially)
• fori 0 a-1 forj 0 b-1 aibj
• More memory access
• Column-order (output digits sequentially)
• fork 0 ab-2 fori,j ij k aibj
• Longer accumulator (can be split)

8
HW Architecture

• General purpose µP with enhancements
• Circuit utilization Multi-use
• DSP structure multiplication others
• Multiplier is large and slow
• Long accumulator
• Split adder / counter
• In-Accumulator instructions
• Quotient-digit correction circuit
• Updateable memory circular offset write

9
HW Architecture

• 16-bit digits
• Shift-add 17.5-bit mult
• In-Accumulator
• Shift
• Add

10
Quotient Digits

• No need to store q
• q ? multiplication with short reciprocal µ
• µ is used many times
• µ ? Newton iteration, look-up table
• All bits - 2 MS digits and 1 bit error 0 or 1
  (-1)
• More than 1-digit reciprocal quotient often OK
• Most economical µ  d n 2/ 2m
  µ1,µ0scale 2m, making µ exact 2-digit
• Special case m  ½ d n ? µ  d 2 -1
• Usable µ  d n 1.5/ m, µ  2d n 1/ m

11
The basic algorithm LRL4
Rn-1n-3 ana-1 bnb-1 d ana-1 bnb-2 ana-2
bnb-1 // Col 1,2 for k nanb-4 n-3 //
Columns to left Rnn-4 Sijk aibj //
Loop-1 to right if (overflow) R - m q
(Rn-1µ1d2 Rn-1µ0d Rn-2µ1d Rn-2µ0)/d32
R (Rqm)d // Loop-2 for k 0 n-4 // LS
digits to left Rnk Sijk aibj // Loop-3
1 while( Rn gt 0 ) R - m // fix overflow
1
2
3
4
Left-Right-Left (military step) algorithm
12
Inner Loops (multiply-add)
Q 0 // 50-bit accumulator for k 0
n-4 Q MS(Q) rk for j  max(0,k1-na)
min(k1,nb) Q ak-jbj rk
D0(Q) for i n-3 n // storing digits Q
MS(Q) ri ri D0(d)
Sijk aibj

• c 0 // 1-digit temp store
• Q 0 // 33-bit accumulator
• for k 0 n-1
• Q MS(Q) c qmk
• c rk
• rk D0(Q)

(Rqm)d
13
Improvements

• Probability of an overflow lt n /d.
• When a, b and m uniform random (?)
• DSP SW mod reduction time 1.0001n2  4n
• multiply time 10 additions 1.000 01n2  4n
• HW assisted time n2  4n
• Variants (Accumulator xn d 3  xn-1d 2  )
• LRL4 q  2(µ1xn d 2  (µ1xn-1µ0 xn) d  µ0
  xn-1) / d 3
• LRL3 q  2(µ1xn d    (µ1xn-1µ0 xn ) ) / d 2
• LRL2 q   (µ1xn d  µ0xn) / d 2d, many
  corrections

Sequential quotient correction
e
2
14
Shorter reciprocal

• 1 digit ? error explosion
• 1 digit 2 bits OK
• µ  ½ 2d n1 / m  d  µ0  d, with d  0 or
  ½
• 50-bit Accumulator with carry c 0 or 1
• R c d 3  xn d 2  xn-1 d  xn-2
• Estimated quotient-digit
• q  (R R d /d ) /d 2  µ0 c  µ0 xn /d
  µR /d
• Mod reduction time
• SW 1.25n2  n (mult 10 adds 1.025n2  n)
• HW n2  n

µ11
Quotient correction
15
Modulus Scaling

• Special m NO multiplication for quotient-digit
• Quotient digit q rn 1
• (0F) MS digit of m d -1 1112
• (10 ) MS 2 digits of m 1,0
• Transform m 1-digit scaling factor S
• mS is n1-digit
• Last reduction step is with m ? n-digit result
• Need to store m and mS
• Faster than Montgomery n2 const
• Montgomery with modulus scaling n2 const
• LS digit of m d -1 1112 (xF)
• Last reduction step is with m ? n-digit result

16
Summary
