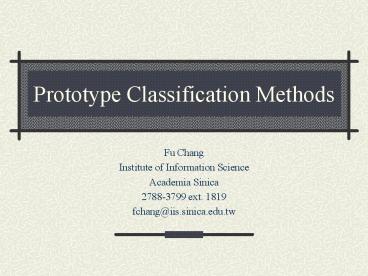

Prototype Classification Methods

1
Prototype Classification Methods

• Fu Chang
• Institute of Information Science
• Academia Sinica
• 2788-3799 ext. 1819
• fchang_at_iis.sinica.edu.tw

2
Types of Prototype Methods

• Crisp model (K-means, KM)
• Prototypes are centers of non-overlapping
  clusters
• Fuzzy model (Fuzzy c-means, FCM)
• Prototypes are weighted average of all samples
• Gaussian Mixture model (GM)
• Prototypes have a mixture of distributions
• Linear Discriminant Analysis (LDA)
• Prototypes are projected sample means
• K-nearest neighbor classifier (K-NN)
• Learning vector quantization (LVQ)

3
Prototypes thru Clustering

• Given the number k of prototypes, find k clusters
  whose centers are prototypes
• Commonality
• Use iterative algorithm, aimed at decreasing an
  objective function
• May converge to local minima
• The number of k as well as an initial solution
  must be specified

4
Clustering Objectives

• The aim of the iterative algorithm is to decrease
  the value of an objective function
• Notations
• Samples
• Prototypes
• L2-distance

5
Objectives (cntd)

• Crisp objective
• Fuzzy objective
• Gaussian mixture objective

6
K-Means Clustering
7
The Algorithm

• Initiate k seeds of prototypes p1, p2, , pk
• Grouping
• Assign samples to their nearest prototypes
• Form non-overlapping clusters out of these
  samples
• Centering
• Centers of clusters become new prototypes
• Repeat the grouping and centering steps, until
  convergence

8
Justification

• Grouping
• Assigning samples to their nearest prototypes
  helps to decrease the objective
• Centering
• Also helps to decrease the above objective,
  because
• and equality holds only if

9
Exercise

• Prove that for any group of vectors yi, the
  following inequality is always true
• Prove that the equality holds only when
• Use this fact to prove that the centering step is
  helpful to decrease the objective function

10
Fuzzy c-Means Clustering
11
Crisp vs. Fuzzy Membership

• Membership matrix Ucn
• Uij is the grade of membership of sample j with
  respect to prototype i
• Crisp membership
• Fuzzy membership

12
Fuzzy c-means (FCM)

• The objective function of FCM is

13
FCM (Cntd)

• Introducing the Lagrange multiplier ? with
  respect to the constraint
• we rewrite the objective function as

14
FCM (Cntd)

• Setting the partial derivatives to zero, we obtain

15
FCM (Cntd)

• From the 2nd equation, we obtain
• From this fact and the 1st equation, we obtain

16
FCM (Cntd)

• Therefore,
• and

17
FCM (Cntd)

• Together with the 2nd equation, we obtain the
  updating rule for uij

18
FCM (Cntd)

• On the other hand, setting the derivative of J
  with respect to pi to zero, we obtain

19
FCM (Cntd)

• It follows that
• Finally, we can obtain the update rule of ci

20
FCM (Cntd)

• To summarize

21
K-means vs. Fuzzy c-means
Sample Points
22
K-means vs. Fuzzy c-means
K-means
Fuzzy c-means
23
Expectation-Maximization (EM) Algorithm
24
What Is Given

• Observed data X x1, x2, , xn, each of them
  is drawn independently from a mixture of
  probability distributions with the density
• where

25
Incomplete vs. Complete Data

• The incomplete-data log-likelihood is given by
• which is difficult to optimize
• The complete-data log-likelihood
• can be handled much easily, where H is the
  set of hidden random variables
• How do we compute the distribution of H?

26
EM Algorithm

• E-Step first find the expected value
• where is the current estimate of
• M-Step Update the estimate
• Repeat the process, until convergence

27
E-M Steps
28
Justification

• The expected value (the circled term) is the
  lower bound of the log-likelihood

29
Justification (Cntd)

• The maximum of the lower bound equals to the
  log-likelihood
• The first term of (1) is the relative entropy of
  q(h) with respect to
• The second term is a magnitude that does not
  depend on h
• We would obtain the maximum of (1) if the
  relative entropy becomes zero
• With this choice, the first term becomes zero and
  (1) achieves the upper bound, which is

30
Details of EM Algorithm

• Let be
  the guessed values of
• For the given , we can compute

31
Details (Cntd)

• We then consider the expected value

32
Details (Cntd)

• Lagrangian and partial derivative equation

33
Details (Cntd)

• From (2), we derive that ? - n and
• Based on these values, we can derive the optimal
  for , of which only the following
  part involves

34
Exercise

• Deduce from (1) that ? - n and

35
Gaussian Mixtures

• The Gaussian distribution is given by
• For Gaussian mixtures,

36
Gaussian Mixtures (Cntd)

• Partial derivative
• Setting this to zero, we obtain

37
Gaussian Mixtures (Cntd)

• Taking the derivative of with
  respect to
• and setting it to zero, we get
• (many details are omitted)

38
Gaussian Mixtures (Cntd)

• To summarize

39
Linear Discriminant Analysis(LDA)
40
Illustration
41
Definitions

• Given
• Samples x1, x2, , xn
• Classes ni of them are of class i, i 1, 2, ,
  c
• Definition
• Sample mean for class i
• Scatter matrix for class i

42
Scatter Matrices

• Total scatter matrix
• Within-class scatter matrix
• Between-class scatter matrix

43
Multiple Discriminant Analysis

• We seek vectors wi, i 1, 2, .., c-1
• And project the samples x to the c-1 dimensional
  space y
• The criterion for W (w1, w2, , wc-1) is

44
Multiple Discriminant Analysis (Cntd)

• Consider the Lagrangian
• Take the partial derivative
• Setting the derivative to zero, we obtain

45
Multiple Discriminant Analysis (Cntd)

• Find the roots of the characteristic function as
  eigenvalues
• and then solve
• for wi for the largest c-1 eigenvalues

46
LDA Prototypes

• The prototype of each class is the mean of the
  projected samples of that class, the projection
  is thru the matrix W
• In the testing phase
• All test samples are projected thru the same
  optimal W
• The nearest prototype is the winner

47
K-Nearest Neighbor (K-NN) Classifier
48
K-NN Classifier

• For each test sample x, find the nearest K
  training samples and classify x according to the
  vote among the K neighbors
• The error rate is
• where
• This shows that the error rate is at most twice
  the Bayes error

49
Learning Vector Quantization (LVQ)
50
LVQ Algorithm

• Initialize R prototypes for each class m1(k),
  m2(k), , mR(k), where k 1, 2, , K.
• Sample a training sample x and find the nearest
  prototype mj(k) to x
• If x and mj(k) match in class type,
• Otherwise,
• Repeat step 2, decreasing e at each iteration

51
References

• F. Höppner, F. Klawonn, R. Kruse, and T. Runkler,
  Fuzzy Cluster Analysis Methods for
  Classification, Data Analysis and Image
  Recognition, John Wiley Sons, 1999.
• J. A. Bilmes, A Gentle Tutorial of the EM
  algorithm and its Application to Parameter
  Estimation for Gaussian Mixture and Hidden Markov
  Models, www.cs.berkeley.edu/daf/appsem/WordsAndP
  ictures/Papers/bilmes98gentle.pdf
• T. P. Minka, Expectation-Maximization as Lower
  Bound Maximization, www.stat.cmu.edu/minka/paper
  s/em.html
• R. O. Duda, P. E. Hart, and D. G. Stork, Pattern
  Classification, 2nd Ed., Wiley Interscience,
  2001.
• T. Hastie, R. Tibshirani, and J. Friedman, The
  Elements of Statistical Learning,
  Springer-Verlag, 2001.
