Data MiningKnowledge Presentation 2

1

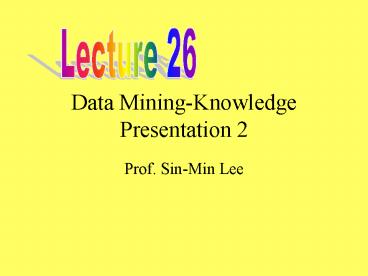

Data Mining-Knowledge Presentation 2
Lecture 26

• Prof. Sin-Min Lee

2
Overview

• Association rules are useful in that they
  suggest hypotheses for future research
• Association rules integrated into the generic
  actual argument model can assist in identifying
  the most plausible claim from given data items in
  a forward inference way or the likelihood of
  missing data values in a backward inference way

3

• What is data mining ? What is knowledge discovery
  from databases KDD?

• knowledge discovery in databases (KDD) is the
  'non trivial extraction of nontrivial of
  implicit, previously unknown, and potentially
  useful information from data

4

• KDD encompasses a number of different technical
  approaches, such as clustering, data
  summarization, learning classification rules,
  finding dependency networks, analyzing changes,
  and detecting anomalies
• KDD has only recently emerged because we only
  recently have been gathering vast quantities of
  data

5

• Examples of KDD studies

• Mangasarian et al (1997) Breast Cancer
  diagnosis. A sample from breast lump mass is
  assessed by
• mammagrophy (not sensitive 68-79)
• data mining from FNA test results and visual
  inspection (65-98)
• surgery (100 but invasive, expensive)
• Basket analysis. People who buy nappies also buy
  beer
• NBA. National Basketball Association of America.
  Player pattern profile. Bhandary et al (1997)
• Credit card fraud detection
• Stranieri/Zeleznikow (1997) predict family law
  property outcomes
• Rissland and Friedman (1997) discovers a change
  in the concept of good faith in US Bankruptcy
  cases
• Pannu (1995) discovers a prototypical case from a
  library of cases
• Wilkins and Pillaipakkamnatt (1997) predicts the
  time a case takes to be heard
• Veliev et al (1999) association rules for
  economic analaysis

6

• Overview of process of knowledge discovery in
  databases ?

7

• Phase 4. Data mining

• Finding patterns in data or fitting models to
  data
• Categories of techniques
• Predictive (classification neural networks, rule
  induction, linear, multiple regression)
• Segmentation (clustering, k-means, k-median)
• Summarisation (associations, visualisation)
• Change detection/modelling

8
What Is Association Mining?

• Association rule mining
• Finding frequent patterns, associations,
  correlations, or causal structures among sets of
  items or objects in transaction databases,
  relational databases, and other information
  repositories.
• Applications
• Basket data analysis, cross-marketing, catalog
  design, loss-leader analysis, clustering,
  classification, etc.
• Examples.
• Rule form Body Head support, confidence.
• buys(x, diapers) buys(x, beers) 0.5,
  60
• major(x, CS) takes(x, DB) grade(x, A)
  1, 75

9
More examples

• age(X, 20..29) income(X, 20..29K) à buys(X,
  PC) support 2, confidence 60
• contains(T, computer) à contains(x, software)
  1, 75

10

• Association rules are a data mining technique

• An association rules tell us something about the
  association between two attributes
• Agrawal et al (1993) developed the first
  association rule algorithm, Apriori
• A famous (but unsubstantiated AR) from a
  hypothetical supermarket transaction database is
  if nappies then beer (80) Read this as nappies
  are bought implies beer are bought 80 of the
  time
• Association rules have only recently been
  applied to law with promising results
• Association rules can automatically discover
  rules that may prompt an analyst to think of
  hypothesis they would otherwise have considered

11
Rule Measures Support and Confidence
Support and confidence are two independent
notions.
Customer buys both

• Find all the rules X Y ? Z with minimum
  confidence and support
• support, s, probability that a transaction
  contains X ? Y ? Z
• confidence, c, conditional probability that a
  transaction having X ? Y also contains Z

Customer buys diaper
Customer buys beer

• Let minimum support 50, and minimum confidence
  50, we have
• A ? C (50, 66.6)
• C ? A (50, 100)

12
Mining Association RulesAn Example
Min. support 50 Min. confidence 50

• For rule A ? C
• support support(A ?C) 50
• confidence support(A ?C)/support(A) 66.6

13
Two Step Association Rule Mining

• Step 1 Frequent itemset generation use Support
• Step 2 Rule generation use Confidence

14
milk, bread is a frequent item set. Folks
buying milk, also buy bread. Is it also true?
Folks buying bread also buy milk.
15

• Confidence and support of an association rule

• 80 is the confidence of the rule if nappies
  then beer (80). This is calculated by n2/n1
  where
• n1 no of records where nappies are bought
• n2 no of records where nappies were bought and
  beer was also bought.
• if 1000 transactions for nappies, and of those,
  800 also had beer then confidence is 80.
• A rule may have a high confidence but not be
  interesting because it doesnt apply to many
  records in the database. i.e. no. of records
  where nappies were bought with beer / total
  records.
• Rules that may be interesting have a confidence
  level and support level above a user set
  threshold

16

• Interesting rules Confidence and support of an
  association rule

• if 1000 transactions for nappies, and of those,
  800 also had beer then confidence is 80.
• A rule may have a high confidence but not be
  interesting because it doesnt apply to many
  records in the database. i.e. no. of records
  where nappies were bought with beer / total
  records.
• Rules that may be interesting have a confidence
  level and support level above a user set
  threshold

17
Association rule screen shot with A-Miner from
Split Up data set

• In 73.4 of cases where the wife's needs are
  some to high then the husband's future needs are
  few to some.
• Prompts an analyst to posit plausible hypothesis
  e.g. it may be the case that the rule reflects
  the fact that more women remain custodial parents
  of the children following divorce than men do.
  The women that have some to high needs may do so
  because of their obligation to children.

18
Mining Frequent Itemsets the Key Step

• Find the frequent itemsets the sets of items
  that have minimum support
• A subset of a frequent itemset must also be a
  frequent itemset Apriori principle
• i.e., if AB is a frequent itemset, both A and
  B should be a frequent itemset
• Iteratively find frequent itemsets with
  cardinality from 1 to k (k-itemset)
• Use the frequent itemsets to generate association
  rules.

19
The Apriori Algorithm

• Join Step Ck is generated by joining Lk-1with
  itself
• Prune Step Any (k-1)-itemset that is not
  frequent cannot be a subset of a frequent
  k-itemset
• Pseudo-code
• Ck Candidate itemset of size k
• Lk frequent itemset of size k
• L1 frequent items
• for (k 1 Lk !? k) do begin
• Ck1 candidates generated from Lk
• for each transaction t in database do
• increment the count of all candidates in
  Ck1 that are
  contained in t
• Lk1 candidates in Ck1 with min_support
• end
• return ?k Lk

20
Association rules in law

• Association rules generators are typically
  packaged with very expensive data mining suites.
  We developed A-Miner (available from authors) for
  a PC platform.
• Typically, too many association rules are
  generated for feasible analysis. So, our current
  research involves exploring metrics of
  interesting to restrict numbers of rules that
  might be interesting
• In general, structured data is not collected in
  law as it is in other domains so very large
  databases are rare
• Our current research involves 380,000 records
  from a Legal Aid organization data base that
  contains data on client features.
• ArgumentDeveloper shell that can be used by
  judges to structure their reasoning in a way that
  will facilitate data collection and reasoning

21
The Apriori Algorithm Example
Support 2
Database D
L1
C1
Scan D
C2
C2
L2
Scan D
22
Join Operation Example
Infrequent Subset
1 3 1 3 1 3 2 3 1 3 2 5 1 3 3 5
null 1 2 3 null 1 3 5
1 2 1 5
L2
L2
2 3 2 3 2 3 2 5 2 3 3 5
null 2 3 5 2 3 5
2 5 2 5 2 5 3 5
null 2 3 5
C3
L3
Scan D
23
Anti-Monotone Property
If a set cannot pass a test, all of its
supersets will fail the same test as well.
If 2 3 does not have a support, nor will 1 2
3, 2 3 5, 1 2 3 5, etc. If 2 3 occurs
only in 5 times, can 2 3 5 occur in 8 times?
24
How to Generate Candidates?

• Suppose the items in Lk-1 are listed in an order
• Step 1 self-joining Lk-1
• insert into Ck
• select p.item1, p.item2, , p.itemk-1, q.itemk-1
• from Lk-1 p, Lk-1 q
• where p.item1q.item1, , p.itemk-2q.itemk-2,
  p.itemk-1
• Step 2 pruning
• forall itemsets c in Ck do
• forall (k-1)-subsets s of c do
• if (s is not in Lk-1) then delete c from Ck

25
Example of Generating Candidates

• L3abc, abd, acd, ace, bcd
• Self-joining L3L3
• abcd from abc and abd
• acde from acd and ace
• Pruning
• acde is removed because ade is not in L3
• C4abcd

Problem of generate--test heuristic
26
Association rules can be used for forward and
backward inferences in the generic/actual
argument model for sentencing armed robbery
27
Generic/actual argument model for sentencing
armed robbery
28
Forward inference confidence

• In the sentence actual argument database the
  following outcomes were noted for the inputs
  suggested

57 0.1 0 12 2 10 16 0 0 0
29
Backward inference constructing the strongest
argument
If all the items you suggest AND
If extremely serious pattern of priors then
imprisonment If very serious pattern of priors
then imprisonment If serious pattern of priors
then imprisonment If not so serious pattern of
priors then imprisonment If no prior convictions
then imprisonment
90 2
75 7
68 17
78 17
2 3
30
Conclusion

• Data mining or Knowledge discovery from databases
  has not been appropriately exploited in law to
  date.
• Association rules are useful in that they
  suggest hypotheses for future research
• Association rules integrated into the generic
  actual argument model can assist in identifying
  the most plausible claim from given data items in
  a forward inference way or the likelihood of
  missing data values in a backward inference way

31
Generating Association Rules

• For each nonempty subset s of l, output the rule

• s (l - s)
• if support_count(l) / support_count(s)
  min_conf
• where min_conf is the minimum confidence
  threshold.

l 2 3 5,
2 3,
2,
3 5,
3,
2 5,
5.
s of l are
Candidate rules
2 3 5
2 3 5
3 5 2
3 2 5
2 5 3
5 2 3
32
Generating Association Rules

• if support_count(l) / support_count(s)
  min_conf (e.g,75),
• then introduce the rule s
  (l - s).

l 2 3 5
s 2 3
2
3 5
3
2 5
5
2 3 5 2/2
2 3 5 2/3
3 5 2 2/2
3 2 5 2/3
2 5 3 2/3
5 2 3 2/3
33
Presentation of Association Rules (Table Form )
34
Visualization of Association Rule Using Plane
Graph
35
Visualization of Association Rule Using Rule Graph
36
(No Transcript)
37
(No Transcript)
38

• Decision tree is a classifier in the form of a
  tree structure where each node is either
•        a leaf node, indicating a class of
  instances, or
•        a decision node that specifies some test
  to be carried out on a single attribute value,
  with one branch and sub-tree for each possible
  outcome of the test.
•
• A decision tree can be used to classify an
  instance by starting at the root of the tree and
  moving through it until a leaf node, which
  provides the classification of the instance.
•

39

• Example Decision making in the London stock
  market
•
• Suppose that the major factors affecting the
  London stock market are
•
•           what it did yesterday
•           what the New York market is doing
  today
•           bank interest rate
•           unemployment rate
•           Englands prospect at cricket.
•

40
(No Transcript)
41
(No Transcript)
42
The process of predicting an instance by this
decision tree can also be expressed by answering
the questions in the following order Is
unemployment high? YES The London market
will rise today NO Is the New York market
rising today? YES The London market will rise
today NO The London market will not rise
today.
43

• Decision tree induction is a typical inductive
  approach to learn knowledge on classification.
  The key requirements to do mining with decision
  trees are
•        Attribute-value description object or
  case must be expressible in terms of a fixed
  collection of properties or attributes.
•         Predefined classes The categories to
  which cases are to be assigned must have been
  established beforehand (supervised data).
•        Discrete classes A case does or does not
  belong to a particular class, and there must be
  for more cases than classes.
•        Sufficient data Usually hundreds or even
  thousands of training cases.
•         Logical classification model
  Classifier that can be only expressed as decision
  trees or set of production rules
•
•

44
(No Transcript)
45
(No Transcript)
46
An appeal of market analysis comes from the
clarity and utility of its results, which are in
the form of association rules. There is an
intuitive appeal to a market analysis because it
expresses how tangible products and services
relate to each other, how they tend to group
together. A rule like, if a customer purchases
three way calling, then that customer will also
purchase call waiting is clear. Even better, it
suggests a specific course of action, like
bundling three-way calling with call waiting into
a single service package. While association rules
are easy to understand, they are not always
useful.
47

• The following three rules are examples of real
  rules generated from real data
• On Thursdays, grocery store consumers often
  purchase diapers and beer together.
•    Customers who purchase maintenance agreements
  are very likely to purchase large appliances.
•   When a new hardware store opens, one of the
  most commonly sold items is toilet rings.
• These three examples illustrate the three common
  types of rules produced by association rule
  analysis the useful, the trivial, and the
  inexplicable.

48
(No Transcript)
49
OLAP (Summarization) Display Using MS/Excel 2000
50
Market-Basket-Analysis (Association)Ball graph
51
Display of Association Rules in Rule Plane Form
52
Display of Decision Tree (Classification Results)
53
Display of Clustering (Segmentation) Results
54
3D Cube Browser
