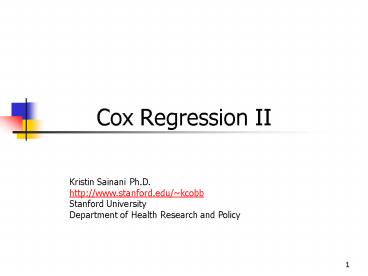

Cox Regression II

1
Cox Regression II
Kristin Sainani Ph.D.http//www.stanford.edu/kco
bbStanford UniversityDepartment of Health
Research and Policy
2
Topics

• Stratification
• Age as time scale
• Residuals
• Repeated events
• Intention-to-treat analysis for RCTs

3

1. Stratification

• Violations of PH assumption can be resolved by
• Adding timecovariate interaction
• Adding other time-dependent version of the
  covariate
• Stratification

4

Stratification

• Different stratum are allowed to have different
  baseline hazard functions.
• Hazard functions do not need to be parallel
  between different stratum.
• Essentially results in a weighted hazard ratio
  being estimated weighted over the different
  strata.
• Useful for nuisance confounders (where you do
  not care to estimate the effect).
• Does not allow you to evaluate interaction or
  confounding of stratification variable (will miss
  possible interactions).

5

Example stratify on gender

• Males 1, 3, 4, 10, 12, 18 (subjects 1-6)
• Females 1, 4, 5, 9 (subjects 7-10)

6
The PL
7

2. Using age as the time-scale in Cox Regression

• Age is a common confounder in Cox Regression,
  since age is strongly related to death and
  disease.
• You may control for age by adding baseline age as
  a covariate to the Cox model.
• A better strategy for large-scale longitudinal
  surveys, such as NHANES, is to use age as your
  time-scale (rather than time-in-study).
• You may additionally stratify on birth cohort to
  control for cohort effects.

8
Age as time-scale

• The risk set becomes everyone who was at risk at
  a certain age rather than at a certain event
  time.
• The risk set contains everyone who was still
  event-free at the age of the person who had the
  event.
• Requires enough people at risk at all ages (such
  as in a large-scale, longitudinal survey).

9
The likelihood with age as time
Event times 3, 5, 7, 12, 13 (years-in-study) Ba
seline ages 28, 25, 40, 29, 30 (years) Age at
event or censoring 31, 30, 47, 41, 43
10
3. Residuals

• Residuals are used to investigate the lack of fit
  of a model to a given subject.
• For Cox regression, theres no easy analog to the
  usual observed minus predicted residual of
  linear regression

11
Martingale residual

• ci (1 if event, 0 if censored) minus the
  estimated cumulative hazard to ti (as a function
  of fitted model) for individual i
• ci-H(ti,Xi,?ßi)
• E.g., for a subject who was censored at 2 months,
  and whose predicted cumulative hazard to 2 months
  was 20
• Martingale0-.20 -.20
• E.g., for a subject who had an event at 13
  months, and whose predicted cumulative hazard to
  13 months was 50
• Martingale1-.50 .50
• Gives excess failures.
• Martingale residuals are not symmetrically
  distributed, even when the fitted model is
  correctly, so transform to deviance residuals...

12
Deviance Residuals

• The deviance residual is a normalized transform
  of the martingale residual. These residuals are
  much more symmetrically distributed about zero.
• Observations with large deviance residuals are
  poorly predicted by the model.

13
Deviance Residuals

• Behave like residuals from ordinary linear
  regression
• Should be symmetrically distributed around 0 and
  have standard deviation of 1.0.
• Negative for observations with longer than
  expected observed survival times.
• Plot deviance residuals against covariates to
  look for unusual patterns.

14
Deviance Residuals

• In SAS, option on the output statement
• Output outoutdata resdevVarname
• Cannot get diagnostics in SAS if time-dependent
  covariate in the model

15
Example uis data
Pattern looks fairly symmetric around 0.
16
Example uis data
17
Example censored only
18
Example had event only
19
Schoenfeld residuals

• Schoenfeld (1982) proposed the first set of
  residuals for use with Cox regression packages
• Schoenfeld D. Residuals for the proportional
  hazards regresssion model. Biometrika, 1982,
  69(1)239-241.
• Instead of a single residual for each individual,
  there is a separate residual for each individual
  for each covariate
• Note Schoenfeld residuals are not defined for
  censored individuals.

20
Schoenfeld residuals

• The Schoenfeld residual is defined as the
  covariate value for the individual that failed
  minus its expected value. (Yields residuals for
  each individual who failed, for each covariate).
• Expected value of the covariate at time ti a
  weighted-average of the covariate, weighted by
  the likelihood of failure for each individual in
  the risk set at ti.

21
Example

• 5 people left in our risk set at event time7
  months
• Female 55-year old smoker
• Male 45-year old non-smoker
• Female 67-year old smoker
• Male 58-year old smoker
• Male 70-year old non-smoker
• The 55-year old female smoker is the one who has
  the event

22
Example

• Based on our model, we can calculate a predicted
  probability of death by time 7 for each person
  (call it p-hat)
• Female 55-year old smoker p-hat.10
• Male 45-year old non-smoker p-hat.05
• Female 67-year old smoker p-hat.30
• Male 58-year old smoker p-hat.20
• Male 70-year old non-smoker p-hat.30
• Thus, the expected value for the AGE of the
  person who failed is
• 55(.10) 45 (.05) 67(.30) 58 (.20) 70
  (.30) 60
• And, the Schoenfeld residual is 55-60 -5

23
Example

• Based on our model, we can calculate a predicted
  probability of death by time 7 for each person
  (call it p-hat)
• Female 55-year old smoker p-hat.10
• Male 45-year old non-smoker p-hat.05
• Female 67-year old smoker p-hat.30
• Male 58-year old smoker p-hat.20
• Male 70-year old non-smoker p-hat.30
• The expected value for the GENDER of the person
  who failed is
• 0(.10) 1(.05) 0(.30) 1 (.20) 1 (.30) .55
• And, the Schoenfeld residual is 0-.55 -.55

24
Schoenfeld residuals

• Since the Schoenfeld residuals are, in principle,
  independent of time, a plot that shows a
  non-random pattern against time is evidence of
  violation of the PH assumption.
• Plot Schoenfeld residuals against time to
  evaluate PH assumption
• Regress Schoenfeld residuals against time to test
  for independence between residuals and time.

25
Example no pattern with time
26
Example violation of PH
27
Schoenfeld residuals

• In SAS
• option on the output statement
• Output outoutdata ressch Covariate1 Covariate2
  Covariate3

28
Summary of the many ways to evaluate PH
assumption

• 1. Examine log(-log(S(t)) plots
• PH assumption is supported by parallel lines and
  refuted by lines that cross or nearly cross
• Must use categorical predictors or categories of
  a continuous predictor
• 2. Include interaction with time in the model
• PH assumption is supported by non-significant
  interaction coefficient and refuted by
  significant interaction coefficient
• Retaining the interaction term in the model
  corrects for the violation of PH
• Dont complicate your model in this way unless
  its absolutely necessary!
• 3. Plot Schoenfeld residuals
• PH assumption is supported by a random pattern
  with time and refuted by a non-random pattern
• 4. Regress Schoenfeld residuals against time to
  test for independence between residuals and time.
• PH assumption is supported by a non-significant
  relationship between residuals and time, and
  refuted by a significant relationship

29

4. Repeated events

• Death (presumably) can only happen once, but many
  outcomes could happen twice
• Fractures
• Heart attacks
• Pregnancy
• Etc

30

Repeated events 1

• Strategy 1 run a second Cox regression (among
  those who had a first event) starting with first
  event time as the origin
• Repeat for third, fourth, fifth, events, etc.
• Problems increasingly smaller and smaller sample
  sizes.

31

Repeated events Strategy 2

• Treat each interval as a distinct observation,
  such that someone who had 3 events, for example,
  gives 3 observations to the dataset
• Major problem dependence between the same
  individual

32

Strategy 3

• Stratify by individual (fixed effects partial
  likelihood)
• In PROC PHREG strata id
• Problems
• does not work well with RCT data
• requires that most individuals have at least 2
  events
• Can only estimate coefficients for those
  covariates that vary across successive spells for
  each individual this excludes constant personal
  characteristics such as age, education, gender,
  ethnicity, genotype

33
5. Considerations when analyzing data from an RCT
34
Intention-to-Treat Analysis

• Intention-to-treat analysis compare outcomes
  according to the groups to which subjects were
  initially assigned, regardless of which
  intervention they actually received.
• Evaluates treatment effectiveness rather than
  treatment efficacy

35
Why intention to treat?

• Non-intention-to-treat analyses lose the benefits
  of randomization, as the groups may no longer be
  balanced with regards to factors that influence
  the outcome.
• Intention-to-treat analysis simulates real
  life, where patients often dont adhere
  perfectly to treatment or may discontinue
  treatment altogether.

36
Drop-ins and Drop-outs example, WHI
Womens Health Initiative Writing Group.
JAMA. 2002288321-333.
37
Effect of Intention to treat on the statistical
analysis

• Intention-to-treat analyses tend to underestimate
  treatment effects increased variability waters
  down results.

38
Example

• Take the following hypothetical RCT
• Treated subjects have a 25 chance of dying
  during the 2-year study vs. placebo subjects have
  a 50 chance of dying.
• TRUE RR 25/50 .50 (treated have 50 less
  chance of dying)
• You do a 2-yr RCT of 100 treated and 100 placebo
  subjects.
• If nobody switched, you would see about 25 deaths
  in the treated group and about 50 deaths in the
  placebo group (give or take a few due to random
  chance).
• ?Observed RR? .50

39
Example, continued

• BUT, if early in the study, 25 treated subjects
  switch to placebo and 25 placebo subjects switch
  to control.
• You would see about
• 25.25 75.50 43-44 deaths in the placebo
  group
• And about
• 25.50 75.25 31 deaths in the treated group
• Observed RR 31/44 ? .70
• Diluted effect!

40
References

• Paul Allison. Survival Analysis Using SAS. SAS
  Institute Inc., Cary, NC 2003.
