Irish Field Study

1

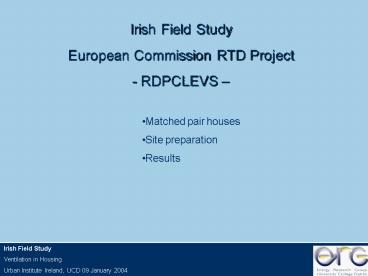

Irish Field Study European Commission RTD
Project - RDPCLEVS

• Matched pair houses
• Site preparation
• Results

Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
2

• Matched pair houses
• Northern Ireland Housing Executive

Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
3

• Matched pair houses
• Northern Ireland Housing Executive

Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
4

• Matched pair houses
• Northern Ireland Housing Executive

Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
5

• Matched pair houses
• Northern Ireland Housing Executive

Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
6

• Matched pair houses
• Northern Ireland Housing Executive

Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
7

• Matched pair houses
• Northern Ireland Housing Executive

Ground floor (0.54 W/m2K) Plastic tile floor
covering Concrete panel 300mm Internal
walls Skim 2mm Concrete panel 110mm Skim 2mm
Windows (6.0 W/m2K) White timber frame Single
glazing
External wall (1.1 W/m2K) External
render 10mm Concrete panel 115mm Filled cavity
(beads) 60mm Concrete panel 140mm Pitched roof
(0.6 W/m2K) Concrete tile 25mm Roofspace
void standard Glasswool insulation 50mm Plaster
board ceiling 25mm
Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
8

• Matched pair houses
• Northern Ireland Housing Executive
• 140,000 dwellings

First floor flat 17.0 Bungalow 18.3 End
Terrace 22.5 Mid Terrace 22.0 Semi-detach
ed 9.5 Total 89.3
Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
9
Site preparation

• Depressurisation tests
• Test 1.1 reduced 0.36 ach
• Control 1.3 reduced 0.40 ach

• Air leakage points
• External door draughtstripping
• Cracked paint around window frames
• Cylinder cupboard door frame
• Retrofit issues!

Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
10
Site preparation
Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
11
Site preparation
Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
12
Site preparation
Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
13
Results
Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
14
Results

• Monitoring results

• Set-up
• Two supply air windows (SAWs) ground floor
  kitchen and first floor bedroom both with same
  orientation
• PSV stacks in kitchen, ground floor bathroom and
  first floor landing
• Thermocouples monitor internal, cavity and outlet
  temperatures on both SAWs
• Dantec anemometers monitor all stack flow
  velocities
• Heat flux mats monitor external pane heat flux on
  both SAWs
• HOBO stand alone loggers monitor kitchen,
  bathroom and bedroom temperatures and humidity in
  both houses

Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
15
Site works

• PSV Danish roof terminals

Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
16
Site results

• Monitoring results

Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
17
Site results

• Monitoring results

Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
18
Site results

• Monitoring results

Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
19
Site results

• Monitoring results

Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
20
Site results

• Monitoring results

Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
21
Site results

• Monitoring results

Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
22
Site results

• Monitoring results

Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
23
Site results

• Monitoring results

Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
24
Site results

• Monitoring results

Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
25
Site results

• Monitoring results

Irish Field Study Ventilation in
Housing Urban Institute Ireland, UCD 09
January 2004
26
Site results

• Measured
• Nov 27 Dec 15 saving 15
• Dec 15 Jan 07 saving 13

Technology Average Ranking Energy savings
() Airtightness 1.00 6.0 9.0 Ground
floor insulation 2.25 26.2 39.5 Roof
insulation 2.60 4.5 21.2 Roofspace
solar collector 4.25 20.3 30.0 Advanced
windows 5.00 11.0 17.0 Transparent
insulation 5.40 12.4 21.3 Sunspace 6.20
12.0 17.0 MVHR 7.80 13.8
17.5 Internal insulation 8.60 10.0
21.3 External insulation 9.40 10.2 21.7

• Simulated
