Scaling to Infinity: Partitioning in Data Warehouses in Oracle

1

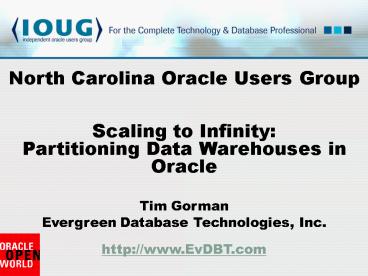

North Carolina Oracle Users GroupScaling to
InfinityPartitioning Data Warehouses in Oracle
Tim GormanEvergreen Database Technologies, Inc.
http//www.EvDBT.com
2
Speaker Qualifications

• Tim Gorman (chief, cook, and bottle-washer
  EvDBT.com)
• Director of RMOUG Training Days 2007 conference
• Info online at http//www.RMOUG.org
• Co-author (with Gary Dodge)
• Oracle8 Data Warehousing 1998 John Wiley Sons
• Essential Oracle8i Data Warehousing 2000 John
  Wiley Sons
• Co-author (with Oak Table Network -
  http//www.OakTable.net)
• Oracle Insights Tales of the Oak Table 2004
  Apress
• Oracle data warehousing DBA since 1994
• Technical manager at Oracle Consulting
• Independent consultant since 1998

3
Agenda

• Ive seen the good, the bad, and the ugly
• In the end, successful data warehouses are a
  combination of all three
• But in general, I see three major errors that
  result in doom
• Ignore basic requirements for DW and design what
  is familiar
• Fail to portray data changes over time
• Fail to utilize partitioning from the beginning

4
Ignoring the requirements

• Repeat after me -- reporting and analysis
  applications do not enforce business rules!
• Reporting and analysis applications are
  responsible for presenting data in the format
  that works best for end-users and their
  query/analysis tools
• Very often, what end-users seem to want is a
  simple spreadsheet, hundreds of columns wide
• GIVE THEM WHAT THEY WANT!
• Conceal from them what it takes to provide what
  they want
• Do NOT build a data model to enforce referential
  integrity and/or business rules

5
Ignoring the requirements

• Third-normal form
• Eliminate repeating groups
• Every attribute is atomic and scalar
• Eliminate functional dependencies on composite
  key components
• Every attribute is functionally dependent on the
  whole key
• Eliminate functional dependencies on non key
  components
• Every fact/attribute in the entity should rely on
  the whole key
• 4th, 5th, and 6th normal forms have been defined
• But most entities that are in 3NF are also 4th,
  5th, and 6th NF
• Intended for use in process-oriented operational
  systems
• enforce data integrity according to business
  rules
• using referential-integrity constraint mechanisms
  in application code as well as databases

6
Ignoring the requirements

• Data presented in a simplistic dimensional model
  versus the 3rd-normal-form (3NF)
  entity-relationship model used by most
  operational systems
• Ralph Kimball discusses in The Data Warehouse
  Toolkit
• John Wiley Sons - ISBN 0471153370
• provide immediate, on-demand, and
  high-performance access to corporate or
  organizational subject data
• comprised of fact tables containing varying
  levels of summarized data and dimension tables
  representing important subject areas
• very simple representation of data
• It is a spreadsheet with one degree of
  normalization for flexibility
• also known as a star schema because diagrams
  generally represent the fact table as a hub and
  dimensions as spokes

7
Ignoring the requirements
Transactional Operational Entity-Relational Modeli
ng
Dimensional Modeling
Customers
Suppliers
Products Dim
Suppliers Dim
Orders
Products
Order Facts
Order Lines
Customers Dim
Time Dim
8
Ignoring the requirements

• Fact tables
• More volatile
• Contain columns for
• Dimension keys
• Measures
• In a spreadsheet or tabular report
• Dimension keys dont appear at all
• Measures appear in the cells of the report
• Dimension tables
• Usually more static
• Although the dimension for people is usually
  quite volatile
• Contain columns for
• Dimension keys
• Attributes
• In a spreadsheet or tabular report
• Dimension keys dont appear at all
• Attributes appear as column headers or row
  headers

9
Time-variant data, who cares?

• Two major types of queries from business
  intelligence applications to data warehouse
  databases
• Point in time
• What is the present situation? What do the
  numbers look like now?
• Situational awareness applications, also known
  as dashboards or executive information
  systems
• Usually uses the present point in time, but could
  also use any specific point in time in the past
• Trend analysis
• How do things look now versus 3 months ago? A
  year ago?
• How have things changed day-by-day over the past
  quarter? Week-by-week over the past year?
  Month-by-month over the past 7 years?

10
Time-variant data, who cares?

• Consider this
• Dimension tables are usually designed to be
  point-in-time or type-1
• People, items, products, etc.
• Locations, time, etc.
• Fact tables are almost always designed to be
  time-variant or type-2
• Transactions
• What happens when you join transactions from
  years ago with dimensional attributes from the
  present?
• For example, when analyzing purchases by
  location, does it make sense to summarize all
  transactions by a persons present location?
• Or should it reflect the persons location at the
  time of the transaction?

11
Time-variant data, who cares?

• Every data warehouse has at least one
  slowly-changing dimension (SCD)
• Usually involving people (i.e. accounts,
  customers, employees, parties, etc)
• Static dimensions do not need to be time-variant
• Identifying static dimensions if a change is
  made to the dimension, should it be reflected
  across all time?
• SCDs should be represented as type-2
• type-1 views of SCDs can be created as needed
• type-1 views of fact tables can also be
  created, if necessary, to support point-in-time
  tactical reporting

12
Time-variant data, who cares?
Type-2 Dimension (time-variant)
Type-1 Dimension (point-in-time view)

• PERSON_DIM
• Person_key
• Eff_dt
• Last_name
• First_name
• Address_1
• Address_2
• City

• CURR_PERSON_DIM
• Person_key
• o Eff_dt
• Last_name
• First_name
• Address_1
• Address_2
• City

PK
PK
13
Time-variant data, who cares?

• PERSON_DIM
• Person_key
• Eff_dt

• CURR_PERSON_DIM
• Person_key

• TXN_FACT
• Person_key
• Person_eff_dt

14
Time-variant data, who cares?

• Slowly-changing dimensions should always be
  type-2
• With type-1 views constructed using the
  just-loaded type-2 data
• So, with this in mind
• Why do people so often treat time-variant tables
  as an after-thought?
• Why do extraction-transformation-loading (ETL)
  processes so often focus on MERGE logic (if
  row doesnt exist then INSERT else UPDATE) on
  the current point-in-time tables, and then insert
  change data as an after-thought
• a.k.a. type-1 or point-in-time data
• Instead of
• inserting change data into the time-variant
  type-2 table from which point-in-time type-1
  views (as materialized views?) can be built for
  any point-in-time?
• Think about it
• If users should be using type-2 data for SCDs,
  who usually utilizes the type-1 views of the
  SCDs? What are they good for?

15
Four characteristics of a DW

• Non-volatile, time-variant, subject-oriented,
  integrated
• Bill Inmon Building the Data Warehouse 3rd Ed
  2002 (Wiley)
• Think about what these mean?
• Consider the converse of these characteristics?
• Volatile? Static-image? Process-oriented?
  Application-specific?
• Time-variant, non-volatile database implies
• Insert, index, and analyze each row of data only
  once
• From an implementation perspective, this is vital
  to remember! And often ignored completely!!!
• Consider an extreme situation?
• Analytical database for quantum research in
  physics
• 50 Tbytes of data to load every day

16
The Virtuous Cycle

• Insert-only processing enables
• Tables and indexes partitioned by time
• Optionally sub-partitioned by other key values
• Partitioned tables/indexes enables
• Partition pruning during queries
• Direct-path loads using EXCHANGE PARTITION
• Time-variant tables/indexes and tablespaces
• Purging using DROP or TRUNCATE partition instead
  of DELETE
• Partition pruning enables
• Infinite scalability for queries, regardless of
  how large the database becomes
• Direct-path (a.k.a. append) loads enable
• Ability to load more data, faster, more
  efficiently
• Table compression

17
The Virtuous Cycle

• Time-variant partitioned tables/indexes enable
• Time-variant tablespaces
• Time-variant tablespaces enable
• READ ONLY tablespaces for older, less-volatile
  data
• READ ONLY tablespaces enable
• Near-line storage (i.e. NAS, SAMFS/HFS, etc)
• Right-sizing of storage to the need, classified
  by IOPS
• Backup efficiencies
• READ WRITE tablespaces scheduled for backup every
  day or week
• READ ONLY tablespaces scheduled for backup every
  quarter or year

18
The Virtuous Cycle

• Using EXCHANGE PARTITION for loads enables
• Elimination of ETL load window and 24x7
  availability for queries
• Direct-path loads
• Bitmap indexes and bitmap-join indices
• Bitmap indices enable
• Star transformations on star (dimensional)
  schemas
• Star transformations enable
• Bitmap-join indexes
• SUCCESS!
• optimal query-execution plan for dimensional data
  models!

19
The Death Spiral

• Volatile data presented in a static-image
  according to process-oriented concepts leads to
• ETL using conventional-path INSERT, UPDATE, and
  DELETE operations (including MERGE and
  multi-table INSERT)
• Conventional-path operations are trouble with
• Bitmap indexes and bitmap-join indexes
• Forcing frequent complete rebuilds until they get
  too big
• Contention in Shared Pool, Buffer Cache, global
  structures
• Mixing of queries and loads simultaneously on
  table and indexes
• Periodic rebuilds/reorgs of tables if deletions
  occur
• Full redo logging and undo transaction tracking
• ETL will dominate the workload in the database
• Queries will consist mainly of dumps or
  extracts to downstream systems
• Query performance will be abysmal and worsening

20
The Death Spiral

• Without partitioning
• Query performance worsens as tables/indexes grow
  larger
• Loads must be performed into live tables
• Users must be locked out during load cycle
• In-flight queries must be killed during load
  cycle
• Bitmap indexes must be dropped/rebuilt during
  load cycle
• Entire tables must be re-analyzed during load
  cycle
• Entire database must be backed up frequently
• Data cannot be right-sized to storage options
  according to IOPS
• Everything just gets harder and harder to do
• and that stupid Oracle software is to blame
• BRING ON TERADATA OR

21
Exchange Partition

• The basic technique of bulk-loading new data into
  a temporary load table, which is then indexed,
  analyzed, and then published all at once to
  end-users using the EXCHANGE PARTITION operation,
  should be the default load technique for all
  large tables in a data warehouse
• fact tables
• slowly-changing or quickly-changing dimensions
• Assumptions for this example
• Composite partitioned fact table named TXN
• Range partitioned on DATE column TXN_DATE
• Hash partitioned on NUMBER column ACCT_KEY
• Data to be loaded into partition P20040225 on TXN

22
Exchange Partition
Composite-partitioned table TXN
1. Create Temp Table
5. EXCHANGE PARTITION
2. Bulk Loads
Hash-partitioned table TXN_TEMP
3. Index Creates
4. Table Col Stats
22-Feb 2004
23-Feb 2004
24-Feb 2004
(empty)
25-Feb 2004
23
Exchange Partition

• Create temporary table TXN_TEMP as a
  hash-partitioned table
• Perform parallel, direct-path load of new data
  into TXN_TEMP
• Create indexes on the temporary hash-partitioned
  table TXN_TEMP corresponding to the local indexes
  on TXN
• using PARALLEL, NOLOGGING, and COMPUTE STATISTICS
  options
• Gather CBO statistics on table TXN_TEMP
• Only table and columns stats -- leave computed
  index stats!
• alter table TXN
• exchange partition P20040225 with table TXN_TEMP
• including indexes without validation update
  global indexes

24
Exchange Partition

• It is a good idea to encapsulate this logic
  inside PL/SQL packaged- or stored-procedures
• SQL execute exchpart.prepare(TXN_FACT,TMP_,
  -
• 2 25-FEB-2004)
• SQL alter session enable parallel dml
• SQL insert / append parallel(n,4) /
• 2 into tmp_txn_fact n
• 3 select / full(x) parallel(x,4) /
• 4 from stage_txn_fact x
• 5 where load_date 25-FEB-2004
• 6 and load_date
• SQL commit
• SQL execute exchpart.finish(TXN_FACT,TMP_)
• DDL for exchpart.sql posted at
  http//www.EvDBT.com/tools.htm

25
Exchange Partition

• Loading time-variant fact and dimension tables is
  not the only load activity in most data
  warehouses
• Often, some tables contain current or
  point-in-time data
• Example type-1 dimension snowflaked from
  type-2 dimension
• This is often an excellent situation for
  materialized views
• But, as is often the case, the refresh mechanisms
  built in with materialized views might not be the
  most efficient
• With each load cycle, the current images need to
  be updated
• Instead of performing transactional MERGE (I.e.
  Update or Insert) logic directly on the table
• Rebuild the table into a temporary table, then
  swap it in using EXCHANGE PARTITION

26
Exchange Partition
Composite-partitioned table ACCOUNT_DIM
Hash-partitioned table
Composite-partitioned table CURR_ACCOUNT_DIM
Merge/build operation
23-Feb 2004
24-Feb 2004
25-Feb 2004
27
Exchange Partition
EXCHANGE PARTITION
Previous cycles current-image data in
composite-partitioned table CURR_ACCOUNT_DIM,
with single partition named PZERO
New current-image data in hash-partitioned table
CURR_ACCT_DIM_TEMP
28
Exchange Partition

• INSERT / append parallel(t, 8) / INTO
  TMP_CURR_ACCOUNT_DIM T
• SELECT / full(x) parallel(x, 8) /
• 0 partkey, acctkey, effdt, (and so on for all
  columns)
• FROM (SELECT acctkey, effdt, (and so on for all
  columns),
• row_number() over (partition by acctkey order
  by effdt) ranking
• FROM (SELECT acctkey,
  effdt, (and so on for all columns)
• FROM CURR_ACCOUNT_DIM
• UNION ALL
• SELECT acctkey, effdt,
  (and so on for all columns)
• FROM CURR_ACCOUNT_DIM partition
  (P20040225)
• )
• )
• WHERE RANKING 1

29
Exchange Partition

• ALTER TABLE CURR_ACCOUNT_DIM
• exchange partition PZERO
• with table TMP_ACCOUNT_DIM
• with without validation
• including indexes
• update global indexes

30
Choosing partition keys

• The most important decision when partitioning is
• Choosing the partition key columns
• All benefits of partitioning hinges upon this
  choice!!!
• Which columns to partition upon?
• If the table contains time-variant data
• Choose the RANGE partition key DATE column to
  optimize
• ETL according to load cycles
• End-user access through partition pruning
• Choose the HASH or LIST sub-partition key column
  to optimize
• End-user access through partition pruning
• If the table does NOT contain time-variant data
• Choose the RANGE, HASH, or LIST partition key
  column to optimize
• End-user access through partition pruning

31
Choosing partition keys

• When choosing columns to optimize ETL
• Choose a column which distinguishes different
  load cycles
• Should be a DATE column
• When choosing columns to optimize end-user access
• Gather hard facts about usage dont guess!
• Oracle STATSPACK and Oracle10g AWR
• Data dictionary table SYS.COL_USAGE
• Populated automatically by cost-based optimizer
  in Oracle9i and above
• DDL script dba_column_usage.sql can be
  downloaded from http//www.EvDBT.com/tools.htm
• Ambeo Usage Tracker (http//www.ambeo.com)
• Teleran iSight (http//www.teleran.com)

32
Choosing partition keys

• Example fact table for credit-card processing
• Fact table is time-variant
• Use range partitioning on DATE datatype to
  optimize ETL and queries
• Use hash- or list-subpartitioning to optimizer
  queries
• Fact table has four DATE columns
• TXN_DT (date on which transaction occurred)
• POST_DT (date on which transaction was posted by
  merchant)
• PAID_DT (date on which transaction was paid to
  merchant)
• LOAD_DT (date on which transaction was loaded to
  DW)

33
Choosing partition keys

• Which should be chosen? And why?
• LOAD_DT
• Optimizes ETL perfectly, but does not benefit
  queries in any way
• Data is loaded by LOAD_DT
• End-users dont query on LOAD_DT
• TXN_DT, POST_DT, and PAID_DT
• Each benefits a different set of end-user queries
• Presents some problems for ETL processing
• Each date loads mostly into the latest partition,
  then a little into each partition for the
  previous 2-4 days
• This situation can be handled by iterating
  through the five steps of the basic EXCHANGE
  PARTITION algorithm
• Where each iteration processes a different
  LOAD_DT value

34
Summary recommendations

• Use dimensional data models for the
  presentation to end-users
• Dont free lance and confuse the end-users
• Understand the purpose of facts and dimensions
• Base the database design on time-variant data
  structures
• Dont join type-2 fact data to type-1
  dimension data
• Load type-2 data first, then rebuild type-1
  data from that
• Use partitioning
• Enable the virtuous cycle of Oracle features
  that cascade from using partitioning
  intelligently

35
Questions?
36
Thank You!

• Rocky Mountain Oracle Users Group (www.rmoug.org)
• Training Days 2008, Denver CO
• Tue-Thu 12-14 Feb 2008
• Tues 12-Feb 4-hour university sessions
• Wed-Thu 13-14 Feb main conference
• Thu-Sun 15-18 Feb 2008
• Informal ad-hoc ski weekend for attendees who
  wish to partake!!!
• Tims contact info
• Web http//www.EvDBT.com
• Email tim_at_evdbt.com
