The Zebra Striped Network File System

1

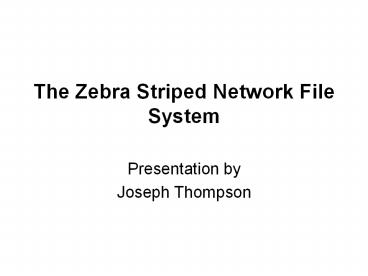

The Zebra Striped Network File System

• Presentation by
• Joseph Thompson

2
Purpose

• Single file server architectures will not be able
  to support future throughput needs.
• Need a striping technique that will support all
  size of files writes in effective and uniform
  manner.

3
Striping in Zebra

• RAID
• Per-File Striping in a Network File System
• Log-Structured File Systems and Per-Client
  Striping

4
RAID-Problems

• Small writes in RAID are about four times as
  expensive as they would be in a disk array with
  parity.
• All the disks are attacked to a single machine,
  so its memory and I/O system are performance
  bottlenecks.
• Note no reason there has to be a dedicated
  parity disk.

5
Per-File Striping in a Network File System

• Note A collection of file data that spans the
  servers is called a stripe, and the portion of a
  stripe stored on a single server is called a
  stripe fragment.
• Small files are difficult to handle efficiently
• Inefficient parity management during updates

6
Log-Structured File Systems and Per-Client
Striping

• Solution to per-file problems
• Zebra applies techniques of Log-File System and
  Per-Client Striping
• Creates an append only log for each client who
  then can convert many small writes into one large
  writes to a single stripe. (client is responsible
  for calculating parity)
• Requires a File Manager to facilitate client
  interaction and keep record of file metadata such
  as file attributes, directory structures, etc.
• Like all other LFSs, this solution also requires
  a stripe cleaner.

7
Zebra Components

• Storage Servers
• Clients
• File Mangers
• Stripe Cleaners

8
Storage Servers

• Storage server requirements
• Store a fragment
• Append to an existing fragment
• Used for periodic writes of a log
• Retrieve a fragment
• Delete a fragment
• Identify fragments
• Used to identify end of client logs after crashes

9
Clients

• On Read
• Client must determine which stripe fragments
  store the desired data, retrieve the data from
  the storage servers, and return them to the
  application.
• On Write
• Client appends the new data to its log by
  creating new stripes to hold the data, computing
  the parity of the stripes, and writing the stripe
  to the storage servers.

10
File Mangers

• File Manager stores all of the information in the
  file system except for file data.
• The client requests block pointers for the File
  Manager, and accesses the block data itself.
• Performance if the File Manager is a concern
  because it is a centralized resource.
• Solution clients cache naming information from
  File Manager so that the client contacts the file
  manager less often.

11
Stripe Cleaners(first glance)

• The only way to reuse free space in a stripe is
  to clean the stripe so that is contains no live
  data, then delete it.
• Since the cleaner is a client itself, it just
  reads live data from stripes with the largest
  amounts of free fragments, appends the data to
  its own client log to be written to a new stripe,
  and then deletes the old stripes.

12
System Operations

• Communication Deltas
• Stripe Cleaning (additional details)
• Adding Additional Storage Servers

13
Communication Deltas

• Deltas provide a simple and reliable way for
  various system components to communicate changes
  to files.
• A client's log also contains deltas.
• Delta Information
• File ID, File Version(time edited), Block Number,
  Old Block pointer, New Block pointer.
• Three types of deltas
• Update delta, cleaner delta, reject delta.

14
Stripe Cleaning (additional details)

• Evaluating stripe space utilization
• Cleaner must process the number of deltas in
  every client log (stripe) to keeping a running
  count of free fragments.
• The cleaner appends all of the deltas that refer
  to a given stripe to a special file for that
  stripe, called a Stripe Status File.
• Conflicts between cleaning and file access
• Stripe cleaner does not lock any files during
  cleaning. Only issues a special cleaner delta.
• If a conflict did a occur when a update took
  place during a cleaning, the file manager will
  notice two different deltas and make sure the
  final pointer for the block reflects the update
  delta.
• The manager generates a reject delta that the
  cleaner uses to tell that the new block it
  created is unused.
• (just to show how adding a stripe cleaner
  significantly adds complexity)

15
Adding Additional Storage Servers

• When a new storage sever becomes available, all
  that must be done is notify the clients, file
  manager, and stripe cleaner that each stripe
  group has one more fragment.

16
Restoring Consistency After Crashes

• Two general issues upon crash
• Consistency
• Availability
• Zebra uses checkpoint and roll-forward method for
  restoring consistency.
• Three new consistency problems
• Stripes may become internally inconsistent
• Some of the data or parity written but not all of
  it
• Information written to stripes may become
  inconsistent with metadata
• Stripe cleaner state becomes inconsistent with
  stripes

17
Stripes may become internally inconsistent

• Zebra stores simple checksum for each fragment.
• On storage server reboot
• Verifies checksums only around the time of crash
  (using deltas)
• Discards incomplete checksums
• Queries other stripes to find out what new
  stripes were written when server was down.

18
Information written to stripes may become
inconsistent with metadata

• If Client crashes file manager must check logs to
  make sure the last log written successfully.
• If manager crashes it has to run through every
  clients log from the managers last check point
  and roll forward through the rest of the log to
  update info since last checkpoint.

19
Stripe cleaner state becomes inconsistent with
stripes

• Strip cleaner also stores periodic checkpoints
  and on restart reads (and corrects) status files
  then starts collecting more utilization
  information from the point of its last checkpoint
  (roll-forward).

20
Performance overview
21
Performance overview cont
22
Conclusion

• Zebra provides higher throughput , availability,
  and scalability, than previous file systems at
  the cost of increased system complexity.
• Its only step one. As we saw that xFS included
  and improved Zebras core functionality.
