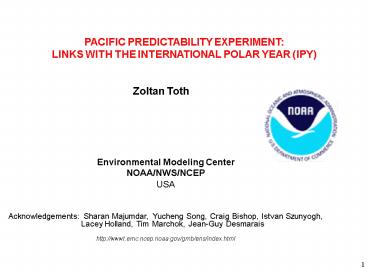

PERTURBATION VS. ERROR CORRELATION ANALYSIS PECA

1
PACIFIC PREDICTABILITY EXPERIMENT LINKS WITH THE
INTERNATIONAL POLAR YEAR (IPY)
Zoltan Toth

Environmental Modeling Center NOAA/NWS/NCEP
USA Acknowledgements Sharan Majumdar,
Yucheng Song, Craig Bishop, Istvan Szunyogh,
Lacey Holland, Tim Marchok, Jean-Guy
Desmarais http//wwwt.emc.ncep.noaa.gov/gmb/ens/i
ndex.html
2
OUTLINE / SUMMARY

• LINKS BETWEEN THORPEX IPY
• Both global programs
• THORPEX is weather component of IPY
• Joint field program during IPY
• SCIENTIFIC HYPOTHESES FOR THORPEX-IPY
• Main sources of observational uncertainty over NH
• Main factors supporting / limiting predictability
  over two hemispheres
• NOAAS INTERESTS IN THORPEX-IPY
• Short-Term Arctic Predictability (STAP)
• 3-90 days forecast of high impact weather, sea
  ice, ocean wave, land surface
• PACIFIC PREDICTABILITY EXPERIMENT
• THORPEX-IPY theme
• Complemented by meso-scale studies
• NORTH AMERICAN ENSEMBLE FORECAST SYSTEM

3
LINKS BETWEEN IPY THORPEX
International Polar Year (IPY) Multi- and
interdisciplinary international research
experiment 03/2007-02/2009 Study areas of
strongest climate change impact Comprehensive
research in both polar regions Strong links to
the rest of the globe - Theme 3 (of 6) Advance
our understanding of polar - global interactions
by studying teleconnections on all
scales. THORPEX A World Weather Research
Program (WWRP) Accelerate improvements in
skill/utility of 1-14 day weather
forecasts Long-term (10-yrs) global research
program in areas of Observing system, data
assimilation, numerical modeling/ensemble,
socioec. appl. Strong link with operational
Numerical Weather Prediction (NWP)
centers International program under
WMO Planning initiated with discussions about
North Pacific experiment Opportunities for IPY
- THORPEX Collaboration Joint THORPEX-IPY
Observing period Major opportunity for
accelerating observing system design
work Improved weather forecasts for polar
regions IPY activities Scientific
investigations Link between weather and
climate processes Mid-latitude Polar
interactions THORPEX IS THE WEATHER COMPONENT OF
IPY
4
SCIENTIFIC HYPOTHESES FOR THORPEX-IPY RESEARCH

• HYPOTHESIS A Initial conditions
• Main sources of forecast uncertainty /
  impediments to extending forecasts to day 14
• Tropical excitation of waves from the Pacific
  ocean, especially from Maritime Continent
• The mid-latitude flow regime over the Pacific
  Ocean
• The polar circulation with episodes of cross
  polar flow
• Assess relative importance of three sources of
  uncertainty their interaction
• What is optimal mix of observations to reduce
  forecast uncertainty?
• What is best way of assimilating relevant data?
• HYPOTHESIS B Numerical modeling
• The level of predictability forecast skill over
  the NH vs. SH are influenced by
• Nature of flow regimes in polar regions
• More symmetric circumpolar vortex with little to
  no cross polar flow over the Antarctic
• Less symmetric vortex with major episodes of
  cross polar flow over the Arctic
• Difference in distribution of continents and
  oceans over two hemispheres
• Much larger contrast between land and ocean
  masses over NH
• Nature of wave guides for tropical to
  extratropical energy transfer
• Better defined / spatially locked wave guide
  (PNA) over NH
• Assess relative role of three factors their
  relationship in
• Supporting and limiting atmospheric
  predictability for

5
NOAAS INTEREST IN THORPEX-IPY

• SHORT-TERM ARCTIC PREDICTABILITY (STAP, IPY
  Proposal 798)
• Study variability predictability of Arctic high
  impact
• Atmospheric, ice, ocean, and land surface events
• Their interaction with global processes
• On 3-90 days time scale
• Program elements
• Observing System
• Study effect of supplemental Arctic IPY data on
  NWP skill, including ocean wave sea ice
• Test new satellite in situ platforms/instrument
  s
• Collect adaptive obs. along N-Pacific storm track
  its source region in tropics to improve IPY
  fcsts
• Data Assimilation
• Develop targeting methods for improved high
  impact Arctic events
• Improve assimilation of current future atmos.
  (over ice/snow), sea ice, ocean/land surface
  data
• Contribute to design of new global observing
  system over 2 polar regions in framework of GEOSS
• Numerical Modeling
• Identify diagnose model weaknesses critical for
  polar regions polar-extrapolar interactions
• Improve atmospheric, sea ice, n land surface
  model formulation
• Accelerate testing implementation of Hybrid
  Coordinate Ocean Model (HYCOM) for storm surges

6
SHORT-TERM ARCTIC PREDICTABILITY (STAP, 798)

• Principal Investigators
• Satellite data / assimilation
• Jeff Key (NOAA), Chris Velden (SIMSS), John
  LeMarshall (JCSDA)
• Coupled Atmosphere-ice-ocean-land surface
  diagnosis and modeling
• Robert Grumbine, Julian Wang, Mel Shapiro (NOAA)
• Socio-Economic Applications
• James Partain (NOAA), Rebecca Morss (NCAR), Arun
  Kumar (NOAA)
• Connections with other IPY activities
• Cluster 2
• Terrestrial cryosphere, NH (392 - Grumbine)
• Arctic Sea Ice (185, Grumbine)
• Cross-cutting (Shapiro, Toth)
• Cluster 4
• Weather-Climate link (Kumar, Wang)
• THORPEX (Toth, Shapiro)
• Observing Systems (129, 138, 699, 732, Key,
  Velden, LeMarshall)
• Teleconnections (Shapiro, Toth)
• Cluster 5

7
SHORT-TERM ARCTIC PREDICTABILITY (STAP, 798)

• NOAA IPY Connections
• IPY activities coordinated by John Calder
• STAP is one of 10 NOAA IPY proposals, linked in
  particular with
• Causes impacts of recent changes in Pacific
  Arctic (157, Calder K. Crane)
• Data Management/Arctic Change Detection (879,
  Florence Fetterer)
• Decision support in Alaska the Arctic (215,
  Juniper Neill)
• Arctic climate modelling (337, Tony Beesley)
• Arctic system reanalysis (179, John Calder)
• Satellite products (600, Jeff Key)
• US Connections
• Pacific Predictability Experiment (PAPEX)
• Led by David Parsons
• Need for agency (NASA, ONR, NSF) wider
  community (univ./private) coordination
• Mesoscale activities may leverage off /
  complement THORPEX-IPY work
• North American Connections
• North American Ensemble Forecast System (NAEFS)
• Improve expand operational product line to
  support use in Arctic

8
PACIFIC PREDICTABILITY EXPERIMENT - PAPEX

• Main interest?
• Build around THORPEX goals
• Link up with IPY
• Complement it with meso-scale aspects if there is
  interest
• Field OR laboratory experiment?
• BOTH
• Lab work (Improve DA, NWP modeling, targeting
  Use OSSEs)
• Design field phase
• Generalize field results
• Field work
• Real time test demonstration
• Support IPY activities (lab work cannot achieve
  all on ground)
• Timing?
• Must be driven by IPY, March 2007 February 2009
• Main theme?
• Use THORPEX-IPY Science Hypotheses

9
PACIFIC PREDICTABILITY EXPERIMENT - PAPEX

• PROPOSE STUDYING LIFECYCLE OF WAVES ON PAC. STORM
  TRACK
• Western Tropical Pacific (ONR, Canada, Asian
  nations?)
• Energy transfer from tropics to extra-tropics
• Extra-tropical transition of tropical cyclones
• Convection linked with Madden Julian or other
  waves
• Western Extra-tropical Pacific (NOAA, NASA?)
• Initial phase of extra-tropical lows
• Targeted observations with 3-5 day lead time
• Adaptive collection of data
• In situ observations (dropsondes, aerosondes?)
• Complement Winter Storm Reconnaissance (WSR)
  program over Eastern Pacific
• Adaptive processing of data
• Satellite observations (dynamically controlled
  thinning etc)
• Arctic Region (IPY)
• Forecast applications (NAEFS)
• Effect of data on extra-tropical forecasts
• Continental US (NOAA)
• Assess effect of IPY data on forecasts for cold
  air outbreaks etc
• Southern Hemisphere (SH THORPEX partners)

10
PACIFIC PREDICTABILITY EXPERIMENT - PAPEX

• STUDY LIFECYCLE OF WAVES ON PACIFIC STORM TRACK
• Tropical wave in ensemble forecasts (13-16 May)
• Connection between NH SH (NCEP PQPF)
• How well predicted? (ECMWF NCEP MSLP ensemble
  mean)
• Midlatitude low, influenced by tropical wave,
  affects polar region (17-23 May)
• ECMWF NCEP MSLP ensemble mean forecast
  verifying analysis
• Connection
• Can targeting with in situ observations
  (dropsondes) help?
• Results from Winter Storm Reconnessaince over
  NE-Pacific
• PAPEX can complement WSR data over NW-Pacific
• Is West Coast of US more exposed to data void
  than rest of US? (Myth)
• Beyond 24-36 hrs, all areas equally exposed to
  data void
• Predictability over West Coast may be higher
• First generation storms hitting coast at end of
  well organized storm track
• Rest of continent affected by 2nd generation
  storms
• ECMWF
• Targeting to improve longer range / second
  generation storms?
• Beyond

11
SUMMARY OF WINTER STORM RECONNAISSANCE RESULTS
NORPEX-98 WSR 1999-2005 WSR operational since
2001

• 60-80 of forecasts improved because of targeted
  observations
• 12-hour gain in forecast lead time
• RMS forecast errors reduced by 10-20
• Local improvement similar to that achieved over
  20 yrs (1975-95) due to advances in data
  coverage/quality

Toth et al. (2000)
12
WESTERN VS. EASTERN US PREDICTABILITY Winter of
2002/03
There are seasons when predictability is higher
over western US
WSR00
West
East
13
Individual Case Comparison
1 denotes positive effect 0 denotes
neutral effect -1 denotes negative effect
VR OBSDATE P T V OVERALL REGION
FHOUR E 20050120 1 1 1 1 82W
,37N 72 W 20050128 1 1 1 1
123W ,40N 24 C 20050205 1 1 1 1
97W ,31N 36 H 20050206 1 1 1 1
155W ,19.5N 24 C 20050206 1 1 1
1 90W ,43N 72 C 20050207 1 1 1
1 90W ,42N 60 C 20050208 1 -1
1 1 90W ,42N 36 AK 20050208 -1 -1
-1 -1 150W ,61N 48 E 20050208 1
0 -1 0 74W ,43N 48 C 20050209 -1
1 1 1 93W ,35N 96 AK 20050210
-1 -1 1 -1 135W ,55N 24 E
20050212 1 1 1 1 88W ,46N 48
W 20050213 1 1 1 1 123W ,38N
48 W 20050213 1 1 -1 1 123W ,38N
60 W 20050213 1 1 -1 1 123W
,38N 72 AK 20050219 1 1 1 1
150W ,61N 48 W 20050220 -1 1 1 1
118W ,34N 48 W 20050221 1 1 1 1
118W ,34N 24 AK 20050222 -1 -1 -1
-1 138W ,58N 24 AK 20050223 -1 1 1
1 140W ,60N 24 AK 20050225 1 1
1 1 140W ,60N 48 W 20050225 1 1
-1 1 123W ,40N 72 E 20050225 1
1 -1 1 75W ,40N 96 E 20050303 -1
1 1 1 86W ,41N 48 AK 20050309
-1 1 -1 -1 130W ,57N 36 H
20050312 1 -1 -1 -1 157W ,21N 24
E 20050313 0 1 1 1 81W ,32N
96 E 20050314 1 -1 -1 -1 79W ,32N
72 E 20050316 -1 -1 -1 -1 78W
,37N 48 W 20050317 1 1 1 1
122W ,38N 48
22 OVERALL POSITIVE
1 OVERALL NEUTRAL 7 OVERALL NEGATIVE
73 improved 23 degraded
OVERALL EFFECT
14
Winds
WSR05
Temperature
Humidity
15
Precipitation verification

• Precipitation verification is still in a testing
  stage due to the lack of station observation data
  in some regions.

16
NORTH AMERICAN ENSEMBLEFORECAST SYSTEM (NAEFS)

• Zoltan Toth, EMC/NCEP/NWS/NOAA, USA
• Jean-Guy Desmarais, MSC/CMC, Canada

17
INAUGURATIONCEREMONY
18
NORTH AMERICAN ENSEMBLE FORECAST SYSTEM -NAEFS

• Combines global ensemble forecasts from Canada
  USA
• 60 members per day from MSC NWS
• Generates products for
• Intermediate users
• E.g., weather forecasters at NCEP Service Centers
  (US NWS)
• Specialized users
• E.g., hydrologic applications in all three
  countries
• End users
• E.g., forecasts for public distribution in Canada
  (MSC) and Mexico (NMSM)
• Requires moderate additional investment for
• New telecommunication arrangements
• Extra coordination in research/development
  implementations
• Operational implementation March 2006
• Ready to serve IPY and PAPEX community in
  2007-2009

19
NAEFS THORPEX

• Expands national/international collaboration
• Mexico joined in November 2004
• UK Met Office, FNMOC, AFWA to join in 2006
• Provides framework for transitioning research
  into operations
• Prototype for ensemble component of THORPEX
  legacy forecast system
• Global Ensemble Prediction System (GEPS), part
  of
• Global Interactive Forecast System (GIFS)

RESEARCH
THORPEX Interactive Grand Global Ensemble (TIGGE)
THORPEX
RESEARCH
Articulates operational needs
Transfers New methods
North American Ensemble Forecast System (NAEFS)
OPERATIONAL
LEGACY (GIFS)
OPERATIONS
20
OUTLINE / SUMMARY

• LINKS BETWEEN THORPEX IPY
• Both global programs
• THORPEX is weather component of IPY
• Joint field program during IPY
• SCIENTIFIC HYPOTHESES FOR THORPEX-IPY
• Main sources of observational uncertainty over NH
• Main factors supporting / limiting predictability
  over two hemispheres
• NOAAS INTERESTS IN THORPEX-IPY
• Short-Term Arctic Predictability (STAP)
• 3-90 days forecast of high impact weather, sea
  ice, ocean wave, land surface
• PACIFIC PREDICTABILITY EXPERIMENT
• THORPEX-IPY theme
• Complemented by meso-scale studies
• NORTH AMERICAN ENSEMBLE FORECAST SYSTEM
