Title: SoundeMotion


1

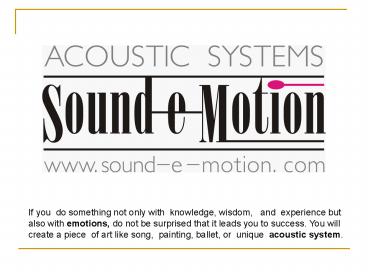

If you do something not only with knowledge,
wisdom, and experience butalso with emotions,
do not be surprised that it leads you to success.
You willcreate a piece of art like song,
painting, ballet, or unique acoustic system.
2
Our company and strategic partnership
  • Sound-e-Motion is a small and creative company
    engaged in designing and manufacturing of
    acoustic systems.
  • Our strategic partners are
  • UNISOUND, USA manufacture of acoustic systems.
  • Russian Game, Russia pricing policy, market
    analysis and sales.
  • American Audiophile Network, USA - pricing
    policy, market analysis and sales
  • Rhythmica, Poland - pricing policy, market
    analysis and sales
  • Our strategy
  • fast response to market changes in direct
    cooperation seller - designer, making high
    quality projects and products.

3
Sound-e-Motion acoustic systems
  • Sound-e-Motion is a state-of-the-art sound
    system which brings the latest technological
    advances and superior woodworking together.
  • All of our acoustic systems are madeof wood.
    The reason we use valuable wood species is
    their attractive and sufficiently robust inner
    fiber structure.

4
Wood Sawing
  • Cutting wood is radial sawing what allows
    foreseeing both subsequent shrinkage losses and
    deformations of wood. If tangential sawing is
    done, deformations control of wood shrinkage is
    practically impossible and results in internal
    stresses and cracks in finished products.

5
Wood Drying
  • Lumber is dried in press vacuum wood drying
    equipment under pressure up to record low
    moisture content values. For example, oak reaches
    less than 4 per cent of final moisture content,
    and we consider it as a limit value. After this
    limit wood is plasticized, stabilized, its
    internal capillaries are closed, and it loses
    capacity to take up moisture. Plasticized wood
    will keep its shape always even if humidity
    changes. Now we are safe, and there is no risk
    that wood cracks or changes in size. To dry oak
    less than 6 per cent in a conventional drying
    kiln seems to be impossible because wood will
    intake air and change in size as an effect of
    air-dried moisture. It also concerns any product
    manufactured from such wood.

6
Wood case
Every wooden piece is examined, processed, and
glued together with special glue type manually.
While doing so, grain flow in each wooden
element is respected. Having identical grain flow
of glued wooden pieces, we get minimum internal
stresses in a future loudspeaker case. Acoustic
system case is turned from glued work-parts and
is worked inside with a special mixture against
cracking in any climate.
7
Wood case
Outside thin surface of wooden case is slightly
polished with natural wax. Each case is
carefully examined, and only those with no
imperfections are offered to customers. We
guarantee quality of our cases and give ten-year
warranty against cracks and splits.
8
Wood case
Case of our acoustic system is a closed type case
having no damping material. Inside spherical
surface is a good dampener of extraneous waves.
In that way, absence of damping material and
influence of extraneous waves allow driver
working without any additional forces and strain.
Antiresonance loudspeaker body is made of
several hundreds of elements, and each of them
has its own size, and thus, a unique resonance
frequency.
9
Sound-e-Motion components
  • Speaker mounting brackets are made from
    non-magnetic stainless steel. Spikes are of
    induction case hardened carbon steel so they
    are hard outside and soft inside. With their
    pointed tips, the speakers stand only on a very
    small area of the floor what reduces resonance.
  • Sound-e-Motion uses components only of
    internationally known companies Scan-Speak,
    Jensen capacitors, WBT, NORDOST
  • All crossover elements are crimped with cable
    end sleeves made of special pure OFC copper with
    24 karat gold plating. Not soldered.

10
Sphere features
  • We take a sphere as a basis for our product.
    Really, it has natural routes because sphere is
    an ideal acoustic shape and repeats sound wave
    dispersed in space and time.If the case does no
    modifications in sound wave form, a sound pattern
    is transmitted just in the way it was originated,
    i.e. minimum distortions and additions.

11
Theory
  • Let us deep into the theory.
  • Skimming through a bible for acoustician The
    Loudspeaker Design by Vance Dickason, we can
    easily find that in sphere frequency response
    changes are within /- 0,5 dB against /- 5 dB of
    cuboid or /- 3 dB of ordinary parallelepiped.
  • Difference is so tremendous that it confirms by
    itself hopelessness of attempts to make an ideal
    acoustic system of classical squared shapes.
  • Pyramidal shapes are a little bit better with
    their uneven frequency response up to /- 1,5 dB.
    Still, we strive for creating ideal system and
    take a basic spherical shape.

12
The Loudspeaker Design by Vance Dickason
13
Sphere features
Loudspeaker case is spherical one both from
inside and outside. Inner sphere damps different
extraneous waves and prevents standing waves
occurrence. At the same time, outside sphere,
repeating shape of wave, creates no sound
distortions and prevents diffraction and
interference of the waves reflected from case.
Absence of inside and outside angles excludes
such an effect as angular reflections. As the
result, if the sound is transmitted at angle,
frequency response deflections are minimal.
Moreover, diffraction lapses are practically
absent (and in classical acoustic system such an
observation cannot be done). So we get widely
spread clear sound without any distortions and
additions.
14
Classical acoustic systems, zone of comfortable
listening and minimum diffractional distortions.
15
Spherical acoustic systems, zone of comfortable
listening and minimum diffractional distortions.
16
Sound-e-Motion acoustic systems
  • Exact designing and tuning of acoustic
    components are the basis of ultra-linear
    frequency response. On angles up to 30 degrees
    from centroidal axis, deflections on stated
    diapason do not exceed 2 dB. Thorough accuracy
    and authenticity of sound reproduction are
    achieved.
  • Sound-e-Motion is
  • unique panorama of sound, pure and unadulterated
  • small and space-efficient, minimal crowding of
    room corners and walls
  • attractive aesthetic form, hand crafted from
    selected wood
  • Sound-e-Motion acoustic systems ideally suite
    for professional record studios, home cinemas,
    public halls, and night clubs.
  • The world of ideal sound for audiophiles.

17
(No Transcript)
18
Sound-e-Motion M20-20 BF
  • Monitoring type - floor standingClosed case
    Transfer band     60 Hz .. 40 000 Hz (2.0 dB)
    Low extended    -3 dB  50 Hz    -6 dB  40 Hz
    Resistance rating - 4 Ohm Effectiveness 91.5
    dBPower rating - 140 W Recommended amplifier -
    10 W .. 200 W Spherical case   Inside
    diameter - 34 cm   Outside diameter - 40 cm
    Wall thickness - 3 cm Volume V 2 x 20
    lMaterial High class natural wood Column
    dimensions height x width x depth  96 cm x 40
    cm x 56 cm Weight 36 kg

19
Sound-e-Motion M10-20 BF
  • Monitoring type - suspended (BC) or permanent
    stand (BF)  Closed case Transfer band     60
    Hz .. 40 000 Hz (2.0 dB) Low extended    -3
    dB  55 Hz    -6 dB  41 Hz Resistance rating - 8
    Ohm Effectiveness - 87 dBPower rating - 70 W
    Recommended amplifier - 10 W .. 150 W
    Spherical case   Inside diameter - 34 cm
    Outside diameter - 40 cm   Wall thickness - 3 cm
    Volume V 20 lMaterial High class natural wood
    Column dimensions height x width x depth
    107.5 cm x 40 cm x 40 cm Weight 18 kg

20
Sound-e-Motion M10-5 BF
  • Monitoring type - permanent or adjustable stand
      Closed case Transfer band     80 Hz .. 40
    000 Hz (2.0 dB)
  • 100 Hz .. 40 000 Hz (1.0 dB)
  • Low extended    -3 dB  70 Hz    -6 dB  60 Hz
    Resistance rating - 4 Ohm Effectiveness - 87 dB
    Power rating - 70 W Recommended amplifier - 10
    W .. 150 W Spherical case   Inside diameter -
    22 cm   Outside diameter - 28 cm   Wall
    thickness - 3 cm Volume V 5 lMaterial High
    class natural wood Column dimensions height x
    width x depth  123 (67) cm x 30 cm x 36 cm
    Weight 15 (14) kg

21
Sound-e-Motion M10-5 BF
22
Sound-e-Motion A10-20 BC
  • Monitoring type - suspended (BC) or permanent
    stand (BF)Closed case Transfer band     60 Hz
    .. 20 000 Hz (2.0 dB) Low extended    -3 dB
    55 Hz    -6 dB  44 Hz Resistance rating - 8 Ohm
    Effectiveness - 86 dBPower rating - 70
    WRecommended amplifier - 10 W .. 150 W
    Spherical case   Inside diameter - 34 cm
    Outside diameter - 40 cm   Wall thickness - 3 cm
    Volume V 20 lMaterial High class natural wood
    Column dimensions height x width x depth  43
    cm x 40 cm x 50 cm Weight 12 kg

23
LFCh-L Active Low-Frequency Channel-Large
  • Case - "BANDPASS" Transfer band    22 Hz ..
    70 Hz (-3 dB)    25.5 Hz .. 50 Hz (0
    dB)Amplifier - 150 W Continues - 103 dB  25.5
    Hz .. 50 HzVolume V 120 liter Material High
    class natural woodColumn dimensions height x
    width x depth  72 cm x 78.5 cm x 40 cm Weight -
    50.5 kg

24
LFCh-2x10 Active Low-Frequency Channel-2x10
litre
  • Closed case Transfer band    34 Hz .. 85 Hz
    (-3 dB)Amplifier - 150 W Volume V 2 x 10
    litre Material High class natural woodColumn
    dimensions height x width x depth  37 cm x 37.5
    cm x 41 cm Weight - 20 kg

25
LFCh-2x10 Active Low-Frequency Channel-2x10 litre
26
(No Transcript)
27
Slim Top Main Channel
  • 2-way speaker
  • Closed box
  • Solid hard wood case

Nom/Peak Power Handling (W)
80/140
28
Slim Top Main Channel
29
Slim Top Monitor
  • 2-way speaker
  • Closed box
  • Solid hard wood case

Nom/Peak Power Handling (W)
80/140
30
Slim Top Monitor
31
Slim Top Subwoofer
  • Active Low Frequency Channel
  • Closed box
  • Solid hard wood case

32
Slim Top Subwoofer
33
(No Transcript)
