SCHEMALESS APPROACH OF MAPPING XML DOCUMENTS INTO RELATIONAL DATABASE

1

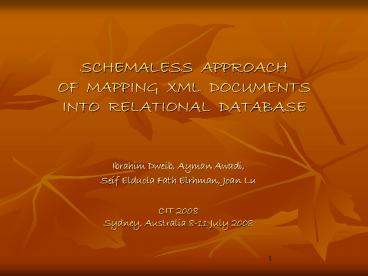

SCHEMALESS APPROACH OF MAPPING XML
DOCUMENTS INTO RELATIONAL DATABASE

• Ibrahim Dweib, Ayman Awadi,
• Seif Elduola Fath Elrhman, Joan Lu

CIT 2008 Sydney, Australia 8-11 July 2008
2
Why schema-less

• Many applications deal with highly flexible XML
  documents from different sources, which make it
  difficult to define their structure by a fixed
  schema or a DTD. Therefore, it is necessary for
  schema-less approaches to deal with such XML
  documents.

3
The method aims to overcome the challenges faced
due to fixed shredding

• No loss of information while shredding.
• Reconstruction of original XML documents is
  easier and much faster.
• Maintaining XML document structure.
• Preserve the ordering nature of XML data.

4
Theory guidance

• The main mathematical concepts that are used in
  this method are
• Definition 1
• XML tree is composed of many sub-trees of
  different levels it can be define as the
  following
• i1, 2 n, represent the levels of XML tree, 0
  represents the root
• Where, Ei is a finite set of elements in the
  level i.
• Ai is a finite set of attributes in the level i.
• Xi is a finite set of texts in the level i.
• ri-1 is the root of the sub-tree of level i.

5
Theory guidance (Cont)

• Definition 2
• A dynamic fragment (shred) df(i) is defined to be
  the attributes and texts (leaf children) of the
  sub-tree i of the XML tree plus its root ri-1,
  as follows
• df(i) (Ai, Xi, ri-1),
• Where Ai is a finite set of attributes in the
  level i
• Xi is a finite set of texts in the level i.
• ri-1 is the root of the sub-tree of level
  i.

6
Design framework

• A master table for documents. Called "documents
  table, to keep information about documents
  themselves,
• documents(doc_id, doc_structure, .. ),
• Additional fields may be added to keep all
  information about the document itself such as
  dates, statistics, types etc.
• The doc_id is a unique id generated per document
  to identify documents.
• The doc_structure is a big text field containing
  a coded string describing each document
  structure, any changes on the document structure
  should be reflected in this field, such as adding
  a new tag or property, deleting an existing tag
  or property, or relocating a given tag or
  property to a different location in the same
  document

7
Design framework (Cont)

• A second table to store the actual contents for
  all documents. Documents will be shredded into
  pieces of data that will be called tokens, each
  document element, tag, or property will be
  considered a token, the tokens table will have at
  the minimum this structure,
• tokens(doc_id, token_id, token_name,
  token_value).
• The token_id is the primary generated id for each
  token.
• The doc_id is the foreign key linking the tokens
  table to the documents table.
• token_name is the tag name or the property name
  as found in the original XML document.
• token_value is the text value of the XML tag
  property.

8
Design framework, (Cont) doc_structure field
construction rules

• The doc_structure field is where the document
  structure maintained.
• It consists of long series of related keys.
• Each key should start with a given alphabet
  character,
• The letter 'T' for element (child), and the
  letter 'A' for attribute,
• These letters are necessary to delimit keys in
  the sequence.
• Then the letter is followed by a numeric number
  representing the token_id that this key is
  referring to,
• Example T120 is a key referring to a token in
  the tokens table whose token_id 120.

9
Design framework, doc_structure field
construction rules (Cont)

• If the token has properties then
• the key representing this token in the
  doc_structure will be followed with a set of
  keys defining these properties.
• Example T120A12A17A2 is a valid key string for
  token number 120 which has three properties
  defined by tokens number 12, 17, and 2.
• These properties appear in the original document
  in this order.

10
Design framework, doc_structure field
construction rules (Cont)

• If the token has some children tags then
• these children will be represented as a
  key-string surrounded by angle brackets.
• Example T120ltT12T7ltT2T1gtT77gt is a valid string
  that can be read, token 120 has three sub tags in
  this order token 12, followed by token 7, then
  token 77, and token 7 itself has also two sub
  tags 2, and 1 in the given order.

11
Theory implementation on simple case study
12
Theory implementation on simple case study
Figure 2 A tree representation for XML document
in figure 1
13
Theory implementation on simple case study
14
Theory implementation on simple case study
15
EXPERIMENTAL Environment

• An Intel Core 2 Duo computer with 2 GHz CPU, 1 GB
  RAM, 256 MB shared Cache
• OS Windows Vista home edition.
• Visual Basic 6 is used as software development
  kit with Microsoft Access 2003 as relational
  database target.
• Five XML documents with different sizes are used
  in the experiment.
• The data is taken from the XML data repository
  that is available at the web site of the School
  of Computer Science and Engineering, University
  of Washington.
• The performance metric is the time spent for
  mapping XML documents to relational database and
  the time spent for reconstructing these documents
  from relational database.
• The experiment is repeated five times and the
  mean value of those times is reported to obtain a
  realistic and accurate results.

16
EXPERIMENTAL RESULTS
Table 1 The time spent for mapping XML documents
to RDBMS, and the time for reconstructing them
17
EXPERIMENTAL RESULTS
18
Conclusion (1)

• By using this method
• Maintaining document structure at a low cost
  price and easily,
• Building the original document is straight
  forward,
• Performing first level semantic search is also
  achievable either on a single document or on all
  documents.

19
Conclusion (2)

• Method Limitation
• Complex semantic search is not achievable easily
  in this structure.
• Document size is limited to memory size since we
  use DOM based parsing

20
Future Works

• Improving this method to achieve complex
  semantic search, differentiate between XML data
  type (i.e., strings, dates, integers), in order
  to apply less than or greater than queries.
• Making an intensive testing and compare our
  method with other methods in the literature to
  see its performance.
• Using SAX parsing for XML document to solve
  document size limitation.

21
