Integration Testing

1

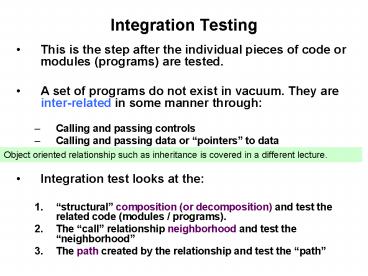

Integration Testing

• This is the step after the individual pieces of
  code or modules (programs) are tested.
• A set of programs do not exist in vacuum. They
  are inter-related in some manner through
• Calling and passing controls
• Calling and passing data or pointers to data
• Integration test looks at the
• structural composition (or decomposition) and
  test the related code (modules / programs).
• The call relationship neighborhood and test the
  neighborhood
• The path created by the relationship and test the
  path

Object oriented relationship such as inheritance
is covered in a different lecture.
2
Types of Integration tests based onStructural
Decomposition

• There are 4 major types of integration test for
  Structural Decomposition Based test
• Top- down
• Bottom-up
• Combination (Sandwich)
• Big Bang

3
Top-down
i) Once the root modules is completed, we
need to build 3 stubs to perform integration
test of root module with stubs. ii) As the
next level module is completed, we would build
more stubs to perform the next level of
integration test iii) Continue this process until
all the all the completed modules are tested
completed means unit tested
4
Bottom-UP
i) Once a set of bottom modules are completed
we would build a driver, at the next higher
level, to run the integration test. ii) Continue
this process until all the all the completed
modules are tested
5
Combination (Sandwich)
If this is completed first, we may choose to
build 3 stubs to test
- Once a module is completed, we would build
the appropriate driver or stubs to perform
the integration test. - Continue this process
until all the modules are tested
Combo is a more likely scenario - - - making
integration management a complex job that needs
some tool help.
If these two are completed, we may choose to
build a driver to test may also build two
(green) stubs.
6
Big-Bang
- Wait for all the modules to be completed and
perform one integration (one link-edit). Then
test all the integrated modules together.
This scenario happens more likely at the over-all
system or component test time
7
Some Metrics for Integration Test based on
Structural Decomposition

• For Top-down approach with n nodes, there is a
  need to construct (n-1) stubs.
• For Bottom-up approach with n nodes and v leaves,
  there is a need to construct (n- v) drivers.
• For both cases there will be (n v edges)
  number of test sessions (e.g. cases or scenarios)


8
Simple Example for the Metrics
A
B
C
D
E

• There are 5 nodes and 4 leaves and 4
• edges
• n- 1 5 -1 4 stubs
• n - v 5 - 4 1 driver
• n - v edges 5 - 4 4 5 test sessions

Number of test sessions 5 (Top-down)
(Bottom-up) 1. A is complete
E is complete test with 4 stubs
test with driver A 2. B is complete
D is complete test with 3 stubs test
with driver A
3. C is complete C is
complete test with 2 stubs test with
driver A 4. D is complete B is
complete test with 1 stub test
with driver A 5. E is complete A is
complete test all modules test all
modules
9
Slightly Modified Example for the Metrics
A
Number of test sessions 6 (Top-down)
(Bottom-up) 1. A is complete
E is complete test with 2 stubs
test with driver A 2. B is complete
D is complete test with 2 stubs test
with driver B
3. B is complete C is
complete test with A test
with driver B 4. C is complete B is
complete test with B test
with C and D 5. D is complete B is
complete test with B test
with driver A 6. E is complete A is
complete test all modules test all
modules
B
E
C
D

• There are 5 nodes and 3 leaves and 4
• edges
• n- 1 5 -1 4 stubs
• n - v 5 - 3 2 drivers
• n - v edges 5 3 4 6 test sessions

10
Pair-Wise Integration(Sandwich-like)

• One of the key drawbacks to top-down or bottom-up
  testing for Decomposition-based integration
  testing is the need for constructing drivers and
  stub.
• Pair wise integration testing waits for a
  related pair of modules to be completed and
  then test them. Thus it eliminates the stubs and
  drivers. There is also a potential reduction in
  test sessions ( of edges). .

Related via edge connection
11
Example of Pair-wise Testing
A
A
E
B
B
C
D
E
D
C
Pair-wise test sessions 4 1. A B 2. B
C 3. B D 4. A E
Pair-wise test sessions 4 1. A B 2. A
C 3. A D 4. A E
12
Neighborhood Integration Testing

• Neighborhood of a node is the set of nodes that
  are one edge away from the given node.
• Thus the neighborhood of a node, n, are all the
  predecessors and successor nodes of n.
• Number of neighborhoods is equal to number of
  interior nodes plus source nodes .
• There are some positive and negative
  characteristics with neighborhood integration
  testing
• Positives
• Less test sessions
• Possibly give more of a behavior view of a
  thread
• Negative
• May be harder to locate bugs
• Wait for the completion (timing) of a
  neighborhood before testing

13
Number of neighborhoods

• Number of neighborhoods in a call graph may be
  viewed as
• Number of interior nodes (that form neighborhoods
  around them) and
• One neighborhood around the root node
• Numerically
• Interior nodes all nodes ( source node sink
  nodes)
• of Neighborhood interior nodes source node
• of Neighborhood all nodes sink nodes

Note that source node is the 1 root-node in our
case - we should start with the
neighborhood around the root - then consider
all the neighborhoods around the interior nodes
14
Example of Neighborhood Integration Testing
A
A
E
B
B
C
D
E
D
C
Total nodes 5 Sink nodes 4 Neighborhood 5
- 4 1
Total nodes 5 Sink nodes 3 Neighborhood 5
3 2
A
A
A
B
E
B
B
C
D
E
D
C
neighborhood(1)
(1) neighborhood
neighborhood (2)
15
How many neighborhoods are there?
A
D
B
C
G
H
E
F
J
I
There are ( 10 nodes 5 sink nodes) 5
neighborhoods - 1 around the root (start
here --- so there is some potential wait time)
- 1 around B - 1 around E - 1
around C - 1 around D
16
Path Based Integration Test

• Instead of just focusing on the interfaces of the
  related modules in integration test, it would
  be more meaningful to also focus on the
  interactions among these related modules.
• An extension of the neighborhood would be to
  trace a complete thread of interactions among
  the modules and test that thread or path.

17
Some Definitions for Path-based Integration Test

• Source node is the point where program execution
  starts
• Sink node is the point where the program
  execution stops
• A module execution path is a sequence of
  statements that begins with a source node and
  ends with a sink node, with no intervening sink
  nodes.
• A message is a mechanism with which one unit of
  code transfers control to another unit of code
  control return is also a message
• An MM-path (module-to-module path) is an
  interleaved sequence of i) module execution paths
  and ii) messages
• Sequence of nodes represent a module execution
  path
• Sequence of edges represent the messages
• An MM-Path Graph is the directed graph in which
  nodes are module execution paths and edges are
  messages.

18
A Simple Example of an MM-Path from text page 214
(Module A)
(Module B)
(Module C)
1
1
1
2
2
3
2
4
3
3
4
5
6
4
5
Source nodes A1 and A5 Sink nodes A4 and A6
Source nodes B1 and B3 Sink nodes B2 and B4
Source nodes C1 Sink nodes C5
Note Should modules A and B be recoded ?
A1
lt1,2,3,6gt A2lt1,2,4gt A3 lt5,6gt Module
Execution Paths B1 lt1,2gt B2 lt3,4gt
C1 lt1,2,4,5gt
C2 lt1,3,4,5gt
19
Simple Example of MM-Path Graph(from previous
slide)
A2
B1
A1
C1
B2
C2
A3
- The MM-Path that goes across modules may be
looked upon as an inter-module slice. - In large
and medium sized systems, an MM-Path may be
viewed as a major application function/thread.
