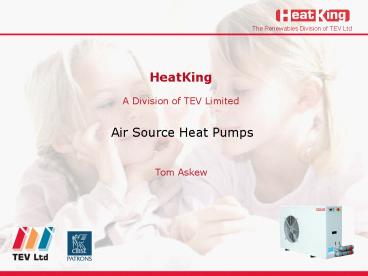

HeatKing

1
The Renewables Division of TEV Ltd
HeatKing A Division of TEV Limited
Air Source Heat Pumps
Tom Askew
2
The Renewables Division of TEV Ltd
TEV Ltd West Yorkshire, UK

• UKs Leading Packaged A/C
  Manufacturer
• Formerly part of the IMI plc
• Employs 70 people
• Manufactured heat pump
  equipment for over 30 years
• Development laboratories including 3 Test Rooms

3
The Renewables Division of TEV Ltd
TEV Ltd
Air Source Heat Pumps
Packaged Air Conditioning and Refrigeration
Chilled Water Fan Coils, Chillers and Chilled
Beams
4
The Renewables Division of TEV Ltd
Agenda

• What is an Air Source Heat Pump?

• Ease of Installation

• Where Air Source Heat Pumps make sense

• Features Benefits of HeatKing ASHP

• Questions and Answers

5
The Renewables Division of TEV Ltd
What is an Air Source Heat Pump?

• A Heating product using refrigeration technology
  to extract heat from the inexhaustible, renewable
  supply of ambient air

• Efficiencies of well over 300 possible compared
  with boilers of sub 100.

6
The Renewables Division of TEV Ltd
How an ASHP works
77C
Low pressure cold Gas
High pressure Hot Gas
-3C
-2C
50C
Compressor
Outside Air
Condenser
0C
Evaporator
Thermostatic Expansion Valve
43C
45C
-5C
Low pressure Cold liquid/vapour
Htg Return
High pressure Cool Liquid
7
The Renewables Division of TEV Ltd
Types of Heat Pumps
Ground Source
Air Source

• Positives
• Constant performance
• No de-frost
• Installed indoors or out

• Positives
• Lower capital cost
• Lower installation cost
• Easy to install as retrofit to existing
  buildings

• Negatives
• High capital cost
• High installation cost
• Difficult to retrofit
• Requires ground works

• Negatives
• Performance varies
• De-frost affects COP

8
The Renewables Division of TEV Ltd
Heat Pumps have been around for many years
Whats new?
9
The Renewables Division of TEV Ltd
New Compressor Technology

• Works in lower ambients

• Provides hotter flow temperatures

• Ability to provide higher CoPs (Coefficient of
  Performance)

Software and Microprocessor Advances

• More efficient defrost cycles

• Advanced weather compensation control

10
The Renewables Division of TEV Ltd
Easy to Install
Means cheaper to install
Flow Return Connections No Refrigeration skills
or pipework required Buffer tank not a necessity
11
The Renewables Division of TEV Ltd
Ease of Installation

• Connect Power

• Connect Thermostat and Timer wiring

• Electrical Softstart fitted as Standard
• No inverter harmonics concerns

12
The Renewables Division of TEV Ltd
Flexible Siting
Remote Installation

• Pre-insulated Pipe
• Heat loss 11W per M
• Cost 25 per M

13
The Renewables Division of TEV Ltd
Floor Mounting
14
The Renewables Division of TEV Ltd
Wall Mounting
15
The Renewables Division of TEV Ltd
Flexible siting allows difficult installations..
.. To be overcome
16
The Renewables Division of TEV Ltd
Where ASHPs make sense

• Off Mains Gas grid

• Reduce CO2 emissions

• Reduce Oil pollution

• Fuel Poverty

• New Build

17
The Renewables Division of TEV Ltd
HeatKing Product Range

• BWarm Range (6, 8 and 12KW, 55ºC flow temp)

• Bwarm i Range (9 and 13KW, 65ºC flow temp)

• BCool2 Range (6, 8, 12 and 13KW, Heating and
  Cooling)

• Master and Slave (up to 60kW)

• Ground Source Heat Pumps Q2 2010

18
The Renewables Division of TEV Ltd
Word of Caution

• Check the CoPs of the units at the ambient
  temperature and flow temperature you require

• Check the duty of the unit at the design ambient
  temperature

• SIZE UP THE UNIT CORRECTLY

19
The Renewables Division of TEV Ltd
Selecting a heat pump
20
Features Benefits of Heatking
The Renewables Division of TEV Ltd

• Heating Optimised Scroll Compressor
• No Inverter losses
• More efficient below 5oC
• Vapour Injection Technology
• 65ºC flow temp
• No direct electric heating used during defrost

21
Vapour Injected Compressors
The Renewables Division of TEV Ltd
Htg Flow
77C
Low pressure cold Gas
High pressure Hot Gas
-3C
Compressor
50C
Outside Air
Condenser
Evaporator
TEV
43C
Heat Exchanger
-5C
Htg Return
Low pressure Cold liquid/vapour
Thermostatic Expansion Valve (TEV)
22
Features Benefits of Heatking
The Renewables Division of TEV Ltd

• Single outdoor unit
• Saves internal space
• Buffer tank not mandatory

• Single Storey Construction - Fits below eye
  level of most window sills

23
Features Benefits of Heatking
The Renewables Division of TEV Ltd

• Local UK Manufacturer
• Proven UK Market Reliability
• Defrost Cycle optimised for UK Climate
• Running costs reduced by not requiring direct
  electric heating during defrost cycle

24
Features Benefits of Heatking
The Renewables Division of TEV Ltd

• No Buffer Tank Required
• Weather Compensation fitted as standard
• Experience of CESs client base and their
  requirements

25
Features Benefits of Heatking
The Renewables Division of TEV Ltd

• Built in Microprocessor
• Built in Isolator
• Option of 2kW Boost Heater
• 65oC Flow temperatures available with out direct
  electric heating boost

26
The Renewables Division of TEV Ltd
Example Installations (over 1300 sold to date)

• Esk Valley
• Metropolitan Housing Trust
• Kirklees Council
• Cornwall Rural H/A
• Cumbria (2 Valleys H/A)
• Perth Kinross
• Yorkshire Coast Homes
• High Wycombe Council
• Leeds MBC
• St. Leger Homes
• Maultway Homes
• Devonshire Homes

• Neath (Transco)
• Inverness
• East Riding Council
• West Lothian
• Calderdale
• Dunfermline
• Fort Augusta's
• Tain
• Charter Housing
• Monmouthshire Council
• Weavervale H/A
• Northern Ireland
• Republic of Ireland

27
Questions Answers
The Renewables Division of TEV Ltd
