Title: NCAR Command Language NCL

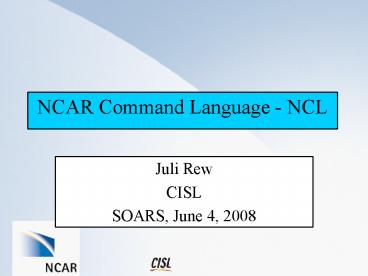

1
NCAR Command Language - NCL
  • Juli Rew
  • CISL
  • SOARS, June 4, 2008

2
What We Will Study
  • Overview of NCL
  • Strategies for Survival
  • Work with Example Programs

3
What is NCL?
  • NCAR Command Language is a complete programming
    language for processing data and producing
    high-quality 2D graphics
  • NCL commands can be run at the command line, or
    they can be placed in batch scripts

4
NCL History
  • NCL is built on top of NCAR Graphics, which was
    originally written in Fortran
  • NCAR Graphics was re-written in object-oriented
    form, and NCL works with graphical objects
  • Thanks to Mary Haley of the CISL Visualization
    and Technology Section for much of the training
    information given here

5
Why Use NCL?
  • Freely available
  • Easier to use than conventional programming
  • Competes well with expensive products such as IDL
  • Versatile - it can accept and output data in a
    variety of formats
  • Produces publication-quality graphics

6
Strategies for Survival
  • NCL has so many features that it can take a lot
    of time to master
  • NCL has around 800 functions
  • Before writing any new NCL code, look at the
    downloadable examples to see if one fits
  • GSUN tutorial http//www.ncl.ucar.edu/Document/Man
    uals/Getting_Started/
  • GSUN line-by-line examples www.ncl.ucar.edu/Docume
    nt/Manuals/Getting_Started/examples.shtml

7
Strategies for Survival, cont.
  • Use the gsn and csm libraries
  • Documentation is available online
    at http//www.ncl.ucar.edu/
  • Help from fellow users by joining ncl-talk_at_ucar.ed
    u
  • Subscribe at http//mailman.ucar.edu/mailman/list
    info/ncl-talk
  • Support Mary Haley (haley_at_ucar.edu, ML 35)

8
NCL Syntax
  • begin/end - to start/end scripts (optional)
  • - Comment
  • _at_ - Attribute, e.g., temperature_at_units Degrees
    C
  • Operators like Fortran - - , .le., .lt., etc.
  • All parameters are passed by reference (as in
    Fortran)

9
Arrays
  • Indexes start at 0 (similar to C)
  • 1D, integer a (/1,2,3/)
  • 2D, float b (/ (/1.1, .01/), /(.001,.0001/) /)
  • Whole-array syntax is like Fortran ab ab (more
    efficient than looping to copy array)

10
Syntax, cont.
  • Dimensions can be named temperature!0
    frtime temperature!1 lat temperature!2
    lon
  • Strings - enclosed in double quotes

11
Syntax, cont.
  • Coordinate variables - 1D arrays with same name
    and size as the dimensions they are assigned to -
    Represent data coordinates for each index of a
    named dimension - Must be monotonically
    increasing/decreasing temperaturefrtime
    forecast times temperaturelat
    lat_points temperaturelon lon_points
  • Coordinate subscripts temperature
    (0,2060,-95-120)

12
Graphics
  • We will emphasize graphics features here
  • Some examples of input and output to/from ASCII
    text and netCDF data files

13
Minimum Steps Needed to Create a Plot
  • Load necessary libraries
  • Open workstation to send graphics to
  • Change the color map (optional)
  • Set plot resources (optional)
  • Draw the graphics

14
1. Load the Necessary Libraries
  • load "NCARG_ROOT/lib/ncarg/nclscripts/csm/gsn_cod
    e.ncl"
  • load "NCARG_ROOT/lib/ncarg/nclscripts/csm/gsn_csm
    .ncl
  • First library contains generic interfaces and
    supplemental routines
  • Second library contains gsn_csm interfaces that
    use CSM conventions. Load order is important.
  • CSM conventions are accepted ways to label data,
    e.g., units

15
basic interface
metadata aware interface
16
2. Open graphics workstation
  • Can be PostScript (PS or EPS), PDF, X11 window,
    or NCAR CGM (NCGM)
  • Has a default color map associated with it, but
    you will probably want to change this (more
    later)
  • Can have up to 15 multiple workstations open

wks gsn_open_wks(x11,test) x11
window wks gsn_open_wks(ps,test)
test.ps wks gsn_open_wks(eps,wrf)
wrf.eps wks gsn_open_wks(pdf,slp)
slp.pdf
17
3. Change the color map (optl)
  • Do this before drawing anything to the frame.
  • If you use the same color map a lot, can put in
    .hluresfile (more later)
  • Can use one of the other 40 ones, or create your
    own.
  • If you dont change the color map, heres what
    youll get…

gsn_define_colormap(wks,rainbow)
18
Default color table (yuck)
19
4. Set optional resources
  • Resources are the heart of your NCL graphics
    code.
  • There are over 1,400 resources!
  • Resources are grouped by object type.
  • There are 11 graphical objects contours,
    labelbars, legends, maps, primitives,
    streamlines, text strings, tickmarks, titles,
    vectors, XY plots

20
Detour Anatomy of a resource
  • Starts with 2 or 3 lower-case letters based on
    object it is associated with. Some examples
  • xy - XY Plots cn - Contour plots
  • vc - Vector plots ti - Titles
  • tm - Tickmarks gsn - special resources not
    associated with any object
  • Made up of full words with first letter of word
    capitalized
  • xyLineColor, cnFillOn, tiMainString,
    vcRefMagnitudeF, gsnMaximize
  • Some have an F on the end to indicate a
    floating point resource xyLineThicknessF

21
Anatomy of a resource (contd)
  • Resources are set by attaching them as attributes
    to an NCL logical variable
  • res True
  • res_at_mpMinLatF 30 decimal not necessary
  • Most have default values.
  • There are many types
  • res_at_tiMainString This is a title
  • res_at_tmXBLabelFontHeightF 0.01
  • res_at_cnLineLabelsOn True
  • res_at_xyLineColors (/5,7,11/)
  • res_at_xyLineColors (/red, green, blue/)

http//www.ncl.ucar.edu/Document/Graphics/Resource
s/
22
5. Draw the graphics
  • Call one of the gsn_csm_xxxxx functions from the
    second library we loaded.
  • The general format is
  • plot gsn_csm_contour(wks,data,res)
  • plot gsn_csm_vector(wks,u,v,res)
  • plot gsn_csm_contour_map(wks,data,res)
  • plot gsn_csm_pres_hgt(wks,data,res)

http//www.ncl.ucar.edu/Document/Graphics/Interfac
es/
23
Now for Some NCL Graphics Code Examples
  • NCL scripts that follow can be downloaded from
    the web

http//www.ncl.ucar.edu/Training/Workshops/Scripts
/ Scripts have names like xy1a.ncl, xy1b.ncl,
… The first one is usually one with no resources
set, and each subsequent script adds a few more
resources.
24
Running NCL
  • setenv NCARG_ROOT /ncl-4.2.0.a034
  • Go to example NCL scripts directory cd SOARS/NCL
  • To run these scripts ncl xy1a.ncl
  • Lets look at whats in our first script using
    vi vi xy1a.ncl

25
Example xy1b.ncl gsn_csm_y
  • Line color changed
  • (using color index values)
  • Default color map used
  • Resource introduced
  • xyLineColor - sets curve color

26
Example xy1c.ncl gsn_csm_xy
  • X values added
  • Line color changed (using named color)
  • Line thickness increased
  • long_name attributes set
  • Resource introduced
  • xyLineThicknessF - sets line thickness

27
Example xy1d.ncl gsn_csm_xy
  • Axes limits changed
  • Resources introduced
  • trYMinF, trYMaxF, trXMinF, trXMaxF - sets mins
    and maxes for X and Y axes (transformation
    resources)
  • These resources can also apply to contour,
    vector, and streamline plots

28
Example xy1e.ncl gsn_csm_xy
  • Dash pattern set for curve
  • Title resources set
  • Resources introduced
  • xyDashPattern - sets dash pattern for curve (17
    available)
  • tiMainString, tiXAxisString, tiYAxisString - sets
    strings for axes and main title, can also be used
    for contour, vector, etc, plots
  • If have both long_name attributes and tiX/YString
    set, ti resources will take effect

29
Example xy1f.ncl gsn_csm_xy
  • Explicitly set the bottom tickmark labels
  • Resources introduced
  • tmXBMode, tmXBValues, tmXBLabels - sets strings
    for bottom tickmarks
  • Note about tickmark resources all four sides of
    the axes have their own set of tickmarks, for
    example
  • tmYLMode (Y left), tmYRMode (Y right), tmXTMode
    (X top)

30
Example rose_1.ncl
  • Generating some bogus wind data
  • Each array entry has two components wind speed
    and wind direction
  • There is a special function for creating wind
    roses, called WindRoseBasic
  • Data will be written to an ASCII file
  • This example online at http//www.ncl.ucar.edu/App
    lications/rose.shtml

31
Example rose_1a.ncl
  • Now we are reading our data from an ASCII file
    called Bogus.dat that we created previously
  • Recall that there are two components to each
    array entry

32
Example contour.ncl
  • This example reads from a netCDF file and
    contours the temperature fields
  • Fourth plot uses a predefined color table
    see www.ncl.ucar.edu/Document/Graphics/color_table
    _gallery.shtml
  • Original example online at www.ncl.ucar.edu/Docum
    ent/Manuals/Getting_Started/Examples/gsun02n.shtml

33
Animation
  • Animate NCL image files using idt (part of NCL)
  • Movies Save series of images to Postscript
    files. Convert images to mpg using convert
    utility of ImageMagick
  • Or use utility such as ncview to view netCDF data
    file
  • Example movie http//www.cisl.ucar.edu/docs/hpc_m
    odeling/graphics.jsp

34
More Training Available
  • NCL Workshop this summer July 8-11
  • Register by July 1
  • Info http//www.ncl.ucar.edu/Training/Workshops/
