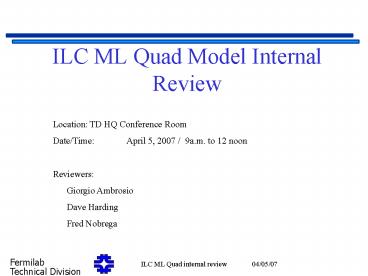

ILC ML Quad Model Internal Review

1
ILC ML Quad Model Internal Review
Location TD HQ Conference Room Date/Time April
5, 2007 / 9a.m. to 12 noon Reviewers Giorgio
Ambrosio Dave Harding Fred Nobrega
2
Purpose of Review

• Evaluation of Main Linac Quadrupole Model Magnet
  program by local but independent magnet experts,
  prior to construction and test
• Comment on design approach to
• Assure that magnet meets design specification,
  for field quality, mechanical support and quench
  protection
• Comment on readiness to start construction
• Are their enough resources to complete this task?
• Time permitting, comment on test plans for
  magnet, primarily for VMTF test

3
Agenda

• Intro and Scope M. Lamm
• Charge to the Committee M. Lamm
• ML Quad Requirements N. Solyak
• and Specs
• Model Magnet Design Vl. Kashikhin
• Magnet Schedule and Cost Vl. Kashikhin
• Test Plans G. Velev, J. DiMarco, and M.
  Lamm
• Report writing/final comments

4
Charge for Committee

• Is the basic conceptual design suitable for the
  application?
• Is the mechanical analysis appropriate?
• Is the insulation scheme proposed sufficiently
  robust?
• Will the coil remain supported following cool
  down, during excitation?
• Is the magnetic design reasonable?
• Considering field quality requirements
• Considering field stability requirements
• Is the magnet quench protection sufficient
• During normal operation
• During test operation in VMTF (i.e. extraction
  circuit needed?)
• Are there sufficient resources to build and test
  this magnet in FY07 (need to fix this date)
• Do any of the above preclude proceeding with the
  model coil?
• Is the test program/plan sufficient
• For this first test in VMTF

5
Committee Report

• Please provide written report summarizing
• How the present plans satisfy the review charge
• Action items
• Suggestions or points to consider to improve
  design
• Recommendations
• Issues important to the committee
• Is the magnet program ready to proceed?
• Will try to finish review so that there is time
  for executive session and report writing
• If possible, write final report in the next two
  weeks.
