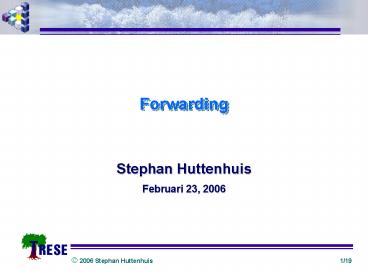

Forwarding

1
Forwarding

• Stephan Huttenhuis
• Februari 23, 2006

2
Contents

• Forwarding in Patterns
• The Self Problem
• Different Types of Forwarding
• Class- vs. Prototype-based OO Languages
• Forwarding in Compose
• Final Remarks

3
Forwarding in Patterns

• Some design patterns make heavy use of forwarding

4
Forwarding

• Allows adding new behaviour (strategy)
• Allows changing behaviour at run-time (strategy).
• The consequence is that a conceptual entity
  (strategy) is split among several classes (i.e.
  Context and a ConcreteStrategy).

5
Self Problem

• Pseudo-variable Self (this in Java) is used to
  indicate the receiver of a request.
• The receiver object (Context) forwards a message
  to another object (Strategy).
• Self is rebound and it is no longer possible to
  access the original receiver through Self. This
  is known as the Self problem.

6
Self Problem example (1)
7
Self Problem example (2)
This points to the QuickSort object, but
should point to the Sorter object.
8
Self Problem Simulation

• A workaround is to send the receiver object
  (Sorter) as an argument. This is called true
  delegation Gamma et al., 95.
• It changes the sort method signature.
• It reduces reusability because a specific type is
  passed or a cast is needed (in statically-typed
  languages).

9
Different types of forwarding

• How is the Self-pseudo variable bound?
• Bound to the object that receives a request.
• What is the receiver depends on point of view.
• How is the message forwarded?
• Explicitly repeat method call
• Automatically by defined parents
• Supported by different language constructs

10
Different types of forwarding

• From Günter Kniesel - Dynamic Object-Based
  Inheritance with Subtyping

E.g. A message sorter.sort() is send, it
is forwarded to strategy.sort()
11
Class-based OO languages

• Most mainstream OO languages
• Classes
• Object creation by class instantiation
• Behaviour sharing by inheritance
• Object state sharing is difficult
• Message passing for method invocation
• Resending is used for forwarding

12
Prototype-based OO languages

• Some OO languages like Self (http//research.sun.c
  om/self/)
• Object creation by cloning
• Object structure change
• Behaviour and state sharing by delegation
• Both behaviour and state are slots
• Parent link
• Message passing for method invocation
• Delegation is used for forwarding

13
Resending

• All methods must be defined on the interface of
  the original receiver.
• Forward methods require a lot of work.
• Cannot implement evolving object behavior i.e.
  need recompilation.
• Self problem.
• Conversion of method call is easy e.g. change
  method name

14
Delegation

• No conversion of a method call without resorting
  to resending or explicit delegation.
• Automatic forwarding
• Enables a conceptual entity to be separated
  into multiple objects, while operating as a
  single object.

15
Delegation in Compose

• Name Matching and Signature Matching
• No Self-problem
• The original receiver can be retrieved by
  MessageInfo.getMessageInfo().getServer(). But we
  need a cast to the actual type.
• The method holder can be accessed by Self in the
  base language.

16
Name Matching
17
Signature matching
18
Name vs. Signature matching

• Name matching
• Similar to resending / explicit delegation
• One forward definition per method selector (per
  condition)
• Signature matching
• Similar to consultation / automatic delegation
  (need cast)
• One forward definition per parent object (per
  condition)
• No need to implement forward methods
• Associative delegation can improve condition
  situation

19
Final Remarks

• Forwarding is used in several patterns.
• Forwarding and delegation are often misleading
  terms.
• Compose supports delegation. This is a benefit
  compared to Java and AspectJ.
• Language constructs influences the pattern
  implementations.
