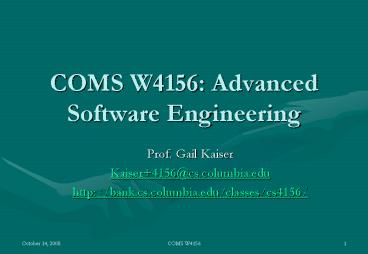

COMS W4156 Advanced Software Engineering
  • Prof. Gail Kaiser
  • http//

Topics covered in this lecture
  • Software Quality
  • Refactoring
  • Verification and Validation

Software Quality
Quality is Hard to Pin Down
  • Concise, clear definition is elusive
  • Not easily quantifiable
  • Many things to many people
  • You'll know it when you see it
  • Often defined as set of ilities (attributes)

Good Quality Software Has (according to Robert
  • Understandability
  • The ability of a reader of the software to
    understand its function
  • Critical for maintenance
  • Modifiability
  • The ability of the software to be changed by that
  • Almost defines "maintainability"

Good Quality Software Has (according to Robert
  • Reliability
  • The ability of the software to perform as
    intended without failure
  • If it isn't reliable, the maintainer must fix it
  • Efficiency
  • The ability of the software to operate with
    minimal use of time and space resources
  • If it isn't efficient, the maintainer must
    improve it

Good Quality Software Has (according to Robert
  • Portability
  • The ease with which the software can be made
    useful in another environment
  • Porting is usually done by the maintainer
  • Testability
  • The ability of the software to be tested easily
  • Finding/fixing bugs is part of maintenance
  • Enhancements/additions must also be tested

Good Quality Software Has (according to Robert
  • Usability
  • The ability of the software to be easily used
    (human factors)
  • Not easily used implies more support calls,
    enhancements, corrections
  • Notice all related to maintenance but these
    qualities need to be instilled during development

Approaches to Achieving Quality
  • Continuous refactoring
  • Verification and validation
  • Buy rather than build
  • Open source software
  • Software process and process improvement
  • …

What is Refactoring?
  • The process of changing the source code of a
    software system such that
  • The external (observable) behavior of the system
    does not change - e.g., functional and
    extra-functional requirements are maintained
  • But the internal structure of the system is

How improved?
  • Maintainability!
  • Easier to read and understand
  • Easier to (further) modify
  • Easier to integrate
  • Easier to test

Simple Example Consolidate Duplicate Conditional
  • This
  • if (isSpecialDeal())
  • total price 0.95
  • send()
  • else
  • total price 0.98
  • send()
  • Becomes this
  • if (isSpecialDeal())
  • total price 0.95
  • else
  • total price 0.98
  • send()

Why is it called Refactoring?
  • By analogy to the factorization of polynomials
  • For example,
  • x2 - x - 2
  • can be factored as
  • (x 1)(x - 2)
  • revealing an internal structure that was
  • previously not visible (two roots at -1 and 2)
  • Similarly, in software refactoring, the change in
  • visible structure can often reveal the "hidden
    internal structure of the original code

Refactoring Process
  • A disciplined technique for restructuring an
    existing body of code, altering its internal
    structure without changing its external behavior
  • Series of small behavior-preserving
  • Each transformation does little, but a sequence
    of transformations can produce a significant
  • Since each refactoring is small, it's less likely
    to go wrong
  • The system is also kept fully working after each
    small refactoring (via regression testing),
    reducing the chances that a system can get
    seriously broken during the restructuring

Example Extract Method
  • You have a code fragment that can be grouped
  • Turn the fragment into a method whose name
    explains the purpose of the fragment
  • void printOwing(double amount)
  • printBanner()
  • //print details
  • System.out.println(name _name)
  • System.out.println(amount amount)
  • void printOwing(double amount)
  • printBanner()
  • printDetails(amount)
  • void printDetails(double amount)
  • System.out.println(name _name)
  • System.out.println(amount amount)

Example Replace Temp with Query
  • You are using a temporary variable to hold the
    result of an expression
  • Extract the expression into a method
  • Replace all references to the temp with the
    method call
  • The new method can then be used in other methods

double basePrice _quantity _itemPrice if
(basePrice gt 1000) return basePrice
0.95 else return basePrice 0.98
if (basePrice() gt 1000) return basePrice()
0.95 else return basePrice() 0.98 … double
basePrice() return _quantity _itemPrice
Example Introduce Null Object
  • Repeated checks for a null value
  • Replace the null value with a null object

if (customer null) name occupant else
name customer.getName() if (customer
null) …
public class nullCustomer public String
getName() return occupant … custome
Example Exploit Polymorphism
  • Generally, polymorphism is the ability to appear
    in many forms
  • In OO, polymorphism refers to a programming
    language's ability to process objects differently
    depending on their data type or class
  • More specifically, it is the ability to redefine
    methods for derived classes (subclasses)

  • double getSpeed()
  • switch (_type)
  • case EUROPEAN
  • return getBaseSpeed()
  • case US
  • return getBaseSpeed() / 1.6
  • case BRITISH
  • if (getDate() lt new Year(1990))
  • return getBaseSpeed() / 1.6
  • else return getBaseSpeed()
  • throw new RuntimeException
  • ("Should be unreachable")

Refactoring is Incremental Redesign
  • The idea behind refactoring is to acknowledge
    that it will be difficult to get a design right
    the first time
  • And as a programs requirements change, the
    design may need to change
  • It is notoriously difficult (impossible?) to
    design for all possible changes a priori
  • And as agile programming proponents say, You
    aint gonna need it but what if later you do?
  • Refactoring provides techniques for evolving the
    design in small incremental steps

Refactoring Benefits
  • Often code size is reduced after refactoring
  • Confusing structures are transformed into simpler
    structures - which are easier to maintain (and
    often easier to unit test)
  • Promotes a deeper understanding of the code -
    which aids in finding bugs and anticipating
    potential bugs

Contrast with Performance Optimization
  • Again functionality is not changed, only internal
  • However, performance optimizations often involve
    making code harder to understand (but faster!)
  • Use more efficient but more complicated
    algorithms and data structures
  • Lose generality to address specific issues of the
    implemented solution
  • Use profiling tools to determine the 10-20 of
    the code requiring 80-90 of the CPU cycles
    optimize that code, refactor all the other code

When to Refactor?
  • When you add new functionality
  • Do it before you add the new function, to make it
    easier to add the function
  • Or do it after you add the function, to clean up
    the code including that function
  • When you need to fix a bug
  • As you do a code review
  • Whenever…

Why to Refactor?
  • General goal is maintainability
  • Enhance clarity, understandability,
    modifiability, integratability, testability
  • Very often refactoring is about
  • Increasing cohesion
  • Decreasing coupling

Cohesion and Coupling
  • Cohesion is a property or characteristic of an
    individual unit
  • Coupling is a property of a collection of units
  • High cohesion GOOD, high coupling BAD
  • Design for change
  • You don't want a change in one unit (component,
    class, method) to cause errors to ripple
    throughout your system
  • Make units highly cohesive, seek low coupling
    among units

What to Refactor?
  • Duplicated Code
  • Bad because if you modify one instance of
    duplicated code but not all the others, you (may)
    have introduced a bug!
  • Switch Statements
  • Often duplicated in code, can typically be
    replaced by use of polymorphism (in OO languages)

What to Refactor?
  • Long Method
  • More difficult to understand
  • Performance concerns with respect to lots of
    short methods are largely obsolete
  • Long Parameter List
  • Hard to understand, can become inconsistent
  • Large Class
  • Trying to do too much, which reduces cohesion

What to Refactor?
  • Divergent Change
  • One type of change requires changing one subset
    of methods in the module, another type of change
    requires changing another subset
  • Shotgun Surgery
  • A change requires lots of little changes in a lot
    of different classes
  • Parallel Inheritance Hierarchies
  • Each time you add a subclass to one hierarchy,
    you need to do it for all related hierarchies

What to Refactor?
  • Lazy Class
  • A class that no longer pays its way, e.g., a
    class that was downsized by previous refactoring,
    or represented planned functionality that did not
    pan out
  • Middle Man
  • If a class is delegating more than half of its
    responsibilities to another class, do you really
    need it?

What to Refactor?
  • Speculative Generality
  • Oh I think we need the ability to do this kind
    of thing someday
  • Alternative Classes with Different Interfaces
  • Two or more methods do the same thing but have
    different signature for what they do

What to Refactor?
  • Primitive Obsession
  • Characterized by a reluctance to use classes
    instead of primitive data types
  • Temporary Field
  • An attribute of an object is only set in certain
    circumstances - but an object should need all of
    its attributes

What to Refactor?
  • Feature Envy
  • A method requires lots of information from some
    other class
  • Data Clumps
  • Attributes (e.g., method parameters) that clump
    together but are not part of the same class

What to Refactor?
  • Message Chains
  • A client asks an object for another object and
    then asks that object for another object, etc.
  • getA().getB().getC().getD().getE().doSomething()
  • Bad because client depends on the structure of
    the navigation
  • Inappropriate Intimacy
  • Pairs of classes that know too much about each
    others private details

What to Refactor?
  • Data Class
  • Classes that have fields, getting and setting
    methods for the fields, and nothing else
  • They are data holders, but objects should be
    about data and behavior (with some exceptions,
    e.g., entity beans)
  • Refused Bequest
  • A subclass ignores most of the functionality
    provided by its superclass

What to Refactor?
  • Incomplete Library Class
  • An infrastructure class doesnt do everything you
  • Comments (!)
  • Comments are sometimes used to decorate bad
  • / This is a gross hack /

But Refactoring can be Dangerous
  • If programmers spend time cleaning up the code,
    then thats less time spent implementing required
    functionality - and the schedule is slipping as
    it is!
  • Refactoring can break code that previously worked
  • Refactoring needs to be systematic, incremental,
    and safe

How to Make Refactoring Safe?
  • Use refactoring patterns
  • Catalog at http//
  • Mostly taken from Fowlers book
  • Use refactoring tools
  • Long list at http//
  • Test constantly!
  • Regression testing

Regression Testing After Changes
  • Can be unit tests or a combination of unit and
    integration tests
  • Change is successful, and no new errors are
  • Change does not work as intended, and no new
    errors are introduced
  • Change is successful, but at least one new error
    is introduced
  • Change does not work, and at least one new error
    is introduced

Other Difficulties with Refactoring
  • Some refactorings require that interfaces be
  • If you own all the calling code, need to change
    everywhere the interface is used
  • If not, the interface is published and cant
    change (or shouldnt)
  • Business applications are often tightly coupled
    to underlying database schemas
  • Virtually impossible to reorganize a database
    schema unless the underlying database automates
    the corresponding table/row/column
    transformations (or your database is empty)

Other Difficulties with Refactoring
  • Dealing with hardware devices is worse than
    databases and other external software interfaces
  • Software can change, the hardware (usually)
  • Real-time or other timing-dependent applications
  • Refactored code will not necessarily run within
    previous time bounds

  • Refactor often
  • Refactor as you go
  • Simplest version of refactoring add comments,
    rename local variables and parameters more
  • Regression test after every refactoring

Verification and Validation
Quality Assurance Verification and Validation
  • Validation Are we building the right product?
  • QA at requirements and design level concentrates
    on validation ensures that the product will
    actually meet the user's need
  • Verification Are we building the product right?
  • QA at code level concentrates on verification
    ensures that the product has been built according
    to the requirements and design specifications
    (only useful if the specifications were correct
    in the first place)

VV Techniques
  • Standards (ISO 9001, SEI CMMI)
  • Metrics (Six Sigma)
  • Reviews (inspections, static analysis)
  • Testing
  • Whole lifecycle process applied at each stage

Inspection Overview
  • Also known as walkthrough
  • An approach to testing that does not actually
    execute the code
  • Formal process for reading through the software
    product as a group and identifying defects
  • Potentially applied to all project documents
    including but not limited to source code
  • Used to increase software quality and improve
    productivity and manageability of the development

Static Analysis Overview
  • Software tools parse the program text and try to
    discover potentially erroneous conditions (e.g.,
  • Control flow analysis Checks for loops with
    multiple exit or entry points, finds unreachable
    code, etc.
  • Data use analysis Detects uninitialized
    variables, variables written twice without an
    intervening assignment, variables that are
    declared but never used, etc.
  • Interface analysis Checks the consistency of
    type, method, etc. declarations and their use
  • Should occur prior to inspection or testing

Why Test?
  • No matter how well software has been designed and
    coded, it will inevitably still contain defects
  • Testing is the process of executing a program
    with the intent of finding faults (bugs)
  • A successful test is one that finds errors, not
    one that doesnt find errors
  • Testing can prove the presence of faults, but
    can not prove their absence (unless the program
    is so trivial that it can be exhaustively tested)
  • But can increase confidence that a program works

What to Test?
  • Unit test test of small code unit start with
    individual methods, build up to class (and class
    hierarchy if applicable), then component
  • Integration test test of several units combined
    to form a (sub)system, preferably adding one unit
    at a time
  • System (alpha) test test of a system release by
    independent system testers
  • Acceptance (beta) test test of a release by
    end-users or their representatives

When to Test?
  • Early
  • Agile programming developers write unit test
    cases before coding each unit (test-driven
  • Many software processes involve writing
    system/acceptance tests in parallel with
  • Often
  • Regression testing rerun unit, integration and
    system/acceptance tests
  • After refactoring
  • Throughout integration
  • Before each release

Who should Test?
  • Argument Software authors should not test their
    own code because
  • Testers who dont believe they will find faults
    generally dont find many faults (cognitive
  • Testers who have to fix any faults they find
    dont tend to find very many (avoidance behavior)
  • Coders want code to be fault free, but effective
    testers must want to find faults (conflict of
  • However, code authors usually do unit tests and
    often integration tests
  • Separate independent team usually does system
    tests and/or acceptance tests

Defining a Test
  • Goal the aspect of the system being tested
  • Input specify the actions and conditions that
    lead up to the test as well as the input (state
    of the world, not just parameters) that actually
    constitutes the test
  • Outcome specify how the system should respond
    or what it should compute, according to its

Test Harness (Scaffolding)
  • test driver - supporting code and data used to
    provide an environment for invoking part of a
    system in isolation
  • stub - dummy procedure, module or unit that
    stands in for another portion of a system,
    intended to be invoked by that isolated part of
    the system
  • May consist of nothing more than a function
    header with no body
  • If a stub needs to return values, it may read and
    return test data from a file, return hard-coded
    values, or obtain data from a user (the tester)
    and return it

Unit Testing Overview
  • Unit testing is testing some program unit in
    isolation from the rest of the system (which may
    not exist yet)
  • Usually the programmer is responsible for testing
    a unit during its implementation (even though
    this violates the rule about a programmer not
    testing own software)
  • Easier to debug when a test finds a bug (compared
    to full-system testing)

Integration Testing Overview
  • Motivation Units that worked in isolate may not
    work in combination
  • Performed after all units to be integrated have
    passed all black box unit tests
  • Reuse unit test cases that cross unit boundaries
    (that previously required stub(s) and/or driver
    standing in for another unit)

System/Acceptance Testing Overview
  • Full system, from end-user (or other external
    role) input/output perspective
  • Lab testing vs. field testing
  • Consider interoperability with customer software
    and hardware configurations
  • Additional factors security, performance,

How do you know when you are done testing?
  • Adequacy criteria (coverage metrics) all
    statements, all branches, all control flow paths,
    all data flow paths
  • All programmed error messages and exceptions have
    been produced
  • Have reached tail of defect density curve
  • Confidence established that the software is fit
    for its purpose, good enough

Defect Density Curve
Final Notes
Reminder Second Progress Report due next week!
  • Second Progress Report due October 21st
  • Post in CourseWorks in your TEAM folder

Upcoming Deadlines
  • Second Progress Report due October 21st
  • Demos October 27th - November 6th (schedule early
    with your TA)
  • First Iteration Final Report due November 7th
  • Midterm Individual Assessment will be posted by
    November 7th, due November 14th

COMS W4156 Advanced Software Engineering
  • Prof. Gail Kaiser
  • http//
